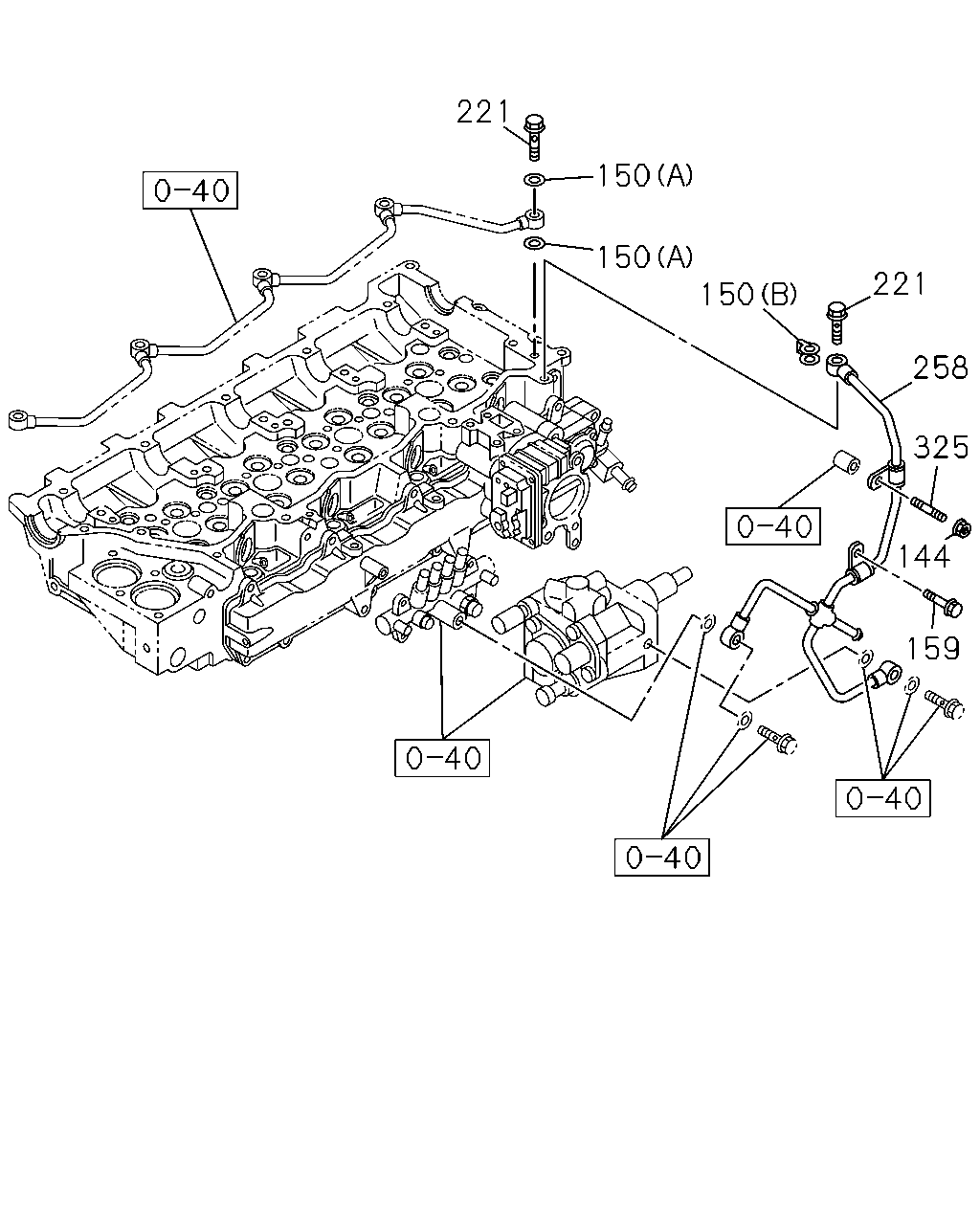

0-42B — FUEL PUMP AND PIPE (#22580) — 18 parça

221 150 150 150 221 258 325 144 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
144	03.162 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0507-0602	●
144	03.162 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606	●
144	03.162 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0507-0606	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0607-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (B) ID=10.6	8-97240-975-0	01	1	0507-0606	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (B) ID=10.6	8-97240-975-0	01	1	0607-0908	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	0909-	●	●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0507-0512	●
159	03.162 BOLT; CLIP M6X12 FLANGE	0-28050-612-0	01	1	0601-0606	●
159	03.162 BOLT; CLIP M6X12 FLANGE	0-28050-612-0	01	1	0607-	●	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	0507-0606	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	0607-	●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF	8-97372-231-0	01	1	0507-0606	●
258	03.163 PIPE ASM; FUEL,LEAK OFF	8-97372-231-0	01	1	0607-	●	●
325	03.278 STUD; CLIP 01.453 M6X40 L=50	9-04110-640-0	01	1	0507-0604	●
325	03.278 STUD; CLIP M6X40 L=50	0-41010-640-0	01	1	0605-0606	●
325	03.278 STUD; CLIP M6X40 L=50	0-41010-640-0	01	1	0607-	●	●
