8-10 — WIRING HARNESS AND FUSE (#2258) — 41 parça

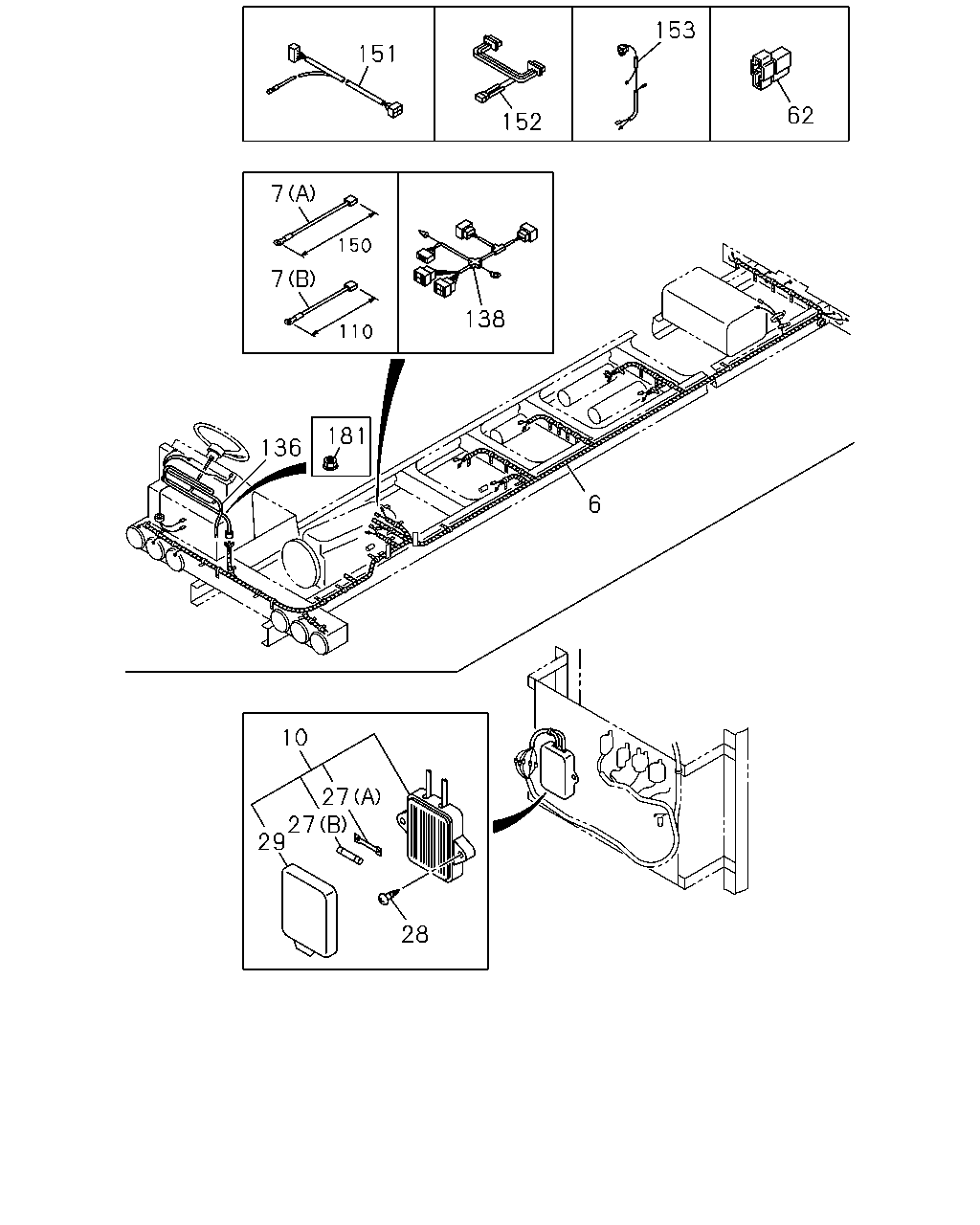

çizim 94227
153 151 62 152 7 7 138 181 136 6 10 27 27 29 28
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
WHEEL BASE 4600MM(46W) 		1-82634-317-4 01 1 9101- ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) USER DAEWOO MOTORS<D4S> 		1-82635-854-2 01 1 9101-0203 ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) EXC. USER DAEWOO MOTORS<D4S> 		1-82634-318-4 01 1 9101-0203 ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) 		1-82634-318-4 01 1 0204- ●
6 HARNESS; FRAME
WHEEL BASE 6000MM(60W) BUS USER THAILAND BMTA<D5B> 		1-82636-745-2 01 1 9101-0203 ●
6 HARNESS; FRAME
WHEEL BASE 6000MM(60W) EXC. BUS USER THAILAND BMTA<D5B> 		1-82637-836-2 01 1 9101-0203 ●
6 HARNESS; FRAME
WHEEL BASE 6000MM(60W) 		1-82637-836-2 01 1 0204- ●
6 HARNESS; FRAME
WHEEL BASE 4600MM(46W) TACHOMETER<UD7> TAIWAN EQUIPMENT(WW5) 		1-82634-451-4 01 1 9101-0203 ●
6 HARNESS; FRAME
WHEEL BASE 4600MM(46W) EXC. TACHOMETER<UD7> 		1-82634-320-4 01 1 9101-0203 ●
6 HARNESS; FRAME
WHEEL BASE 4600MM(46W) TACHOMETER<UD7> EXC. TAIWAN EQUIPMENT(WW5) 		1-82634-320-4 01 1 9101-0203 ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) TACHOMETER<UD7> TAIWAN EQUIPMENT(WW5) 		1-82634-452-4 01 1 9101-0203 ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) EXC. TACHOMETER<UD7> 		1-82634-321-4 01 1 9101-0203 ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) TACHOMETER<UD7> EXC. TAIWAN EQUIPMENT(WW5) 		1-82634-321-4 01 1 9101-0203 ●
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) 		1-82634-321-4 01 1 0204- ●
7 LINK ASM; FUSIBLE
(B) 		1-82659-005-0 01 1 9101- ● ●
7 LINK ASM; FUSIBLE
(A) 		1-82659-031-1 01 1 9101- ● ●
10 BOX; FUSE,HARNESS 1-82510-192-3 01 1 9101- ● ●
27 FUSE UNIT
(A) 30A 		1-82516-001-0 06 1 9101- ● ●
27 FUSE UNIT
(B) 10A YELLOW 		9-82941-136-0 13 1 9101- ● ●
27 FUSE UNIT
(B) 15A BLUE 		9-82941-137-0 20 1 9101- ● ●
28 SCREW; FUSE BOX 9-03910-625-0 02 1 9101- ● ●
29 COVER; FUSE BOX 1-82513-011-0 01 1 9101- ● ●
62 DIODE; HARNESS
BUS USER THAILAND BMTA<D5B> 		8-94136-639-0 02 1 9101-0203 ●
136 HARNESS; DASH
BUS USER THAILAND BMTA<D5B> 		1-82624-313-1 01 1 9101-0203 ●
136 HARNESS; DASH
INDICATOR SYSTEM WARNING LIGHTS<UH1> EXC. BUS USER THAILAND BMTA<D5B> 		1-82623-056-1 01 1 9101-0203 ●
136 HARNESS; DASH
EXC. BUS USER THAILAND BMTA<D5B>,FOG LAMPS DELETE<SJE>,INDICATOR SYSTEM WARNING LIGHTS<UH1> 		1-82622-656-2 01 1 9101-0203 ●
136 HARNESS; DASH
TAIWAN EQUIPMENT(WW5) EXC. FOG LAMPS DELETE<SJE>,TACHOMETER<UD7> 		1-82622-656-2 01 1 9101-0203 ●
136 HARNESS; DASH
EXC. FOG LAMPS DELETE<SJE>,TAIWAN EQUIPMENT(WW5) 		1-82622-656-2 01 1 9101-0203 ●
136 HARNESS; DASH
FOG LAMPS DELETE<SJE> EXC. BUS USER THAILAND BMTA<D5B> 		1-82623-682-1 01 1 9101-0203 ●
136 HARNESS; DASH
FOG LAMPS DELETE<SJE> 		1-82623-682-1 01 1 9101-0203 ●
136 HARNESS; DASH 1-82622-656-2 01 1 0204- ● ●
136 HARNESS; DASH
TACHOMETER<UD7> TAIWAN EQUIPMENT(WW5) 		1-82622-842-2 01 1 9101-0203 ●
138 HARNESS; SUB HTR
HEATER&DEFROSTER(C41) 		1-82623-513-0 01 1 9101- ● ●
151 HARNESS; DEFROSTER
AUXILIARY HEATER<C36> 		1-82621-467-0 01 1 9101-0203 ● ●
152 HARNESS; WIPER
WIPER MOTOR KIT<ST7> EXC. USER DAEWOO MOTORS<D4S> 		1-82621-295-0 01 1 9101-0203 ● ●
152 HARNESS; WIPER
WIPER MOTOR KIT<ST7> 		1-82621-295-0 01 1 0204- ● ●
153 HARNESS; WASHER TANK
WINDSHIELD WASHER<C11> EXC. USER DAEWOO MOTORS<D4S> 		1-82620-467-0 01 1 9101-0203 ● ●
153 HARNESS; WASHER TANK
WINDSHIELD WASHER<C11> 		1-82620-467-0 01 1 0204- ● ●
181 NUT; GLOW PLUG HARNESS
EXC. GLOW PLUG DELETE<E4D> M4 FLANGE 		5-09440-007-0 01 1 9101-0203 ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 9101-0203 ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 0204- ● ●
