Sayfa 0-41A - Isuzu EPC

0-41A — FUEL FILTER AND BRACKET (#22577) — 174 parça

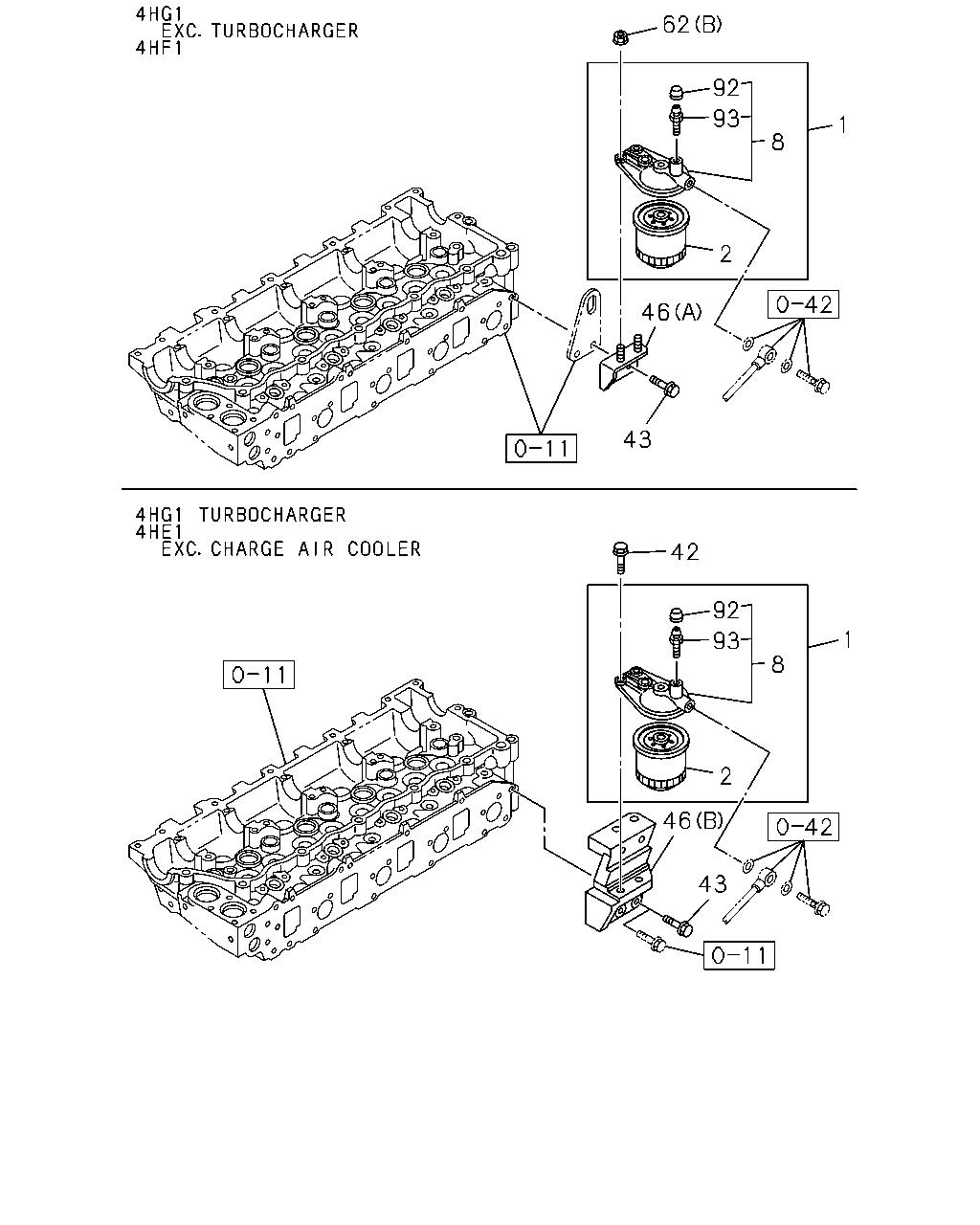

62 1 46 43 8 2 116 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	0211-0501	●
1	03.890 FILTER ASM; FUEL EXC. ENGINE POWER N-SPEC(7QV)	8-97171-451-2	01	1	0211-0501		●
1	03.890 FILTER ASM; FUEL EXC. CHARGE AIR COOLER<6PL>	8-97171-451-2	01	1	0211-0501			●
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	0502-	●	●		●
1	03.890 FILTER ASM; FUEL CHARGE AIR COOLER<6PL>	1-13200-890-3	01	1	0211-0501			●
1	03.890 FILTER ASM; FUEL	1-13200-890-4	01	1	0502-					●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0211-0501	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-549-1	01	1	0211-0501		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-549-1	01	1	0211-0501			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0502-	●	●		●
2	03.890 ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	5-87610-041-0	01	1	0211-0501	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS	5-87610-041-0	01	1	0211-0501		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL> BEST VALUE PARTS	5-87610-041-0	01	1	0211-0501			●
2	03.890 ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	5-87610-041-0	01	1	0502-	●	●		●
2	03.890 ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	1-87610-053-1	01	1	0804-					●	●
2	03.890 ELEMENT KIT; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13240-079-1	01	1	0211-0501			●
2	03.890 ELEMENT KIT; FUEL FILTER	1-13240-079-1	01	1	0502-0803					●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-98036-654-0	01	1	0804-					●	●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	0211-0501	●
8	03.890 COVER; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-543-1	01	1	0211-0501		●
8	03.890 COVER; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-543-1	01	1	0211-0501			●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	0502-	●	●		●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-159-2	01	1	0211-0501			●
8	03.890 COVER; FUEL FILTER	1-13212-159-2	01	1	0502-					●	●
43	03.890 BOLT; BRKT 00.029 M12X25 FLANGE	0-28151-225-0	02	1	1406-				●
43	03.890 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0211-0501	●	●
43	03.890 BOLT; BRKT EURO3 SPECIFICATION(NT3) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0211-0501			●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0502-0506	●	●		●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0507-	●	●		●
43	03.890 BOLT; BRKT EURO3 SPECIFICATION(NT3) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0507-						●
43	03.890 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) M12X25	0-28781-225-0	02	1	0211-0501			●
43	03.890 BOLT; BRKT M12X25	0-28781-225-0	02	1	0502-0506					●	●
43	03.890 BOLT; BRKT EXC. EURO3 SPECIFICATION(NT3) M12X25	0-28781-225-0	02	1	0507-0512					●	●
43	03.890 BOLT; BRKT EXC. EURO3 SPECIFICATION(NT3) 09.181 M12X25 FLANGE	0-28751-225-0	02	1	0601-					●	●
46	03.890 BRACKET TURBOCHARGER(K51) (B)	8-97061-452-0	01	1	0211-0501	●
46	03.890 BRACKET EXC. CHARGE AIR COOLER<6PL> (B)	8-97061-452-0	01	1	0211-0501			●
46	03.890 BRACKET (B)	8-97061-452-0	01	1	0502-1405				●
46	03.890 BRACKET EXC. TURBOCHARGER(K51) (A)	8-94313-323-1	01	1	0211-0501	●
46	03.890 BRACKET EXC. ENGINE POWER N-SPEC(7QV) (A)	8-94313-323-1	01	1	0211-0501		●
46	03.890 BRACKET (A)	8-94313-323-2	01	1	0502-1405	●	●
46	03.890 BRACKET (A)	8-94313-323-2	01	1	1406-	●	●		●
46	03.890 BRACKET CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (C)	8-97148-962-2	01	1	0211-0501			●
46	03.890 BRACKET (C)	8-97148-962-2	01	1	0502-0506					●	●
46	03.890 BRACKET EXC. EURO3 SPECIFICATION(NT3) (C)	8-97148-962-2	01	1	0507-					●	●
46	03.890 BRACKET EURO3 SPECIFICATION(NT3) (D)	8-97241-009-2	01	1	0211-0501			●
46	03.890 BRACKET EURO3 SPECIFICATION(NT3) (D)	8-97241-009-2	01	1	0507-1103						●
46	03.890 BRACKET EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97241-009-2	01	1	1104-						●
62	03.895 NUT; FUEL FILTER EXC. TURBOCHARGER(K51) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0501	●
62	03.895 NUT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0501		●
62	03.895 NUT; FUEL FILTER CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0501			●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0502-0602	●	●			●	●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-1405	●	●			●	●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1406-	●	●		●	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0211-0501	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0502-0602	●	●		●	●	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●		●	●	●	●
116	03.407 STUD; BRKT,FUEL FILTER EURO3 SPECIFICATION(NT3) 03.275 M10X25 L=40	0-49841-025-0	02	1	0211-0501			●
116	03.407 STUD; BRKT,FUEL FILTER EURO3 SPECIFICATION(NT3) 03.275 M10X25 L=40	0-49841-025-0	02	1	0507-0512						●
116	03.407 STUD; BRKT,FUEL FILTER EURO3 SPECIFICATION(NT3) 01.837 M10X25 L=48.5	0-49241-025-0	02	1	0601-1103						●
116	03.407 STUD; BRKT,FUEL FILTER EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 01.837 M10X25 L=48.5	0-49241-025-0	02	1	1104-						●

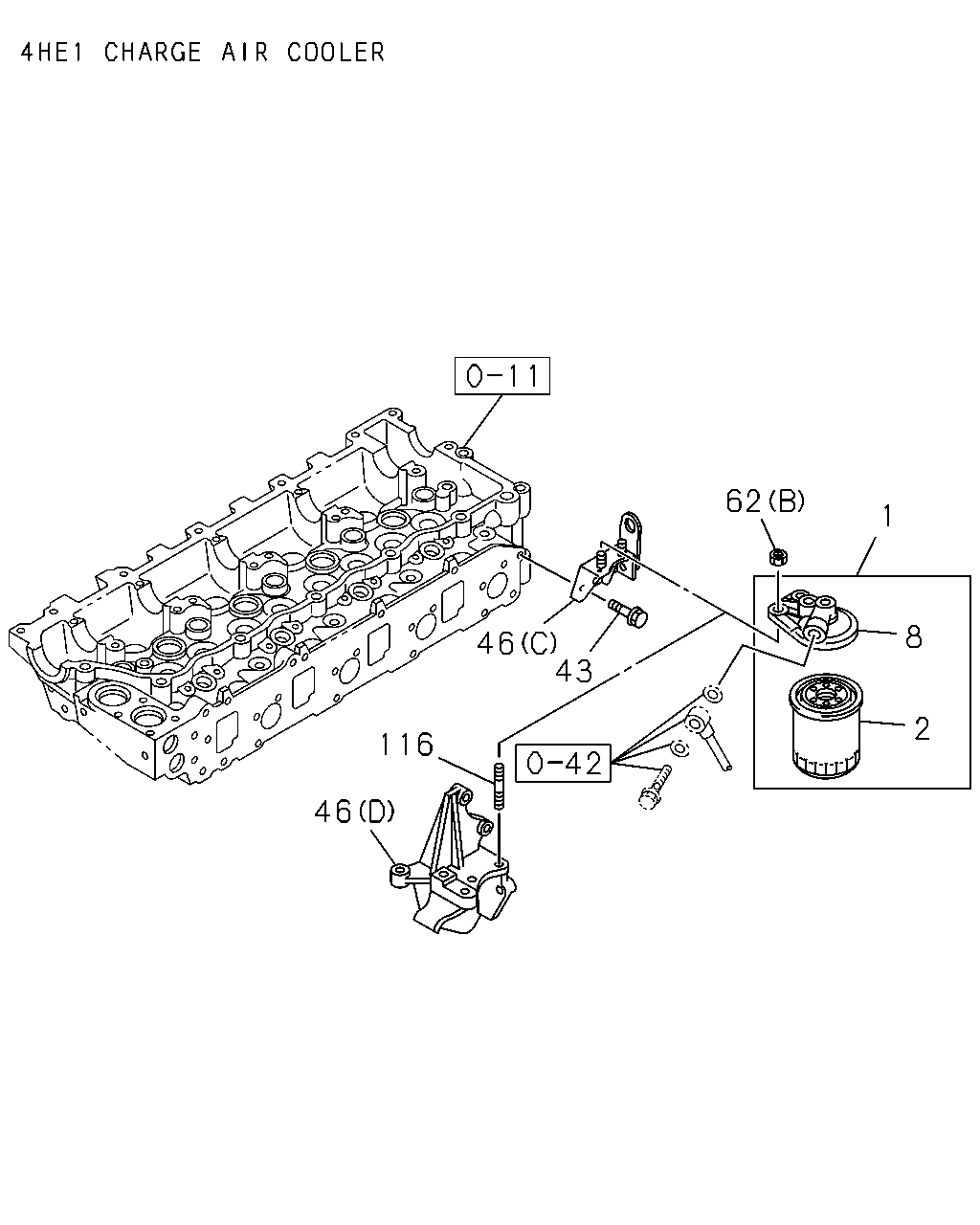

62 92 93 1 8 2 46 43 42 92 1 93 8 2 46 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	0211-0501	●
1	03.890 FILTER ASM; FUEL EXC. ENGINE POWER N-SPEC(7QV)	8-97171-451-2	01	1	0211-0501		●
1	03.890 FILTER ASM; FUEL EXC. CHARGE AIR COOLER<6PL>	8-97171-451-2	01	1	0211-0501			●
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	0502-	●	●		●
1	03.890 FILTER ASM; FUEL CHARGE AIR COOLER<6PL>	1-13200-890-3	01	1	0211-0501			●
1	03.890 FILTER ASM; FUEL	1-13200-890-4	01	1	0502-					●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0211-0501	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-549-1	01	1	0211-0501		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-549-1	01	1	0211-0501			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0502-	●	●		●
2	03.890 ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	5-87610-041-0	01	1	0211-0501	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS	5-87610-041-0	01	1	0211-0501		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL> BEST VALUE PARTS	5-87610-041-0	01	1	0211-0501			●
2	03.890 ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	5-87610-041-0	01	1	0502-	●	●		●
2	03.890 ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	1-87610-053-1	01	1	0804-					●	●
2	03.890 ELEMENT KIT; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13240-079-1	01	1	0211-0501			●
2	03.890 ELEMENT KIT; FUEL FILTER	1-13240-079-1	01	1	0502-0803					●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-98036-654-0	01	1	0804-					●	●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	0211-0501	●
8	03.890 COVER; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-543-1	01	1	0211-0501		●
8	03.890 COVER; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-543-1	01	1	0211-0501			●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	0502-	●	●		●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-159-2	01	1	0211-0501			●
8	03.890 COVER; FUEL FILTER	1-13212-159-2	01	1	0502-					●	●
42	03.890 BOLT; FUEL FILTER TURBOCHARGER(K51) 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0211-0501	●
42	03.890 BOLT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL> 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0211-0501			●
42	03.890 BOLT; FUEL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0502-0512				●
42	03.890 BOLT; FUEL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0601-1405				●
43	03.890 BOLT; BRKT 00.029 M12X25 FLANGE	0-28151-225-0	02	1	1406-				●
43	03.890 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0211-0501	●	●
43	03.890 BOLT; BRKT EURO3 SPECIFICATION(NT3) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0211-0501			●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0502-0506	●	●		●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0507-	●	●		●
43	03.890 BOLT; BRKT EURO3 SPECIFICATION(NT3) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0507-						●
43	03.890 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) M12X25	0-28781-225-0	02	1	0211-0501			●
43	03.890 BOLT; BRKT M12X25	0-28781-225-0	02	1	0502-0506					●	●
43	03.890 BOLT; BRKT EXC. EURO3 SPECIFICATION(NT3) M12X25	0-28781-225-0	02	1	0507-0512					●	●
43	03.890 BOLT; BRKT EXC. EURO3 SPECIFICATION(NT3) 09.181 M12X25 FLANGE	0-28751-225-0	02	1	0601-					●	●
46	03.890 BRACKET TURBOCHARGER(K51) (B)	8-97061-452-0	01	1	0211-0501	●
46	03.890 BRACKET EXC. CHARGE AIR COOLER<6PL> (B)	8-97061-452-0	01	1	0211-0501			●
46	03.890 BRACKET (B)	8-97061-452-0	01	1	0502-1405				●
46	03.890 BRACKET EXC. TURBOCHARGER(K51) (A)	8-94313-323-1	01	1	0211-0501	●
46	03.890 BRACKET EXC. ENGINE POWER N-SPEC(7QV) (A)	8-94313-323-1	01	1	0211-0501		●
46	03.890 BRACKET (A)	8-94313-323-2	01	1	0502-1405	●	●
46	03.890 BRACKET (A)	8-94313-323-2	01	1	1406-	●	●		●
46	03.890 BRACKET CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (C)	8-97148-962-2	01	1	0211-0501			●
46	03.890 BRACKET (C)	8-97148-962-2	01	1	0502-0506					●	●
46	03.890 BRACKET EXC. EURO3 SPECIFICATION(NT3) (C)	8-97148-962-2	01	1	0507-					●	●
46	03.890 BRACKET EURO3 SPECIFICATION(NT3) (D)	8-97241-009-2	01	1	0211-0501			●
46	03.890 BRACKET EURO3 SPECIFICATION(NT3) (D)	8-97241-009-2	01	1	0507-1103						●
46	03.890 BRACKET EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97241-009-2	01	1	1104-						●
62	03.895 NUT; FUEL FILTER EXC. TURBOCHARGER(K51) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0501	●
62	03.895 NUT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0501		●
62	03.895 NUT; FUEL FILTER CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0501			●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0502-0602	●	●			●	●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-1405	●	●			●	●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1406-	●	●		●	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0211-0501	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0502-0602	●	●		●	●	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●		●	●	●	●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	0211-0501	●
92	03.417 CAP; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-548-0	01	1	0211-0501		●
92	03.417 CAP; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-548-0	01	1	0211-0501			●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	0502-	●	●		●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0211-0501	●
93	03.890 CONNECTOR; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-546-1	01	1	0211-0501		●
93	03.890 CONNECTOR; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-546-1	01	1	0211-0501			●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0502-	●	●		●

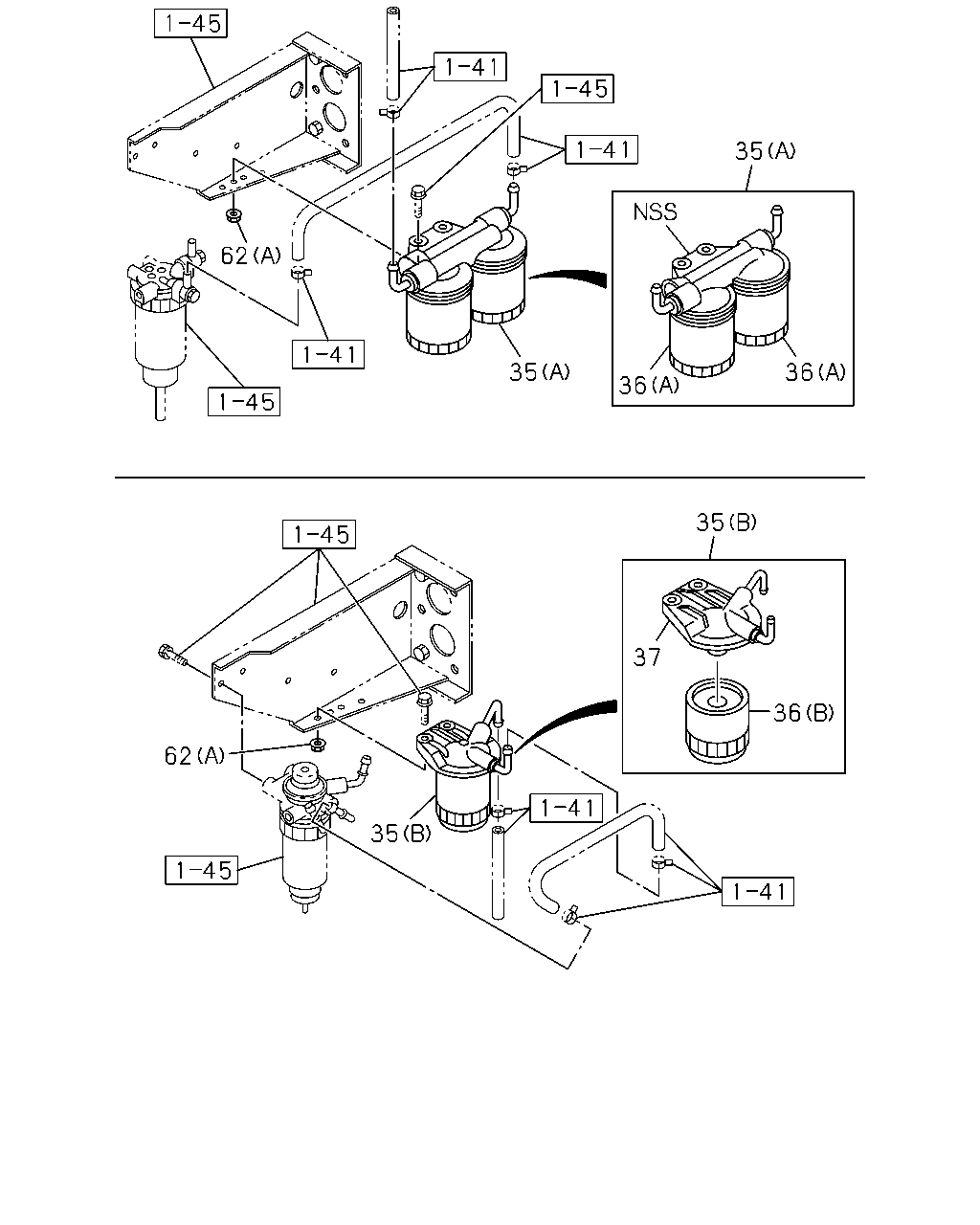

35 62 35 36 36 35 37 36 62 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) (A)	8-97070-864-0	01	1	0211-0212	●	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX T YPE"<N02> (A)	8-97070-864-0	01	1	0301-0501	●	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,IDENTIFICATION LAB EL FOR KD<6UT> (A)	8-97070-864-0	01	1	0301-0501			●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX T YPE"<N02> (A)	8-97070-864-0	01	1	0502-0612	●	●		●			●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX T YPE"<N02> (A)	8-97070-864-0	01	1	0701-	●	●		●	●	●	●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) (B)	8-97070-865-0	01	1	0301-0501	●	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) CHARGE AIR COOLER<6PL> (B)	8-97070-865-0	01	1	0301-0501			●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL> (B)	8-97070-865-0	01	1	0301-0501			●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL> (B)	8-97070-865-0	01	1	0301-0501			●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) (B)	8-97070-865-0	01	1	0502-0505	●	●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) (B)	8-97070-865-0	01	1	0502-0505					●	●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) (B)	8-98006-454-0	01	1	0506-0612	●	●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) (B)	8-98006-454-0	01	1	0506-0612					●	●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) (B)	8-98006-454-0	01	1	0701-	●	●		●	●	●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836 (A)	8-94144-613-0	02	1	0211-0212	●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX T YPE"<N02> 01.836 (A)	8-94144-613-0	02	1	0301-0501	●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>,IDENTIFICATION LAB EL FOR KD<6UT> 01.836 (A)	8-94144-613-0	02	1	0301-0501			●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX T YPE"<N02> 01.836 (A)	8-94144-613-0	02	1	0502-0612	●	●		●			●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX T YPE"<N02> 01.836 (A)	8-94144-613-0	02	1	0701-	●	●		●	●	●	●
36	03.890 ELEMENT; FUEL FILTER FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) (B)	8-94246-908-0	01	1	0301-0501	●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) CHARGE AIR COOLER<6PL> (B)	8-94246-908-0	01	1	0301-0501			●
36	03.890 ELEMENT; FUEL FILTER FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL> (B)	8-94246-908-0	01	1	0301-0501			●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL> (B)	8-94246-908-0	01	1	0301-0501			●
36	03.890 ELEMENT; FUEL FILTER FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) (B)	8-94246-908-0	01	1	0502-0505	●	●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) (B)	8-94246-908-0	01	1	0502-0505					●	●
36	03.890 ELEMENT; FUEL FILTER FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) (B)	8-97916-993-2	01	1	0506-0612	●	●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) (B)	8-97916-993-2	01	1	0506-0612					●	●
36	03.890 ELEMENT; FUEL FILTER FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) (B)	8-97916-993-2	01	1	0701-	●	●		●	●	●	●
37	03.890 COVER; FUEL FILTER FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B)	8-97363-518-0	01	1	0301-0501	●	●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B) CHARGE AIR COOLER<6PL>	8-97363-518-0	01	1	0301-0501			●
37	03.890 COVER; FUEL FILTER FUEL TANK 125L,33GAL<NL7> FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL>	8-97363-518-0	01	1	0301-0501			●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B) IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL TANK 125L,33GAL<NL7>, CHARGE AIR COOLER<6PL>	8-97363-518-0	01	1	0301-0501			●
37	03.890 COVER; FUEL FILTER FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B)	8-97363-518-0	01	1	0502-0505	●	●		●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B)	8-97363-518-0	01	1	0502-0505					●	●
37	03.890 COVER; FUEL FILTER FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B)	8-97917-558-0	01	1	0506-0612	●	●		●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B)	8-97917-558-0	01	1	0506-0612					●	●
37	03.890 COVER; FUEL FILTER FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B)	8-97917-558-0	01	1	0701-	●	●		●	●	●	●
62	03.895 NUT; FUEL FILTER EXC. TURBOCHARGER(K51) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0501	●
62	03.895 NUT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0501		●
62	03.895 NUT; FUEL FILTER CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0501			●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0502-0602	●	●			●	●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-1405	●	●			●	●
62	03.895 NUT; FUEL FILTER 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1406-	●	●		●	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0211-0501	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0502-0602	●	●		●	●	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●		●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
