◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40A - FUEL INJECTION SYSTEM ▶
0-40A — FUEL INJECTION SYSTEM (#22575) — 1770 parça

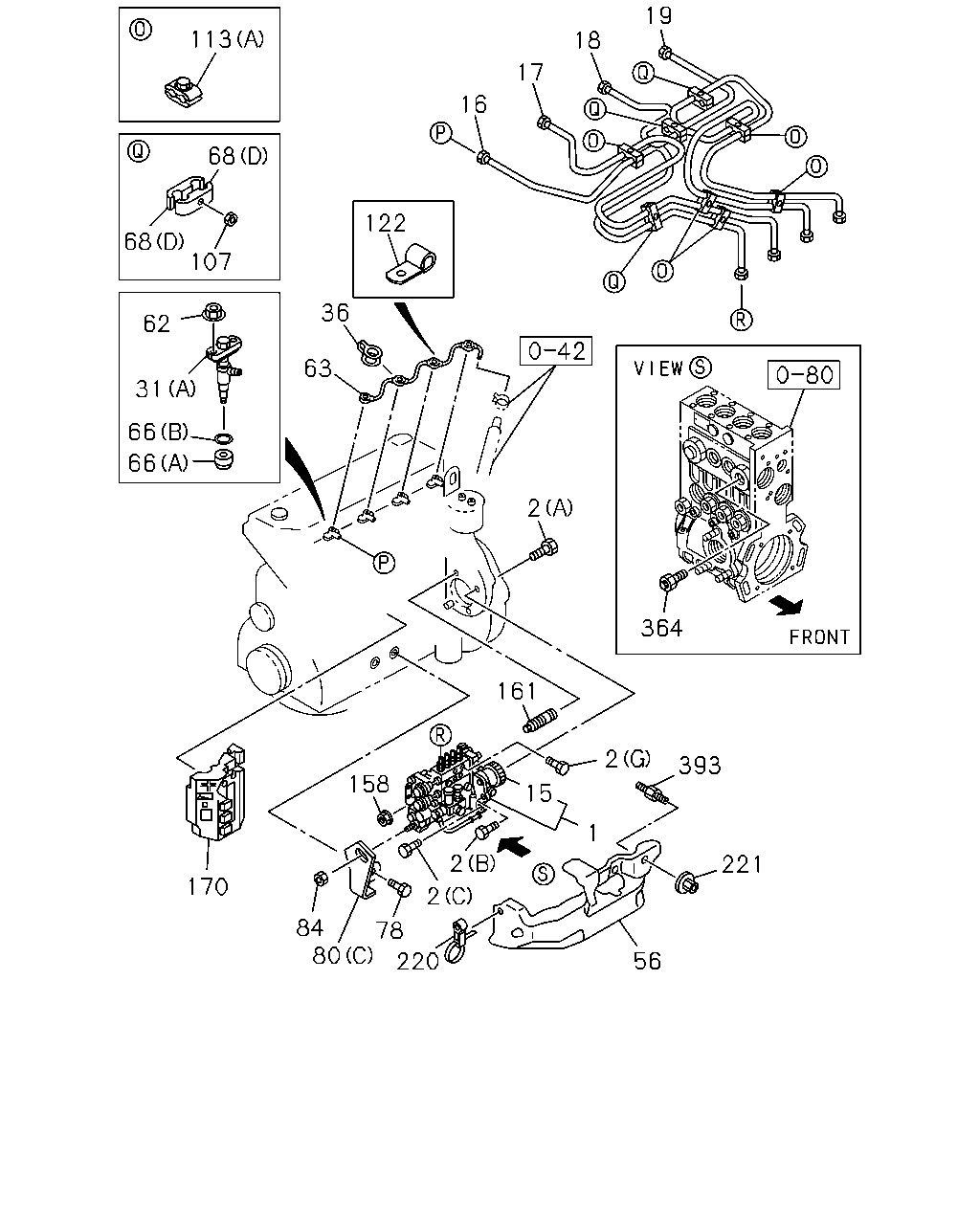

çizim 51307
19 113 18 17 16 68 122 68 107 36 62 63 31 66 66 2 364 161 2 393 158 15 1 2 221 170 2 84 78 80 56 220
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. TURBOCHARGER(K51) 		8-97212-101-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97212-101-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) 		8-97212-102-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97231-181-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. VOLTAGE 24V<7AE> 		8-97231-181-2 01 1 0502-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97231-181-2 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. COLOMBIA EQUIPMENT(X74) 		8-97215-704-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),COLOMBIA EQUIPMENT(X74) 		8-97215-704-2 01 1 0502-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) VOLTAGE 24V<7AE> 		8-97215-704-2 01 1 0607-1007 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLOMBIA E QUIPMENT(X74) 		8-97215-704-2 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) CHINA EQUIPMENT(YT2) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-387-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0502-0507 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHINA EQUIPMENT(YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0304-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-381-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT (YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0211-0211 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), CHINA EQUIPMENT(YT2),ENGINE POWER N-SPE C(7QV) 		8-97203-380-0 01 1 0212-0302 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0303-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-380-0 01 1 0502-0811 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),ENGINE POWER N- SPEC(7QV) 		8-97203-380-0 01 1 0812- ● ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHINA EQUIPMENT(YT2) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2),ENG INE POWER N-SPEC(7QV) 		8-97203-384-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),CHINA EQUIPMENT(YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-383-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-383-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) CHINA EQUIPMENT(YT2) EXC. AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		8-97251-675-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-105-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-105-1 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . VOLTAGE 24V<7AE> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 0502-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. EURO3 SPECIFICATION(NT3), VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0502-0606 ● ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. EURO2 SPECIFICATION(NT2), VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97257-154-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. EURO3 SPECIFICATION(NT3), VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97257-154-2 01 1 0502-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . A/T 4 SPEED-AISIN(RNJ) 		8-97257-154-2 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION(NT2) EXC. ENGINE POWER N-SPEC(7QV) 		8-97212-185-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV) 		8-97212-189-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV) 		8-97212-186-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . FLOOR REMOTE SHIFT<M11> 		8-97212-935-1 01 1 0502-0506 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 0507-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 0607-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. CHARGE AIR COOLER<6PL> 		8-97212-104-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97385-476-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) 		8-97225-432-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO2 SPECIFICATION(NT2) 		8-97212-189-1 01 1 0509-0910 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-97212-189-1 01 1 0911- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) 		8-97225-432-2 01 1 0507-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97225-432-2 01 1 1104- ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0502- ● ● ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> 03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0502- ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0211-0501 ● ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> (A) M12X90 FLANGE 		0-28181-290-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0502-0506 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0507-0512 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0601-0606 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0607- ● ● ● ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0211-0501 ● ● ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0502-0512 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
02.277 (C) M10X70 FLANGE 		0-28151-070-0 01 1 0601- ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0211-0501 ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0502-0506 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0507-0512 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0601-0606 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0607- ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE 		0-28081-025-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.417 (F) M10X25 FLANGE 		0-28081-025-0 01 1 0502-0512 ●
2 03.330 BOLT; INJ PUMP
09.171 (F) M10X25 FLANGE 		0-28051-025-0 01 1 0601- ●
2 03.330 BOLT; INJ PUMP
CHARGE AIR COOLER<6PL> (A) M12X110 		0-28186-211-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 		0-28186-211-0 01 1 0502-0512 ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 FLANGE 		0-28156-211-0 01 1 0601- ● ●
2 03.330 BOLT; INJ PUMP
CHARGE AIR COOLER<6PL> 03.162 (G) M14X27 FLANGE 		1-09675-086-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (G) M14X27 FLANGE 		1-09675-086-0 01 1 0502- ● ●
15 03.340 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97219-000-0 01 1 0211-0211 ●
15 03.340 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. CHARGE AIR COOLER<6PL> 		8-97367-625-0 01 1 0212-0501 ●
15 03.340 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-97367-625-0 01 1 0502-0506 ●
15 03.340 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97367-625-0 01 1 0507-0910 ● ●
15 03.340 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. VOLTAGE 24V<7AE> 		8-97367-625-0 01 1 0507-0910 ● ●
15 03.340 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) VOLTAGE 24V<7AE> 		8-97367-625-0 01 1 0911- ● ●
15 03.340 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. VOLTAGE 24V<7AE> 		8-97367-625-0 01 1 0911- ● ●
15 03.340 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97218-999-0 01 1 0211-0211 ●
15 03.340 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. FLOOR REMOTE SHIFT<M11> 		8-97218-999-0 01 1 0502-0506 ●
15 03.340 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97218-999-0 01 1 0507-0606 ●
15 03.340 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97218-999-0 01 1 0607-1103 ●
15 03.340 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97218-999-0 01 1 1104- ●
16 03.330 PIPE; INJ NO.1
TURBOCHARGER(K51) 		8-97209-493-1 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 0502- ●
16 03.330 PIPE; INJ NO.1
EXC. TURBOCHARGER(K51) 		8-97123-374-0 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-374-0 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
ENGINE POWER N-SPEC(7QV) 		8-97134-166-1 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97134-166-1 01 1 0502- ●
16 03.330 PIPE; INJ NO.1
CHARGE AIR COOLER<6PL> 		8-97148-963-4 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97148-963-4 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
EXC. CHARGE AIR COOLER<6PL> 		8-97065-932-3 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2
TURBOCHARGER(K51) 		8-97209-494-1 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 0502- ●
17 03.330 PIPE; INJ NO.2
EXC. TURBOCHARGER(K51) 		8-97123-375-0 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-375-0 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 0502- ● ●
17 03.330 PIPE; INJ NO.2
ENGINE POWER N-SPEC(7QV) 		8-97134-167-1 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97134-167-1 01 1 0502- ●
17 03.330 PIPE; INJ NO.2
CHARGE AIR COOLER<6PL> 		8-97148-964-3 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97148-964-3 01 1 0502- ● ●
17 03.330 PIPE; INJ NO.2
EXC. CHARGE AIR COOLER<6PL> 		8-97065-933-3 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
TURBOCHARGER(K51) 		8-97209-495-1 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 0502- ●
18 03.330 PIPE; INJ NO.3
EXC. TURBOCHARGER(K51) 		8-97123-376-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-376-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 0502- ● ●
18 03.330 PIPE; INJ NO.3
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0502-0507 ●
18 03.330 PIPE; INJ NO.3
EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0508- ●
18 03.330 PIPE; INJ NO.3
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-106-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-106-0 01 1 0502- ●
18 03.330 PIPE; INJ NO.3
CHARGE AIR COOLER<6PL> 		8-97148-965-4 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97148-965-4 01 1 0502- ● ●
18 03.330 PIPE; INJ NO.3
EXC. CHARGE AIR COOLER<6PL> 		8-97065-934-3 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
TURBOCHARGER(K51) 		8-97209-496-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 0502- ●
19 03.330 PIPE; INJ NO.4
EXC. TURBOCHARGER(K51) 		8-97123-377-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-377-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 0502- ● ●
19 03.330 PIPE; INJ NO.4
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0502-0507 ●
19 03.330 PIPE; INJ NO.4
EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0508- ●
19 03.330 PIPE; INJ NO.4
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-107-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-107-0 01 1 0502- ●
19 03.330 PIPE; INJ NO.4
CHARGE AIR COOLER<6PL> 		8-97148-966-3 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97148-966-3 01 1 0502- ● ●
19 03.330 PIPE; INJ NO.4
EXC. CHARGE AIR COOLER<6PL> 		8-97065-935-3 01 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
TURBOCHARGER(K51) (B) 		8-97200-570-3 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
EXC. TURBOCHARGER(K51) (A) 		8-97119-811-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-811-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
ENGINE POWER N-SPEC(7QV) (A) 		8-97174-112-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97174-112-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97119-812-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-812-0 04 1 0502-0508 ● ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-812-0 04 1 0509- ●
31 03.332 NOZZLE ASM; INJ
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97148-960-1 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97148-960-1 04 1 0502-0506 ● ●
31 03.332 NOZZLE ASM; INJ
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97148-960-1 04 1 0507- ● ●
31 03.332 NOZZLE ASM; INJ
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97115-503-2 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) (A) 		8-97241-005-1 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) (A) 		8-97241-005-1 04 1 0507-1103 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97241-005-1 04 1 1104- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0211-0501 ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0502-1312 ● ● ● ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-98246-930-0 04 1 1401- ● ● ● ● ● ●
56 03.332 COVER
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 03.306 		8-97170-784-0 01 1 0211-0501 ●
56 03.332 COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 03.306 		8-97170-784-0 01 1 0502- ●
62 03.332 NUT; NOZZLE HOLDER
07.633 M8 FLANGE 		0-91150-108-0 08 1 0211-0501 ● ● ●
62 03.332 NUT; NOZZLE HOLDER
07.633 M8 FLANGE 		0-91150-108-0 08 1 0502-0602 ● ● ● ● ● ●
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE 		0-91180-108-0 08 1 0603- ● ● ● ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
TURBOCHARGER(K51) 		8-97148-969-2 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
CHARGE AIR COOLER<6PL> 		8-97148-969-2 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0502- ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. TURBOCHARGER(K51) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. ENGINE POWER N-SPEC(7QV) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. CHARGE AIR COOLER<6PL> 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 0502- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97118-895-0 01 1 0502- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97145-004-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97145-004-0 01 1 0502- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) 07.003 (A) 		8-97171-332-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 07.003 (A) 		8-97171-332-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 07.003 (A) 		8-97171-332-0 04 1 0502- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0502- ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0211-0501 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0502- ● ● ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> (A) 		8-97171-922-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) 		8-97171-922-0 04 1 0502- ● ●
68 03.162 CLIP; INJ PIPE
TURBOCHARGER(K51) (C) 		1-09701-091-0 01 1 0211-0501 ●
68 03.162 CLIP; INJ PIPE
(C) 		1-09701-091-0 01 1 0502- ●
68 03.162 CLIP; INJ PIPE
ENGINE POWER N-SPEC(7QV) (D) 		8-97213-049-0 04 1 0211-0501 ●
68 03.162 CLIP; INJ PIPE
(D) 		8-97213-049-0 04 1 0502- ●
68 03.162 CLIP; INJ PIPE
CHARGE AIR COOLER<6PL> (D) 		8-97213-049-0 06 1 0211-0501 ●
68 03.162 CLIP; INJ PIPE
(D) 		8-97213-049-0 06 1 0502- ● ●
78 03.330 BOLT; BRKT TO C/BL
TURBOCHARGER(K51) 04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0502-0512 ● ● ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 01 1 0601- ● ● ●
78 03.330 BOLT; BRKT TO C/BL
EXC. TURBOCHARGER(K51) 04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0502-0512 ● ● ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0601- ● ● ●
80 03.306 BRACKET; PUMP
(A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(A) 		8-97136-677-0 01 1 0502- ● ● ●
80 03.306 BRACKET; PUMP
ENGINE POWER N-SPEC(7QV) (B) 		8-97119-363-1 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(B) 		8-97119-363-1 01 1 0502- ●
80 03.306 BRACKET; PUMP
CHARGE AIR COOLER<6PL> (C) 		8-97148-958-1 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(C) 		8-97148-958-1 01 1 0502- ● ●
84 03.330 NUT; BRKT TO BRKT
08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
EXC. ENGINE POWER N-SPEC(7QV) 08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
EXC. CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
08.917 M10 FLANGE 		0-91150-210-0 01 1 0502-0602 ● ● ●
84 03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
84 03.330 NUT; BRKT TO BRKT
CHARGE AIR COOLER<6PL> 07.243 M12 FLANGE 		0-91150-212-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
07.243 M12 FLANGE 		0-91150-212-0 01 1 0502-0602 ● ●
84 03.330 NUT; BRKT TO BRKT
05.816 M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
107 03.162 NUT; INJ PIPE CLIP
ENGINE POWER N-SPEC(7QV) 03.671 M5 FLANGE 		8-94178-699-0 02 1 0211-0501 ●
107 03.162 NUT; INJ PIPE CLIP
03.671 M5 FLANGE 		8-94178-699-0 02 1 0502- ●
107 03.162 NUT; INJ PIPE CLIP
CHARGE AIR COOLER<6PL> 03.671 M5 FLANGE 		8-94178-699-0 03 1 0211-0501 ●
107 03.162 NUT; INJ PIPE CLIP
03.671 M5 FLANGE 		8-94178-699-0 03 1 0502- ● ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97213-050-0 04 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 0502- ● ● ●
113 03.162 CLIP; INJ PIPE
TURBOCHARGER(K51) (B) 		8-97213-481-0 01 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 0502- ●
113 03.162 CLIP; INJ PIPE
ENGINE POWER N-SPEC(7QV) (A) 		8-97213-050-0 02 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 02 1 0502- ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 05 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 05 1 0502- ● ●
122 03.162 CLIP; LEAK OFF PIPE
CHARGE AIR COOLER<6PL> 		9-09524-662-0 01 1 0211-0501 ●
122 03.162 CLIP; LEAK OFF PIPE 9-09524-662-0 01 1 0502-0606 ● ●
122 03.162 CLIP; LEAK OFF PIPE
ID=7 L=32 		0-95234-662-0 01 1 0607- ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ● ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0502-0506 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0507-0602 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0606 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
CHARGE AIR COOLER<6PL> 00.685 M12 FLANGE 		0-91250-112-0 01 1 0211-0501 ●
158 03.330 NUT; INJ PUMP
00.685 M12 FLANGE 		0-91250-112-0 01 1 0502-0602 ● ●
158 03.330 NUT; INJ PUMP
03.704 M12 FLANGE 		0-91280-112-0 01 1 0603- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0211-0212 ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0301-0501 ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0502-0506 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0507-0606 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0607-0910 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0911- ● ● ● ● ● ●
170 03.332 INSULATOR; INJ PUMP
SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97130-296-0 01 1 0211-0501 ●
170 03.332 INSULATOR; INJ PUMP
SAUDI ARABIA EQUIPMENT(EU2) EXC. ENGINE POWER N-SPEC(7QV) 		8-97130-296-0 01 1 0211-0501 ●
170 03.332 INSULATOR; INJ PUMP
SAUDI ARABIA EQUIPMENT(EU2) 		8-97130-296-2 01 1 0502- ● ●
170 03.332 INSULATOR; INJ PUMP
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97306-433-2 01 1 0211-0501 ●
170 03.332 INSULATOR; INJ PUMP
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97306-433-2 01 1 0211-0501 ●
170 03.332 INSULATOR; INJ PUMP
VOLTAGE 24V<7AE> 		8-97306-433-2 01 1 0502-0506 ● ●
170 03.332 INSULATOR; INJ PUMP
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97306-433-2 01 1 0507- ● ●
220 03.162 CLIP; COVER
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97037-154-0 01 1 0211-0501 ●
220 03.162 CLIP; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97037-154-0 02 1 0502-0502 ●
220 03.162 CLIP; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97037-154-0 01 1 0503- ●
221 03.162 CAP; SCREW
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97190-450-0 02 1 0211-0501 ●
221 03.162 CAP; SCREW
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97190-450-0 02 1 0502- ●
364 03.900 VALVE; OVER FLOW,INJ PUMP
CHARGE AIR COOLER<6PL> 03.318 		1-15619-321-0 01 1 0212-0501 ●
364 03.900 VALVE; OVER FLOW,INJ PUMP
03.318 		1-15619-321-0 01 1 0502- ● ●
393 03.340 STUD; COVER
CHARGE AIR COOLER<6PL> 03.335 		8-97212-809-0 02 1 0304-0403 ●
393 03.340 STUD; COVER
CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) 03.335 		8-97212-809-0 02 1 0404-0501 ●
393 03.340 STUD; COVER
EXC. VOLTAGE 24V<7AE> 03.335 		8-97212-809-0 02 1 0502-0502 ● ●
393 03.340 STUD; COVER
03.335 		8-97212-809-0 02 1 0503-0506 ●
393 03.340 STUD; COVER
VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 03.335 		8-97212-809-0 02 1 0507-1103 ●
393 03.340 STUD; COVER
EXC. VOLTAGE 24V<7AE> 03.335 		8-97212-809-0 02 1 0507-1103 ●
393 03.340 STUD; COVER
A/T 4 SPEED-AISIN(RNJ) 03.335 		8-97212-809-0 02 1 0507-1103 ●
393 03.340 STUD; COVER
EXC. VOLTAGE 24V<7AE> 03.335 		8-97212-809-0 02 1 1104- ● ●
393 03.340 STUD; COVER
VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 03.335 		8-97212-809-0 02 1 1104- ●

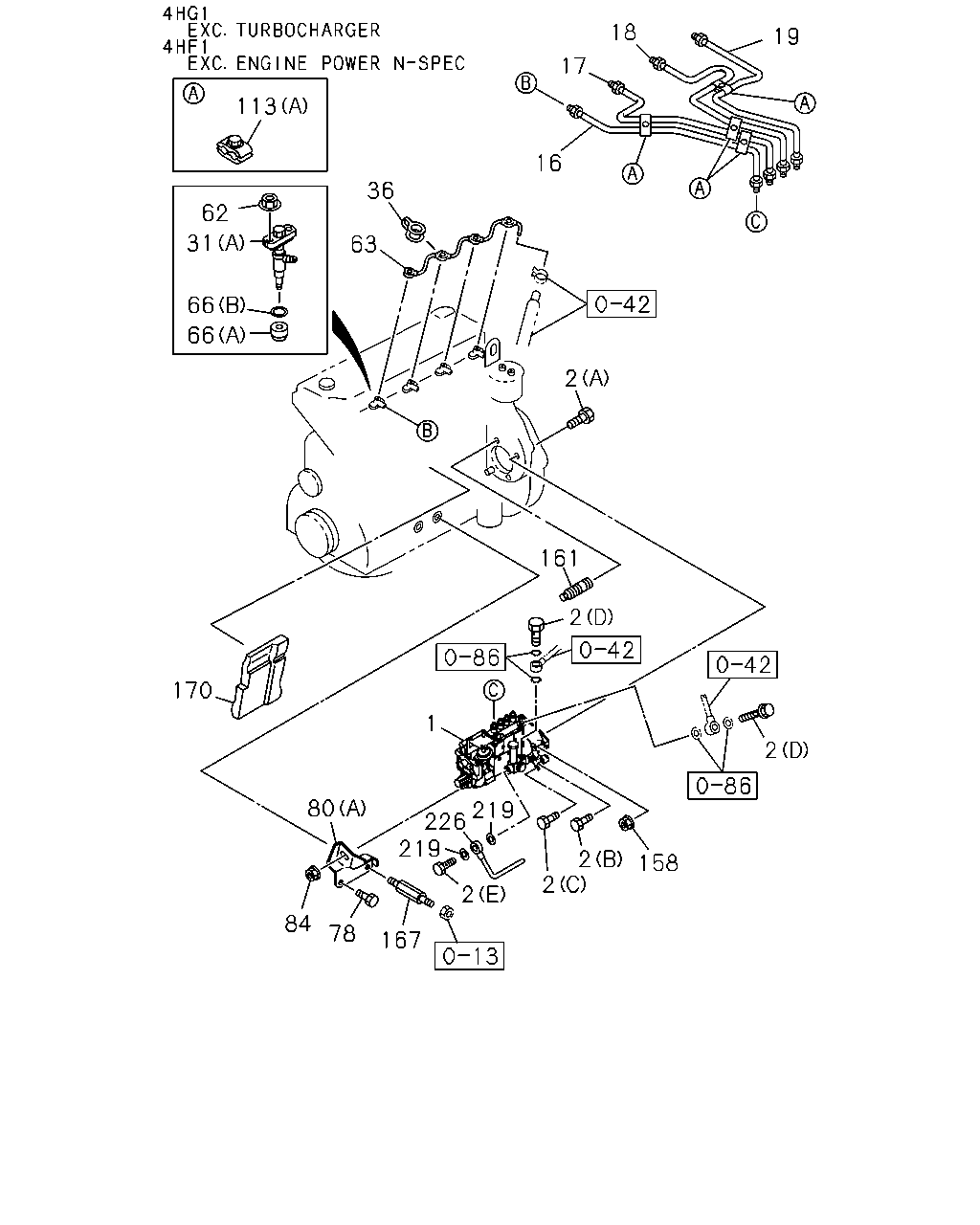

çizim 52953
18 19 17 113 16 36 62 31 63 66 66 2 161 2 170 1 2 219 226 219 80 2 2 158 2 84 78 167
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. TURBOCHARGER(K51) 		8-97212-101-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97212-101-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) 		8-97212-102-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97231-181-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. VOLTAGE 24V<7AE> 		8-97231-181-2 01 1 0502-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97231-181-2 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. COLOMBIA EQUIPMENT(X74) 		8-97215-704-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),COLOMBIA EQUIPMENT(X74) 		8-97215-704-2 01 1 0502-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) VOLTAGE 24V<7AE> 		8-97215-704-2 01 1 0607-1007 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLOMBIA E QUIPMENT(X74) 		8-97215-704-2 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) CHINA EQUIPMENT(YT2) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-387-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0502-0507 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHINA EQUIPMENT(YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0304-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-381-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT (YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0211-0211 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), CHINA EQUIPMENT(YT2),ENGINE POWER N-SPE C(7QV) 		8-97203-380-0 01 1 0212-0302 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0303-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-380-0 01 1 0502-0811 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),ENGINE POWER N- SPEC(7QV) 		8-97203-380-0 01 1 0812- ● ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHINA EQUIPMENT(YT2) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2),ENG INE POWER N-SPEC(7QV) 		8-97203-384-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),CHINA EQUIPMENT(YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-383-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-383-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) CHINA EQUIPMENT(YT2) EXC. AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		8-97251-675-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-105-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-105-1 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . VOLTAGE 24V<7AE> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 0502-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. EURO3 SPECIFICATION(NT3), VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0502-0606 ● ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. EURO2 SPECIFICATION(NT2), VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97257-154-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. EURO3 SPECIFICATION(NT3), VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97257-154-2 01 1 0502-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . A/T 4 SPEED-AISIN(RNJ) 		8-97257-154-2 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION(NT2) EXC. ENGINE POWER N-SPEC(7QV) 		8-97212-185-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV) 		8-97212-189-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV) 		8-97212-186-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . FLOOR REMOTE SHIFT<M11> 		8-97212-935-1 01 1 0502-0506 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 0507-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 0607-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. CHARGE AIR COOLER<6PL> 		8-97212-104-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97385-476-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) 		8-97225-432-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO2 SPECIFICATION(NT2) 		8-97212-189-1 01 1 0509-0910 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-97212-189-1 01 1 0911- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) 		8-97225-432-2 01 1 0507-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97225-432-2 01 1 1104- ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0502- ● ● ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> 03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0502- ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0211-0501 ● ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> (A) M12X90 FLANGE 		0-28181-290-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0502-0506 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0507-0512 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0601-0606 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0607- ● ● ● ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0211-0501 ● ● ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0502-0512 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
02.277 (C) M10X70 FLANGE 		0-28151-070-0 01 1 0601- ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0211-0501 ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0502-0506 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0507-0512 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0601-0606 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0607- ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE 		0-28081-025-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.417 (F) M10X25 FLANGE 		0-28081-025-0 01 1 0502-0512 ●
2 03.330 BOLT; INJ PUMP
09.171 (F) M10X25 FLANGE 		0-28051-025-0 01 1 0601- ●
2 03.330 BOLT; INJ PUMP
CHARGE AIR COOLER<6PL> (A) M12X110 		0-28186-211-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 		0-28186-211-0 01 1 0502-0512 ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 FLANGE 		0-28156-211-0 01 1 0601- ● ●
2 03.330 BOLT; INJ PUMP
CHARGE AIR COOLER<6PL> 03.162 (G) M14X27 FLANGE 		1-09675-086-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (G) M14X27 FLANGE 		1-09675-086-0 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
TURBOCHARGER(K51) 		8-97209-493-1 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 0502- ●
16 03.330 PIPE; INJ NO.1
EXC. TURBOCHARGER(K51) 		8-97123-374-0 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-374-0 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
ENGINE POWER N-SPEC(7QV) 		8-97134-166-1 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97134-166-1 01 1 0502- ●
16 03.330 PIPE; INJ NO.1
CHARGE AIR COOLER<6PL> 		8-97148-963-4 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97148-963-4 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
EXC. CHARGE AIR COOLER<6PL> 		8-97065-932-3 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2
TURBOCHARGER(K51) 		8-97209-494-1 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 0502- ●
17 03.330 PIPE; INJ NO.2
EXC. TURBOCHARGER(K51) 		8-97123-375-0 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-375-0 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 0502- ● ●
17 03.330 PIPE; INJ NO.2
ENGINE POWER N-SPEC(7QV) 		8-97134-167-1 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97134-167-1 01 1 0502- ●
17 03.330 PIPE; INJ NO.2
CHARGE AIR COOLER<6PL> 		8-97148-964-3 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97148-964-3 01 1 0502- ● ●
17 03.330 PIPE; INJ NO.2
EXC. CHARGE AIR COOLER<6PL> 		8-97065-933-3 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
TURBOCHARGER(K51) 		8-97209-495-1 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 0502- ●
18 03.330 PIPE; INJ NO.3
EXC. TURBOCHARGER(K51) 		8-97123-376-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-376-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 0502- ● ●
18 03.330 PIPE; INJ NO.3
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0502-0507 ●
18 03.330 PIPE; INJ NO.3
EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0508- ●
18 03.330 PIPE; INJ NO.3
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-106-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-106-0 01 1 0502- ●
18 03.330 PIPE; INJ NO.3
CHARGE AIR COOLER<6PL> 		8-97148-965-4 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97148-965-4 01 1 0502- ● ●
18 03.330 PIPE; INJ NO.3
EXC. CHARGE AIR COOLER<6PL> 		8-97065-934-3 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
TURBOCHARGER(K51) 		8-97209-496-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 0502- ●
19 03.330 PIPE; INJ NO.4
EXC. TURBOCHARGER(K51) 		8-97123-377-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-377-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 0502- ● ●
19 03.330 PIPE; INJ NO.4
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0502-0507 ●
19 03.330 PIPE; INJ NO.4
EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0508- ●
19 03.330 PIPE; INJ NO.4
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-107-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-107-0 01 1 0502- ●
19 03.330 PIPE; INJ NO.4
CHARGE AIR COOLER<6PL> 		8-97148-966-3 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97148-966-3 01 1 0502- ● ●
19 03.330 PIPE; INJ NO.4
EXC. CHARGE AIR COOLER<6PL> 		8-97065-935-3 01 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
TURBOCHARGER(K51) (B) 		8-97200-570-3 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
EXC. TURBOCHARGER(K51) (A) 		8-97119-811-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-811-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
ENGINE POWER N-SPEC(7QV) (A) 		8-97174-112-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97174-112-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97119-812-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-812-0 04 1 0502-0508 ● ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-812-0 04 1 0509- ●
31 03.332 NOZZLE ASM; INJ
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97148-960-1 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97148-960-1 04 1 0502-0506 ● ●
31 03.332 NOZZLE ASM; INJ
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97148-960-1 04 1 0507- ● ●
31 03.332 NOZZLE ASM; INJ
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97115-503-2 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) (A) 		8-97241-005-1 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) (A) 		8-97241-005-1 04 1 0507-1103 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97241-005-1 04 1 1104- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0211-0501 ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0502-1312 ● ● ● ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-98246-930-0 04 1 1401- ● ● ● ● ● ●
62 03.332 NUT; NOZZLE HOLDER
07.633 M8 FLANGE 		0-91150-108-0 08 1 0211-0501 ● ● ●
62 03.332 NUT; NOZZLE HOLDER
07.633 M8 FLANGE 		0-91150-108-0 08 1 0502-0602 ● ● ● ● ● ●
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE 		0-91180-108-0 08 1 0603- ● ● ● ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
TURBOCHARGER(K51) 		8-97148-969-2 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
CHARGE AIR COOLER<6PL> 		8-97148-969-2 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0502- ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. TURBOCHARGER(K51) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. ENGINE POWER N-SPEC(7QV) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. CHARGE AIR COOLER<6PL> 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 0502- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97118-895-0 01 1 0502- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97145-004-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97145-004-0 01 1 0502- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) 07.003 (A) 		8-97171-332-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 07.003 (A) 		8-97171-332-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 07.003 (A) 		8-97171-332-0 04 1 0502- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0502- ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0211-0501 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0502- ● ● ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> (A) 		8-97171-922-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) 		8-97171-922-0 04 1 0502- ● ●
78 03.330 BOLT; BRKT TO C/BL
TURBOCHARGER(K51) 04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0502-0512 ● ● ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 01 1 0601- ● ● ●
78 03.330 BOLT; BRKT TO C/BL
EXC. TURBOCHARGER(K51) 04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0502-0512 ● ● ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0601- ● ● ●
80 03.306 BRACKET; PUMP
(A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(A) 		8-97136-677-0 01 1 0502- ● ● ●
80 03.306 BRACKET; PUMP
ENGINE POWER N-SPEC(7QV) (B) 		8-97119-363-1 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(B) 		8-97119-363-1 01 1 0502- ●
80 03.306 BRACKET; PUMP
CHARGE AIR COOLER<6PL> (C) 		8-97148-958-1 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(C) 		8-97148-958-1 01 1 0502- ● ●
84 03.330 NUT; BRKT TO BRKT
08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
EXC. ENGINE POWER N-SPEC(7QV) 08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
EXC. CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
08.917 M10 FLANGE 		0-91150-210-0 01 1 0502-0602 ● ● ●
84 03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
84 03.330 NUT; BRKT TO BRKT
CHARGE AIR COOLER<6PL> 07.243 M12 FLANGE 		0-91150-212-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
07.243 M12 FLANGE 		0-91150-212-0 01 1 0502-0602 ● ●
84 03.330 NUT; BRKT TO BRKT
05.816 M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97213-050-0 04 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 0502- ● ● ●
113 03.162 CLIP; INJ PIPE
TURBOCHARGER(K51) (B) 		8-97213-481-0 01 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 0502- ●
113 03.162 CLIP; INJ PIPE
ENGINE POWER N-SPEC(7QV) (A) 		8-97213-050-0 02 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 02 1 0502- ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 05 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 05 1 0502- ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ● ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0502-0506 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0507-0602 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0606 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
CHARGE AIR COOLER<6PL> 00.685 M12 FLANGE 		0-91250-112-0 01 1 0211-0501 ●
158 03.330 NUT; INJ PUMP
00.685 M12 FLANGE 		0-91250-112-0 01 1 0502-0602 ● ●
158 03.330 NUT; INJ PUMP
03.704 M12 FLANGE 		0-91280-112-0 01 1 0603- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0211-0212 ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0301-0501 ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0502-0506 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0507-0606 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0607-0910 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0911- ● ● ● ● ● ●
167 03.330 SPACER; GUIDE TUBE
TURBOCHARGER(K51) 		8-97065-515-2 01 1 0211-0501 ●
167 03.330 SPACER; GUIDE TUBE
EXC. CHARGE AIR COOLER<6PL> 		8-97065-515-2 01 1 0211-0501 ●
167 03.330 SPACER; GUIDE TUBE 8-97065-515-2 01 1 0502- ●
170 03.332 INSULATOR; INJ PUMP
SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97130-296-0 01 1 0211-0501 ●
170 03.332 INSULATOR; INJ PUMP
SAUDI ARABIA EQUIPMENT(EU2) EXC. ENGINE POWER N-SPEC(7QV) 		8-97130-296-0 01 1 0211-0501 ●
170 03.332 INSULATOR; INJ PUMP
SAUDI ARABIA EQUIPMENT(EU2) 		8-97130-296-2 01 1 0502- ● ●
170 03.332 INSULATOR; INJ PUMP
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97306-433-2 01 1 0211-0501 ●
170 03.332 INSULATOR; INJ PUMP
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97306-433-2 01 1 0211-0501 ●
170 03.332 INSULATOR; INJ PUMP
VOLTAGE 24V<7AE> 		8-97306-433-2 01 1 0502-0506 ● ●
170 03.332 INSULATOR; INJ PUMP
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97306-433-2 01 1 0507- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-085-0 02 1 0211-0501 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0501 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0501 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0502-1312 ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ● ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 0211-0501 ●
226 03.163 PIPE; FUEL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97203-567-0 01 1 0211-0501 ●
226 03.163 PIPE; FUEL
EXC. CHARGE AIR COOLER<6PL> 		8-97203-567-0 01 1 0211-0501 ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 0502- ● ● ●
çizim 54108
19 18 113 17 16 36 62 63 31 66 66 2 161 2 1 2 219 226 219 80 2 2 158 2 84 78 167
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. TURBOCHARGER(K51) 		8-97212-101-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97212-101-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) 		8-97212-102-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97231-181-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. VOLTAGE 24V<7AE> 		8-97231-181-2 01 1 0502-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97231-181-2 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. COLOMBIA EQUIPMENT(X74) 		8-97215-704-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),COLOMBIA EQUIPMENT(X74) 		8-97215-704-2 01 1 0502-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) VOLTAGE 24V<7AE> 		8-97215-704-2 01 1 0607-1007 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLOMBIA E QUIPMENT(X74) 		8-97215-704-2 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) CHINA EQUIPMENT(YT2) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-387-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0502-0507 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHINA EQUIPMENT(YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0304-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-381-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT (YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0211-0211 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), CHINA EQUIPMENT(YT2),ENGINE POWER N-SPE C(7QV) 		8-97203-380-0 01 1 0212-0302 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0303-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-380-0 01 1 0502-0811 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),ENGINE POWER N- SPEC(7QV) 		8-97203-380-0 01 1 0812- ● ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHINA EQUIPMENT(YT2) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2),ENG INE POWER N-SPEC(7QV) 		8-97203-384-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),CHINA EQUIPMENT(YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-383-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-383-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) CHINA EQUIPMENT(YT2) EXC. AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		8-97251-675-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-105-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-105-1 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . VOLTAGE 24V<7AE> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 0502-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. EURO3 SPECIFICATION(NT3), VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0502-0606 ● ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. EURO2 SPECIFICATION(NT2), VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97257-154-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. EURO3 SPECIFICATION(NT3), VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97257-154-2 01 1 0502-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . A/T 4 SPEED-AISIN(RNJ) 		8-97257-154-2 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION(NT2) EXC. ENGINE POWER N-SPEC(7QV) 		8-97212-185-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV) 		8-97212-189-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV) 		8-97212-186-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . FLOOR REMOTE SHIFT<M11> 		8-97212-935-1 01 1 0502-0506 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 0507-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 0607-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. CHARGE AIR COOLER<6PL> 		8-97212-104-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97385-476-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) 		8-97225-432-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO2 SPECIFICATION(NT2) 		8-97212-189-1 01 1 0509-0910 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-97212-189-1 01 1 0911- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) 		8-97225-432-2 01 1 0507-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97225-432-2 01 1 1104- ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0502- ● ● ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> 03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0502- ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0211-0501 ● ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> (A) M12X90 FLANGE 		0-28181-290-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0502-0506 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0507-0512 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0601-0606 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0607- ● ● ● ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0211-0501 ● ● ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0502-0512 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
02.277 (C) M10X70 FLANGE 		0-28151-070-0 01 1 0601- ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0211-0501 ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0502-0506 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0507-0512 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0601-0606 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0607- ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE 		0-28081-025-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.417 (F) M10X25 FLANGE 		0-28081-025-0 01 1 0502-0512 ●
2 03.330 BOLT; INJ PUMP
09.171 (F) M10X25 FLANGE 		0-28051-025-0 01 1 0601- ●
2 03.330 BOLT; INJ PUMP
CHARGE AIR COOLER<6PL> (A) M12X110 		0-28186-211-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 		0-28186-211-0 01 1 0502-0512 ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 FLANGE 		0-28156-211-0 01 1 0601- ● ●
2 03.330 BOLT; INJ PUMP
CHARGE AIR COOLER<6PL> 03.162 (G) M14X27 FLANGE 		1-09675-086-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (G) M14X27 FLANGE 		1-09675-086-0 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
TURBOCHARGER(K51) 		8-97209-493-1 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 0502- ●
16 03.330 PIPE; INJ NO.1
EXC. TURBOCHARGER(K51) 		8-97123-374-0 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-374-0 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
ENGINE POWER N-SPEC(7QV) 		8-97134-166-1 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97134-166-1 01 1 0502- ●
16 03.330 PIPE; INJ NO.1
CHARGE AIR COOLER<6PL> 		8-97148-963-4 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97148-963-4 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
EXC. CHARGE AIR COOLER<6PL> 		8-97065-932-3 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2
TURBOCHARGER(K51) 		8-97209-494-1 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 0502- ●
17 03.330 PIPE; INJ NO.2
EXC. TURBOCHARGER(K51) 		8-97123-375-0 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-375-0 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 0502- ● ●
17 03.330 PIPE; INJ NO.2
ENGINE POWER N-SPEC(7QV) 		8-97134-167-1 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97134-167-1 01 1 0502- ●
17 03.330 PIPE; INJ NO.2
CHARGE AIR COOLER<6PL> 		8-97148-964-3 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97148-964-3 01 1 0502- ● ●
17 03.330 PIPE; INJ NO.2
EXC. CHARGE AIR COOLER<6PL> 		8-97065-933-3 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
TURBOCHARGER(K51) 		8-97209-495-1 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 0502- ●
18 03.330 PIPE; INJ NO.3
EXC. TURBOCHARGER(K51) 		8-97123-376-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-376-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 0502- ● ●
18 03.330 PIPE; INJ NO.3
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0502-0507 ●
18 03.330 PIPE; INJ NO.3
EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0508- ●
18 03.330 PIPE; INJ NO.3
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-106-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-106-0 01 1 0502- ●
18 03.330 PIPE; INJ NO.3
CHARGE AIR COOLER<6PL> 		8-97148-965-4 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97148-965-4 01 1 0502- ● ●
18 03.330 PIPE; INJ NO.3
EXC. CHARGE AIR COOLER<6PL> 		8-97065-934-3 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
TURBOCHARGER(K51) 		8-97209-496-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 0502- ●
19 03.330 PIPE; INJ NO.4
EXC. TURBOCHARGER(K51) 		8-97123-377-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-377-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 0502- ● ●
19 03.330 PIPE; INJ NO.4
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0502-0507 ●
19 03.330 PIPE; INJ NO.4
EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0508- ●
19 03.330 PIPE; INJ NO.4
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-107-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-107-0 01 1 0502- ●
19 03.330 PIPE; INJ NO.4
CHARGE AIR COOLER<6PL> 		8-97148-966-3 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97148-966-3 01 1 0502- ● ●
19 03.330 PIPE; INJ NO.4
EXC. CHARGE AIR COOLER<6PL> 		8-97065-935-3 01 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
TURBOCHARGER(K51) (B) 		8-97200-570-3 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
EXC. TURBOCHARGER(K51) (A) 		8-97119-811-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-811-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
ENGINE POWER N-SPEC(7QV) (A) 		8-97174-112-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97174-112-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97119-812-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-812-0 04 1 0502-0508 ● ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-812-0 04 1 0509- ●
31 03.332 NOZZLE ASM; INJ
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97148-960-1 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97148-960-1 04 1 0502-0506 ● ●
31 03.332 NOZZLE ASM; INJ
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97148-960-1 04 1 0507- ● ●
31 03.332 NOZZLE ASM; INJ
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97115-503-2 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) (A) 		8-97241-005-1 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) (A) 		8-97241-005-1 04 1 0507-1103 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97241-005-1 04 1 1104- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0211-0501 ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0502-1312 ● ● ● ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-98246-930-0 04 1 1401- ● ● ● ● ● ●
62 03.332 NUT; NOZZLE HOLDER
07.633 M8 FLANGE 		0-91150-108-0 08 1 0211-0501 ● ● ●
62 03.332 NUT; NOZZLE HOLDER
07.633 M8 FLANGE 		0-91150-108-0 08 1 0502-0602 ● ● ● ● ● ●
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE 		0-91180-108-0 08 1 0603- ● ● ● ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
TURBOCHARGER(K51) 		8-97148-969-2 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
CHARGE AIR COOLER<6PL> 		8-97148-969-2 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0502- ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. TURBOCHARGER(K51) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. ENGINE POWER N-SPEC(7QV) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. CHARGE AIR COOLER<6PL> 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 0502- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97118-895-0 01 1 0502- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97145-004-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97145-004-0 01 1 0502- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) 07.003 (A) 		8-97171-332-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 07.003 (A) 		8-97171-332-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 07.003 (A) 		8-97171-332-0 04 1 0502- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0502- ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0211-0501 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0502- ● ● ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> (A) 		8-97171-922-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) 		8-97171-922-0 04 1 0502- ● ●
78 03.330 BOLT; BRKT TO C/BL
TURBOCHARGER(K51) 04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0502-0512 ● ● ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 01 1 0601- ● ● ●
78 03.330 BOLT; BRKT TO C/BL
EXC. TURBOCHARGER(K51) 04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0502-0512 ● ● ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0601- ● ● ●
80 03.306 BRACKET; PUMP
(A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(A) 		8-97136-677-0 01 1 0502- ● ● ●
80 03.306 BRACKET; PUMP
ENGINE POWER N-SPEC(7QV) (B) 		8-97119-363-1 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(B) 		8-97119-363-1 01 1 0502- ●
80 03.306 BRACKET; PUMP
CHARGE AIR COOLER<6PL> (C) 		8-97148-958-1 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(C) 		8-97148-958-1 01 1 0502- ● ●
84 03.330 NUT; BRKT TO BRKT
08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
EXC. ENGINE POWER N-SPEC(7QV) 08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
EXC. CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
08.917 M10 FLANGE 		0-91150-210-0 01 1 0502-0602 ● ● ●
84 03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
84 03.330 NUT; BRKT TO BRKT
CHARGE AIR COOLER<6PL> 07.243 M12 FLANGE 		0-91150-212-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
07.243 M12 FLANGE 		0-91150-212-0 01 1 0502-0602 ● ●
84 03.330 NUT; BRKT TO BRKT
05.816 M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97213-050-0 04 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 0502- ● ● ●
113 03.162 CLIP; INJ PIPE
TURBOCHARGER(K51) (B) 		8-97213-481-0 01 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 0502- ●
113 03.162 CLIP; INJ PIPE
ENGINE POWER N-SPEC(7QV) (A) 		8-97213-050-0 02 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 02 1 0502- ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 05 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 05 1 0502- ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ● ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0502-0506 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0507-0602 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0606 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
CHARGE AIR COOLER<6PL> 00.685 M12 FLANGE 		0-91250-112-0 01 1 0211-0501 ●
158 03.330 NUT; INJ PUMP
00.685 M12 FLANGE 		0-91250-112-0 01 1 0502-0602 ● ●
158 03.330 NUT; INJ PUMP
03.704 M12 FLANGE 		0-91280-112-0 01 1 0603- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0211-0212 ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0301-0501 ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0502-0506 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0507-0606 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0607-0910 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0911- ● ● ● ● ● ●
167 03.330 SPACER; GUIDE TUBE
TURBOCHARGER(K51) 		8-97065-515-2 01 1 0211-0501 ●
167 03.330 SPACER; GUIDE TUBE
EXC. CHARGE AIR COOLER<6PL> 		8-97065-515-2 01 1 0211-0501 ●
167 03.330 SPACER; GUIDE TUBE 8-97065-515-2 01 1 0502- ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-085-0 02 1 0211-0501 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0501 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0501 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0502-1312 ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ● ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 0211-0501 ●
226 03.163 PIPE; FUEL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97203-567-0 01 1 0211-0501 ●
226 03.163 PIPE; FUEL
EXC. CHARGE AIR COOLER<6PL> 		8-97203-567-0 01 1 0211-0501 ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 0502- ● ● ●
çizim 54135
19 18 113 17 16 68 107 68 194 36 63 62 31 66 66 2 161 1 158 80 78 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. TURBOCHARGER(K51) 		8-97212-101-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97212-101-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) 		8-97212-102-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97231-181-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. VOLTAGE 24V<7AE> 		8-97231-181-2 01 1 0502-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97231-181-2 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. COLOMBIA EQUIPMENT(X74) 		8-97215-704-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),COLOMBIA EQUIPMENT(X74) 		8-97215-704-2 01 1 0502-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) VOLTAGE 24V<7AE> 		8-97215-704-2 01 1 0607-1007 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLOMBIA E QUIPMENT(X74) 		8-97215-704-2 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) CHINA EQUIPMENT(YT2) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-387-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0502-0507 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHINA EQUIPMENT(YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0304-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-381-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT (YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0211-0211 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), CHINA EQUIPMENT(YT2),ENGINE POWER N-SPE C(7QV) 		8-97203-380-0 01 1 0212-0302 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0303-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-380-0 01 1 0502-0811 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),ENGINE POWER N- SPEC(7QV) 		8-97203-380-0 01 1 0812- ● ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHINA EQUIPMENT(YT2) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2),ENG INE POWER N-SPEC(7QV) 		8-97203-384-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),CHINA EQUIPMENT(YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-383-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-383-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) CHINA EQUIPMENT(YT2) EXC. AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		8-97251-675-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-105-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-105-1 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . VOLTAGE 24V<7AE> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 0502-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. EURO3 SPECIFICATION(NT3), VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0502-0606 ● ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. EURO2 SPECIFICATION(NT2), VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97257-154-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. EURO3 SPECIFICATION(NT3), VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97257-154-2 01 1 0502-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . A/T 4 SPEED-AISIN(RNJ) 		8-97257-154-2 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION(NT2) EXC. ENGINE POWER N-SPEC(7QV) 		8-97212-185-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV) 		8-97212-189-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV) 		8-97212-186-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . FLOOR REMOTE SHIFT<M11> 		8-97212-935-1 01 1 0502-0506 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 0507-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 0607-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. CHARGE AIR COOLER<6PL> 		8-97212-104-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97385-476-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) 		8-97225-432-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO2 SPECIFICATION(NT2) 		8-97212-189-1 01 1 0509-0910 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-97212-189-1 01 1 0911- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) 		8-97225-432-2 01 1 0507-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97225-432-2 01 1 1104- ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0502- ● ● ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> 03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0502- ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0211-0501 ● ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> (A) M12X90 FLANGE 		0-28181-290-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0502-0506 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0507-0512 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0601-0606 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0607- ● ● ● ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0211-0501 ● ● ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0502-0512 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
02.277 (C) M10X70 FLANGE 		0-28151-070-0 01 1 0601- ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0211-0501 ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0502-0506 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0507-0512 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0601-0606 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0607- ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE 		0-28081-025-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.417 (F) M10X25 FLANGE 		0-28081-025-0 01 1 0502-0512 ●
2 03.330 BOLT; INJ PUMP
09.171 (F) M10X25 FLANGE 		0-28051-025-0 01 1 0601- ●
2 03.330 BOLT; INJ PUMP
CHARGE AIR COOLER<6PL> (A) M12X110 		0-28186-211-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 		0-28186-211-0 01 1 0502-0512 ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 FLANGE 		0-28156-211-0 01 1 0601- ● ●
2 03.330 BOLT; INJ PUMP
CHARGE AIR COOLER<6PL> 03.162 (G) M14X27 FLANGE 		1-09675-086-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (G) M14X27 FLANGE 		1-09675-086-0 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
TURBOCHARGER(K51) 		8-97209-493-1 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 0502- ●
16 03.330 PIPE; INJ NO.1
EXC. TURBOCHARGER(K51) 		8-97123-374-0 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-374-0 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
ENGINE POWER N-SPEC(7QV) 		8-97134-166-1 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97134-166-1 01 1 0502- ●
16 03.330 PIPE; INJ NO.1
CHARGE AIR COOLER<6PL> 		8-97148-963-4 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97148-963-4 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
EXC. CHARGE AIR COOLER<6PL> 		8-97065-932-3 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2
TURBOCHARGER(K51) 		8-97209-494-1 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 0502- ●
17 03.330 PIPE; INJ NO.2
EXC. TURBOCHARGER(K51) 		8-97123-375-0 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-375-0 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 0502- ● ●
17 03.330 PIPE; INJ NO.2
ENGINE POWER N-SPEC(7QV) 		8-97134-167-1 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97134-167-1 01 1 0502- ●
17 03.330 PIPE; INJ NO.2
CHARGE AIR COOLER<6PL> 		8-97148-964-3 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97148-964-3 01 1 0502- ● ●
17 03.330 PIPE; INJ NO.2
EXC. CHARGE AIR COOLER<6PL> 		8-97065-933-3 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
TURBOCHARGER(K51) 		8-97209-495-1 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 0502- ●
18 03.330 PIPE; INJ NO.3
EXC. TURBOCHARGER(K51) 		8-97123-376-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-376-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 0502- ● ●
18 03.330 PIPE; INJ NO.3
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0502-0507 ●
18 03.330 PIPE; INJ NO.3
EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0508- ●
18 03.330 PIPE; INJ NO.3
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-106-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-106-0 01 1 0502- ●
18 03.330 PIPE; INJ NO.3
CHARGE AIR COOLER<6PL> 		8-97148-965-4 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97148-965-4 01 1 0502- ● ●
18 03.330 PIPE; INJ NO.3
EXC. CHARGE AIR COOLER<6PL> 		8-97065-934-3 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
TURBOCHARGER(K51) 		8-97209-496-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 0502- ●
19 03.330 PIPE; INJ NO.4
EXC. TURBOCHARGER(K51) 		8-97123-377-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-377-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 0502- ● ●
19 03.330 PIPE; INJ NO.4
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0502-0507 ●
19 03.330 PIPE; INJ NO.4
EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0508- ●
19 03.330 PIPE; INJ NO.4
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-107-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-107-0 01 1 0502- ●
19 03.330 PIPE; INJ NO.4
CHARGE AIR COOLER<6PL> 		8-97148-966-3 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97148-966-3 01 1 0502- ● ●
19 03.330 PIPE; INJ NO.4
EXC. CHARGE AIR COOLER<6PL> 		8-97065-935-3 01 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
TURBOCHARGER(K51) (B) 		8-97200-570-3 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
EXC. TURBOCHARGER(K51) (A) 		8-97119-811-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-811-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
ENGINE POWER N-SPEC(7QV) (A) 		8-97174-112-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97174-112-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97119-812-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-812-0 04 1 0502-0508 ● ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-812-0 04 1 0509- ●
31 03.332 NOZZLE ASM; INJ
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97148-960-1 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97148-960-1 04 1 0502-0506 ● ●
31 03.332 NOZZLE ASM; INJ
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97148-960-1 04 1 0507- ● ●
31 03.332 NOZZLE ASM; INJ
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97115-503-2 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) (A) 		8-97241-005-1 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) (A) 		8-97241-005-1 04 1 0507-1103 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97241-005-1 04 1 1104- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0211-0501 ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0502-1312 ● ● ● ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-98246-930-0 04 1 1401- ● ● ● ● ● ●
62 03.332 NUT; NOZZLE HOLDER
07.633 M8 FLANGE 		0-91150-108-0 08 1 0211-0501 ● ● ●
62 03.332 NUT; NOZZLE HOLDER
07.633 M8 FLANGE 		0-91150-108-0 08 1 0502-0602 ● ● ● ● ● ●
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE 		0-91180-108-0 08 1 0603- ● ● ● ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
TURBOCHARGER(K51) 		8-97148-969-2 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
CHARGE AIR COOLER<6PL> 		8-97148-969-2 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0502- ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. TURBOCHARGER(K51) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. ENGINE POWER N-SPEC(7QV) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. CHARGE AIR COOLER<6PL> 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 0502- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97118-895-0 01 1 0502- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97145-004-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97145-004-0 01 1 0502- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) 07.003 (A) 		8-97171-332-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 07.003 (A) 		8-97171-332-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 07.003 (A) 		8-97171-332-0 04 1 0502- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0502- ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0211-0501 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0502- ● ● ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> (A) 		8-97171-922-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) 		8-97171-922-0 04 1 0502- ● ●
68 03.162 CLIP; INJ PIPE
TURBOCHARGER(K51) (C) 		1-09701-091-0 01 1 0211-0501 ●
68 03.162 CLIP; INJ PIPE
(C) 		1-09701-091-0 01 1 0502- ●
68 03.162 CLIP; INJ PIPE
ENGINE POWER N-SPEC(7QV) (D) 		8-97213-049-0 04 1 0211-0501 ●
68 03.162 CLIP; INJ PIPE
(D) 		8-97213-049-0 04 1 0502- ●
68 03.162 CLIP; INJ PIPE
CHARGE AIR COOLER<6PL> (D) 		8-97213-049-0 06 1 0211-0501 ●
68 03.162 CLIP; INJ PIPE
(D) 		8-97213-049-0 06 1 0502- ● ●
78 03.330 BOLT; BRKT TO C/BL
TURBOCHARGER(K51) 04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0502-0512 ● ● ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 01 1 0601- ● ● ●
78 03.330 BOLT; BRKT TO C/BL
EXC. TURBOCHARGER(K51) 04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0502-0512 ● ● ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0601- ● ● ●
80 03.306 BRACKET; PUMP
(A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(A) 		8-97136-677-0 01 1 0502- ● ● ●
80 03.306 BRACKET; PUMP
ENGINE POWER N-SPEC(7QV) (B) 		8-97119-363-1 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(B) 		8-97119-363-1 01 1 0502- ●
80 03.306 BRACKET; PUMP
CHARGE AIR COOLER<6PL> (C) 		8-97148-958-1 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(C) 		8-97148-958-1 01 1 0502- ● ●
107 03.162 NUT; INJ PIPE CLIP
ENGINE POWER N-SPEC(7QV) 03.671 M5 FLANGE 		8-94178-699-0 02 1 0211-0501 ●
107 03.162 NUT; INJ PIPE CLIP
03.671 M5 FLANGE 		8-94178-699-0 02 1 0502- ●
107 03.162 NUT; INJ PIPE CLIP
CHARGE AIR COOLER<6PL> 03.671 M5 FLANGE 		8-94178-699-0 03 1 0211-0501 ●
107 03.162 NUT; INJ PIPE CLIP
03.671 M5 FLANGE 		8-94178-699-0 03 1 0502- ● ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97213-050-0 04 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 0502- ● ● ●
113 03.162 CLIP; INJ PIPE
TURBOCHARGER(K51) (B) 		8-97213-481-0 01 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 0502- ●
113 03.162 CLIP; INJ PIPE
ENGINE POWER N-SPEC(7QV) (A) 		8-97213-050-0 02 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 02 1 0502- ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 05 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 05 1 0502- ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ● ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0502-0506 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0507-0602 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0606 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
CHARGE AIR COOLER<6PL> 00.685 M12 FLANGE 		0-91250-112-0 01 1 0211-0501 ●
158 03.330 NUT; INJ PUMP
00.685 M12 FLANGE 		0-91250-112-0 01 1 0502-0602 ● ●
158 03.330 NUT; INJ PUMP
03.704 M12 FLANGE 		0-91280-112-0 01 1 0603- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0211-0212 ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0301-0501 ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0502-0506 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0507-0606 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0607-0910 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0911- ● ● ● ● ● ●
194 03.162 STUD; INJ PIPE
ENGINE POWER N-SPEC(7QV) 		8-97176-071-0 02 1 0211-0501 ●
194 03.162 STUD; INJ PIPE 8-97176-071-0 02 1 0502-0610 ●
194 03.162 STUD; INJ PIPE 8-98048-396-0 02 1 0611- ●
çizim 55134
19 18 113 17 16 68 99 36 63 113 110 2 62 31 161 66 2 66 1 2 219 226 219 80 2 2 158 2 84 78 167
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. TURBOCHARGER(K51) 		8-97212-101-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97212-101-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) 		8-97212-102-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97231-181-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. VOLTAGE 24V<7AE> 		8-97231-181-2 01 1 0502-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97231-181-2 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. COLOMBIA EQUIPMENT(X74) 		8-97215-704-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),COLOMBIA EQUIPMENT(X74) 		8-97215-704-2 01 1 0502-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) VOLTAGE 24V<7AE> 		8-97215-704-2 01 1 0607-1007 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLOMBIA E QUIPMENT(X74) 		8-97215-704-2 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) CHINA EQUIPMENT(YT2) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-387-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0502-0507 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHINA EQUIPMENT(YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0304-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-381-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT (YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0211-0211 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), CHINA EQUIPMENT(YT2),ENGINE POWER N-SPE C(7QV) 		8-97203-380-0 01 1 0212-0302 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0303-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-380-0 01 1 0502-0811 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),ENGINE POWER N- SPEC(7QV) 		8-97203-380-0 01 1 0812- ● ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHINA EQUIPMENT(YT2) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2),ENG INE POWER N-SPEC(7QV) 		8-97203-384-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),CHINA EQUIPMENT(YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-383-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-383-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) CHINA EQUIPMENT(YT2) EXC. AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		8-97251-675-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-105-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-105-1 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . VOLTAGE 24V<7AE> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 0502-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. EURO3 SPECIFICATION(NT3), VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0502-0606 ● ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. EURO2 SPECIFICATION(NT2), VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97257-154-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. EURO3 SPECIFICATION(NT3), VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97257-154-2 01 1 0502-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . A/T 4 SPEED-AISIN(RNJ) 		8-97257-154-2 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION(NT2) EXC. ENGINE POWER N-SPEC(7QV) 		8-97212-185-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV) 		8-97212-189-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV) 		8-97212-186-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . FLOOR REMOTE SHIFT<M11> 		8-97212-935-1 01 1 0502-0506 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 0507-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 0607-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. CHARGE AIR COOLER<6PL> 		8-97212-104-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97385-476-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) 		8-97225-432-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO2 SPECIFICATION(NT2) 		8-97212-189-1 01 1 0509-0910 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-97212-189-1 01 1 0911- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) 		8-97225-432-2 01 1 0507-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97225-432-2 01 1 1104- ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0502- ● ● ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> 03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0502- ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0211-0501 ● ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> (A) M12X90 FLANGE 		0-28181-290-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0502-0506 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0507-0512 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0601-0606 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0607- ● ● ● ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0211-0501 ● ● ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0502-0512 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
02.277 (C) M10X70 FLANGE 		0-28151-070-0 01 1 0601- ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0211-0501 ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0502-0506 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0507-0512 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0601-0606 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0607- ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE 		0-28081-025-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.417 (F) M10X25 FLANGE 		0-28081-025-0 01 1 0502-0512 ●
2 03.330 BOLT; INJ PUMP
09.171 (F) M10X25 FLANGE 		0-28051-025-0 01 1 0601- ●
2 03.330 BOLT; INJ PUMP
CHARGE AIR COOLER<6PL> (A) M12X110 		0-28186-211-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 		0-28186-211-0 01 1 0502-0512 ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 FLANGE 		0-28156-211-0 01 1 0601- ● ●
2 03.330 BOLT; INJ PUMP
CHARGE AIR COOLER<6PL> 03.162 (G) M14X27 FLANGE 		1-09675-086-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (G) M14X27 FLANGE 		1-09675-086-0 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
TURBOCHARGER(K51) 		8-97209-493-1 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 0502- ●
16 03.330 PIPE; INJ NO.1
EXC. TURBOCHARGER(K51) 		8-97123-374-0 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-374-0 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
ENGINE POWER N-SPEC(7QV) 		8-97134-166-1 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97134-166-1 01 1 0502- ●
16 03.330 PIPE; INJ NO.1
CHARGE AIR COOLER<6PL> 		8-97148-963-4 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97148-963-4 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
EXC. CHARGE AIR COOLER<6PL> 		8-97065-932-3 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2
TURBOCHARGER(K51) 		8-97209-494-1 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 0502- ●
17 03.330 PIPE; INJ NO.2
EXC. TURBOCHARGER(K51) 		8-97123-375-0 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-375-0 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 0502- ● ●
17 03.330 PIPE; INJ NO.2
ENGINE POWER N-SPEC(7QV) 		8-97134-167-1 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97134-167-1 01 1 0502- ●
17 03.330 PIPE; INJ NO.2
CHARGE AIR COOLER<6PL> 		8-97148-964-3 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97148-964-3 01 1 0502- ● ●
17 03.330 PIPE; INJ NO.2
EXC. CHARGE AIR COOLER<6PL> 		8-97065-933-3 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
TURBOCHARGER(K51) 		8-97209-495-1 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 0502- ●
18 03.330 PIPE; INJ NO.3
EXC. TURBOCHARGER(K51) 		8-97123-376-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-376-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 0502- ● ●
18 03.330 PIPE; INJ NO.3
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0502-0507 ●
18 03.330 PIPE; INJ NO.3
EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0508- ●
18 03.330 PIPE; INJ NO.3
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-106-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-106-0 01 1 0502- ●
18 03.330 PIPE; INJ NO.3
CHARGE AIR COOLER<6PL> 		8-97148-965-4 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97148-965-4 01 1 0502- ● ●
18 03.330 PIPE; INJ NO.3
EXC. CHARGE AIR COOLER<6PL> 		8-97065-934-3 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
TURBOCHARGER(K51) 		8-97209-496-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 0502- ●
19 03.330 PIPE; INJ NO.4
EXC. TURBOCHARGER(K51) 		8-97123-377-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-377-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 0502- ● ●
19 03.330 PIPE; INJ NO.4
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0502-0507 ●
19 03.330 PIPE; INJ NO.4
EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0508- ●
19 03.330 PIPE; INJ NO.4
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-107-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-107-0 01 1 0502- ●
19 03.330 PIPE; INJ NO.4
CHARGE AIR COOLER<6PL> 		8-97148-966-3 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97148-966-3 01 1 0502- ● ●
19 03.330 PIPE; INJ NO.4
EXC. CHARGE AIR COOLER<6PL> 		8-97065-935-3 01 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
TURBOCHARGER(K51) (B) 		8-97200-570-3 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
EXC. TURBOCHARGER(K51) (A) 		8-97119-811-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-811-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
ENGINE POWER N-SPEC(7QV) (A) 		8-97174-112-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97174-112-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97119-812-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-812-0 04 1 0502-0508 ● ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-812-0 04 1 0509- ●
31 03.332 NOZZLE ASM; INJ
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97148-960-1 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97148-960-1 04 1 0502-0506 ● ●
31 03.332 NOZZLE ASM; INJ
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97148-960-1 04 1 0507- ● ●
31 03.332 NOZZLE ASM; INJ
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97115-503-2 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) (A) 		8-97241-005-1 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) (A) 		8-97241-005-1 04 1 0507-1103 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97241-005-1 04 1 1104- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0211-0501 ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0502-1312 ● ● ● ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-98246-930-0 04 1 1401- ● ● ● ● ● ●
62 03.332 NUT; NOZZLE HOLDER
07.633 M8 FLANGE 		0-91150-108-0 08 1 0211-0501 ● ● ●
62 03.332 NUT; NOZZLE HOLDER
07.633 M8 FLANGE 		0-91150-108-0 08 1 0502-0602 ● ● ● ● ● ●
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE 		0-91180-108-0 08 1 0603- ● ● ● ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
TURBOCHARGER(K51) 		8-97148-969-2 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
CHARGE AIR COOLER<6PL> 		8-97148-969-2 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0502- ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. TURBOCHARGER(K51) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. ENGINE POWER N-SPEC(7QV) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. CHARGE AIR COOLER<6PL> 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 0502- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97118-895-0 01 1 0502- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97145-004-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97145-004-0 01 1 0502- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) 07.003 (A) 		8-97171-332-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 07.003 (A) 		8-97171-332-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 07.003 (A) 		8-97171-332-0 04 1 0502- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0502- ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0211-0501 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0502- ● ● ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> (A) 		8-97171-922-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) 		8-97171-922-0 04 1 0502- ● ●
68 03.162 CLIP; INJ PIPE
TURBOCHARGER(K51) (C) 		1-09701-091-0 01 1 0211-0501 ●
68 03.162 CLIP; INJ PIPE
(C) 		1-09701-091-0 01 1 0502- ●
68 03.162 CLIP; INJ PIPE
ENGINE POWER N-SPEC(7QV) (D) 		8-97213-049-0 04 1 0211-0501 ●
68 03.162 CLIP; INJ PIPE
(D) 		8-97213-049-0 04 1 0502- ●
68 03.162 CLIP; INJ PIPE
CHARGE AIR COOLER<6PL> (D) 		8-97213-049-0 06 1 0211-0501 ●
68 03.162 CLIP; INJ PIPE
(D) 		8-97213-049-0 06 1 0502- ● ●
78 03.330 BOLT; BRKT TO C/BL
TURBOCHARGER(K51) 04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 01 1 0502-0512 ● ● ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 01 1 0601- ● ● ●
78 03.330 BOLT; BRKT TO C/BL
EXC. TURBOCHARGER(K51) 04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0502-0512 ● ● ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0601- ● ● ●
80 03.306 BRACKET; PUMP
(A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(A) 		8-97136-677-0 01 1 0502- ● ● ●
80 03.306 BRACKET; PUMP
ENGINE POWER N-SPEC(7QV) (B) 		8-97119-363-1 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(B) 		8-97119-363-1 01 1 0502- ●
80 03.306 BRACKET; PUMP
CHARGE AIR COOLER<6PL> (C) 		8-97148-958-1 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(C) 		8-97148-958-1 01 1 0502- ● ●
84 03.330 NUT; BRKT TO BRKT
08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
EXC. ENGINE POWER N-SPEC(7QV) 08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
EXC. CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
08.917 M10 FLANGE 		0-91150-210-0 01 1 0502-0602 ● ● ●
84 03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
84 03.330 NUT; BRKT TO BRKT
CHARGE AIR COOLER<6PL> 07.243 M12 FLANGE 		0-91150-212-0 01 1 0211-0501 ●
84 03.330 NUT; BRKT TO BRKT
07.243 M12 FLANGE 		0-91150-212-0 01 1 0502-0602 ● ●
84 03.330 NUT; BRKT TO BRKT
05.816 M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
99 03.330 BOLT; CLIP,INJ,PIPE
TURBOCHARGER(K51) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
99 03.330 BOLT; CLIP,INJ,PIPE
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
99 03.330 BOLT; CLIP,INJ,PIPE
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ●
110 03.330 NUT; CLIP
TURBOCHARGER(K51) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603- ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97213-050-0 04 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 0502- ● ● ●
113 03.162 CLIP; INJ PIPE
TURBOCHARGER(K51) (B) 		8-97213-481-0 01 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 0502- ●
113 03.162 CLIP; INJ PIPE
ENGINE POWER N-SPEC(7QV) (A) 		8-97213-050-0 02 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 02 1 0502- ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 05 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 05 1 0502- ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ● ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0502-0506 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0507-0602 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0606 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
CHARGE AIR COOLER<6PL> 00.685 M12 FLANGE 		0-91250-112-0 01 1 0211-0501 ●
158 03.330 NUT; INJ PUMP
00.685 M12 FLANGE 		0-91250-112-0 01 1 0502-0602 ● ●
158 03.330 NUT; INJ PUMP
03.704 M12 FLANGE 		0-91280-112-0 01 1 0603- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0211-0212 ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0301-0501 ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0502-0506 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0507-0606 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0607-0910 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0911- ● ● ● ● ● ●
167 03.330 SPACER; GUIDE TUBE
TURBOCHARGER(K51) 		8-97065-515-2 01 1 0211-0501 ●
167 03.330 SPACER; GUIDE TUBE
EXC. CHARGE AIR COOLER<6PL> 		8-97065-515-2 01 1 0211-0501 ●
167 03.330 SPACER; GUIDE TUBE 8-97065-515-2 01 1 0502- ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-085-0 02 1 0211-0501 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0501 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0501 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0502-1312 ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ● ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 0211-0501 ●
226 03.163 PIPE; FUEL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97203-567-0 01 1 0211-0501 ●
226 03.163 PIPE; FUEL
EXC. CHARGE AIR COOLER<6PL> 		8-97203-567-0 01 1 0211-0501 ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 0502- ● ● ●
çizim 55137
31 31 32 32 34 34 58 58 45 138 140 43 140 44 43 146 46 140 44 43 47 272 33 35 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
31 03.332 NOZZLE ASM; INJ
TURBOCHARGER(K51) (B) 		8-97200-570-3 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
EXC. TURBOCHARGER(K51) (A) 		8-97119-811-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-811-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
ENGINE POWER N-SPEC(7QV) (A) 		8-97174-112-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97174-112-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97119-812-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-812-0 04 1 0502-0508 ● ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-812-0 04 1 0509- ●
31 03.332 NOZZLE ASM; INJ
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97148-960-1 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97148-960-1 04 1 0502-0506 ● ●
31 03.332 NOZZLE ASM; INJ
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97148-960-1 04 1 0507- ● ●
31 03.332 NOZZLE ASM; INJ
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97115-503-2 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) (A) 		8-97241-005-1 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) (A) 		8-97241-005-1 04 1 0507-1103 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97241-005-1 04 1 1104- ●
32 03.332 HOLDER ASM; NOZZLE
TURBOCHARGER(K51) (B) 		8-97078-783-1 04 1 0211-0501 ●
32 03.332 HOLDER ASM; NOZZLE
(B) 		8-97078-783-1 04 1 0502- ●
32 03.332 HOLDER ASM; NOZZLE
EXC. TURBOCHARGER(K51) (A) 		8-94311-966-2 04 1 0211-0501 ●
32 03.332 HOLDER ASM; NOZZLE
(A) 		8-94311-966-2 04 1 0211-0501 ●
32 03.332 HOLDER ASM; NOZZLE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (A) 		8-94311-966-2 04 1 0211-0501 ●
32 03.332 HOLDER ASM; NOZZLE
(A) 		8-94311-966-2 04 1 0502-0506 ● ● ● ● ●
32 03.332 HOLDER ASM; NOZZLE
(A) 		8-94311-966-2 04 1 0507-0508 ● ● ●
32 03.332 HOLDER ASM; NOZZLE
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-94311-966-2 04 1 0507-0508 ● ●
32 03.332 HOLDER ASM; NOZZLE
(A) 		8-94311-966-2 04 1 0509- ● ● ● ●
32 03.332 HOLDER ASM; NOZZLE
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-94311-966-2 04 1 0509- ●
32 03.332 HOLDER ASM; NOZZLE
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97352-048-0 04 1 0211-0501 ●
32 03.332 HOLDER ASM; NOZZLE
EURO3 SPECIFICATION(NT3) (A) 		8-97259-840-0 04 1 0211-0501 ●
32 03.332 HOLDER ASM; NOZZLE
EURO3 SPECIFICATION(NT3) (A) 		8-97259-840-0 04 1 0507-1103 ●
32 03.332 HOLDER ASM; NOZZLE
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97259-840-0 04 1 1104- ●
33 03.332 NOZZLE; INJ
EXC. TURBOCHARGER(K51) 		8-97119-809-0 04 1 0211-0501 ●
33 03.332 NOZZLE; INJ 8-97119-809-0 04 1 0502- ●
33 03.332 NOZZLE; INJ
ENGINE POWER N-SPEC(7QV) 		8-97174-114-0 04 1 0211-0501 ●
33 03.332 NOZZLE; INJ 8-97174-114-0 04 1 0502- ●
33 03.332 NOZZLE; INJ
EXC. ENGINE POWER N-SPEC(7QV) 		8-97119-810-0 04 1 0211-0501 ●
33 03.332 NOZZLE; INJ 8-97119-810-0 04 1 0502-0508 ● ●
33 03.332 NOZZLE; INJ 8-97119-810-0 04 1 0509- ●
33 03.332 NOZZLE; INJ
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 		8-97148-961-1 04 1 0211-0501 ●
33 03.332 NOZZLE; INJ 8-97148-961-1 04 1 0502-0506 ● ●
33 03.332 NOZZLE; INJ
EXC. EURO3 SPECIFICATION(NT3) 		8-97148-961-1 04 1 0507- ● ●
33 03.332 NOZZLE; INJ
EURO3 SPECIFICATION(NT3) 		8-97258-926-0 04 1 0211-0501 ●
33 03.332 NOZZLE; INJ
EURO3 SPECIFICATION(NT3) 		8-97258-926-0 04 1 0507-1103 ●
33 03.332 NOZZLE; INJ
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97258-926-0 04 1 1104- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
TURBOCHARGER(K51) 03.162 M8X18 EYE-BOLT 		1-09675-037-1 04 1 0211-0501 ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL> 03.162 M8X18 EYE-BOLT 		1-09675-037-1 04 1 0211-0501 ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) 03.162 M8X18 EYE-BOLT 		1-09675-037-1 04 1 0211-0501 ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.162 M8X18 EYE-BOLT 		1-09675-037-1 04 1 0502-0506 ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.162 M8X18 EYE-BOLT 		1-09675-037-1 04 1 0507- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
EURO3 SPECIFICATION(NT3) 03.162 M8X18 EYE-BOLT 		1-09675-037-1 04 1 0507- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
EXC. TURBOCHARGER(K51) 		1-15339-009-0 04 1 0211-0501 ●
34 03.330 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 04 1 0211-0501 ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 		1-15339-009-0 04 1 0211-0501 ●
34 03.330 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 04 1 0502-0506 ● ● ● ● ●
34 03.330 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 04 1 0507-0508 ● ● ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
EXC. EURO3 SPECIFICATION(NT3) 		1-15339-009-0 04 1 0507-0508 ● ●
34 03.330 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 04 1 0509- ● ● ● ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
EXC. EURO3 SPECIFICATION(NT3) 		1-15339-009-0 04 1 0509- ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER
TURBOCHARGER(K51) 		1-15349-041-0 04 1 0211-0501 ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL> 		1-15349-041-0 04 1 0211-0501 ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 0502- ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER
EXC. TURBOCHARGER(K51) 		8-94174-184-0 04 1 0211-0501 ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 0211-0501 ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER
CHARGE AIR COOLER<6PL> 		8-94174-184-0 04 1 0211-0501 ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 0502- ● ● ● ● ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (C) 		8-97223-339-0 04 1 0211-0501 ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(C) 		8-97223-339-0 04 1 0502- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (B) 		8-97349-452-0 04 1 0211-0501 ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97349-452-0 04 1 0211-0501 ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) 		8-97349-452-0 04 1 0502- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
EXC. TURBOCHARGER(K51) (A) 		8-94329-555-0 04 1 0211-0501 ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) 		8-94329-555-0 04 1 0211-0501 ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> (A) 		8-94329-555-0 04 1 0211-0501 ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) 		8-94329-555-0 04 1 0502- ● ● ● ● ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (C) 		8-97361-697-0 04 1 0211-0501 ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER
TURBOCHARGER(K51) 		1-15343-003-0 04 1 0211-0501 ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL> 		1-15343-003-0 04 1 0211-0501 ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 0502- ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER
EXC. TURBOCHARGER(K51) 		8-94174-141-0 04 1 0211-0501 ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 0211-0501 ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER
CHARGE AIR COOLER<6PL> 		8-94174-141-0 04 1 0211-0501 ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 0502- ● ● ● ● ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
TURBOCHARGER(K51) 		1-15341-008-0 04 1 0211-0501 ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL> 		1-15341-008-0 04 1 0211-0501 ●
45 03.330 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 0502- ●
46 03.330 PIN; NOZZLE SET,NOZZLE HOLDER
EXC. TURBOCHARGER(K51) 		8-94174-139-0 08 1 0211-0501 ●
46 03.330 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 0211-0501 ●
46 03.330 PIN; NOZZLE SET,NOZZLE HOLDER
CHARGE AIR COOLER<6PL> 		8-94174-139-0 08 1 0211-0501 ●
46 03.330 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 0502- ● ● ● ● ●
47 03.332 SPACER; NOZZLE SPRING,NOZZLE HOL
TURBOCHARGER(K51) 		8-97223-340-0 04 1 0211-0501 ●
47 03.332 SPACER; NOZZLE SPRING,NOZZLE HOL
EXC. CHARGE AIR COOLER<6PL> 		8-97223-340-0 04 1 0211-0501 ●
47 03.332 SPACER; NOZZLE SPRING,NOZZLE HOL 8-97223-340-0 04 1 0502- ●
58 03.332 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 0211-0501 ● ● ●
58 03.332 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 0502-1007 ● ● ● ● ● ●
58 03.332 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 1008-1103 ● ● ● ●
58 03.332 FLANGE; INJ,NOZZLE HOLDER
VOLTAGE 24V<7AE> 		8-97065-713-0 04 1 1008-1103 ● ●
58 03.332 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 1104- ● ● ● ● ● ●
138 03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER
TURBOCHARGER(K51) 		1-15343-004-0 04 1 0211-0501 ●
138 03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL> 		1-15343-004-0 04 1 0211-0501 ●
138 03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 0502- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (B) T=1.20 		1-15349-004-0 04 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (B) T=1.20 		1-15349-004-0 04 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=1.20 		1-15349-004-0 04 1 0502- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (B) T=0.40 		1-15349-042-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (B) T=0.40 		1-15349-042-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.40 		1-15349-042-0 AR 1 0502- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (B) T=0.50 		1-15349-043-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (B) T=0.50 		1-15349-043-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.50 		1-15349-043-0 AR 1 0502- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (B) T=0.52 		1-15349-044-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (B) T=0.52 		1-15349-044-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.52 		1-15349-044-0 AR 1 0502- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (B) T=0.54 		1-15349-045-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (B) T=0.54 		1-15349-045-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.54 		1-15349-045-0 AR 1 0502- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (B) T=0.56 		1-15349-046-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (B) T=0.56 		1-15349-046-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.56 		1-15349-046-0 AR 1 0502- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (B) T=0.58 		1-15349-047-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (B) T=0.58 		1-15349-047-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.58 		1-15349-047-0 AR 1 0502- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (B) T=0.60 		1-15349-048-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (B) T=0.60 		1-15349-048-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.60 		1-15349-048-0 AR 1 0502- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (B) T=0.70 		1-15349-049-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (B) T=0.70 		1-15349-049-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.70 		1-15349-049-0 AR 1 0502- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (A) T=0.10 		8-97116-029-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (A) T=0.10 		8-97116-029-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) (A) T=0.10 		8-97116-029-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.10 		8-97116-029-0 AR 1 0502-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.10 		8-97116-029-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO3 SPECIFICATION(NT3) (A) T=0.10 		8-97116-029-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (A) T=0.20 		8-97116-032-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (A) T=0.20 		8-97116-032-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) (A) T=0.20 		8-97116-032-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.20 		8-97116-032-0 AR 1 0502-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.20 		8-97116-032-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO3 SPECIFICATION(NT3) (A) T=0.20 		8-97116-032-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (A) T=0.30 		8-97116-033-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (A) T=0.30 		8-97116-033-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) (A) T=0.30 		8-97116-033-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.30 		8-97116-033-0 AR 1 0502-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.30 		8-97116-033-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO3 SPECIFICATION(NT3) (A) T=0.30 		8-97116-033-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (A) T=0.40 		8-97116-034-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (A) T=0.40 		8-97116-034-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) (A) T=0.40 		8-97116-034-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.40 		8-97116-034-0 AR 1 0502-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.40 		8-97116-034-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO3 SPECIFICATION(NT3) (A) T=0.40 		8-97116-034-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (A) T=0.50 		8-97116-035-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (A) T=0.50 		8-97116-035-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) (A) T=0.50 		8-97116-035-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.50 		8-97116-035-0 AR 1 0502-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.50 		8-97116-035-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO3 SPECIFICATION(NT3) (A) T=0.50 		8-97116-035-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (A) T=0.51 		8-97116-036-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (A) T=0.51 		8-97116-036-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) (A) T=0.51 		8-97116-036-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.51 		8-97116-036-0 AR 1 0502-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.51 		8-97116-036-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO3 SPECIFICATION(NT3) (A) T=0.51 		8-97116-036-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (A) T=0.52 		8-97116-037-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (A) T=0.52 		8-97116-037-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) (A) T=0.52 		8-97116-037-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.52 		8-97116-037-0 AR 1 0502-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.52 		8-97116-037-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO3 SPECIFICATION(NT3) (A) T=0.52 		8-97116-037-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (A) T=0.53 		8-97116-038-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (A) T=0.53 		8-97116-038-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) (A) T=0.53 		8-97116-038-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.53 		8-97116-038-0 AR 1 0502-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.53 		8-97116-038-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO3 SPECIFICATION(NT3) (A) T=0.53 		8-97116-038-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (A) T=0.54 		8-97116-039-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (A) T=0.54 		8-97116-039-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) (A) T=0.54 		8-97116-039-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.54 		8-97116-039-0 AR 1 0502-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.54 		8-97116-039-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO3 SPECIFICATION(NT3) (A) T=0.54 		8-97116-039-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (A) T=0.55 		8-97116-040-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (A) T=0.55 		8-97116-040-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) (A) T=0.55 		8-97116-040-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.55 		8-97116-040-0 AR 1 0502-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.55 		8-97116-040-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO3 SPECIFICATION(NT3) (A) T=0.55 		8-97116-040-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (A) T=0.56 		8-97116-041-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (A) T=0.56 		8-97116-041-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) (A) T=0.56 		8-97116-041-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.56 		8-97116-041-0 AR 1 0502-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.56 		8-97116-041-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO3 SPECIFICATION(NT3) (A) T=0.56 		8-97116-041-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (A) T=0.57 		8-97116-042-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (A) T=0.57 		8-97116-042-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) (A) T=0.57 		8-97116-042-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.57 		8-97116-042-0 AR 1 0502-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.57 		8-97116-042-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO3 SPECIFICATION(NT3) (A) T=0.57 		8-97116-042-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (A) T=0.58 		8-97116-043-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (A) T=0.58 		8-97116-043-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) (A) T=0.58 		8-97116-043-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.58 		8-97116-043-0 AR 1 0502-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.58 		8-97116-043-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO3 SPECIFICATION(NT3) (A) T=0.58 		8-97116-043-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
TURBOCHARGER(K51) (A) T=0.59 		8-97116-044-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL> (A) T=0.59 		8-97116-044-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION(NT3) (A) T=0.59 		8-97116-044-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.59 		8-97116-044-0 AR 1 0502-0506 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.59 		8-97116-044-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO3 SPECIFICATION(NT3) (A) T=0.59 		8-97116-044-0 AR 1 0507- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. TURBOCHARGER(K51) 03.332 (A) T=0.10 		8-97027-432-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.10 		8-97027-432-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.10 		8-97027-432-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.10 		8-97027-432-0 AR 1 0502-0506 ● ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.10 		8-97027-432-0 AR 1 0507-0508 ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.10 		8-97027-432-0 AR 1 0507-0508 ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.10 		8-97027-432-0 AR 1 0509- ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.10 		8-97027-432-0 AR 1 0509- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. TURBOCHARGER(K51) 03.332 (A) T=0.20 		8-97027-433-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.20 		8-97027-433-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.20 		8-97027-433-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.20 		8-97027-433-0 AR 1 0502-0506 ● ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.20 		8-97027-433-0 AR 1 0507-0508 ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.20 		8-97027-433-0 AR 1 0507-0508 ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.20 		8-97027-433-0 AR 1 0509- ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.20 		8-97027-433-0 AR 1 0509- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. TURBOCHARGER(K51) 03.332 (A) T=0.30 		8-97027-434-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.30 		8-97027-434-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.30 		8-97027-434-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.30 		8-97027-434-0 AR 1 0502-0506 ● ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.30 		8-97027-434-0 AR 1 0507-0508 ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.30 		8-97027-434-0 AR 1 0507-0508 ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.30 		8-97027-434-0 AR 1 0509- ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.30 		8-97027-434-0 AR 1 0509- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. TURBOCHARGER(K51) 03.332 (A) T=0.40 		8-97027-435-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.40 		8-97027-435-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.40 		8-97027-435-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.40 		8-97027-435-0 AR 1 0502-0506 ● ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.40 		8-97027-435-0 AR 1 0507-0508 ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.40 		8-97027-435-0 AR 1 0507-0508 ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.40 		8-97027-435-0 AR 1 0509- ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.40 		8-97027-435-0 AR 1 0509- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. TURBOCHARGER(K51) 03.332 (A) T=0.50 		8-97027-436-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.50 		8-97027-436-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.50 		8-97027-436-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.50 		8-97027-436-0 AR 1 0502-0506 ● ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.50 		8-97027-436-0 AR 1 0507-0508 ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.50 		8-97027-436-0 AR 1 0507-0508 ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.50 		8-97027-436-0 AR 1 0509- ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.50 		8-97027-436-0 AR 1 0509- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. TURBOCHARGER(K51) 03.332 (A) T=0.52 		8-97027-437-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.52 		8-97027-437-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.52 		8-97027-437-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.52 		8-97027-437-0 AR 1 0502-0506 ● ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.52 		8-97027-437-0 AR 1 0507-0508 ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.52 		8-97027-437-0 AR 1 0507-0508 ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.52 		8-97027-437-0 AR 1 0509- ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.52 		8-97027-437-0 AR 1 0509- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. TURBOCHARGER(K51) 03.332 (A) T=0.54 		8-97027-438-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.54 		8-97027-438-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.54 		8-97027-438-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.54 		8-97027-438-0 AR 1 0502-0506 ● ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.54 		8-97027-438-0 AR 1 0507-0508 ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.54 		8-97027-438-0 AR 1 0507-0508 ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.54 		8-97027-438-0 AR 1 0509- ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.54 		8-97027-438-0 AR 1 0509- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. TURBOCHARGER(K51) 03.332 (A) T=0.56 		8-97027-439-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.56 		8-97027-439-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.56 		8-97027-439-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.56 		8-97027-439-0 AR 1 0502-0506 ● ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.56 		8-97027-439-0 AR 1 0507-0508 ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.56 		8-97027-439-0 AR 1 0507-0508 ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.56 		8-97027-439-0 AR 1 0509- ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.56 		8-97027-439-0 AR 1 0509- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. TURBOCHARGER(K51) 03.332 (A) T=0.58 		8-97027-440-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.58 		8-97027-440-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.58 		8-97027-440-0 AR 1 0211-0501 ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.58 		8-97027-440-0 AR 1 0502-0506 ● ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.58 		8-97027-440-0 AR 1 0507-0508 ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.58 		8-97027-440-0 AR 1 0507-0508 ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.58 		8-97027-440-0 AR 1 0509- ● ● ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO3 SPECIFICATION(NT3) 03.332 (A) T=0.58 		8-97027-440-0 AR 1 0509- ●
146 03.332 SPACER; NOZZLE
EXC. TURBOCHARGER(K51) 		8-94344-439-0 04 1 0211-0501 ●
146 03.332 SPACER; NOZZLE 8-94344-439-0 04 1 0211-0501 ●
146 03.332 SPACER; NOZZLE
CHARGE AIR COOLER<6PL> 		8-94344-439-0 04 1 0211-0501 ●
146 03.332 SPACER; NOZZLE 8-94344-439-0 04 1 0502- ● ● ● ● ●
272 03.332 NOZZLE KIT; INJ
TURBOCHARGER(K51) 		8-97352-267-0 04 1 0211-0501 ●
272 03.332 NOZZLE KIT; INJ 8-97352-267-0 04 1 0502- ●
272 03.332 NOZZLE KIT; INJ
EXC. CHARGE AIR COOLER<6PL> 		8-97371-583-0 04 1 0211-0501 ●
çizim 55331
19 18 17 211 16 211 282 290 199 199 216 110 68 68 71 9 71 288 289 71 68 68 120 9 168 68 283 110 210 110 354 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 03.330 PIPE; INJ NO.1
TURBOCHARGER(K51) 		8-97209-493-1 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 0502- ●
16 03.330 PIPE; INJ NO.1
EXC. TURBOCHARGER(K51) 		8-97123-374-0 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-374-0 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
ENGINE POWER N-SPEC(7QV) 		8-97134-166-1 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97134-166-1 01 1 0502- ●
16 03.330 PIPE; INJ NO.1
CHARGE AIR COOLER<6PL> 		8-97148-963-4 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1 8-97148-963-4 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
EXC. CHARGE AIR COOLER<6PL> 		8-97065-932-3 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2
TURBOCHARGER(K51) 		8-97209-494-1 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 0502- ●
17 03.330 PIPE; INJ NO.2
EXC. TURBOCHARGER(K51) 		8-97123-375-0 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-375-0 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 0502- ● ●
17 03.330 PIPE; INJ NO.2
ENGINE POWER N-SPEC(7QV) 		8-97134-167-1 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97134-167-1 01 1 0502- ●
17 03.330 PIPE; INJ NO.2
CHARGE AIR COOLER<6PL> 		8-97148-964-3 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2 8-97148-964-3 01 1 0502- ● ●
17 03.330 PIPE; INJ NO.2
EXC. CHARGE AIR COOLER<6PL> 		8-97065-933-3 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
TURBOCHARGER(K51) 		8-97209-495-1 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 0502- ●
18 03.330 PIPE; INJ NO.3
EXC. TURBOCHARGER(K51) 		8-97123-376-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-376-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 0502- ● ●
18 03.330 PIPE; INJ NO.3
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0502-0507 ●
18 03.330 PIPE; INJ NO.3
EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0508- ●
18 03.330 PIPE; INJ NO.3
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-106-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-106-0 01 1 0502- ●
18 03.330 PIPE; INJ NO.3
CHARGE AIR COOLER<6PL> 		8-97148-965-4 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3 8-97148-965-4 01 1 0502- ● ●
18 03.330 PIPE; INJ NO.3
EXC. CHARGE AIR COOLER<6PL> 		8-97065-934-3 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
TURBOCHARGER(K51) 		8-97209-496-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 0502- ●
19 03.330 PIPE; INJ NO.4
EXC. TURBOCHARGER(K51) 		8-97123-377-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-377-1 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 0502- ● ●
19 03.330 PIPE; INJ NO.4
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0502-0507 ●
19 03.330 PIPE; INJ NO.4
EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0508- ●
19 03.330 PIPE; INJ NO.4
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-107-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-107-0 01 1 0502- ●
19 03.330 PIPE; INJ NO.4
CHARGE AIR COOLER<6PL> 		8-97148-966-3 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4 8-97148-966-3 01 1 0502- ● ●
19 03.330 PIPE; INJ NO.4
EXC. CHARGE AIR COOLER<6PL> 		8-97065-935-3 01 1 0211-0501 ●
68 03.162 CLIP; INJ PIPE
TURBOCHARGER(K51) (C) 		1-09701-091-0 01 1 0211-0501 ●
68 03.162 CLIP; INJ PIPE
(C) 		1-09701-091-0 01 1 0502- ●
68 03.162 CLIP; INJ PIPE
ENGINE POWER N-SPEC(7QV) (D) 		8-97213-049-0 04 1 0211-0501 ●
68 03.162 CLIP; INJ PIPE
(D) 		8-97213-049-0 04 1 0502- ●
68 03.162 CLIP; INJ PIPE
CHARGE AIR COOLER<6PL> (D) 		8-97213-049-0 06 1 0211-0501 ●
68 03.162 CLIP; INJ PIPE
(D) 		8-97213-049-0 06 1 0502- ● ●
110 03.330 NUT; CLIP
TURBOCHARGER(K51) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603- ●
çizim 55648
63 124 36 31 154 61 94 66 66 377 71 404 1 282 199 199 377 216 281 337 71 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. TURBOCHARGER(K51) 		8-97212-101-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97212-101-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) 		8-97212-102-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97231-181-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. VOLTAGE 24V<7AE> 		8-97231-181-2 01 1 0502-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97231-181-2 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. COLOMBIA EQUIPMENT(X74) 		8-97215-704-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),COLOMBIA EQUIPMENT(X74) 		8-97215-704-2 01 1 0502-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) VOLTAGE 24V<7AE> 		8-97215-704-2 01 1 0607-1007 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLOMBIA E QUIPMENT(X74) 		8-97215-704-2 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) CHINA EQUIPMENT(YT2) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-387-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0502-0507 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHINA EQUIPMENT(YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0304-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-381-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT (YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0211-0211 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), CHINA EQUIPMENT(YT2),ENGINE POWER N-SPE C(7QV) 		8-97203-380-0 01 1 0212-0302 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0303-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-380-0 01 1 0502-0811 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),ENGINE POWER N- SPEC(7QV) 		8-97203-380-0 01 1 0812- ● ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHINA EQUIPMENT(YT2) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2),ENG INE POWER N-SPEC(7QV) 		8-97203-384-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),CHINA EQUIPMENT(YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-383-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-383-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) CHINA EQUIPMENT(YT2) EXC. AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		8-97251-675-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-105-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-105-1 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . VOLTAGE 24V<7AE> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 0502-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. EURO3 SPECIFICATION(NT3), VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0502-0606 ● ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. EURO2 SPECIFICATION(NT2), VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97257-154-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. EURO3 SPECIFICATION(NT3), VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97257-154-2 01 1 0502-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . A/T 4 SPEED-AISIN(RNJ) 		8-97257-154-2 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION(NT2) EXC. ENGINE POWER N-SPEC(7QV) 		8-97212-185-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV) 		8-97212-189-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV) 		8-97212-186-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . FLOOR REMOTE SHIFT<M11> 		8-97212-935-1 01 1 0502-0506 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 0507-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 0607-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. CHARGE AIR COOLER<6PL> 		8-97212-104-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97385-476-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) 		8-97225-432-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO2 SPECIFICATION(NT2) 		8-97212-189-1 01 1 0509-0910 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-97212-189-1 01 1 0911- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) 		8-97225-432-2 01 1 0507-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97225-432-2 01 1 1104- ●
31 03.332 NOZZLE ASM; INJ
TURBOCHARGER(K51) (B) 		8-97200-570-3 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
EXC. TURBOCHARGER(K51) (A) 		8-97119-811-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-811-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
ENGINE POWER N-SPEC(7QV) (A) 		8-97174-112-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97174-112-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97119-812-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-812-0 04 1 0502-0508 ● ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97119-812-0 04 1 0509- ●
31 03.332 NOZZLE ASM; INJ
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97148-960-1 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97148-960-1 04 1 0502-0506 ● ●
31 03.332 NOZZLE ASM; INJ
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97148-960-1 04 1 0507- ● ●
31 03.332 NOZZLE ASM; INJ
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97115-503-2 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) (A) 		8-97241-005-1 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) (A) 		8-97241-005-1 04 1 0507-1103 ●
31 03.332 NOZZLE ASM; INJ
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97241-005-1 04 1 1104- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0211-0501 ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-94395-214-0 04 1 0502-1312 ● ● ● ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6 		8-98246-930-0 04 1 1401- ● ● ● ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
TURBOCHARGER(K51) 		8-97148-969-2 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
CHARGE AIR COOLER<6PL> 		8-97148-969-2 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0502- ● ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. TURBOCHARGER(K51) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. ENGINE POWER N-SPEC(7QV) 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. CHARGE AIR COOLER<6PL> 		8-97118-895-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 0502- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97118-895-0 01 1 0502- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97145-004-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97145-004-0 01 1 0502- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) 07.003 (A) 		8-97171-332-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 07.003 (A) 		8-97171-332-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 07.003 (A) 		8-97171-332-0 04 1 0502- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0502- ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0211-0501 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) 		8-94326-439-0 04 1 0502- ● ● ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> (A) 		8-97171-922-0 04 1 0211-0501 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) 		8-97171-922-0 04 1 0502- ● ●
çizim 56131
161 2 378 219 158 2 383 80 2 382 226 87 199 199 216 1 424
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. TURBOCHARGER(K51) 		8-97212-101-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97212-101-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) 		8-97212-102-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97231-181-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. VOLTAGE 24V<7AE> 		8-97231-181-2 01 1 0502-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97231-181-2 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. COLOMBIA EQUIPMENT(X74) 		8-97215-704-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),COLOMBIA EQUIPMENT(X74) 		8-97215-704-2 01 1 0502-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) VOLTAGE 24V<7AE> 		8-97215-704-2 01 1 0607-1007 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COLOMBIA E QUIPMENT(X74) 		8-97215-704-2 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) CHINA EQUIPMENT(YT2) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-387-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0502-0507 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHINA EQUIPMENT(YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0304-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-381-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT (YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0211-0211 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), CHINA EQUIPMENT(YT2),ENGINE POWER N-SPE C(7QV) 		8-97203-380-0 01 1 0212-0302 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0303-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-380-0 01 1 0502-0811 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), COLOMBIA EQUIPMENT(X74),ENGINE POWER N- SPEC(7QV) 		8-97203-380-0 01 1 0812- ● ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHINA EQUIPMENT(YT2) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2),ENG INE POWER N-SPEC(7QV) 		8-97203-384-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),CHINA EQUIPMENT(YT2),ENGINE POWER N-SPEC(7QV) 		8-97203-383-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) 		8-97203-383-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) CHINA EQUIPMENT(YT2) EXC. AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		8-97251-675-0 01 1 0211-0303 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-105-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-105-1 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . VOLTAGE 24V<7AE> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 0502-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97212-188-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. EURO3 SPECIFICATION(NT3), VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0502-0606 ● ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. EURO2 SPECIFICATION(NT2), VOLTAGE 24V<7AE> 		8-97321-399-1 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97257-154-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. EURO3 SPECIFICATION(NT3), VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97257-154-2 01 1 0502-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . A/T 4 SPEED-AISIN(RNJ) 		8-97257-154-2 01 1 0607- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION(NT2) EXC. ENGINE POWER N-SPEC(7QV) 		8-97212-185-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV) 		8-97212-189-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV) 		8-97212-186-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . FLOOR REMOTE SHIFT<M11> 		8-97212-935-1 01 1 0502-0506 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 0507-0606 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 0607-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) 		8-97212-935-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. CHARGE AIR COOLER<6PL> 		8-97212-104-0 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97385-476-0 01 1 0502- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) 		8-97225-432-2 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO2 SPECIFICATION(NT2) 		8-97212-189-1 01 1 0509-0910 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-97212-189-1 01 1 0911- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) 		8-97225-432-2 01 1 0507-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97225-432-2 01 1 1104- ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0502- ● ● ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> 03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0502- ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0211-0501 ● ●
2 03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL> (A) M12X90 FLANGE 		0-28181-290-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0502-0506 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0507-0512 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0601-0606 ● ● ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0607- ● ● ● ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0211-0501 ● ● ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0502-0512 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
02.277 (C) M10X70 FLANGE 		0-28151-070-0 01 1 0601- ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0211-0501 ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0502-0506 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0507-0512 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0601-0606 ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0607- ● ● ● ● ● ●
2 03.330 BOLT; INJ PUMP
ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE 		0-28081-025-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.417 (F) M10X25 FLANGE 		0-28081-025-0 01 1 0502-0512 ●
2 03.330 BOLT; INJ PUMP
09.171 (F) M10X25 FLANGE 		0-28051-025-0 01 1 0601- ●
2 03.330 BOLT; INJ PUMP
CHARGE AIR COOLER<6PL> (A) M12X110 		0-28186-211-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 		0-28186-211-0 01 1 0502-0512 ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X110 FLANGE 		0-28156-211-0 01 1 0601- ● ●
2 03.330 BOLT; INJ PUMP
CHARGE AIR COOLER<6PL> 03.162 (G) M14X27 FLANGE 		1-09675-086-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.162 (G) M14X27 FLANGE 		1-09675-086-0 01 1 0502- ● ●
80 03.306 BRACKET; PUMP
(A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97136-677-0 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(A) 		8-97136-677-0 01 1 0502- ● ● ●
80 03.306 BRACKET; PUMP
ENGINE POWER N-SPEC(7QV) (B) 		8-97119-363-1 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(B) 		8-97119-363-1 01 1 0502- ●
80 03.306 BRACKET; PUMP
CHARGE AIR COOLER<6PL> (C) 		8-97148-958-1 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
(C) 		8-97148-958-1 01 1 0502- ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ● ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0502-0506 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0507-0602 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0606 ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ● ● ● ● ●
158 03.330 NUT; INJ PUMP
CHARGE AIR COOLER<6PL> 00.685 M12 FLANGE 		0-91250-112-0 01 1 0211-0501 ●
158 03.330 NUT; INJ PUMP
00.685 M12 FLANGE 		0-91250-112-0 01 1 0502-0602 ● ●
158 03.330 NUT; INJ PUMP
03.704 M12 FLANGE 		0-91280-112-0 01 1 0603- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0211-0212 ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0301-0501 ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0502-0506 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0507-0606 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0607-0910 ● ● ● ● ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0911- ● ● ● ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-085-0 02 1 0211-0501 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0501 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0501 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0502-1312 ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ● ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 0211-0501 ●
226 03.163 PIPE; FUEL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97203-567-0 01 1 0211-0501 ●
226 03.163 PIPE; FUEL
EXC. CHARGE AIR COOLER<6PL> 		8-97203-567-0 01 1 0211-0501 ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 0502- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
