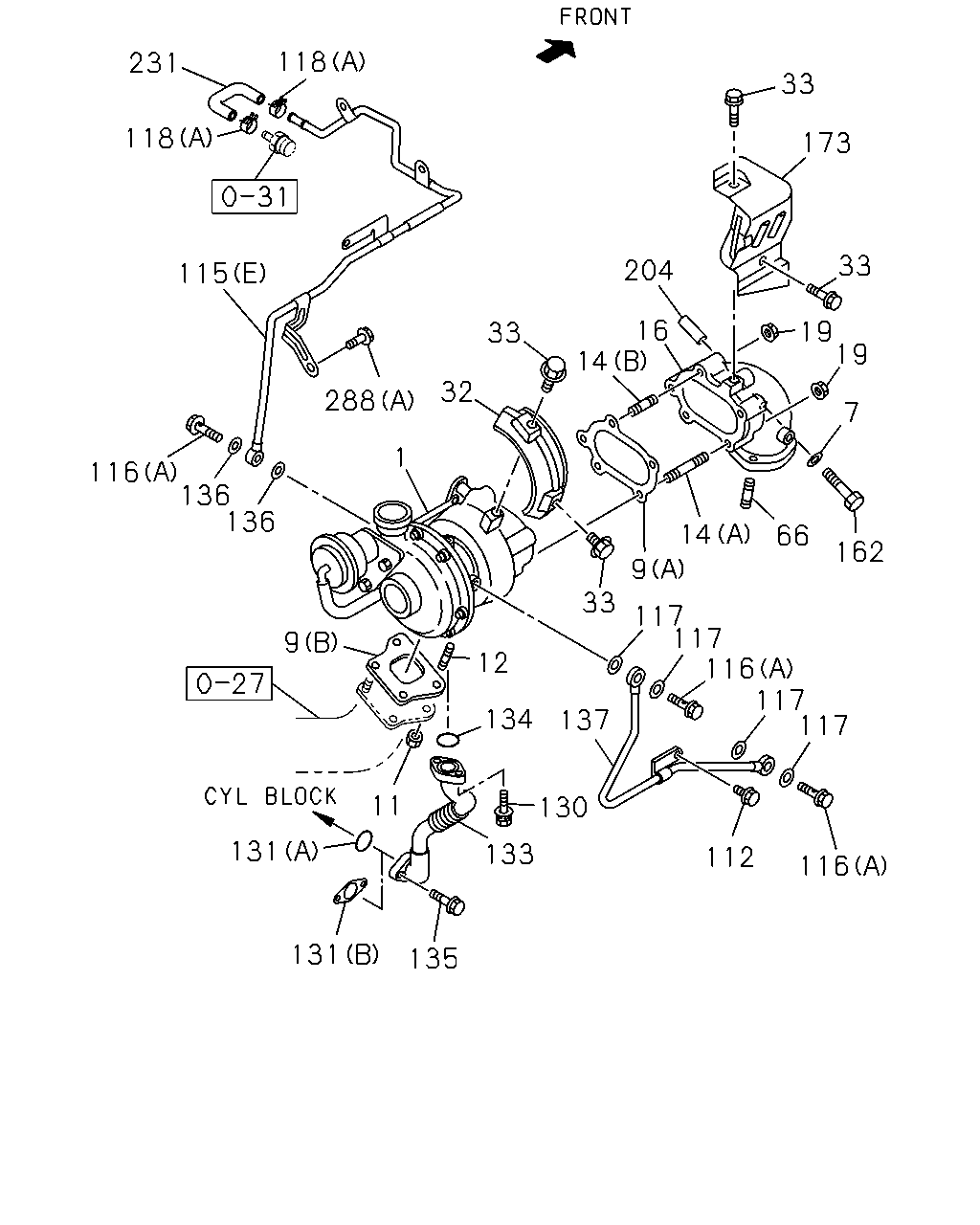

0-36B — TURBOCHARGER SYSTEM (#22573) — 135 parça

118 231 33 118 173 33 204 115 16 14 19 19 33 32 288 7 1 116 136 136 14 66 162 9 33 117 117 116 117 117 9 12 134 137 11 130 131 133 112 116 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-0	01	1	0507-0606	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0607-	●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0507-0606	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0607-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0507-0606	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0607-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0507-0606	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0607-	●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0507-0606	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0607-	●	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0507-0606	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0607-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-0606	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0607-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-0606	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0607-	●	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0606	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	0607-	●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0507-0606	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0607-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0507-0606	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0607-	●	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0507-0606	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0607-	●	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0606	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0607-0709	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-	●	●
112	03.417 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-0709	●	●
112	03.417 BOLT; CLIP EURO3 SPECIFICATION(NT3) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (E)	8-97372-533-0	01	1	0507-0606	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (E)	8-97372-533-0	01	1	0607-0902	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (E)	8-98137-574-0	01	1	0903-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-0606	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0607-	●	●
116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0607-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0903-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0606	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0607-0902	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0903-1312	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20	1-09707-084-1	04	1	0507-0606	●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20	1-09707-084-1	04	1	0607-1102	●	●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1103-	●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0507-0512	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-0606	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0607-	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0507-0606	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0607-1006	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0507-0606	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0607-1006	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-	●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0507-0606	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0607-	●	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0507-0512	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-0606	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0607-	●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0507-0606	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0607-1312	●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0507-0606	●
137	01.097 PIPE; WATER,TURBOCHARGER IN NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0607-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97357-769-0	01	1	0507-0606	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97357-769-0	01	1	0607-	●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0507-0606	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0607-	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0507-0606	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0607-1204	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE 03.602	8-98176-248-0	01	1	1205-	●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0507-0606	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0607-0709	●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0507-0606	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0607-	●	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0507-0512	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-0606	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	04	1	0607-	●	●

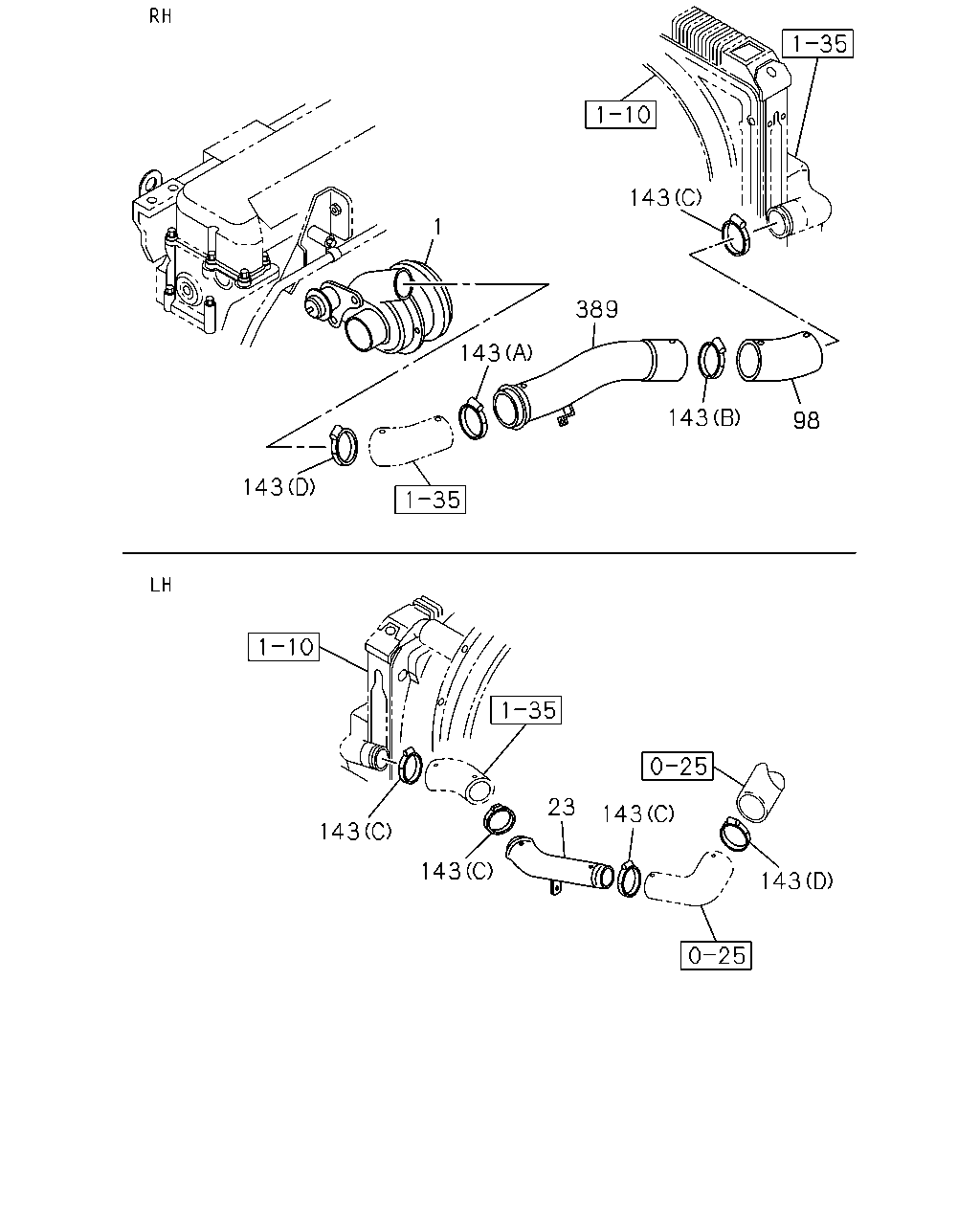

143 1 389 143 143 98 143 23 143 143 143 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-0	01	1	0507-0606	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0607-	●	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98000-539-1	01	1	0507-0606	●
23	03.417 PIPE; INTAKE,TURBOCHARGER AIR INTAKE REAR VERTICAL<KJ3>	8-98000-539-1	01	1	0607-	●	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3>	8-97221-536-2	01	1	0607-		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97380-256-2	01	1	0507-0606	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3>	8-97380-256-2	01	1	0607-0608	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3>	8-98053-759-0	01	1	0609-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=77-99	1-09707-141-0	01	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	04	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0507-0606	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0607-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=75-95	8-98133-357-0	01	1	0811-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (A) ID=75-95	8-98133-357-0	01	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0507-0606	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0607-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	04	1	0811-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	04	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0507-0606	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0607-0811	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=55-75	8-98133-349-0	01	1	0812-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0507-0606	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0607-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	02	1	0811-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1002-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC AIR INTAKE REAR VERTICAL<KJ3>	8-97204-013-2	01	1	0607-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97371-959-0	01	1	0507-0606	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC AIR INTAKE REAR VERTICAL<KJ3>	8-97371-959-0	01	1	0607-	●

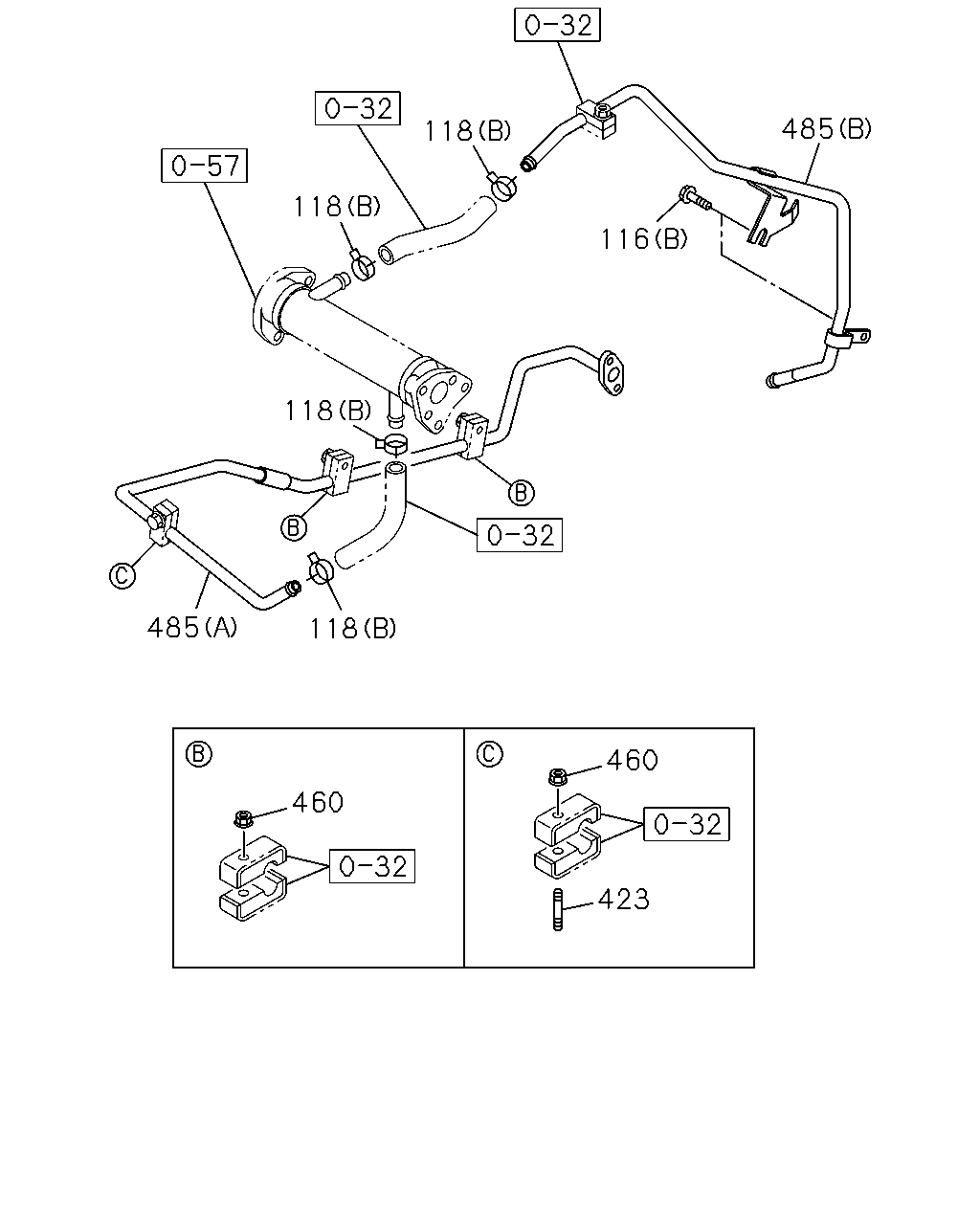

485 118 118 116 118 485 118 460 460 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-0606	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0607-	●	●
116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0607-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20	1-09707-084-1	04	1	0507-0606	●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20	1-09707-084-1	04	1	0607-1102	●	●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1103-	●	●
423	03.373 STUD; WATER PIPE 01.428 M8X20 L=32	9-04110-820-0	01	1	0507-0604	●
423	03.373 STUD; WATER PIPE 02.510 M8X20 L=32	0-41010-820-0	01	1	0605-0606	●
423	03.373 STUD; WATER PIPE 02.510 M8X20 L=32	0-41010-820-0	01	1	0607-	●	●
460	03.374 NUT; PIPE 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●
460	03.374 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●
460	03.374 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●
485	01.097 PIPE; WATER EGR (A)	8-97375-669-0	01	1	0507-0606	●
485	01.097 PIPE; WATER EGR (A)	8-97375-669-0	01	1	0607-	●	●
485	01.097 PIPE; WATER EGR (B)	8-98010-003-0	01	1	0507-0606	●
485	01.097 PIPE; WATER EGR (B)	8-98010-003-0	01	1	0607-	●	●
