Sayfa 0-36A - Isuzu EPC

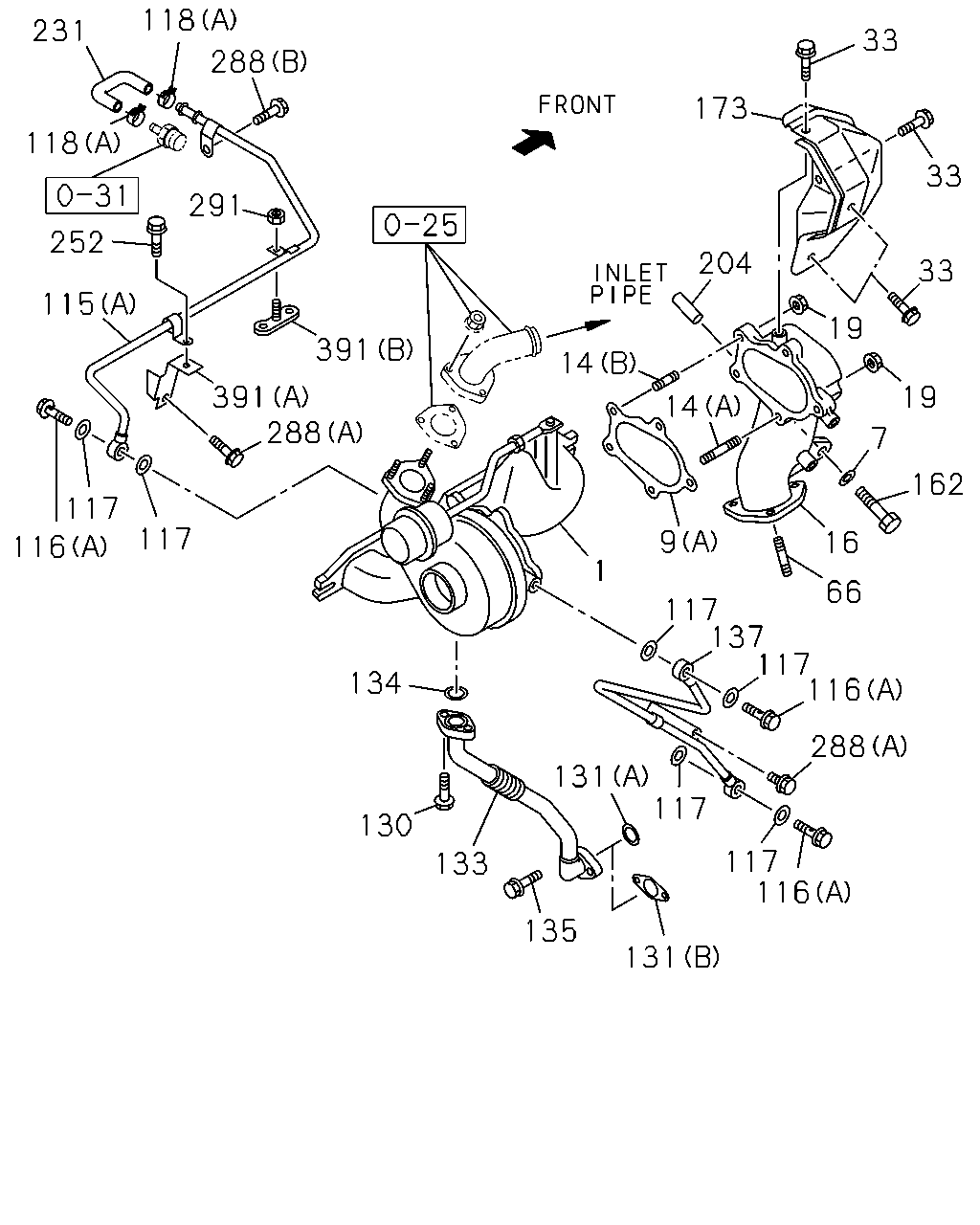

0-36A — TURBOCHARGER SYSTEM (#22572) — 894 parça

143 143 389 143 143 98 143 143 23 33 173 143 143 204 231 118 33 33 16 19 14 19 118 32 252 7 391 115 288 66 14 116 162 9 136 288 1 33 117 117 136 9 12 137 117 116 134 115 288 130 11 116 117 116 133 131 288 136 136 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER(K51)	8-97326-752-0	01	1	0211-0501	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0502-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3)	8-97208-966-3	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-966-3	01	1	0502-0506				●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO3 SPECIFICATION(NT3)	8-97208-966-4	01	1	0507-				●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-97258-811-1	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-97258-811-1	01	1	0507-1103					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97258-811-1	01	1	1104-					●
7	03.613 WASHER; PL,BRKT TURBOCHARGER(K51) ID=8 OD=18 T=3	8-94174-537-0	01	1	0211-0501	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0211-0501			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0502-0506		●		●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0507-0606	●	●		●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0607-		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0211-0501	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0211-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0502-0506		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0507-0606	●	●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0607-		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	0211-0307			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97326-466-0	01	1	0308-0312			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0401-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0502-0506				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0507-0606				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0607-				●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0211-0501			●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0502-0506				●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0507-0606				●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0607-				●	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0211-0501			●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0502-0506				●	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0507-0606				●	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0607-				●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (A) M8X94 L=108	8-97019-477-0	02	1	0211-0501	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0502-0506		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-0606	●	●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0607-		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (B) M8X49 L=63	8-97019-478-0	03	1	0211-0501	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0502-0506		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-0606	●	●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0607-		●		●	●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	0502-		●
16	03.609 ADAPTER; EXH PIPE TURBOCHARGER(K51)	8-97178-488-1	01	1	0211-0501	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0211-0501			●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0502-0506				●	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0606				●	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	0607-				●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER TURBOCHARGER(K51) 03.604 M8 FLANGE	8-94170-486-0	05	1	0211-0501	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0211-0501			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0502-0506		●		●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0507-0606	●	●		●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0607-		●		●	●
23	03.417 PIPE; INTAKE,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97189-601-1	01	1	0211-0501			●
23	03.417 PIPE; INTAKE,TURBOCHARGER AIR INTAKE REAR VERTICAL<KJ3>	8-97189-601-1	01	1	0502-				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0211-0501			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0502-0506				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0507-0606				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0607-				●	●
33	03.342 BOLT; HEAT PROTECTOR TURBOCHARGER(K51) 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0211-0501	●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0211-0501			●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0502-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0211-0501			●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0502-0506				●	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0507-0606				●	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0607-				●	●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	02	1	0211-0501			●
66	03.342 STUD; EXH PIPE TURBOCHARGER(K51) 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0501	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0501			●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0502-0506		●		●	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604		●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0606		●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0607-0709		●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-0710		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-		●		●	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97221-536-1	01	1	0211-0501			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3>	8-97221-536-2	01	1	0502-0606				●	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3>	8-97221-536-2	01	1	0607-				●	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT TURBOCHARGER(K51) (A)	8-97210-077-2	01	1	0211-0501	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-97210-077-2	01	1	0502-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (D)	8-97229-039-0	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-97229-039-0	01	1	0502-0506				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3) (D)	8-97229-039-0	01	1	0507-0902				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3) (D)	8-98137-572-0	01	1	0903-				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL> (B)	8-97229-038-0	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-97302-224-1	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-97302-224-1	01	1	0507-1103					●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97302-224-1	01	1	1104-					●
116	03.342 BOLT; WATER PIPE TURBOCHARGER(K51) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0502-0506		●		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-0606	●	●		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0607-		●		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0903-		●		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-0501	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-0501			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0502-0902		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0903-1312		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0211-0501			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0502-0506				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0606				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0607-0902				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0903-1312				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●	●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501	●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 01.153 (C) ID=12.8	8-94367-943-0	06	1	0211-0301			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (C) ID=15.5	8-94221-519-0	06	1	0302-0501			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0502-0506		●		●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	06	1	0507-1103					●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (A) ID=15.5	8-94221-519-0	06	1	1104-					●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606		●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606				●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-		●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-				●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (B) L=140	5-09707-031-1	01	1	0507-1103					●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (B) L=140	5-09707-031-1	01	1	1104-					●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D TURBOCHARGER(K51) 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0211-0501	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0211-0501			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0502-0506		●		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0507-0512	●	●		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-0606	●	●		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0607-		●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). 01.550 (A) ID=27.7	9-09565-228-0	01	1	0211-0211	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 (A) ID=27.7	9-09565-228-0	01	1	0211-0211			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). (A) ID=27.7	9-09566-228-0	01	1	0212-0501	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0212-0501			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0502-0506		●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0507-0606	●	●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0607-1006		●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-		●		●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER TURBOCHARGER(K51)	8-97178-508-1	01	1	0211-0501	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-2	01	1	0502-1006		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1007-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-1	01	1	0211-0501			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0502-0506				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0507-0606				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0607-1006				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	0211-0501			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=22.8	1-09623-462-0	01	1	0211-0501	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0211-0501			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0502-0506		●		●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0507-0606	●	●		●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0607-		●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL TURBOCHARGER(K51) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501			●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0502-0506		●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0507-0512	●	●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-0606	●	●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0607-		●		●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0501			●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0502-0506				●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0507-0606				●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0607-1312				●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN TURBOCHARGER(K51)	8-97229-036-0	01	1	0211-0501	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0502-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0211-0501			●
137	01.097 PIPE; WATER,TURBOCHARGER IN VOLTAGE 24V<7AE>	8-97229-035-0	01	1	0502-0506				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0507-0606				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0607-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>	8-97355-911-0	01	1	0211-0212			●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>	8-97357-769-0	01	1	0301-0501			●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. VOLTAGE 24V<7AE>	8-97357-769-0	01	1	0502-0506				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>	8-97357-769-0	01	1	0507-0606				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>	8-97357-769-0	01	1	0607-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97229-034-0	01	1	0211-0501			●

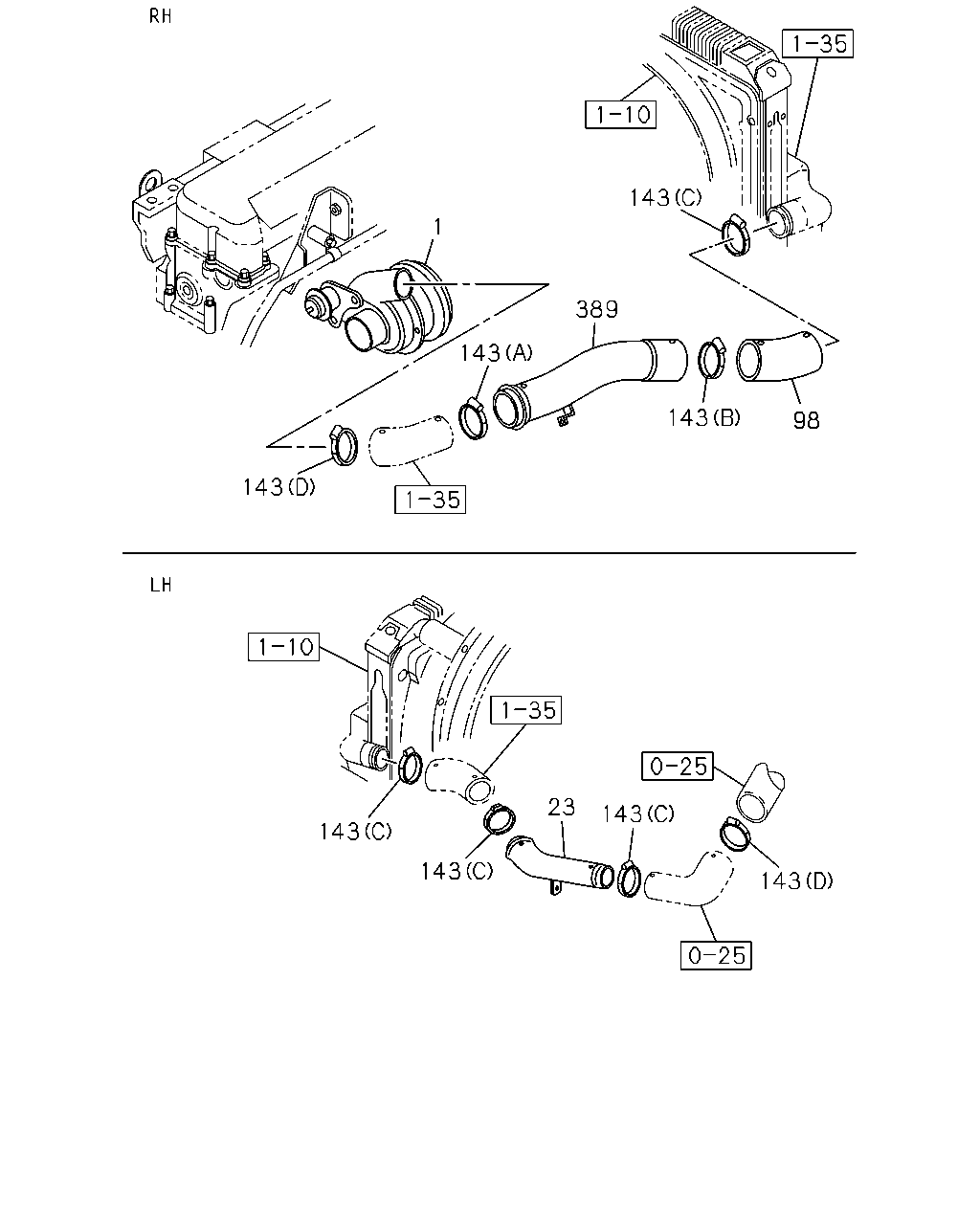

143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=77-99	1-09707-141-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	04	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=50-69	1-09707-135-0	02	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-114-0	01	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-198-0	01	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0607-0810				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=75-95	8-98133-357-0	01	1	0811-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (A) ID=75-95	8-98133-357-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	01	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	1-09707-202-0	04	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0607-0810				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	04	1	0811-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	04	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	8-94320-428-0	04	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> 01.159 (B) ID=58-76	1-09707-203-0	01	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0607-0811				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=55-75	8-98133-349-0	01	1	0812-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-99	1-09707-141-0	01	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL> (D) ID=50-69	8-94316-991-0	02	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-69	8-94316-991-0	02	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0607-0810				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	02	1	0811-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1002-				●	●
162	03.613 BOLT; ADAPTER TURBOCHARGER(K51) M8X57	5-09000-275-0	01	1	0211-0501	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0211-0501			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0502-0506		●		●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0507-0606	●	●		●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0607-		●		●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE TURBOCHARGER(K51)	8-97178-497-2	01	1	0211-0501	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0502-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0211-0501			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0502-0506				●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0507-0606				●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0607-1204				●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE 03.602	8-98176-248-0	01	1	1205-				●	●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97214-384-1	01	1	0211-0501	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0211-0501			●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0502-0506		●		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0507-0606		●		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0607-0709		●		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-0710		●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-		●		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0211-0501	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3)	8-97209-950-0	01	1	0211-0501			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0502-0506		●		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0507-0606		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3)	8-97209-950-0	01	1	0507-0606				●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0607-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3)	8-97209-950-0	01	1	0607-				●	●
252	03.417 BOLT; BRKT TURBOCHARGER(K51) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●
252	03.417 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512		●
252	03.417 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
252	03.417 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) M12X19	8-97079-809-0	01	1	0211-0501			●
252	03.417 BOLT; BRKT M12X19	8-97079-809-0	01	1	0502-0506				●	●
252	03.417 BOLT; BRKT EXC. EURO3 SPECIFICATION(NT3) M12X19	8-97079-809-0	01	1	0507-				●	●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0501	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0502-0512		●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP EURO3 SPECIFICATION(NT3) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0502-0506				●	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0507-0512				●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-				●	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512		●
288	03.342 BOLT; WATER PIPE CLIP EXC. EURO3 SPECIFICATION(NT3) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512				●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-		●
288	03.342 BOLT; WATER PIPE CLIP EXC. EURO3 SPECIFICATION(NT3) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-				●	●
288	03.342 BOLT; WATER PIPE CLIP EURO3 SPECIFICATION(NT3) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512					●
288	03.342 BOLT; WATER PIPE CLIP EURO3 SPECIFICATION(NT3) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-1103					●
288	03.342 BOLT; WATER PIPE CLIP EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1104-					●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CHARGE AIR COOLER<6PL>	8-97204-013-2	01	1	0211-0501			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC NPR/NQR SGL CAB(NP*S) AIR INTAKE REAR VERTICAL<KJ3>	8-97204-013-2	01	1	0502-0606				●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC AIR INTAKE REAR VERTICAL<KJ3>	8-97204-013-2	01	1	0607-				●	●
391	03.342 BRACKET; WATER PIPE TURBOCHARGER(K51) (B)	8-97210-078-0	01	1	0211-0501	●
391	03.342 BRACKET; WATER PIPE (B)	8-97210-078-0	01	1	0502-		●
391	03.342 BRACKET; WATER PIPE TURBOCHARGER(K51) (A)	8-97221-061-0	01	1	0211-0501	●
391	03.342 BRACKET; WATER PIPE (A)	8-97221-061-0	01	1	0502-		●
391	03.342 BRACKET; WATER PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (C)	8-97068-554-0	01	1	0211-0501			●
391	03.342 BRACKET; WATER PIPE (C)	8-97068-554-0	01	1	0502-0506				●	●
391	03.342 BRACKET; WATER PIPE EXC. EURO3 SPECIFICATION(NT3) (C)	8-97068-554-0	01	1	0507-				●	●

148 90 33 231 118 288 173 118 143 33 204 98 16 143 115 19 288 33 19 14 116 32 288 7 117 117 66 14 162 9 1 33 117 117 117 116 9 12 137 134 117 116 130 11 131 133 288 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

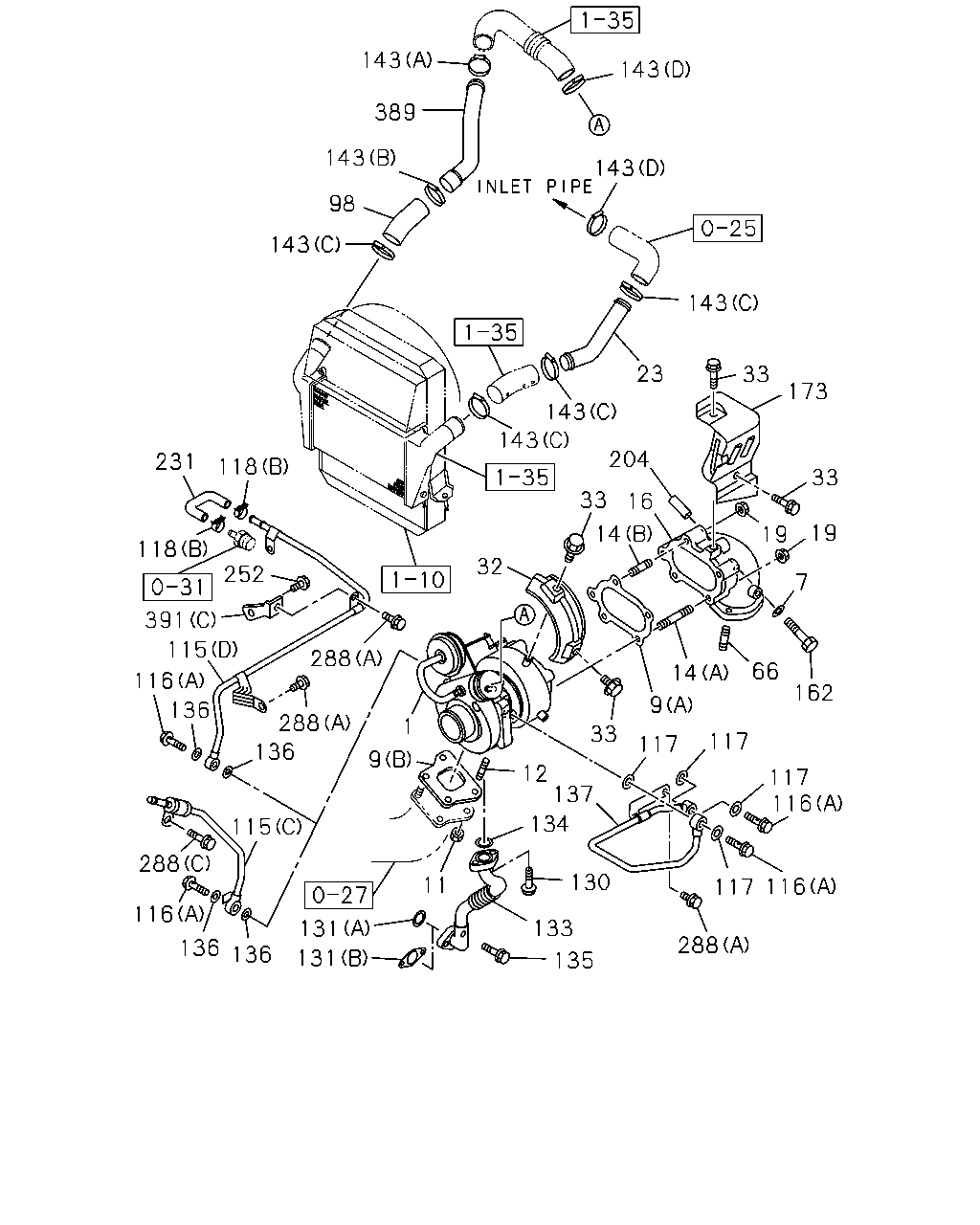

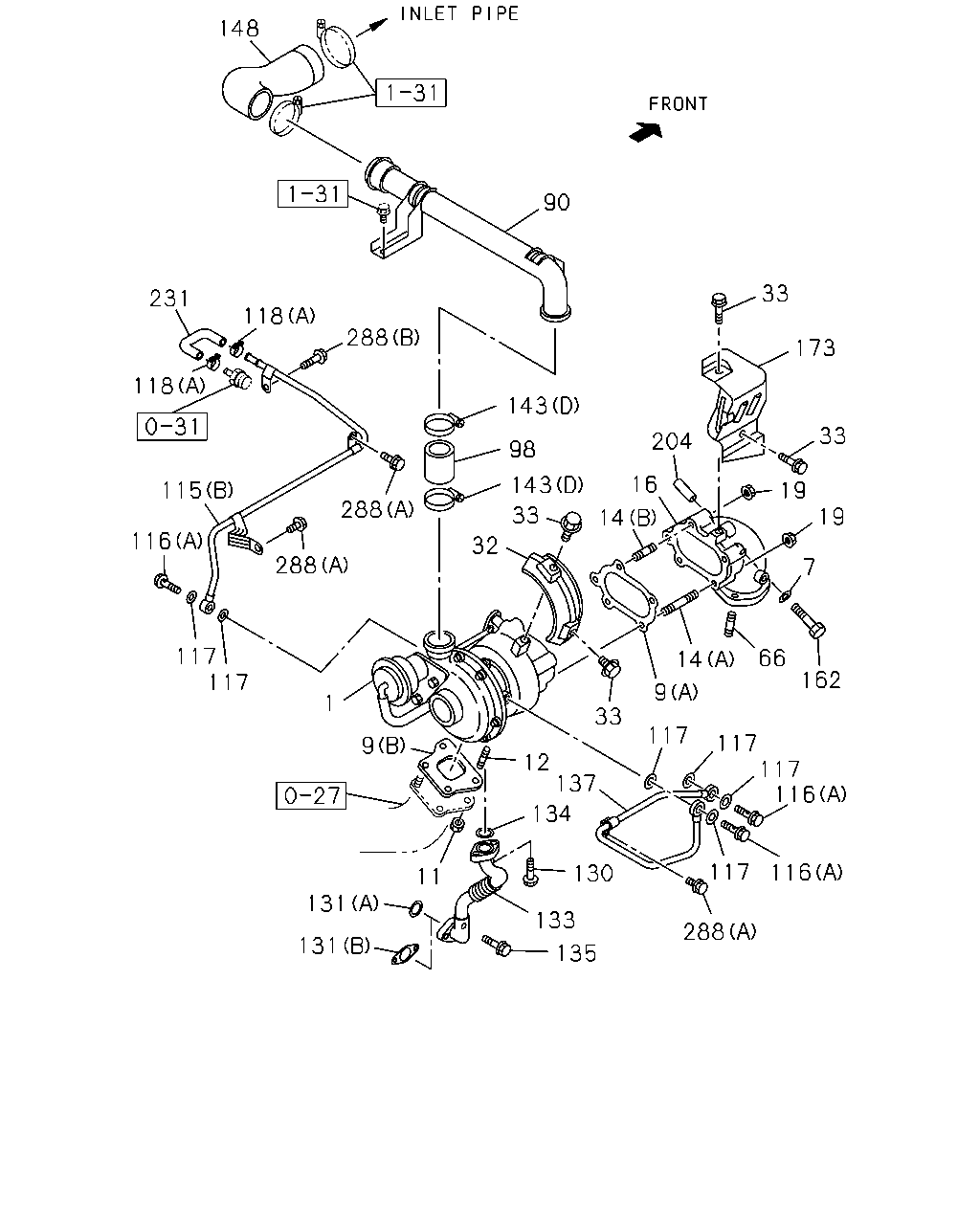

1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER(K51)	8-97326-752-0	01	1	0211-0501	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0502-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3)	8-97208-966-3	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-966-3	01	1	0502-0506				●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO3 SPECIFICATION(NT3)	8-97208-966-4	01	1	0507-				●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-97258-811-1	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-97258-811-1	01	1	0507-1103					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97258-811-1	01	1	1104-					●
7	03.613 WASHER; PL,BRKT TURBOCHARGER(K51) ID=8 OD=18 T=3	8-94174-537-0	01	1	0211-0501	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0211-0501			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0502-0506		●		●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0507-0606	●	●		●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0607-		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0211-0501	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0211-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0502-0506		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0507-0606	●	●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0607-		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	0211-0307			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97326-466-0	01	1	0308-0312			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0401-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0502-0506				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0507-0606				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0607-				●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0211-0501			●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0502-0506				●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0507-0606				●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0607-				●	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0211-0501			●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0502-0506				●	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0507-0606				●	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0607-				●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (A) M8X94 L=108	8-97019-477-0	02	1	0211-0501	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0502-0506		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-0606	●	●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0607-		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (B) M8X49 L=63	8-97019-478-0	03	1	0211-0501	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0502-0506		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-0606	●	●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0607-		●		●	●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	0502-		●
16	03.609 ADAPTER; EXH PIPE TURBOCHARGER(K51)	8-97178-488-1	01	1	0211-0501	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0211-0501			●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0502-0506				●	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0606				●	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	0607-				●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER TURBOCHARGER(K51) 03.604 M8 FLANGE	8-94170-486-0	05	1	0211-0501	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0211-0501			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0502-0506		●		●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0507-0606	●	●		●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0607-		●		●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0211-0501			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0502-0506				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0507-0606				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0607-				●	●
33	03.342 BOLT; HEAT PROTECTOR TURBOCHARGER(K51) 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0211-0501	●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0211-0501			●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0502-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0211-0501			●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0502-0506				●	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0507-0606				●	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0607-				●	●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	02	1	0211-0501			●
66	03.342 STUD; EXH PIPE TURBOCHARGER(K51) 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0501	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0501			●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0502-0506		●		●	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604		●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0606		●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0607-0709		●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-0710		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-		●		●	●
90	03.407 PIPE; INL,TURBOCHARGER TO MANIF EXC. CHARGE AIR COOLER<6PL>	8-97173-981-0	01	1	0211-0501			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97221-536-1	01	1	0211-0501			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3>	8-97221-536-2	01	1	0502-0606				●	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3>	8-97221-536-2	01	1	0607-				●	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT TURBOCHARGER(K51) (A)	8-97210-077-2	01	1	0211-0501	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-97210-077-2	01	1	0502-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (D)	8-97229-039-0	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-97229-039-0	01	1	0502-0506				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3) (D)	8-97229-039-0	01	1	0507-0902				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3) (D)	8-98137-572-0	01	1	0903-				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL> (B)	8-97229-038-0	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-97302-224-1	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-97302-224-1	01	1	0507-1103					●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97302-224-1	01	1	1104-					●
116	03.342 BOLT; WATER PIPE TURBOCHARGER(K51) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0502-0506		●		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-0606	●	●		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0607-		●		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0903-		●		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-0501	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-0501			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0502-0902		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0903-1312		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0211-0501			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0502-0506				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0606				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0607-0902				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0903-1312				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●	●

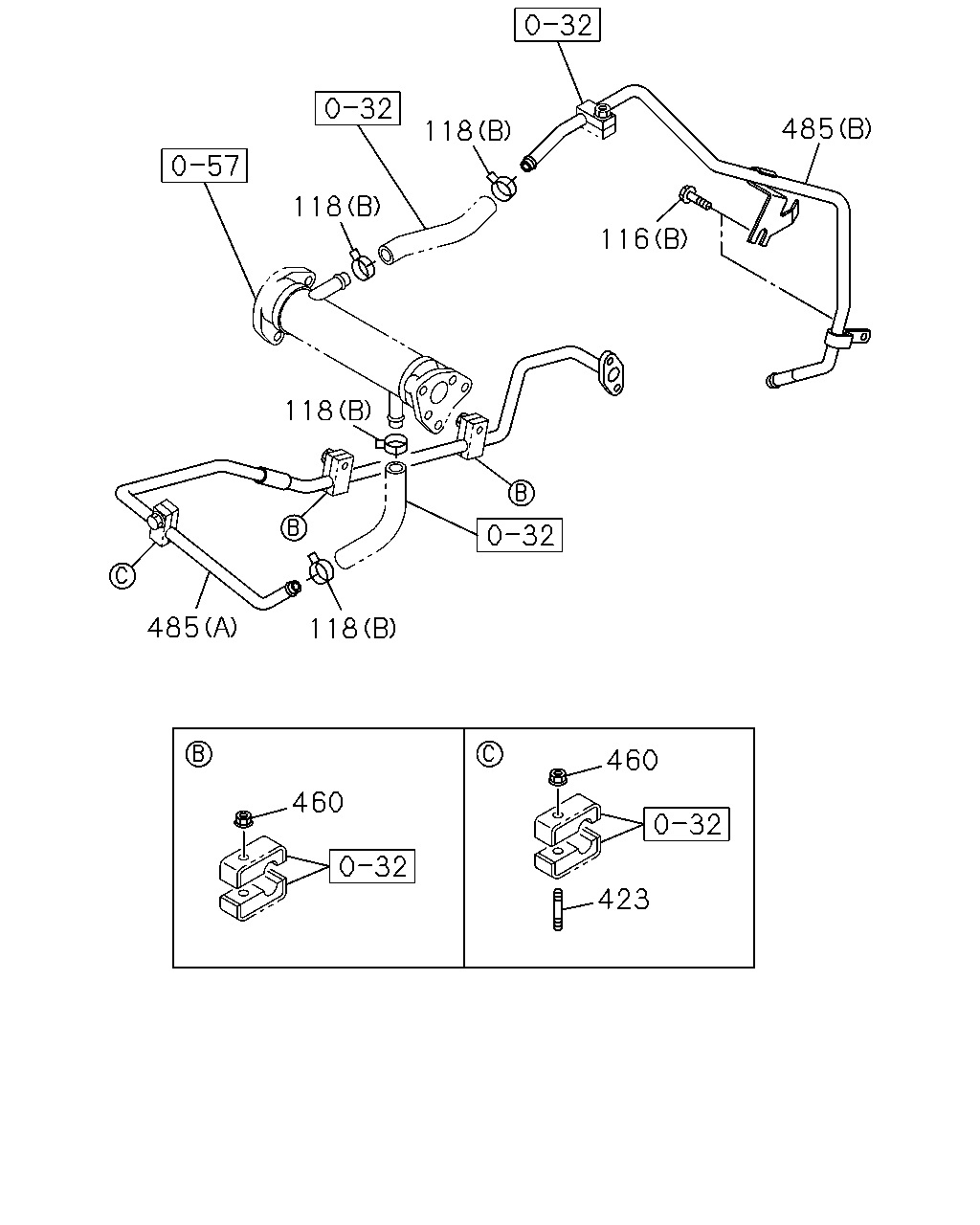

118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501	●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501			●

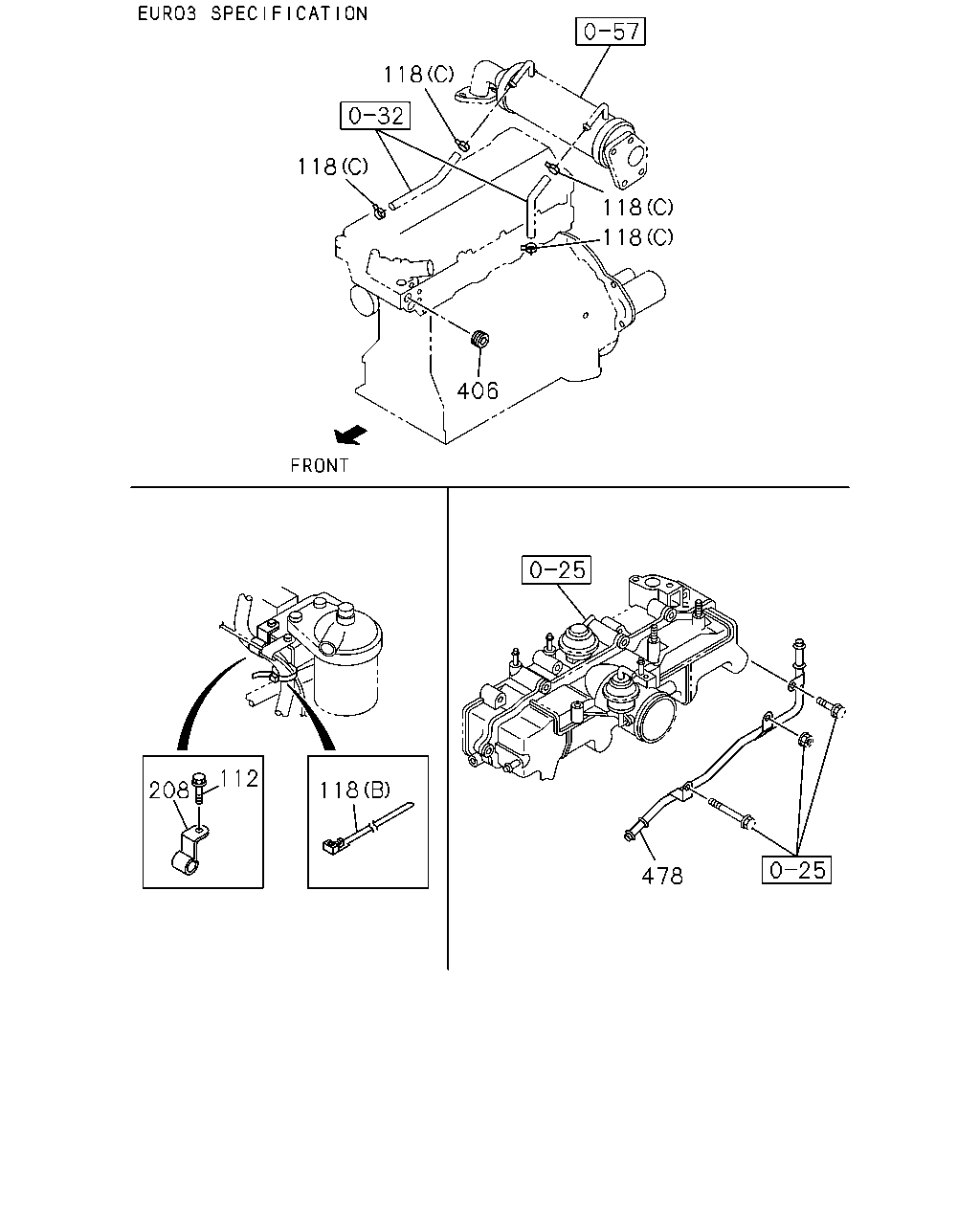

118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 01.153 (C) ID=12.8	8-94367-943-0	06	1	0211-0301			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (C) ID=15.5	8-94221-519-0	06	1	0302-0501			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0502-0506		●		●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	06	1	0507-1103					●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (A) ID=15.5	8-94221-519-0	06	1	1104-					●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606		●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606				●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-		●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-				●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (B) L=140	5-09707-031-1	01	1	0507-1103					●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (B) L=140	5-09707-031-1	01	1	1104-					●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D TURBOCHARGER(K51) 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0211-0501	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0211-0501			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0502-0506		●		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0507-0512	●	●		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-0606	●	●		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0607-		●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). 01.550 (A) ID=27.7	9-09565-228-0	01	1	0211-0211	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 (A) ID=27.7	9-09565-228-0	01	1	0211-0211			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). (A) ID=27.7	9-09566-228-0	01	1	0212-0501	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0212-0501			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0502-0506		●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0507-0606	●	●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0607-1006		●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-		●		●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER TURBOCHARGER(K51)	8-97178-508-1	01	1	0211-0501	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-2	01	1	0502-1006		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1007-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-1	01	1	0211-0501			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0502-0506				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0507-0606				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0607-1006				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	0211-0501			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=22.8	1-09623-462-0	01	1	0211-0501	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0211-0501			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0502-0506		●		●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0507-0606	●	●		●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0607-		●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL TURBOCHARGER(K51) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501			●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0502-0506		●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0507-0512	●	●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-0606	●	●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0607-		●		●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN TURBOCHARGER(K51)	8-97229-036-0	01	1	0211-0501	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0502-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0211-0501			●
137	01.097 PIPE; WATER,TURBOCHARGER IN VOLTAGE 24V<7AE>	8-97229-035-0	01	1	0502-0506				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0507-0606				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0607-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>	8-97355-911-0	01	1	0211-0212			●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>	8-97357-769-0	01	1	0301-0501			●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. VOLTAGE 24V<7AE>	8-97357-769-0	01	1	0502-0506				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>	8-97357-769-0	01	1	0507-0606				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>	8-97357-769-0	01	1	0607-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97229-034-0	01	1	0211-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=77-99	1-09707-141-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	04	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=50-69	1-09707-135-0	02	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-114-0	01	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-198-0	01	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0607-0810				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=75-95	8-98133-357-0	01	1	0811-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (A) ID=75-95	8-98133-357-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	01	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	1-09707-202-0	04	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0607-0810				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	04	1	0811-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	04	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	8-94320-428-0	04	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> 01.159 (B) ID=58-76	1-09707-203-0	01	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0607-0811				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=55-75	8-98133-349-0	01	1	0812-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-99	1-09707-141-0	01	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL> (D) ID=50-69	8-94316-991-0	02	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-69	8-94316-991-0	02	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0607-0810				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	02	1	0811-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1002-				●	●
148	03.417 HOSE; TURBOCHARGER,INL EXC. CHARGE AIR COOLER<6PL>	8-97182-220-0	01	1	0211-0501			●
162	03.613 BOLT; ADAPTER TURBOCHARGER(K51) M8X57	5-09000-275-0	01	1	0211-0501	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0211-0501			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0502-0506		●		●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0507-0606	●	●		●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0607-		●		●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE TURBOCHARGER(K51)	8-97178-497-2	01	1	0211-0501	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0502-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0211-0501			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0502-0506				●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0507-0606				●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0607-1204				●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE 03.602	8-98176-248-0	01	1	1205-				●	●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97214-384-1	01	1	0211-0501	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0211-0501			●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0502-0506		●		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0507-0606		●		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0607-0709		●		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-0710		●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-		●		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0211-0501	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3)	8-97209-950-0	01	1	0211-0501			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0502-0506		●		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0507-0606		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3)	8-97209-950-0	01	1	0507-0606				●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0607-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3)	8-97209-950-0	01	1	0607-				●	●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0501	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0502-0512		●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP EURO3 SPECIFICATION(NT3) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0502-0506				●	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0507-0512				●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-				●	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512		●
288	03.342 BOLT; WATER PIPE CLIP EXC. EURO3 SPECIFICATION(NT3) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512				●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-		●
288	03.342 BOLT; WATER PIPE CLIP EXC. EURO3 SPECIFICATION(NT3) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-				●	●
288	03.342 BOLT; WATER PIPE CLIP EURO3 SPECIFICATION(NT3) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512					●
288	03.342 BOLT; WATER PIPE CLIP EURO3 SPECIFICATION(NT3) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-1103					●
288	03.342 BOLT; WATER PIPE CLIP EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1104-					●

118 231 33 288 173 118 33 291 252 204 33 115 19 391 14 391 288 19 14 7 162 117 117 9 16 116 1 66 117 137 117 116 134 288 131 117 130 117 116 133 135 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER(K51)	8-97326-752-0	01	1	0211-0501	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0502-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3)	8-97208-966-3	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-966-3	01	1	0502-0506				●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO3 SPECIFICATION(NT3)	8-97208-966-4	01	1	0507-				●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-97258-811-1	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-97258-811-1	01	1	0507-1103					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97258-811-1	01	1	1104-					●
7	03.613 WASHER; PL,BRKT TURBOCHARGER(K51) ID=8 OD=18 T=3	8-94174-537-0	01	1	0211-0501	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0211-0501			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0502-0506		●		●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0507-0606	●	●		●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0607-		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0211-0501	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0211-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0502-0506		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0507-0606	●	●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0607-		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	0211-0307			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97326-466-0	01	1	0308-0312			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0401-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0502-0506				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0507-0606				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0607-				●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0211-0501			●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0502-0506				●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0507-0606				●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0607-				●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (A) M8X94 L=108	8-97019-477-0	02	1	0211-0501	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0502-0506		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-0606	●	●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0607-		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (B) M8X49 L=63	8-97019-478-0	03	1	0211-0501	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0502-0506		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-0606	●	●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0607-		●		●	●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	0502-		●
16	03.609 ADAPTER; EXH PIPE TURBOCHARGER(K51)	8-97178-488-1	01	1	0211-0501	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0211-0501			●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0502-0506				●	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0606				●	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	0607-				●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER TURBOCHARGER(K51) 03.604 M8 FLANGE	8-94170-486-0	05	1	0211-0501	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0211-0501			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0502-0506		●		●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0507-0606	●	●		●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0607-		●		●	●
33	03.342 BOLT; HEAT PROTECTOR TURBOCHARGER(K51) 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0211-0501	●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0211-0501			●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0502-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0211-0501			●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0502-0506				●	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0507-0606				●	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0607-				●	●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	02	1	0211-0501			●
66	03.342 STUD; EXH PIPE TURBOCHARGER(K51) 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0501	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0501			●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0502-0506		●		●	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604		●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0606		●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0607-0709		●		●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-0710		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-		●		●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT TURBOCHARGER(K51) (A)	8-97210-077-2	01	1	0211-0501	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-97210-077-2	01	1	0502-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (D)	8-97229-039-0	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-97229-039-0	01	1	0502-0506				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3) (D)	8-97229-039-0	01	1	0507-0902				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3) (D)	8-98137-572-0	01	1	0903-				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL> (B)	8-97229-038-0	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-97302-224-1	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-97302-224-1	01	1	0507-1103					●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97302-224-1	01	1	1104-					●
116	03.342 BOLT; WATER PIPE TURBOCHARGER(K51) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0502-0506		●		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-0606	●	●		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0607-		●		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0903-		●		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-0501	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-0501			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0502-0902		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0903-1312		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0211-0501			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0502-0506				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0606				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0607-0902				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0903-1312				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●	●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501	●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 01.153 (C) ID=12.8	8-94367-943-0	06	1	0211-0301			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (C) ID=15.5	8-94221-519-0	06	1	0302-0501			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0502-0506		●		●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	06	1	0507-1103					●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (A) ID=15.5	8-94221-519-0	06	1	1104-					●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606		●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606				●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-		●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-				●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (B) L=140	5-09707-031-1	01	1	0507-1103					●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (B) L=140	5-09707-031-1	01	1	1104-					●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D TURBOCHARGER(K51) 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0211-0501	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0211-0501			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0502-0506		●		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0507-0512	●	●		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-0606	●	●		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0607-		●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). 01.550 (A) ID=27.7	9-09565-228-0	01	1	0211-0211	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 (A) ID=27.7	9-09565-228-0	01	1	0211-0211			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). (A) ID=27.7	9-09566-228-0	01	1	0212-0501	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0212-0501			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0502-0506		●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0507-0606	●	●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0607-1006		●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-		●		●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER TURBOCHARGER(K51)	8-97178-508-1	01	1	0211-0501	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-2	01	1	0502-1006		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1007-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-1	01	1	0211-0501			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0502-0506				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0507-0606				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0607-1006				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	0211-0501			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=22.8	1-09623-462-0	01	1	0211-0501	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0211-0501			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0502-0506		●		●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0507-0606	●	●		●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0607-		●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL TURBOCHARGER(K51) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501			●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0502-0506		●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0507-0512	●	●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-0606	●	●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0607-		●		●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN TURBOCHARGER(K51)	8-97229-036-0	01	1	0211-0501	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0502-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0211-0501			●
137	01.097 PIPE; WATER,TURBOCHARGER IN VOLTAGE 24V<7AE>	8-97229-035-0	01	1	0502-0506				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0507-0606				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0607-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>	8-97355-911-0	01	1	0211-0212			●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>	8-97357-769-0	01	1	0301-0501			●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. VOLTAGE 24V<7AE>	8-97357-769-0	01	1	0502-0506				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>	8-97357-769-0	01	1	0507-0606				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>	8-97357-769-0	01	1	0607-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97229-034-0	01	1	0211-0501			●
162	03.613 BOLT; ADAPTER TURBOCHARGER(K51) M8X57	5-09000-275-0	01	1	0211-0501	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0211-0501			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0502-0506		●		●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0507-0606	●	●		●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0607-		●		●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE TURBOCHARGER(K51)	8-97178-497-2	01	1	0211-0501	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0502-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0211-0501			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0502-0506				●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0507-0606				●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0607-1204				●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE 03.602	8-98176-248-0	01	1	1205-				●	●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97214-384-1	01	1	0211-0501	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0211-0501			●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0502-0506		●		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0507-0606		●		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0607-0709		●		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-0710		●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-		●		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0211-0501	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3)	8-97209-950-0	01	1	0211-0501			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0502-0506		●		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0507-0606		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3)	8-97209-950-0	01	1	0507-0606				●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0607-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. EURO3 SPECIFICATION(NT3)	8-97209-950-0	01	1	0607-				●	●
252	03.417 BOLT; BRKT TURBOCHARGER(K51) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●
252	03.417 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512		●
252	03.417 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
252	03.417 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) M12X19	8-97079-809-0	01	1	0211-0501			●
252	03.417 BOLT; BRKT M12X19	8-97079-809-0	01	1	0502-0506				●	●
252	03.417 BOLT; BRKT EXC. EURO3 SPECIFICATION(NT3) M12X19	8-97079-809-0	01	1	0507-				●	●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0501	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0502-0512		●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP EURO3 SPECIFICATION(NT3) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0502-0506				●	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0507-0512				●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-				●	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512		●
288	03.342 BOLT; WATER PIPE CLIP EXC. EURO3 SPECIFICATION(NT3) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512				●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-		●
288	03.342 BOLT; WATER PIPE CLIP EXC. EURO3 SPECIFICATION(NT3) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-				●	●
288	03.342 BOLT; WATER PIPE CLIP EURO3 SPECIFICATION(NT3) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512					●
288	03.342 BOLT; WATER PIPE CLIP EURO3 SPECIFICATION(NT3) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-1103					●
288	03.342 BOLT; WATER PIPE CLIP EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1104-					●
291	03.374 NUT; PIPE TO BRKT TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●
291	03.374 NUT; PIPE TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
291	03.374 NUT; PIPE TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●
391	03.342 BRACKET; WATER PIPE TURBOCHARGER(K51) (B)	8-97210-078-0	01	1	0211-0501	●
391	03.342 BRACKET; WATER PIPE (B)	8-97210-078-0	01	1	0502-		●
391	03.342 BRACKET; WATER PIPE TURBOCHARGER(K51) (A)	8-97221-061-0	01	1	0211-0501	●
391	03.342 BRACKET; WATER PIPE (A)	8-97221-061-0	01	1	0502-		●
391	03.342 BRACKET; WATER PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (C)	8-97068-554-0	01	1	0211-0501			●
391	03.342 BRACKET; WATER PIPE (C)	8-97068-554-0	01	1	0502-0506				●	●
391	03.342 BRACKET; WATER PIPE EXC. EURO3 SPECIFICATION(NT3) (C)	8-97068-554-0	01	1	0507-				●	●

118 118 118 118 406 112 118 208 478

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
112	03.417 BOLT; CLIP EURO3 SPECIFICATION(NT3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
112	03.417 BOLT; CLIP EURO3 SPECIFICATION(NT3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512					●
112	03.417 BOLT; CLIP EURO3 SPECIFICATION(NT3) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606					●
112	03.417 BOLT; CLIP EURO3 SPECIFICATION(NT3) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-0709					●
112	03.417 BOLT; CLIP EURO3 SPECIFICATION(NT3) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-					●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501	●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 01.153 (C) ID=12.8	8-94367-943-0	06	1	0211-0301			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (C) ID=15.5	8-94221-519-0	06	1	0302-0501			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0502-0506		●		●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	06	1	0507-1103					●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (A) ID=15.5	8-94221-519-0	06	1	1104-					●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606		●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606				●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-		●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-				●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (B) L=140	5-09707-031-1	01	1	0507-1103					●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (B) L=140	5-09707-031-1	01	1	1104-					●
208	03.417 CLIP; WATER HOSE FIX EURO3 SPECIFICATION(NT3) 06.602 ID=15 H=24 L=20	1-09700-606-0	01	1	0211-0501			●
208	03.417 CLIP; WATER HOSE FIX EURO3 SPECIFICATION(NT3) 06.602 ID=15 H=24 L=20	1-09700-606-0	01	1	0507-1103					●
208	03.417 CLIP; WATER HOSE FIX EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 06.602 ID=15 H=24 L=20	1-09700-606-0	01	1	1104-					●
406	03.417 PLUG EURO3 SPECIFICATION(NT3) 01.252 PT3/4	9-09664-005-0	01	1	0211-0302			●
406	03.417 PLUG EURO3 SPECIFICATION(NT3) 01.073 PT3/8	5-09605-005-0	01	1	0303-0501			●
406	03.417 PLUG EURO3 SPECIFICATION(NT3) 01.073 PT3/8	5-09605-005-0	01	1	0507-1103					●
406	03.417 PLUG EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 01.073 PT3/8	5-09605-005-0	01	1	1104-					●
478	01.097 PIPE; WATER SUCTION EURO3 SPECIFICATION(NT3)	8-97240-999-1	01	1	0211-0501			●
478	01.097 PIPE; WATER SUCTION EURO3 SPECIFICATION(NT3)	8-97240-999-1	01	1	0507-1103					●
478	01.097 PIPE; WATER SUCTION EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97240-999-1	01	1	1104-					●

485 118 118 116 118 485 118 460 460 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
116	03.342 BOLT; WATER PIPE TURBOCHARGER(K51) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0502-0506		●		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-0606	●	●		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0607-		●		●	●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501	●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 01.153 (C) ID=12.8	8-94367-943-0	06	1	0211-0301			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (C) ID=15.5	8-94221-519-0	06	1	0302-0501			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0502-0506		●		●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	06	1	0507-1103					●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (A) ID=15.5	8-94221-519-0	06	1	1104-					●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606		●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0606				●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-		●
118	03.342 CLIP; WATER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0607-				●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.162 (B) L=140	5-09707-031-1	01	1	0507-1103					●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 (B) L=140	5-09707-031-1	01	1	1104-					●

143 1 389 143 143 98 143 23 143 143 143 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER(K51)	8-97326-752-0	01	1	0211-0501	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0502-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3)	8-97208-966-3	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-966-3	01	1	0502-0506				●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO3 SPECIFICATION(NT3)	8-97208-966-4	01	1	0507-				●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-97258-811-1	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-97258-811-1	01	1	0507-1103					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97258-811-1	01	1	1104-					●
23	03.417 PIPE; INTAKE,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97189-601-1	01	1	0211-0501			●
23	03.417 PIPE; INTAKE,TURBOCHARGER AIR INTAKE REAR VERTICAL<KJ3>	8-97189-601-1	01	1	0502-				●	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97221-536-1	01	1	0211-0501			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3>	8-97221-536-2	01	1	0502-0606				●	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3>	8-97221-536-2	01	1	0607-				●	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	0211-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=77-99	1-09707-141-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	04	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=50-69	1-09707-135-0	02	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-114-0	01	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-198-0	01	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0607-0810				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=75-95	8-98133-357-0	01	1	0811-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (A) ID=75-95	8-98133-357-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	01	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	1-09707-202-0	04	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0607-0810				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	04	1	0811-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	04	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	8-94320-428-0	04	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> 01.159 (B) ID=58-76	1-09707-203-0	01	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0607-0811				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=55-75	8-98133-349-0	01	1	0812-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-99	1-09707-141-0	01	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL> (D) ID=50-69	8-94316-991-0	02	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-69	8-94316-991-0	02	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0607-0810				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	02	1	0811-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1002-				●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CHARGE AIR COOLER<6PL>	8-97204-013-2	01	1	0211-0501			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC NPR/NQR SGL CAB(NP*S) AIR INTAKE REAR VERTICAL<KJ3>	8-97204-013-2	01	1	0502-0606				●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC AIR INTAKE REAR VERTICAL<KJ3>	8-97204-013-2	01	1	0607-				●	●

143 1 389 143 143 98 143 23 143 143 143 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER(K51)	8-97326-752-0	01	1	0211-0501	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0502-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3)	8-97208-966-3	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-966-3	01	1	0502-0506				●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO3 SPECIFICATION(NT3)	8-97208-966-4	01	1	0507-				●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-97258-811-1	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-97258-811-1	01	1	0507-1103					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97258-811-1	01	1	1104-					●
23	03.417 PIPE; INTAKE,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97189-601-1	01	1	0211-0501			●
23	03.417 PIPE; INTAKE,TURBOCHARGER AIR INTAKE REAR VERTICAL<KJ3>	8-97189-601-1	01	1	0502-				●	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97221-536-1	01	1	0211-0501			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3>	8-97221-536-2	01	1	0502-0606				●	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3>	8-97221-536-2	01	1	0607-				●	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	0211-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=77-99	1-09707-141-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	04	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=50-69	1-09707-135-0	02	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-114-0	01	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-198-0	01	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0607-0810				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=75-95	8-98133-357-0	01	1	0811-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (A) ID=75-95	8-98133-357-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	01	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	1-09707-202-0	04	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0607-0810				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	04	1	0811-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	04	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	8-94320-428-0	04	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> 01.159 (B) ID=58-76	1-09707-203-0	01	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0607-0811				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=55-75	8-98133-349-0	01	1	0812-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1002-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-99	1-09707-141-0	01	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL> (D) ID=50-69	8-94316-991-0	02	1	0211-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-69	8-94316-991-0	02	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0502-0506				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0507-0606				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0607-0810				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	02	1	0811-1001				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1002-				●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CHARGE AIR COOLER<6PL>	8-97204-013-2	01	1	0211-0501			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC NPR/NQR SGL CAB(NP*S) AIR INTAKE REAR VERTICAL<KJ3>	8-97204-013-2	01	1	0502-0606				●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC AIR INTAKE REAR VERTICAL<KJ3>	8-97204-013-2	01	1	0607-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
