0-33B — FAN AND FAN BELT (#22569) — 41 parça
çizim 11200
81 80 96 182
BalonParca AdiParca NoAdetTipApplied Date A B
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 1104-1302 ● ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 1303- ● ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0507-0507 ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0508-0508 ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0509-0606 ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0701- ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V80A(7YN) 		8-97249-636-0 01 1 1412- ● ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0507-0606 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0607- ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0507-0606 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0607- ● ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0508-0508 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0509-0512 ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601-0606 ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0607-1007 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1008-1103 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1104-1302 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1303- ● ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0507-0507 ●

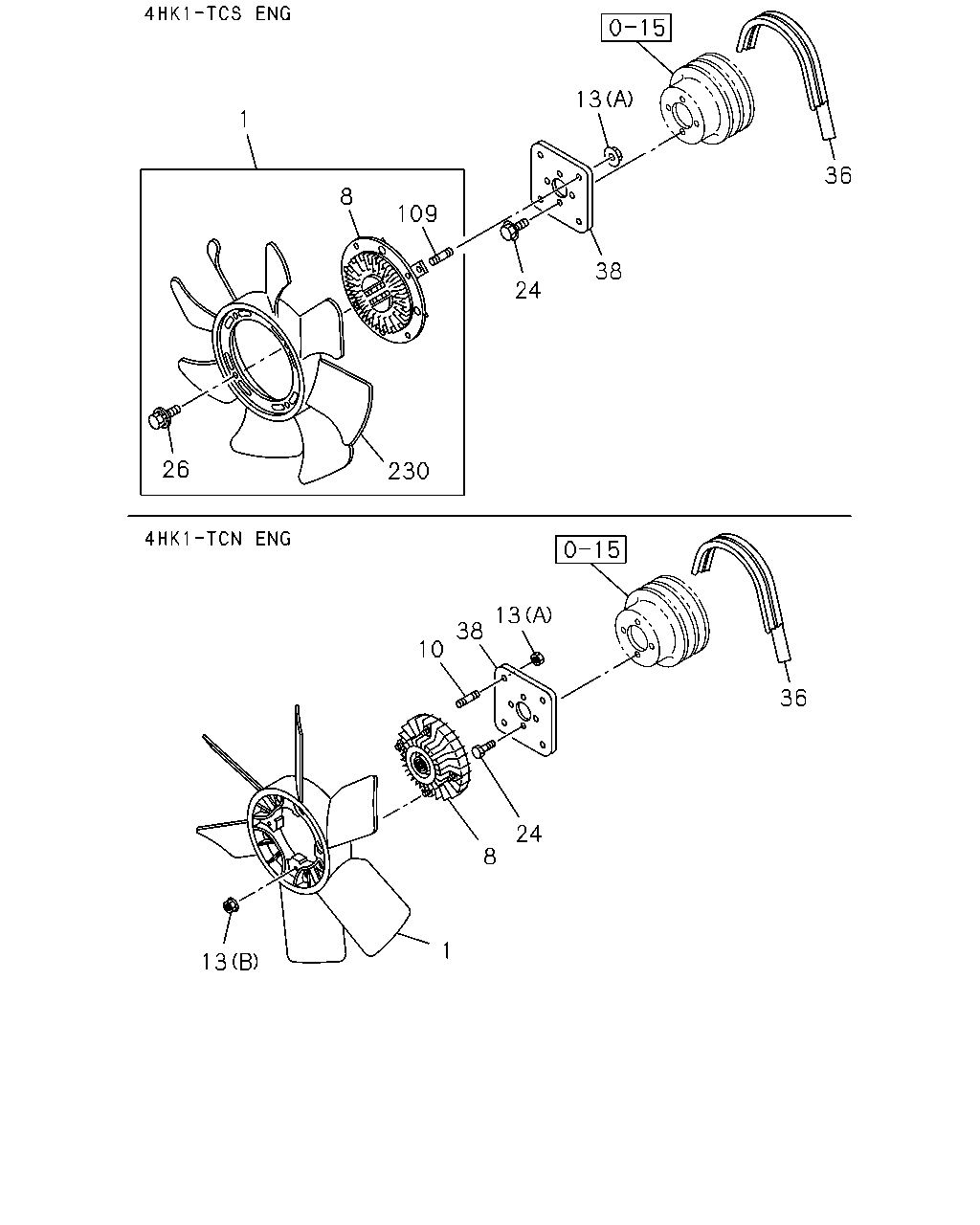

çizim 55569
13 1 36 8 109 38 24 26 230 13 38 10 36 24 8 1 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0607- ●
1 01.064 FAN; COOLING 8-97329-394-1 01 1 0507- ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0607- ●
8 01.064 CLUTCH; COOLING FAN 8-97367-382-0 01 1 0507- ●
10 01.062 STUD; FAN CLU TO PLATE
02.510 M8X20 L=32 		0-41010-820-0 04 1 0607- ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0607- ● ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0607- ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0507-0606 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0607- ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0507-0606 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0607- ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0507-0606 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0607- ● ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0507-0606 ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0607- ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0507-0606 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0607- ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0507-0606 ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0607- ● ●
230 01.055 FAN; COOLING 8-97367-381-0 01 1 0507- ●
