0-33A — FAN AND FAN BELT (#22568) — 146 parça
çizim 11860
81 80 95 96 182 93 8 80 96 182
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97139-299-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0502- ● ●
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN
FLOOR REMOTE SHIFT<M11> 		8-97129-738-0 01 1 0502- ● ●
8 01.064 CLUTCH; COOLING FAN
CHARGE AIR COOLER<6PL> 		8-97148-797-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0502-0606 ● ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0607- ● ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 0211-0305 ● ● ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0306-0404 ● ● ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0405-0501 ● ●
80 02.317 PLATE; ADJ
CHARGE AIR COOLER<6PL> 		8-97164-089-2 01 1 0405-0501 ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 1104-1302 ● ● ● ● ● ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 1303- ● ● ●
80 02.317 PLATE; ADJ
EXC. VOLTAGE 24V<7AE> 		8-97164-089-2 01 1 1303- ● ●
80 02.317 PLATE; ADJ
EXC. GENERATOR 24V80A(7YN) 		8-97164-089-2 01 1 0502-0506 ● ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0502-0506 ● ● ● ●
80 02.317 PLATE; ADJ
EXC. GENERATOR 24V80A(7YN) 		8-97164-089-2 01 1 0507-0507 ● ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0507-0507 ● ● ● ●
80 02.317 PLATE; ADJ
EXC. GENERATOR 24V80A(7YN) 		8-97164-089-2 01 1 0508-0508 ● ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0508-0508 ● ● ●
80 02.317 PLATE; ADJ
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-97164-089-2 01 1 0508-0508 ● ●
80 02.317 PLATE; ADJ
EXC. GENERATOR 24V80A(7YN) 		8-97164-089-2 01 1 0509-0606 ● ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0509-0606 ● ● ●
80 02.317 PLATE; ADJ
EXC. EURO2 SPECIFICATION(NT2),NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97164-089-2 01 1 0509-0606 ● ●
80 02.317 PLATE; ADJ
EXC. GENERATOR 24V80A(7YN) 		8-97164-089-2 01 1 0701- ● ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0701- ● ● ●
80 02.317 PLATE; ADJ
EXC. EURO2 SPECIFICATION(NT2),NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97164-089-2 01 1 0701- ● ●
80 02.317 PLATE; ADJ
EXC. CHARGE AIR COOLER<6PL> 		8-97172-415-0 01 1 0405-0501 ●
80 02.317 PLATE; ADJ
GENERATOR 24V80A(7YN) 		8-97249-636-0 01 1 0502-1411 ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V80A(7YN) 		8-97249-636-0 01 1 1412- ● ● ●
80 02.317 PLATE; ADJ
EGYPT EQUIPMENT(YJ4) GENERATOR 24V80A(7YN) 		8-97249-636-0 01 1 1412- ●
80 02.317 PLATE; ADJ
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97172-415-0 01 1 0508-0508 ● ●
80 02.317 PLATE; ADJ
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97172-415-0 01 1 0509-1103 ● ●
80 02.317 PLATE; ADJ
EURO2 SPECIFICATION(NT2) 		8-97172-415-0 01 1 0509-1103 ●
80 02.317 PLATE; ADJ
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97172-415-0 01 1 1104- ● ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0211-0501 ● ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0502-0506 ● ● ● ● ● ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0507-0606 ● ● ● ● ● ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0607- ● ● ● ● ● ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0305 ● ● ●
93 02.317 BOLT; ADJ PLATE BRKT
EXC. CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0405-0501 ●
93 02.317 BOLT; ADJ PLATE BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0508-0508 ● ●
93 02.317 BOLT; ADJ PLATE BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0509-0512 ● ●
93 02.317 BOLT; ADJ PLATE BRKT
EURO2 SPECIFICATION(NT2) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0509-0512 ●
93 02.317 BOLT; ADJ PLATE BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0601-1103 ● ●
93 02.317 BOLT; ADJ PLATE BRKT
EURO2 SPECIFICATION(NT2) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0601-1103 ●
93 02.317 BOLT; ADJ PLATE BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1104- ● ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 0211-0305 ● ● ●
95 02.317 BRACKET; ADJ PLATE
EXC. CHARGE AIR COOLER<6PL> 		8-97037-510-0 01 1 0405-0501 ●
95 02.317 BRACKET; ADJ PLATE
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97037-510-0 01 1 0508-0508 ● ●
95 02.317 BRACKET; ADJ PLATE
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97037-510-0 01 1 0509-1103 ● ●
95 02.317 BRACKET; ADJ PLATE
EURO2 SPECIFICATION(NT2) 		8-97037-510-0 01 1 0509-1103 ●
95 02.317 BRACKET; ADJ PLATE
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97037-510-0 01 1 1104- ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0211-0501 ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0502-0506 ● ● ● ● ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0507-0606 ● ● ● ● ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0607- ● ● ● ● ● ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0211-0305 ● ● ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0306-0404 ● ● ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0405-0501 ● ●
182 01.062 BOLT; BRKT
CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0405-0501 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0508-0508 ● ● ● ●
182 01.062 BOLT; BRKT
EXC. EURO2 SPECIFICATION(NT2),NOISE PACK FOR REGULATION VAR.2<7TF> 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0508-0508 ● ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0509-0512 ● ● ● ●
182 01.062 BOLT; BRKT
EXC. VOLTAGE 24V<7AE> 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0509-0512 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601-0606 ● ● ● ●
182 01.062 BOLT; BRKT
EXC. VOLTAGE 24V<7AE> 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601-0606 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0607-1007 ● ● ● ●
182 01.062 BOLT; BRKT
EXC. VOLTAGE 24V<7AE> 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0607-1007 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1008-1103 ● ● ● ●
182 01.062 BOLT; BRKT
EXC. VOLTAGE 24V<7AE> 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1008-1103 ● ●
182 01.062 BOLT; BRKT
EURO2 SPECIFICATION(NT2) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1008-1103 ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1104-1302 ● ● ● ● ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1303- ● ● ●
182 01.062 BOLT; BRKT
EXC. VOLTAGE 24V<7AE> 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1303- ● ●
182 01.062 BOLT; BRKT
EXC. CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0405-0501 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0502-0506 ● ● ● ● ● ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0507-0507 ● ● ● ● ● ●
182 01.062 BOLT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> 02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0508-0508 ● ●
182 01.062 BOLT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> 02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0509-0512 ● ●
182 01.062 BOLT; BRKT
EURO2 SPECIFICATION(NT2) 02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0509-0512 ●
182 01.062 BOLT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> 01.060 M8X35 FLANGE 		0-28650-835-0 03 1 0601-1103 ● ●
182 01.062 BOLT; BRKT
EURO2 SPECIFICATION(NT2) 01.060 M8X35 FLANGE 		0-28650-835-0 03 1 0601-1103 ●
182 01.062 BOLT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> 01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1104- ● ●

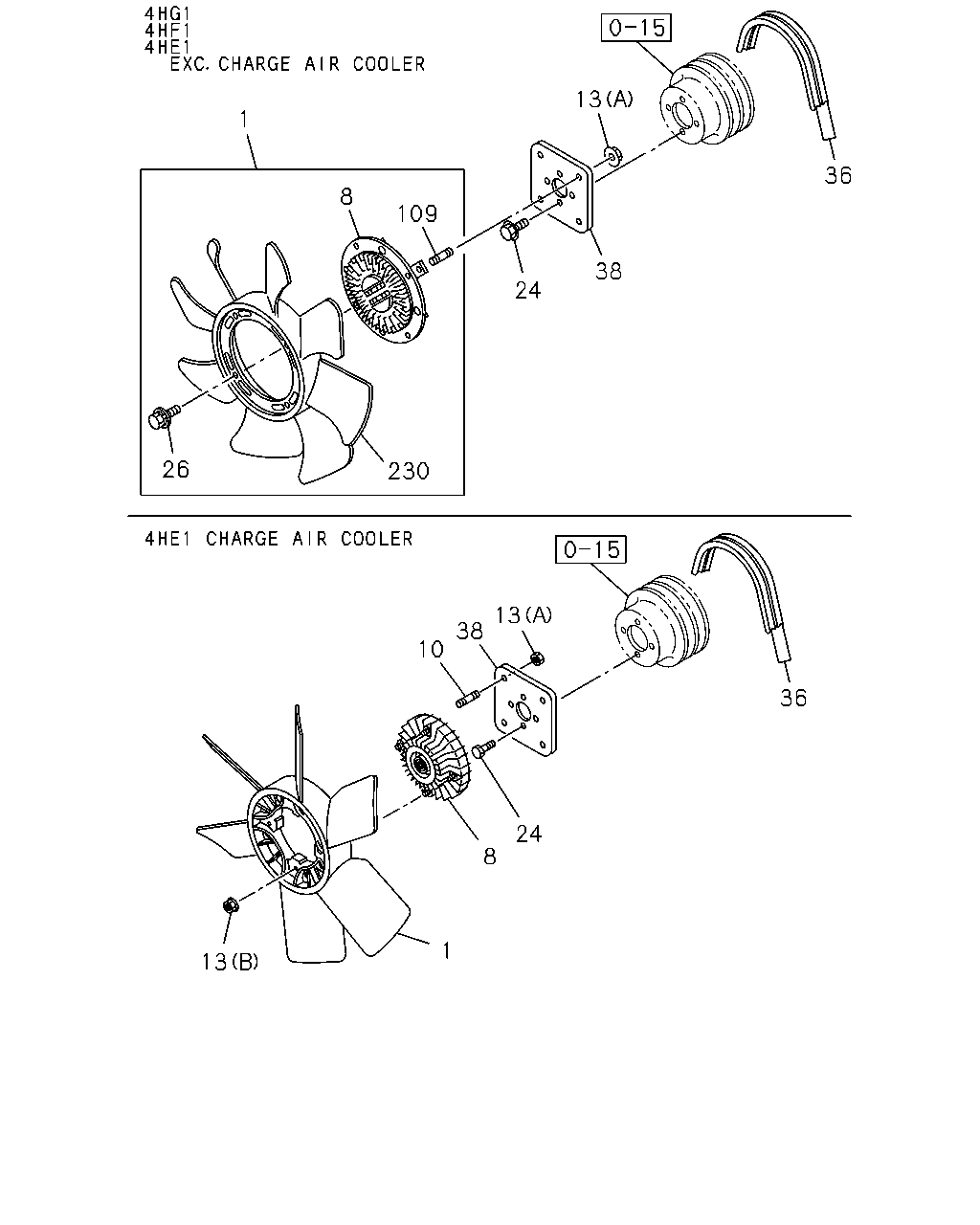

çizim 52850
13 1 36 8 109 38 24 26 230 13 38 10 36 24 8 1 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.064 FAN; COOLING
OD=430 		8-97141-195-2 01 1 0211-0501 ●
1 01.064 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> OD=430 		8-97141-195-2 01 1 0211-0501 ●
1 01.064 FAN; COOLING
OD=430 		8-97141-195-2 01 1 0502- ● ●
1 01.064 FAN; COOLING 8-97129-772-1 01 1 0211-0501 ●
1 01.064 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97129-772-1 01 1 0502- ● ●
1 01.064 FAN; COOLING
CHARGE AIR COOLER<6PL> 		5-13662-012-1 01 1 0211-0501 ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0502-0606 ● ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0607- ● ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97139-299-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0502- ● ●
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN
FLOOR REMOTE SHIFT<M11> 		8-97129-738-0 01 1 0502- ● ●
8 01.064 CLUTCH; COOLING FAN
CHARGE AIR COOLER<6PL> 		8-97148-797-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0502-0606 ● ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0607- ● ●
10 01.062 STUD; FAN CLU TO PLATE
CHARGE AIR COOLER<6PL> 01.428 M8X20 L=32 		9-04110-820-0 04 1 0211-0501 ●
10 01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32 		9-04110-820-0 04 1 0502-0604 ● ●
10 01.062 STUD; FAN CLU TO PLATE
02.510 M8X20 L=32 		0-41010-820-0 04 1 0605-0606 ● ●
10 01.062 STUD; FAN CLU TO PLATE
02.510 M8X20 L=32 		0-41010-820-0 04 1 0607- ● ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0211-0501 ● ● ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0502-0506 ● ● ● ● ● ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ● ● ● ● ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ● ● ● ● ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0607- ● ● ● ● ● ●
13 01.062 NUT; COOLING FAN
CHARGE AIR COOLER<6PL> 07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0211-0501 ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0502-0606 ● ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0607- ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0211-0501 ● ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0502-0506 ● ● ● ● ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0507-0606 ● ● ● ● ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0607- ● ● ● ● ● ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ●
26 01.062 BOLT; FAN TO CLU
EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0502- ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0211-0501 ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 0502-0506 ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0507-0606 ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0607- ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0211-0501 ● ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0502-0506 ● ● ● ● ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0507-0606 ● ● ● ● ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0607- ● ● ● ● ● ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0211-0501 ● ● ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0502-0506 ● ● ● ● ● ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0507-0606 ● ● ● ● ● ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0607- ● ● ● ● ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0211-0501 ● ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0502-0506 ● ● ● ● ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0507-0606 ● ● ● ● ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0607- ● ● ● ● ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0211-0501 ● ●
109 01.062 STUD; FAN CLU
EXC. CHARGE AIR COOLER<6PL> M8X13.5 L=22 		8-97049-577-1 04 1 0211-0501 ●
109 01.062 STUD; FAN CLU
FLOOR REMOTE SHIFT<M11> M8X13.5 L=22 		8-97049-577-1 04 1 0502-0506 ● ● ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0507-0606 ● ● ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0607- ● ● ● ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 0211-0501 ●
230 01.055 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97140-854-1 01 1 0211-0501 ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 0502- ● ●
230 01.055 FAN; COOLING 8-97078-662-1 01 1 0211-0501 ●
230 01.055 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97078-662-1 01 1 0502- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
