0-32A — WATER PIPING; ENGINE (#22566) — 87 parça

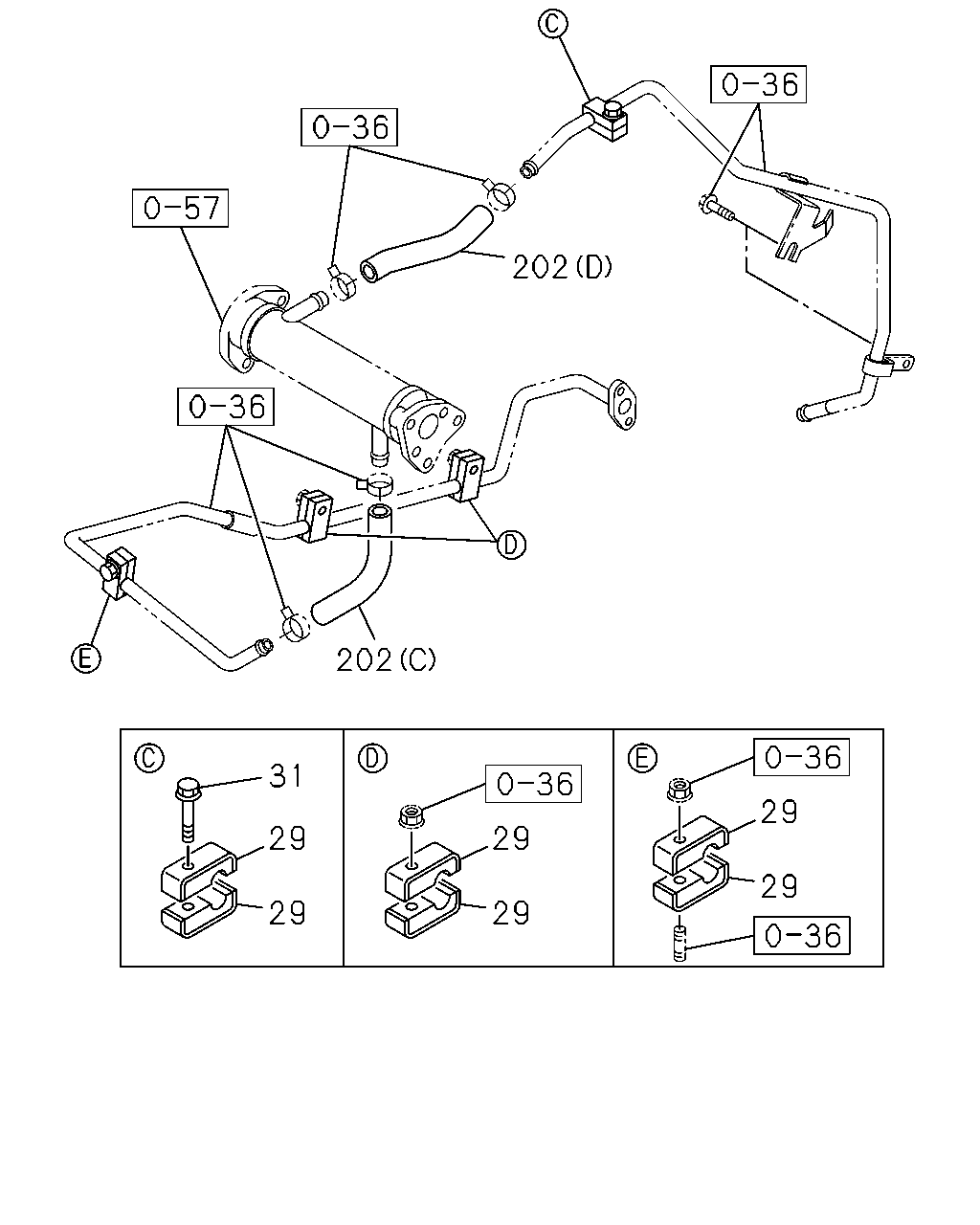

çizim 10325
202 202 31 29 29 29 29 29 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (A) 		8-97212-146-2 01 1 0211-0501 ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (B) 		8-97306-129-2 01 1 0211-0501 ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (A) 		8-97212-146-2 01 1 0507-1103 ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97212-146-2 01 1 1104- ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (B) 		8-97306-129-2 01 1 0507-1103 ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97306-129-2 01 1 1104- ●

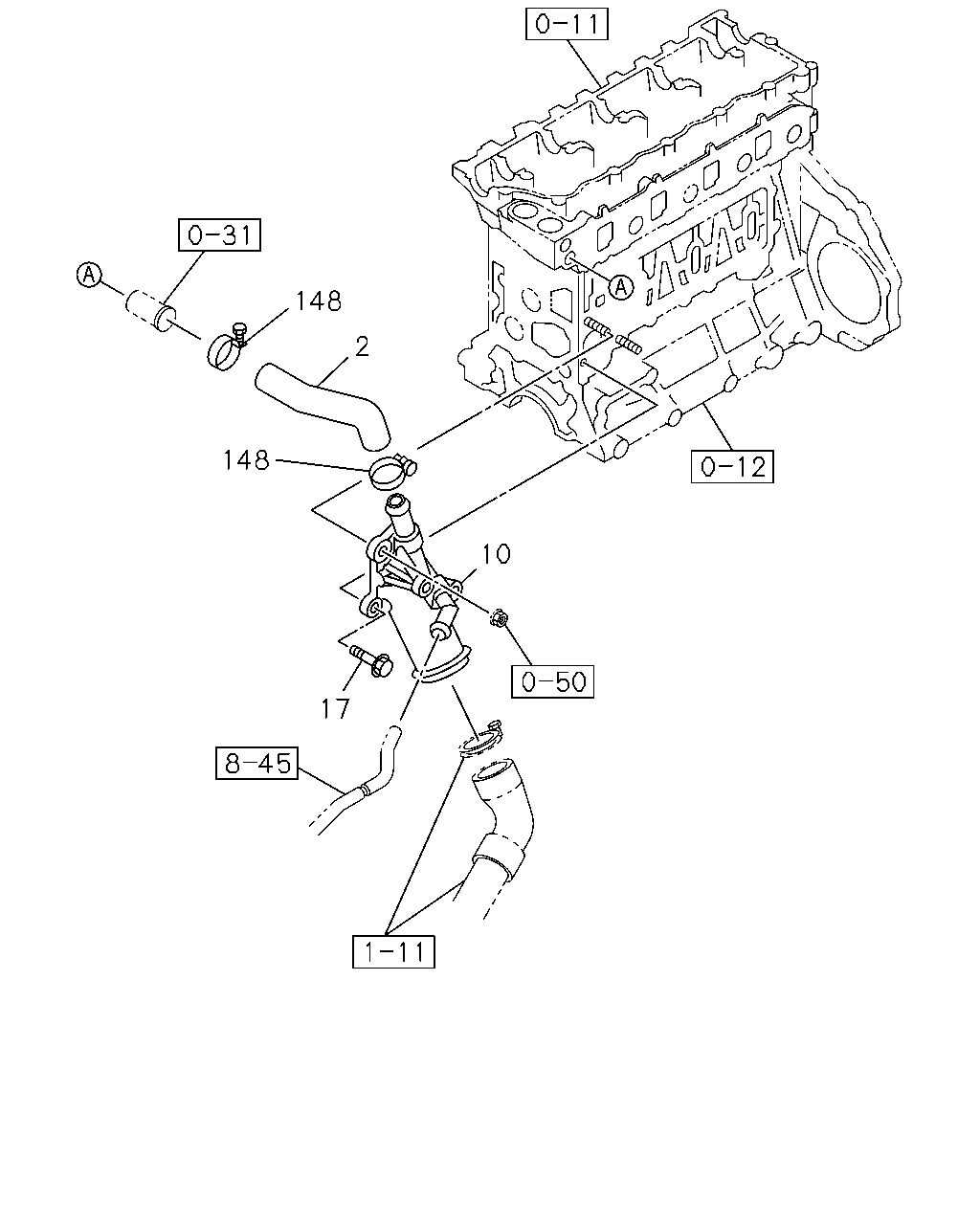

çizim 12079
148 2 148 10 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 01.097 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 0211-0501 ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 0502- ● ● ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-0 01 1 0211-0501 ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-0 01 1 0502-0506 ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-0 01 1 0507-0606 ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-1 01 1 0607- ● ●
10 01.153 PIPE; SUCTION
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98212-009-0 01 1 1203- ● ● ● ● ● ●
10 01.153 PIPE; SUCTION 8-97216-157-0 01 1 0211-0308 ● ●
10 01.153 PIPE; SUCTION
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 		8-97216-157-0 01 1 0211-0308 ●
10 01.153 PIPE; SUCTION 8-97216-157-1 01 1 0309-0501 ● ●
10 01.153 PIPE; SUCTION
EXC. EURO3 SPECIFICATION(NT3) 		8-97216-157-1 01 1 0309-0501 ●
10 01.153 PIPE; SUCTION 8-97216-157-1 01 1 0502-0505 ● ● ● ● ●
10 01.153 PIPE; SUCTION
EXC. EURO3 SPECIFICATION(NT3) 		8-97216-157-1 01 1 0502-0505 ●
10 01.153 PIPE; SUCTION 8-97216-157-1 01 1 0506-0506 ● ● ● ● ● ●
10 01.153 PIPE; SUCTION 8-97216-157-1 01 1 0507-0508 ● ● ● ●
10 01.153 PIPE; SUCTION
EXC. EURO3 SPECIFICATION(NT3) 		8-97216-157-1 01 1 0507-0508 ● ●
10 01.153 PIPE; SUCTION 8-97216-157-1 01 1 0509-1010 ● ● ● ● ●
10 01.153 PIPE; SUCTION
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97216-157-1 01 1 0509-1010 ●
10 01.153 PIPE; SUCTION 8-98166-992-0 01 1 1011-1103 ● ● ● ● ●
10 01.153 PIPE; SUCTION
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-98166-992-0 01 1 1011-1103 ●
10 01.153 PIPE; SUCTION 8-98166-992-0 01 1 1104-1202 ● ● ● ● ●
10 01.153 PIPE; SUCTION
EXC. EURO3 SPECIFICATION(NT3) 		8-98166-992-0 01 1 1104-1202 ●
10 01.153 PIPE; SUCTION
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98166-992-0 01 1 1203- ● ● ● ●
10 01.153 PIPE; SUCTION
HEATER & DEFROSTER(C41) EXC. EURO3 SPECIFICATION(NT3) 		8-98166-992-0 01 1 1203- ● ●
10 01.153 PIPE; SUCTION
EURO3 SPECIFICATION(NT3) 		8-97240-998-3 01 1 0211-0501 ●
10 01.153 PIPE; SUCTION
EURO3 SPECIFICATION(NT3) 		8-97240-998-3 01 1 0507-1010 ●
10 01.153 PIPE; SUCTION
EURO3 SPECIFICATION(NT3) 		8-98166-994-0 01 1 1011-1103 ●
10 01.153 PIPE; SUCTION
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98166-994-0 01 1 1104- ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0211-0501 ● ● ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0502-0506 ● ● ● ● ● ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0507-0606 ● ● ● ● ● ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0607- ● ● ● ● ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0211-0501 ● ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0502-0506 ● ● ● ● ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0507-0606 ● ● ● ● ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0607- ● ● ● ● ● ●

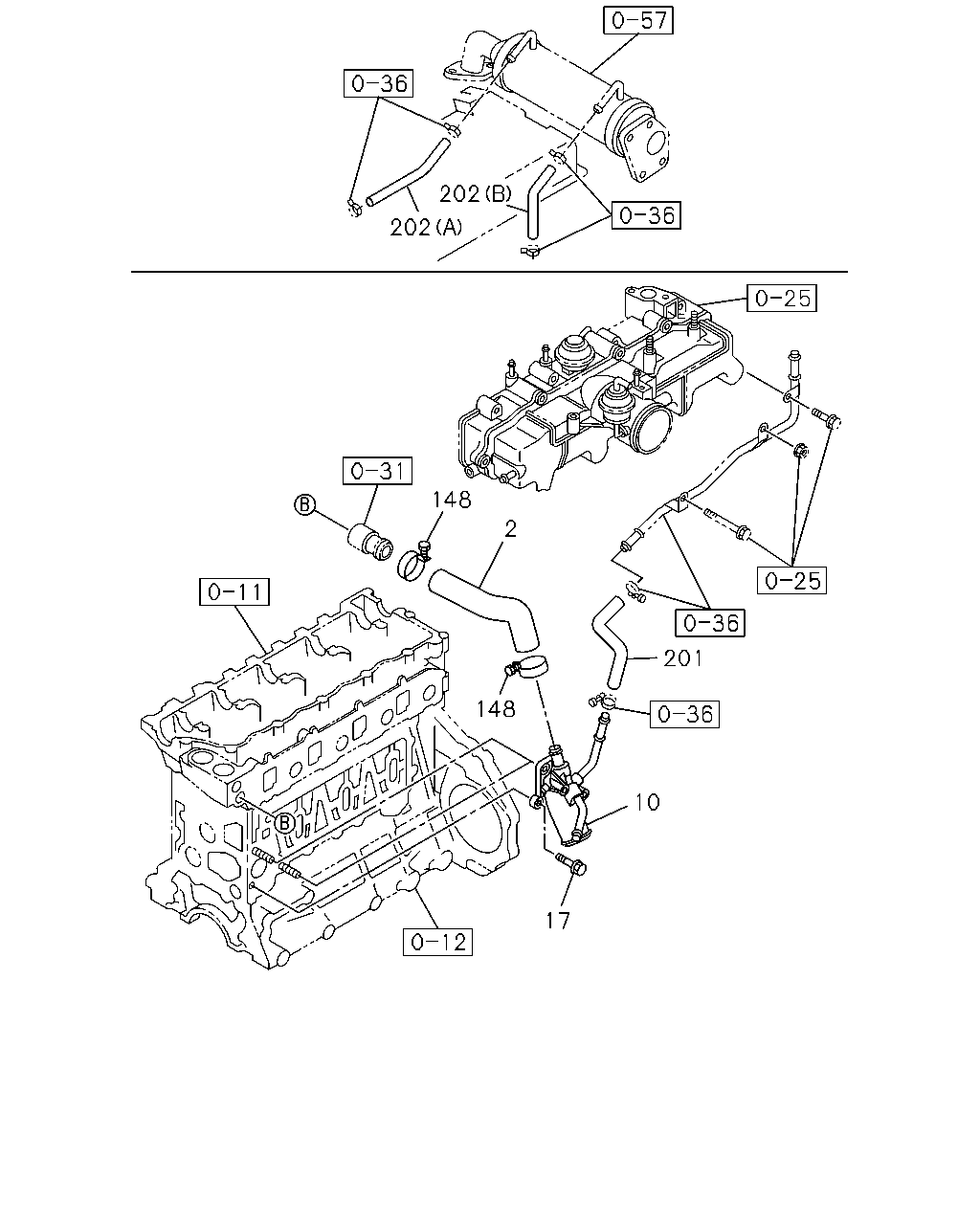

çizim 53629
202 202 148 2 201 148 10 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 01.097 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 0211-0501 ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 0502- ● ● ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-0 01 1 0211-0501 ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-0 01 1 0502-0506 ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-0 01 1 0507-0606 ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-1 01 1 0607- ● ●
10 01.153 PIPE; SUCTION
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98212-009-0 01 1 1203- ● ● ● ● ● ●
10 01.153 PIPE; SUCTION 8-97216-157-0 01 1 0211-0308 ● ●
10 01.153 PIPE; SUCTION
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 		8-97216-157-0 01 1 0211-0308 ●
10 01.153 PIPE; SUCTION 8-97216-157-1 01 1 0309-0501 ● ●
10 01.153 PIPE; SUCTION
EXC. EURO3 SPECIFICATION(NT3) 		8-97216-157-1 01 1 0309-0501 ●
10 01.153 PIPE; SUCTION 8-97216-157-1 01 1 0502-0505 ● ● ● ● ●
10 01.153 PIPE; SUCTION
EXC. EURO3 SPECIFICATION(NT3) 		8-97216-157-1 01 1 0502-0505 ●
10 01.153 PIPE; SUCTION 8-97216-157-1 01 1 0506-0506 ● ● ● ● ● ●
10 01.153 PIPE; SUCTION 8-97216-157-1 01 1 0507-0508 ● ● ● ●
10 01.153 PIPE; SUCTION
EXC. EURO3 SPECIFICATION(NT3) 		8-97216-157-1 01 1 0507-0508 ● ●
10 01.153 PIPE; SUCTION 8-97216-157-1 01 1 0509-1010 ● ● ● ● ●
10 01.153 PIPE; SUCTION
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97216-157-1 01 1 0509-1010 ●
10 01.153 PIPE; SUCTION 8-98166-992-0 01 1 1011-1103 ● ● ● ● ●
10 01.153 PIPE; SUCTION
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-98166-992-0 01 1 1011-1103 ●
10 01.153 PIPE; SUCTION 8-98166-992-0 01 1 1104-1202 ● ● ● ● ●
10 01.153 PIPE; SUCTION
EXC. EURO3 SPECIFICATION(NT3) 		8-98166-992-0 01 1 1104-1202 ●
10 01.153 PIPE; SUCTION
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98166-992-0 01 1 1203- ● ● ● ●
10 01.153 PIPE; SUCTION
HEATER & DEFROSTER(C41) EXC. EURO3 SPECIFICATION(NT3) 		8-98166-992-0 01 1 1203- ● ●
10 01.153 PIPE; SUCTION
EURO3 SPECIFICATION(NT3) 		8-97240-998-3 01 1 0211-0501 ●
10 01.153 PIPE; SUCTION
EURO3 SPECIFICATION(NT3) 		8-97240-998-3 01 1 0507-1010 ●
10 01.153 PIPE; SUCTION
EURO3 SPECIFICATION(NT3) 		8-98166-994-0 01 1 1011-1103 ●
10 01.153 PIPE; SUCTION
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98166-994-0 01 1 1104- ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0211-0501 ● ● ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0502-0506 ● ● ● ● ● ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0507-0606 ● ● ● ● ● ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0607- ● ● ● ● ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0211-0501 ● ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0502-0506 ● ● ● ● ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0507-0606 ● ● ● ● ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0607- ● ● ● ● ● ●
201 01.097 HOSE; RUBBER,SUCTION
EURO3 SPECIFICATION(NT3) 		8-97306-130-1 01 1 0211-0501 ●
201 01.097 HOSE; RUBBER,SUCTION
EURO3 SPECIFICATION(NT3) 		8-97306-130-1 01 1 0507-1103 ●
201 01.097 HOSE; RUBBER,SUCTION
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97306-130-1 01 1 1104- ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (A) 		8-97212-146-2 01 1 0211-0501 ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (B) 		8-97306-129-2 01 1 0211-0501 ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (A) 		8-97212-146-2 01 1 0507-1103 ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97212-146-2 01 1 1104- ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (B) 		8-97306-129-2 01 1 0507-1103 ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97306-129-2 01 1 1104- ●
