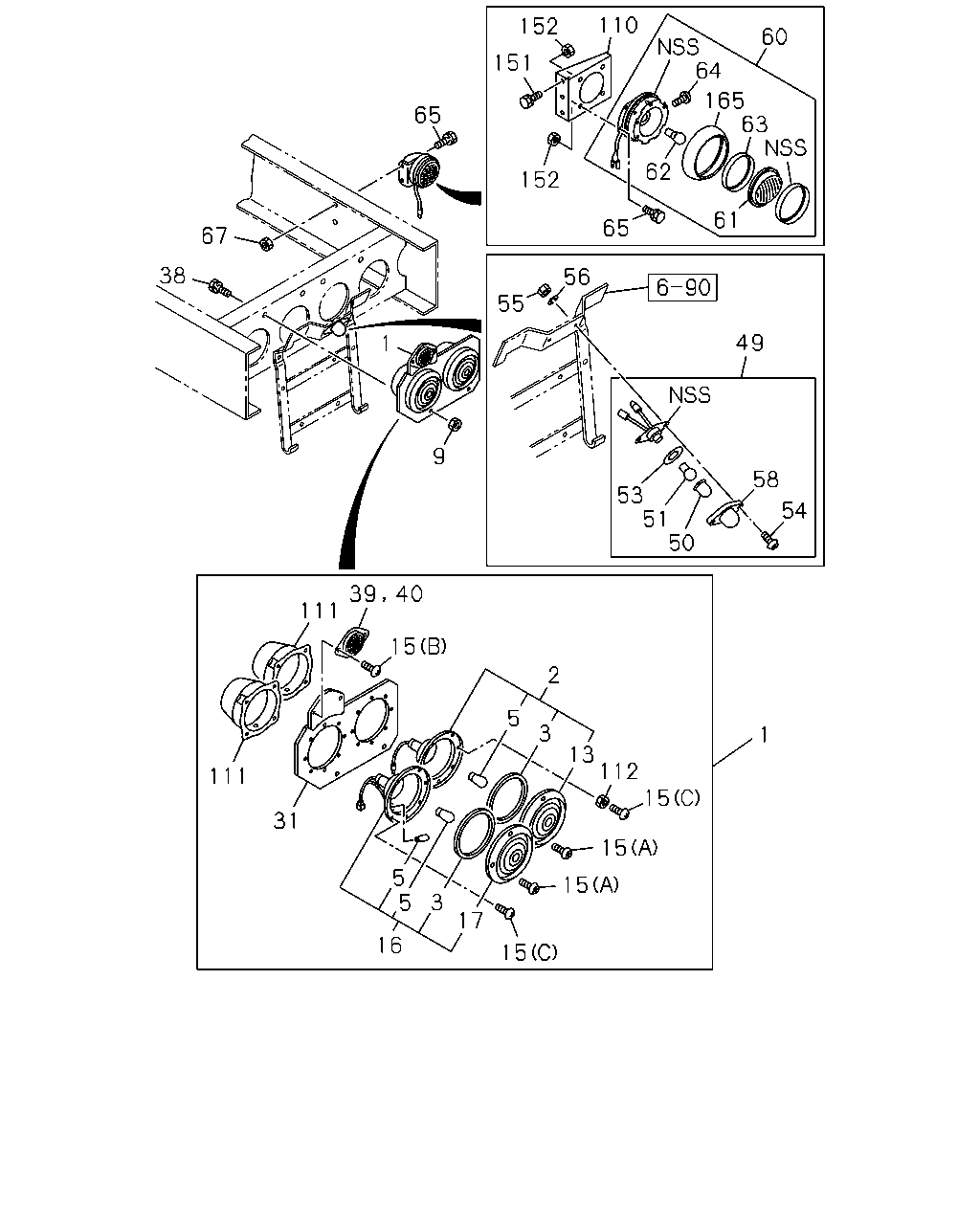

8-03 — LAMP; REAR AND REAR SIDE (#2256) — 72 parça

110 152 60 64 151 165 63 65 62 152 61 65 67 38 56 55 49 1 9 58 53 51 50 54 39 111 15 2 5 3 1 13 112 15 111 31 5 5 15 15 3 17 16 15 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; RR COMB	1-82200-049-1	01	1	9101-	●	●
1	LAMP ASM; RR COMB	1-82200-048-1	01	1	9101-	●	●
2	LAMP; TURN SIGNAL	9-82633-104-0	02	1	9101-	●	●
3	GASKET; RR COMB LAMP	9-82631-963-0	04	1	9101-	●	●
5	BULB; RR COMB LAMP 24V 25/10W	9-82691-335-0	02	1	9101-	●	●
5	BULB; RR COMB LAMP 24V 25W	9-82691-347-0	02	1	9101-	●	●
5	BULB; RR COMB LAMP 24V 3W	9-82691-603-0	02	1	9101-	●	●
9	NUT; LAMP,RR COMB M10	9-09110-410-0	04	1	9101-9307	●	●
9	NUT; LAMP,RR COMB M10	9-09110-510-0	04	1	9308-	●	●
13	LENS; TURN SIGNAL	9-82631-832-0	02	1	9101-	●	●
15	SCREW; RR COMB LAMP (A) M4X20	1-82239-021-0	16	1	9101-	●	●
15	SCREW; RR COMB LAMP (B)	1-82239-022-0	04	1	9101-	●	●
15	SCREW; RR COMB LAMP (C)	9-93490-416-0	16	1	9101-	●	●
16	LAMP; STOP COMB LAMP	9-82633-053-0	02	1	9101-	●	●
17	LENS; STOP,RR COMB LAMP	9-82631-833-0	02	1	9101-	●	●
31	BRACKET; RR COMB LAMP	1-82237-002-0	01	1	9101-	●	●
31	BRACKET; RR COMB LAMP	1-82237-001-0	01	1	9101-	●	●
38	BOLT; LAMP,RR COMB M10X20 W/LK WASHER	9-01901-020-0	04	1	9101-9204	●	●
38	BOLT; LAMP,RR COMB M10X20 W/LK WASHER	0-50041-020-0	04	1	9205-	●	●
39	REFLECTOR; REFLEX RH	9-82691-955-0	01	1	9101-	●	●
40	REFLECTOR; REFLEX	9-82691-955-0	01	1	9101-	●	●
49	LAMP; LICENSE PLATE	1-82120-009-1	01	1	9101-	●	●
50	LENS; LICENSE PLATE LAMP	1-82235-005-0	01	1	9101-	●	●
51	BULB; LICENSE PLATE LAMP	1-82194-004-0	01	1	9101-	●	●
53	GASKET; LICENSE LAMP	1-82236-005-0	01	1	9101-	●	●
54	SCREW; LICENSE PLATE LAMP	1-82120-010-0	02	1	9101-	●	●
55	NUT; LICENSE PLATE LAMP	9-99110-405-0	02	1	9101-	●	●
56	WASHER; LK,LICENSE PLATE LAMP	9-09150-505-0	02	1	9101-	●	●
58	COVER; LICENSE PLATE LAMP	1-82129-009-0	01	1	9101-	●	●
60	LAMP; BACKUP BUS USER THAILAND BMTA<D5B>	1-82130-003-1	01	1	9101-0203	●
60	LAMP; BACKUP EXC. BUS USER THAILAND BMTA<D5B>	1-82130-006-0	01	1	9101-0203	●
60	LAMP; BACKUP	1-82130-006-0	01	1	0204-	●
60	LAMP; BACKUP	1-82130-007-0	01	1	9101-		●
61	LENS; BACKUP LAMP BUS USER THAILAND BMTA<D5B>	9-82611-224-0	01	1	9101-0203	●
61	LENS; BACKUP LAMP EXC. BUS USER THAILAND BMTA<D5B>	1-82135-001-0	01	1	9101-0203	●
61	LENS; BACKUP LAMP	1-82135-001-0	01	1	9101-0203		●
61	LENS; BACKUP LAMP	1-82135-001-0	01	1	0204-	●	●
62	BULB; BACKUP LAMP BUS USER THAILAND BMTA<D5B> 24V 35W	1-82194-012-0	01	1	9101-0203	●
62	BULB; BACKUP LAMP EXC. BUS USER THAILAND BMTA<D5B> 24V 25W	9-82691-347-0	01	1	9101-0203	●
62	BULB; BACKUP LAMP 24V 25W	9-82691-347-0	01	1	9101-0203		●
62	BULB; BACKUP LAMP 24V 25W	9-82691-347-0	01	1	0204-	●	●
63	GASKET; BACKUP LAMP BUS USER THAILAND BMTA<D5B>	9-82611-734-0	01	1	9101-0203	●
63	GASKET; BACKUP LAMP EXC. BUS USER THAILAND BMTA<D5B>	1-82136-001-0	01	1	9101-0203	●
63	GASKET; BACKUP LAMP	1-82136-001-0	01	1	9101-0203		●
63	GASKET; BACKUP LAMP	1-82136-001-0	01	1	0204-	●	●
64	SCREW; BACKUP LAMP BUS USER THAILAND BMTA<D5B> M5X14 OVAL-HEAD	9-93280-514-0	01	1	9101-0203	●
64	SCREW; BACKUP LAMP BUS USER THAILAND BMTA<D5B> M4X6	9-93490-406-0	03	1	9101-0203	●
64	SCREW; BACKUP LAMP EXC. BUS USER THAILAND BMTA<D5B>	1-82139-004-0	01	1	9101-0203	●
64	SCREW; BACKUP LAMP	1-82139-004-0	01	1	9101-0203		●
64	SCREW; BACKUP LAMP	1-82139-004-0	01	1	0204-	●	●
65	BOLT; LAMP,BACKUP BUS USER THAILAND BMTA<D5B> M5X16 W/LK WASHER	9-03910-516-0	04	1	9101-0203	●
65	BOLT; LAMP,BACKUP EXC. BUS USER THAILAND BMTA<D5B> M10X25 W/LK WASHER	9-01901-025-0	02	1	9101-9204	●
65	BOLT; LAMP,BACKUP M10X25 W/LK WASHER	9-01901-025-0	02	1	9101-9204		●
65	BOLT; LAMP,BACKUP EXC. BUS USER THAILAND BMTA<D5B> M10X25 W/LK WASHER	0-50041-025-0	02	1	9205-0203	●
65	BOLT; LAMP,BACKUP M10X25 W/LK WASHER	0-50041-025-0	02	1	9205-0203		●
65	BOLT; LAMP,BACKUP M10X25 W/LK WASHER	0-50041-025-0	02	1	0204-	●	●
67	NUT; FLANGE BUS USER THAILAND BMTA<D5B> M5	9-99110-405-0	04	1	9101-0203	●
67	NUT; FLANGE EXC. BUS USER THAILAND BMTA<D5B> M10	9-09110-410-0	02	1	9101-9307	●
67	NUT; FLANGE M10	9-09110-410-0	02	1	9101-9307		●
67	NUT; FLANGE EXC. BUS USER THAILAND BMTA<D5B> M10	9-09110-510-0	02	1	9308-0203	●
67	NUT; FLANGE M10	9-09110-510-0	02	1	9308-0203		●
67	NUT; FLANGE M10	9-09110-510-0	02	1	0204-	●	●
110	BRACKET; BACKUP LAMP BUS USER THAILAND BMTA<D5B>	9-82611-741-0	01	1	9101-0203	●
111	PROTECTOR; RR COMB LAMP	9-82635-129-0	04	1	9101-	●	●
112	NUT; PROTECTOR,RR COMB LAMP M4 FLANGE	1-09400-021-0	32	1	9101-	●	●
151	BOLT; BACKUP LAMP BRKT BUS USER THAILAND BMTA<D5B> M6X18 W/LK WASHER	9-01900-618-0	03	1	9101-9204	●
151	BOLT; BACKUP LAMP BRKT BUS USER THAILAND BMTA<D5B> M6X18 W/LK WASHER	0-50040-618-0	03	1	9205-0203	●
152	NUT; BACKUP LAMP BRKT BUS USER THAILAND BMTA<D5B>	9-09110-406-0	03	1	9101-0203	●
165	RIM; BACKUP LAMP BUS USER THAILAND BMTA<D5B>	9-82611-469-1	01	1	9101-0203	●
165	RIM; BACKUP LAMP EXC. BUS USER THAILAND BMTA<D5B>	1-82134-003-0	01	1	9101-0203	●
165	RIM; BACKUP LAMP	1-82134-003-0	01	1	0204-	●
165	RIM; BACKUP LAMP	1-82134-004-0	01	1	9101-		●
