◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27A - EXHAUST MANIFOLD ▶
0-27A — EXHAUST MANIFOLD (#22558) — 91 parça

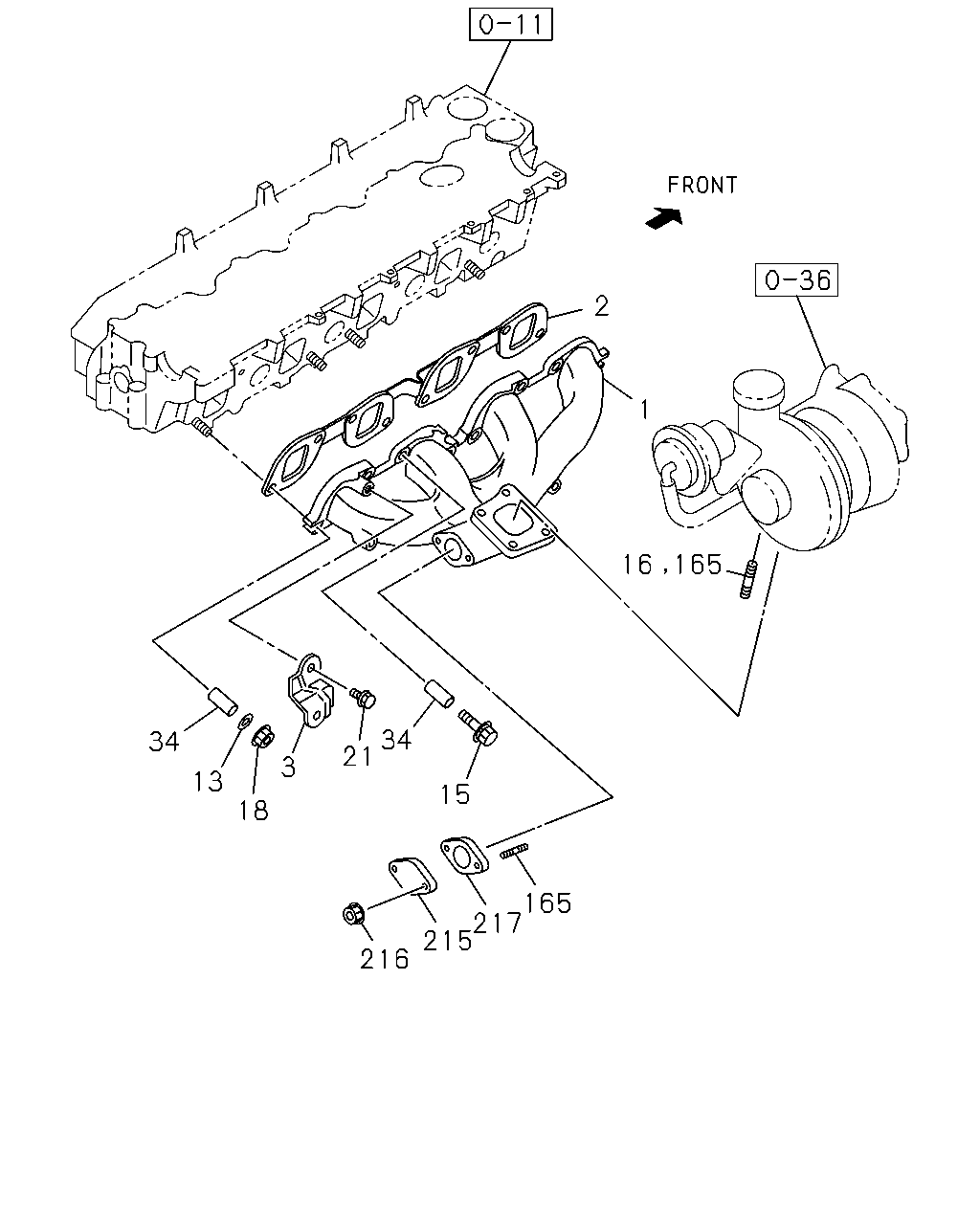

çizim 50761
2 1 3 34 21 34 13 15 18 165 217 215 216 15 165
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER(K51) 		8-97163-079-0 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-1 01 1 0502- ● ● ●
1 03.601 MANIFOLD; EXHAUST
CHARGE AIR COOLER<6PL> 		8-97148-949-2 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97148-949-2 01 1 0502-0506 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97148-949-2 01 1 0507-0606 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97148-949-2 01 1 0607-0607 ● ●
1 03.601 MANIFOLD; EXHAUST 8-98027-968-1 01 1 0608- ● ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHARGE AIR COOLER<6PL> 		8-97148-949-2 01 1 0211-0501 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-0 01 1 0211-0501 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-0 01 1 0502-0506 ● ● ● ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-0 01 1 0507-0606 ● ● ● ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-2 01 1 0607- ● ● ● ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER(K51) 		8-97096-424-1 01 1 0211-0501 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97096-424-1 01 1 0211-0501 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97096-424-1 01 1 0502- ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHARGE AIR COOLER<6PL> 		8-97039-753-1 01 1 0211-0501 ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 0211-0501 ● ● ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 0502-0506 ● ● ● ● ● ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 0507-0606 ● ● ● ● ● ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 0607- ● ● ● ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0211-0501 ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0502-0506 ● ● ● ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0507-0606 ● ● ● ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0607- ● ● ● ● ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0211-0501 ● ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0502-0506 ● ● ● ● ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0507-0512 ● ● ● ● ● ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 0601-0606 ● ● ● ● ● ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 0607- ● ● ● ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. TURBOCHARGER(K51) M6X12 FLANGE 		8-97108-669-0 08 1 0211-0501 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 0211-0501 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 0502- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0211-0501 ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 0211-0501 ● ● ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 0502-0506 ● ● ● ● ● ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 0507-0606 ● ● ● ● ● ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 0607- ● ● ● ● ● ●
165 03.417 STUD; EGR PIPE
CHARGE AIR COOLER<6PL> 03.342 M8X22 L=33 		8-94257-319-0 02 1 0211-0501 ●
165 03.417 STUD; EGR PIPE
03.342 M8X22 L=33 		8-94257-319-0 02 1 0502- ● ●
165 03.417 STUD; EGR PIPE
EXC. CHARGE AIR COOLER<6PL> 03.342 M8X22 L=33 		8-94257-319-0 04 1 0211-0501 ●
215 03.601 PLATE; BOSS,EXH MANIF
EXC. CHARGE AIR COOLER<6PL> 03.680 		8-97136-006-0 01 1 0211-0501 ●
216 03.601 NUT; PLATE,BOSS
EXC. CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE 		8-97061-401-1 02 1 0211-0501 ●
217 03.601 GASKET; EXH MANIF TO PLATE
EXC. CHARGE AIR COOLER<6PL> 03.665 		8-94340-670-0 01 1 0211-0501 ●

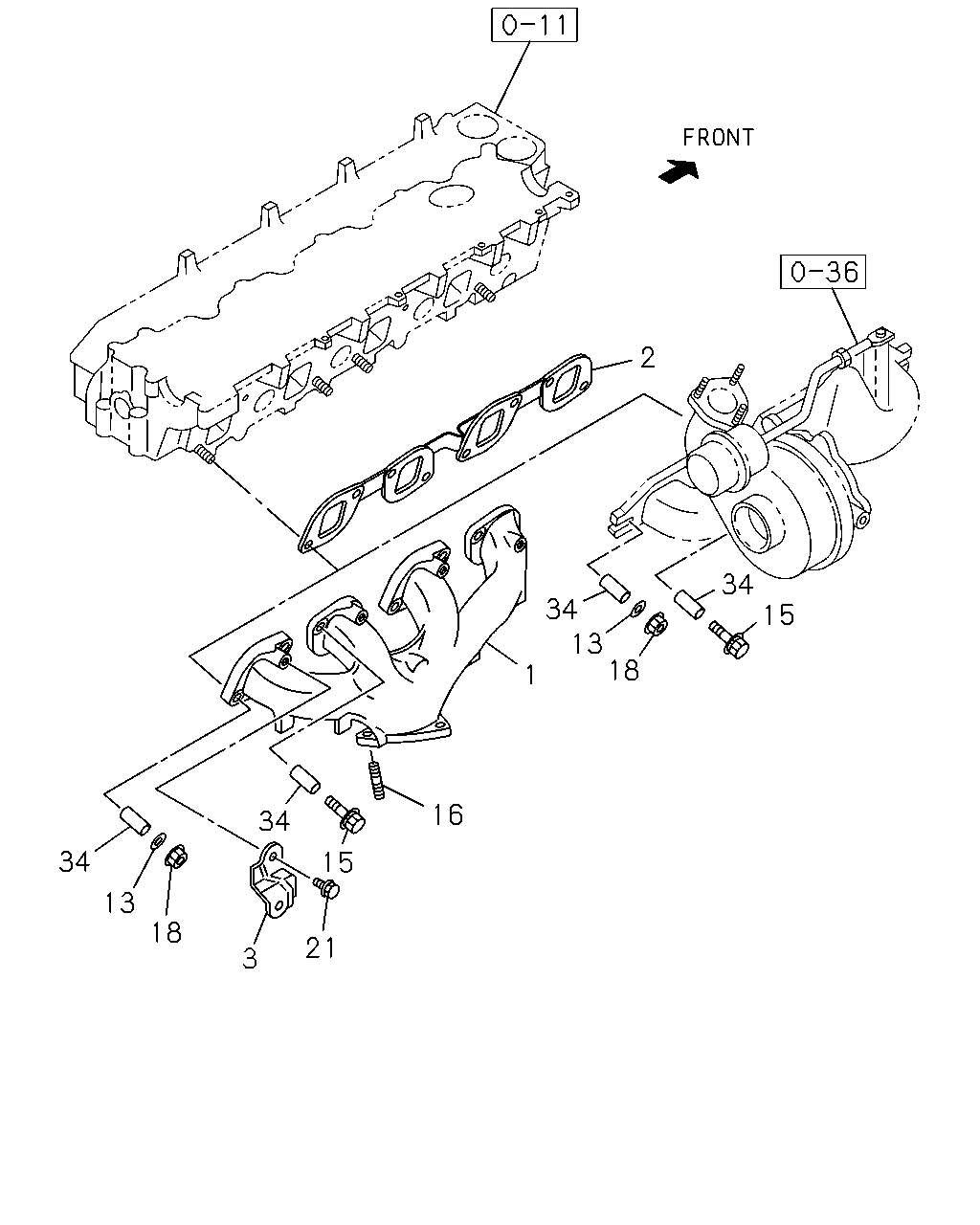

çizim 55402
2 34 15 34 13 18 1 16 34 34 15 13 18 21 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER(K51) 		8-97163-079-0 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-1 01 1 0502- ● ● ●
1 03.601 MANIFOLD; EXHAUST
CHARGE AIR COOLER<6PL> 		8-97148-949-2 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97148-949-2 01 1 0502-0506 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97148-949-2 01 1 0507-0606 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97148-949-2 01 1 0607-0607 ● ●
1 03.601 MANIFOLD; EXHAUST 8-98027-968-1 01 1 0608- ● ●
1 03.601 MANIFOLD; EXHAUST
EXC. CHARGE AIR COOLER<6PL> 		8-97148-949-2 01 1 0211-0501 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-0 01 1 0211-0501 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-0 01 1 0502-0506 ● ● ● ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-0 01 1 0507-0606 ● ● ● ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97146-499-2 01 1 0607- ● ● ● ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER(K51) 		8-97096-424-1 01 1 0211-0501 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97096-424-1 01 1 0211-0501 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97096-424-1 01 1 0502- ● ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. CHARGE AIR COOLER<6PL> 		8-97039-753-1 01 1 0211-0501 ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 0211-0501 ● ● ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 0502-0506 ● ● ● ● ● ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 0507-0606 ● ● ● ● ● ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 0607- ● ● ● ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0211-0501 ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0502-0506 ● ● ● ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0507-0606 ● ● ● ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0607- ● ● ● ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER(K51) M10X38 L=53 		8-97077-549-0 03 1 0211-0501 ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 0211-0501 ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 0502-0505 ● ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 0506- ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
CHARGE AIR COOLER<6PL> 08.981 M10X25 L=40 		9-04731-025-0 02 1 0211-0501 ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 02 1 0502-0506 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 02 1 0507-0606 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40 		9-04731-025-0 02 1 0607- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. CHARGE AIR COOLER<6PL> 08.981 M10X25 L=40 		9-04731-025-0 04 1 0211-0501 ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0211-0501 ● ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0502-0506 ● ● ● ● ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0507-0512 ● ● ● ● ● ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 0601-0606 ● ● ● ● ● ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 0607- ● ● ● ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. TURBOCHARGER(K51) M6X12 FLANGE 		8-97108-669-0 08 1 0211-0501 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 0211-0501 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 0502- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0211-0501 ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 0211-0501 ● ● ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 0502-0506 ● ● ● ● ● ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 0507-0606 ● ● ● ● ● ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 0607- ● ● ● ● ● ●
