0-25B — INLET MANIFOLD (#22557) — 47 parça

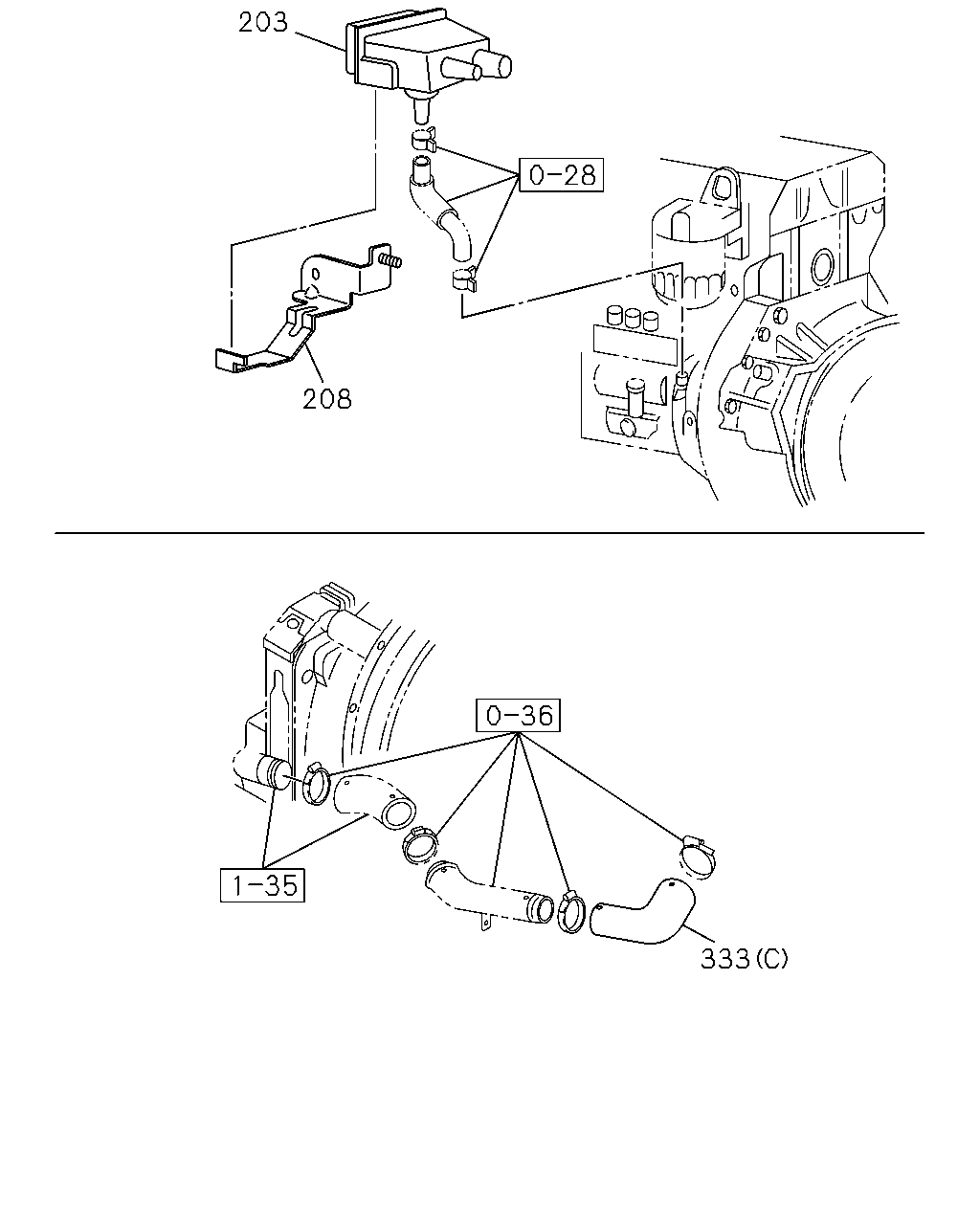

çizim 11950
203 208 333
BalonParca AdiParca NoAdetTipApplied Date A B
203 01.780 TANK; CATCH,PRESSURE CONT VLV 8-97088-685-1 01 1 0507-0606 ●
203 01.780 TANK; CATCH,PRESSURE CONT VLV 8-97088-685-1 01 1 0607- ● ●
208 01.750 BRACKET; CATCH TANK,OIL 8-97375-702-0 01 1 0507-0606 ●
208 01.750 BRACKET; CATCH TANK,OIL 8-97375-702-0 01 1 0607- ● ●
333 03.278 HOSE; RUBBER,INL PIPE
(C) 		8-97189-631-1 01 1 0507-0606 ●
333 03.278 HOSE; RUBBER,INL PIPE
(C) 		8-97189-631-1 01 1 0607-0608 ● ●
333 03.278 HOSE; RUBBER,INL PIPE
(C) 		8-98053-755-0 01 1 0609- ● ●

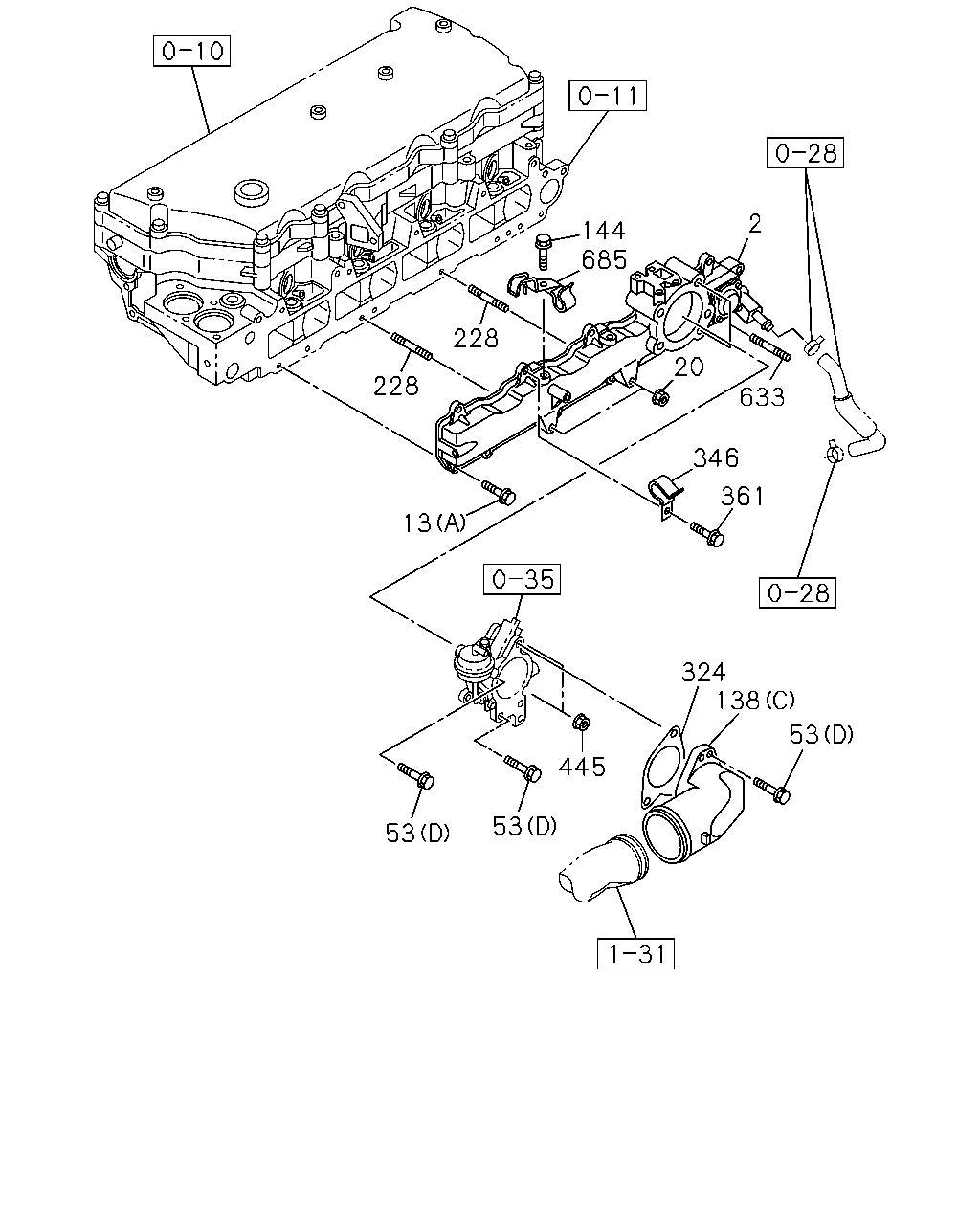

çizim 53693
2 144 685 228 20 228 633 346 361 13 324 138 53 445 53 53
BalonParca AdiParca NoAdetTipApplied Date A B
2 03.407 COVER; INL 8-97310-495-0 01 1 0507-0606 ●
2 03.407 COVER; INL 8-97310-495-0 01 1 0607- ● ●
13 03.275 BOLT; INL MANIF
(A) M8X30 FLANGE 		0-28080-830-0 09 1 0507-0512 ●
13 03.275 BOLT; INL MANIF
00.206 (A) M8X30 FLANGE 		0-28050-830-0 09 1 0601-0606 ●
13 03.275 BOLT; INL MANIF
00.206 (A) M8X30 FLANGE 		0-28050-830-0 09 1 0607- ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ●
20 03.275 NUT; INL MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
20 03.275 NUT; INL MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ● ●
53 03.602 BOLT; INL PIPE
07.010 (D) M8X20 FLANGE 		0-28080-820-0 01 1 0507-0512 ●
53 03.602 BOLT; INL PIPE
04.338 (D) M8X20 FLANGE 		0-28050-820-0 01 1 0601-0606 ●
53 03.602 BOLT; INL PIPE
04.338 (D) M8X20 FLANGE 		0-28050-820-0 01 1 0607- ● ●
53 03.602 BOLT; INL PIPE
04.686 (D) M8X30 FLANGE 		0-28680-830-0 04 1 0507-0512 ●
53 03.602 BOLT; INL PIPE
03.403 (D) M8X30 FLANGE 		0-28650-830-0 04 1 0601-0606 ●
53 03.602 BOLT; INL PIPE
03.403 (D) M8X30 FLANGE 		0-28650-830-0 04 1 0607- ● ●
138 03.265 PIPE; INL
(C) 		8-98001-263-0 01 1 0507-0606 ●
138 03.265 PIPE; INL
(C) 		8-98001-263-0 01 1 0607- ● ●
144 03.275 BOLT; BRKT FIX
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0507-0512 ●
144 03.275 BOLT; BRKT FIX
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-0606 ●
144 03.275 BOLT; BRKT FIX
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0607- ● ●
228 03.407 STUD; INL COVER
03.275 M8X117 L=128 		8-97111-477-0 02 1 0507-0606 ●
228 03.407 STUD; INL COVER
03.275 M8X117 L=128 		8-97111-477-0 02 1 0607- ● ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97306-025-0 01 1 0507-0606 ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97306-025-1 01 1 0607- ● ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0507-0606 ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0607-0801 ● ●
346 02.559 CLIP; ENG HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802- ● ●
361 03.278 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0507-0512 ●
361 03.278 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-0606 ●
361 03.278 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0607- ● ●
445 03.275 NUT; THROTTLE BODY TO MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ●
445 03.275 NUT; THROTTLE BODY TO MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
445 03.275 NUT; THROTTLE BODY TO MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ● ●
633 03.275 STUD; THROTTLE BODY
03.901 M8X25 L=37 		9-04110-825-0 01 1 0507-0604 ●
633 03.275 STUD; THROTTLE BODY
M8X25 L=37 		0-41010-825-0 01 1 0605-0606 ●
633 03.275 STUD; THROTTLE BODY
M8X25 L=37 		0-41010-825-0 01 1 0607- ● ●
633 03.275 STUD; THROTTLE BODY
00.413 M8X55 L=67 		9-04110-855-0 01 1 0507-0604 ●
633 03.275 STUD; THROTTLE BODY
01.097 M8X55 L=67 		0-41010-855-0 01 1 0605-0606 ●
633 03.275 STUD; THROTTLE BODY
01.097 M8X55 L=67 		0-41010-855-0 01 1 0607- ● ●
685 03.265 BRACKET; HARNESS 8-97331-921-1 01 1 0507-0606 ●
685 03.265 BRACKET; HARNESS 8-97331-921-1 01 1 0607- ● ●
