0-20B — TIMING GEAR CASE AND FLYWHEEL HOUSING (#22553) — 112 parça

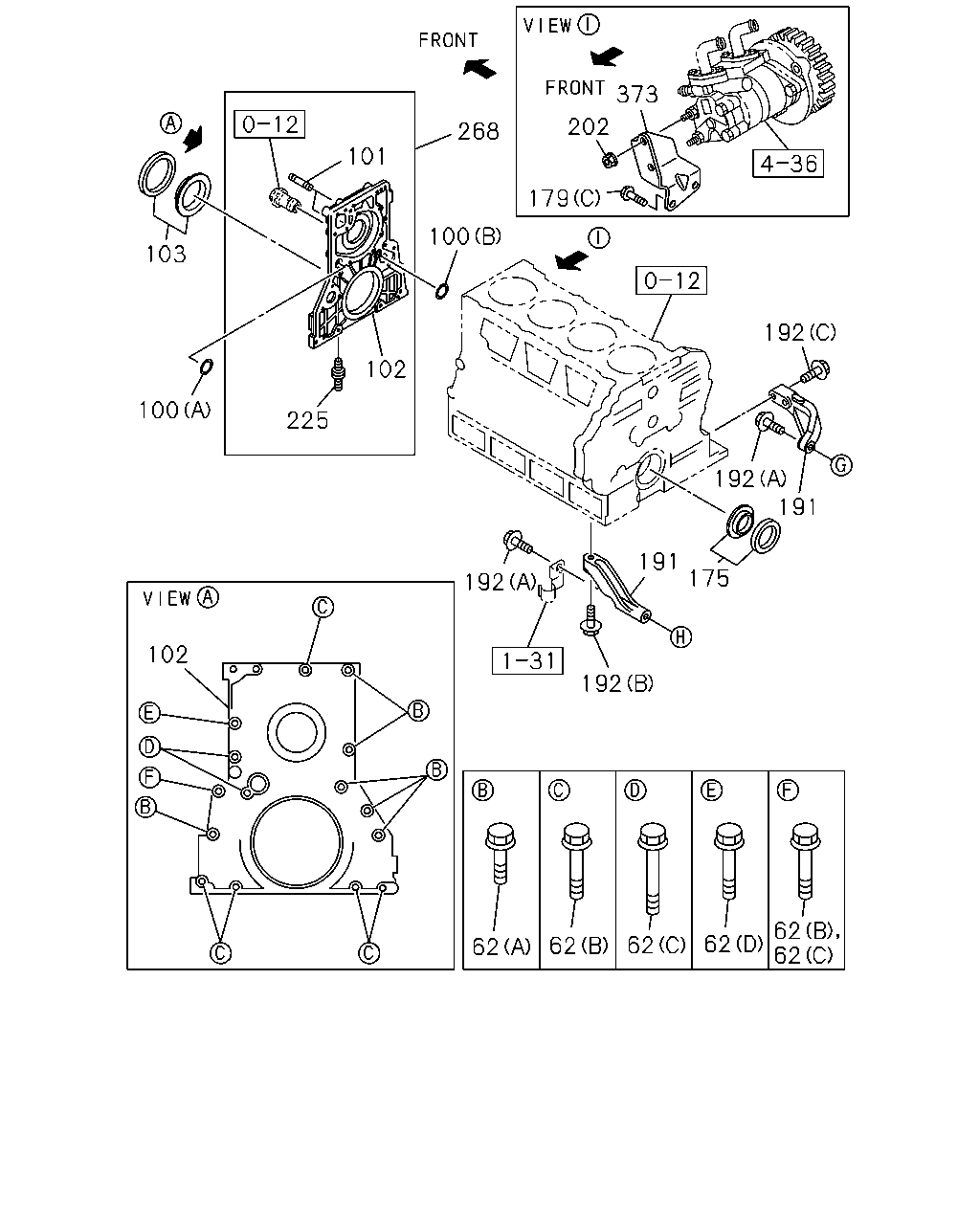

çizim 55273
373 202 268 101 179 100 103 192 102 100 225 192 191 191 175 192 102 192 62 62 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B
62 00.206 BOLT; COVER
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.060 (B) M8X35 FLANGE 		0-28650-835-0 05 1 0706-0706 ● ●
62 00.206 BOLT; COVER
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0706-0706 ● ●
62 00.206 BOLT; COVER
02.559 (A) M8X25 FLANGE 		0-28680-825-0 06 1 0507-0512 ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE 		0-28650-825-0 06 1 0601-0606 ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE 		0-28650-825-0 06 1 0607- ● ●
62 00.206 BOLT; COVER
02.183 (B) M8X35 FLANGE 		0-28680-835-0 05 1 0507-0512 ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 05 1 0601-0606 ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 05 1 0607-0705 ● ●
62 00.206 BOLT; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0706-0706 ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0707-0708 ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0709-0709 ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0710-0807 ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0808- ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0507-0606 ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0607-0705 ● ●
62 00.206 BOLT; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0706-0706 ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0707-0708 ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0709-0709 ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0710-0807 ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0808- ● ●
62 00.206 BOLT; COVER
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0507-0508 ●
62 00.206 BOLT; COVER
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0509-0512 ●
62 00.206 BOLT; COVER
03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0606 ●
62 00.206 BOLT; COVER
03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0607-0709 ● ●
62 00.206 BOLT; COVER
03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0507-0606 ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0607- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0507-0606 ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0607- ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 0507-0606 ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 0607- ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		9-04110-818-0 01 1 0507-0604 ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 0605-0606 ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 0607- ● ●
102 00.137 RETAINER; FRT
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98039-932-0 01 1 0706-0706 ● ●
102 00.137 RETAINER; FRT 8-98039-932-1 01 1 0707-0709 ● ●
102 00.137 RETAINER; FRT 8-98039-932-1 01 1 0710-1007 ● ●
102 00.137 RETAINER; FRT 8-98039-932-1 01 1 1008-1103 ● ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1104-1302 ● ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1303- ● ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 0911-1007 ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1008-1103 ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1104- ●
102 00.137 RETAINER; FRT 8-97148-938-1 01 1 0507-0606 ●
102 00.137 RETAINER; FRT 8-97148-938-1 01 1 0607-0705 ● ●
102 00.137 RETAINER; FRT
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97148-938-1 01 1 0706-0706 ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0507-0606 ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0607- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0507-0606 ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0607- ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 0507-0606 ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 0607-0910 ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 0911- ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0507-0606 ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0607- ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0507-0606 ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0607- ● ●
192 00.206 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28181-200-0 01 1 0507-0512 ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 0601-0606 ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 0607- ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28181-250-0 02 1 0507-0512 ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 0601-0606 ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 0607- ● ●
192 00.206 BOLT; STAY TO HSG
04.510 (C) M10X40 FLANGE 		0-28181-040-0 02 1 0507-0512 ●
192 00.206 BOLT; STAY TO HSG
09.171 (C) M10X40 FLANGE 		0-28151-040-0 02 1 0601-0606 ●
192 00.206 BOLT; STAY TO HSG
09.171 (C) M10X40 FLANGE 		0-28151-040-0 02 1 0607- ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-0910 ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0911- ● ●
225 01.428 STUD; OIL PAN
NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0507-0606 ●
225 01.428 STUD; OIL PAN
NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0607- ● ●
260 01.428 STUD; OIL PAN
ANTI EROSION SPEC<7XK> 02.510 M8X20 L=32 		0-41010-820-0 04 1 1104- ● ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98096-851-1 01 1 1104- ● ●
268 00.206 COVER; FRT
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97258-865-0 01 1 0507-0606 ●
268 00.206 COVER; FRT
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97258-865-0 01 1 0607-0705 ● ●
268 00.206 COVER; FRT
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98039-931-0 01 1 0706-0706 ● ●
268 00.206 COVER; FRT
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98039-931-1 01 1 0707-1007 ● ●
268 00.206 COVER; FRT
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98039-931-2 01 1 1104- ● ●
268 00.206 COVER; FRT
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97148-937-1 01 1 0507-0606 ●
268 00.206 COVER; FRT
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97148-937-3 01 1 0607- ● ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 0507-0606 ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 0607-0910 ● ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 0911- ● ●

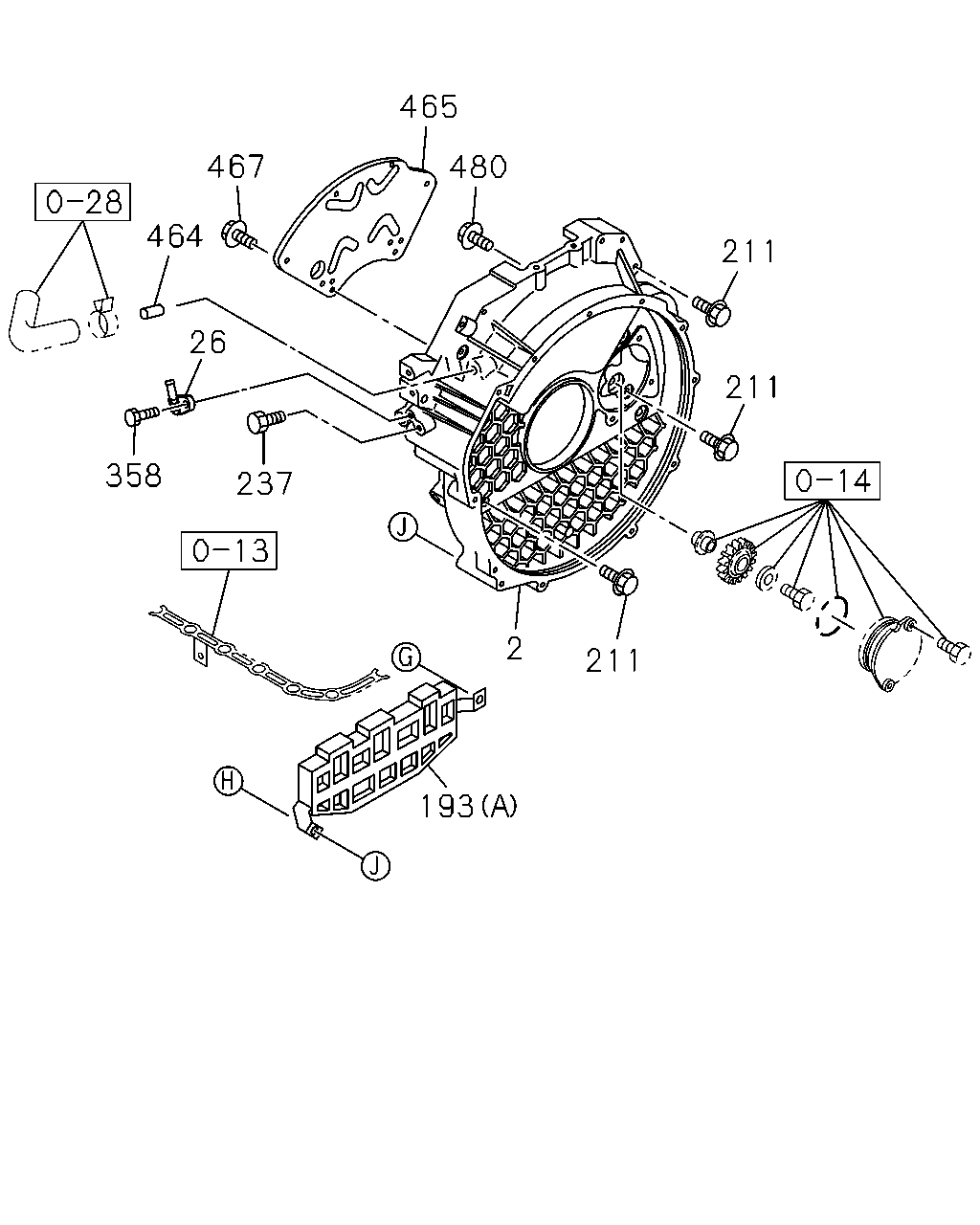

çizim 55409
465 467 480 464 211 26 211 358 237 2 211 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.683 HOUSING; FLYWHEEL 8-97364-901-1 01 1 0507-0606 ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-5 01 1 0607- ● ●
26 03.306 ADAPTER 8-97354-819-0 01 1 0507-0606 ●
26 03.306 ADAPTER 8-97354-819-0 01 1 0607- ● ●
193 01.428 SPACER; STAY TO OIL,PAN
NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97259-536-0 01 1 0507-0606 ●
193 01.428 SPACER; STAY TO OIL,PAN
NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97259-536-0 01 1 0607- ● ●
211 00.669 BOLT; HSG
M10X40 FLANGE 		0-28781-040-0 01 1 0507-0512 ●
211 00.669 BOLT; HSG
00.029 M10X40 FLANGE 		0-28751-040-0 01 1 0601-0606 ●
211 00.669 BOLT; HSG
00.029 M10X40 FLANGE 		0-28751-040-0 01 1 0607- ● ●
211 00.669 BOLT; HSG
M12X30 FLANGE 		8-97135-419-0 01 1 0507-0606 ●
211 00.669 BOLT; HSG
M12X30 FLANGE 		8-97135-419-0 01 1 0607- ● ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0507-0606 ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0607-1102 ● ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ● ●
237 00.686 PLUG; FLYWHEEL HSG
04.640 M10X12 FLANGE 		0-28081-012-0 01 1 0507-0512 ●
237 00.686 PLUG; FLYWHEEL HSG
06.225 M10X12 FLANGE 		0-28051-012-0 01 1 0601-0606 ●
237 00.686 PLUG; FLYWHEEL HSG
06.225 M10X12 FLANGE 		0-28051-012-0 01 1 0607- ● ●
260 01.428 STUD; OIL PAN
ANTI EROSION SPEC<7XK> 02.510 M8X20 L=32 		0-41010-820-0 04 1 1104- ● ●
358 00.206 BOLT; ADAPTER
00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0507-0512 ●
358 00.206 BOLT; ADAPTER
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601-0606 ●
358 00.206 BOLT; ADAPTER
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0607- ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0509-0606 ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0607- ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0507-0606 ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0607- ● ●
467 00.686 BOLT; PLATE
05.815 M6X10 		0-20800-610-0 06 1 0509-0606 ●
467 00.686 BOLT; PLATE
05.815 M6X10 		0-20800-610-0 06 1 0607-0805 ● ●
467 00.686 BOLT; PLATE
06.321 M6X10 		8-98030-649-0 06 1 0806- ● ●
