◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20A - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20A — TIMING GEAR CASE AND FLYWHEEL HOUSING (#22552) — 327 parça

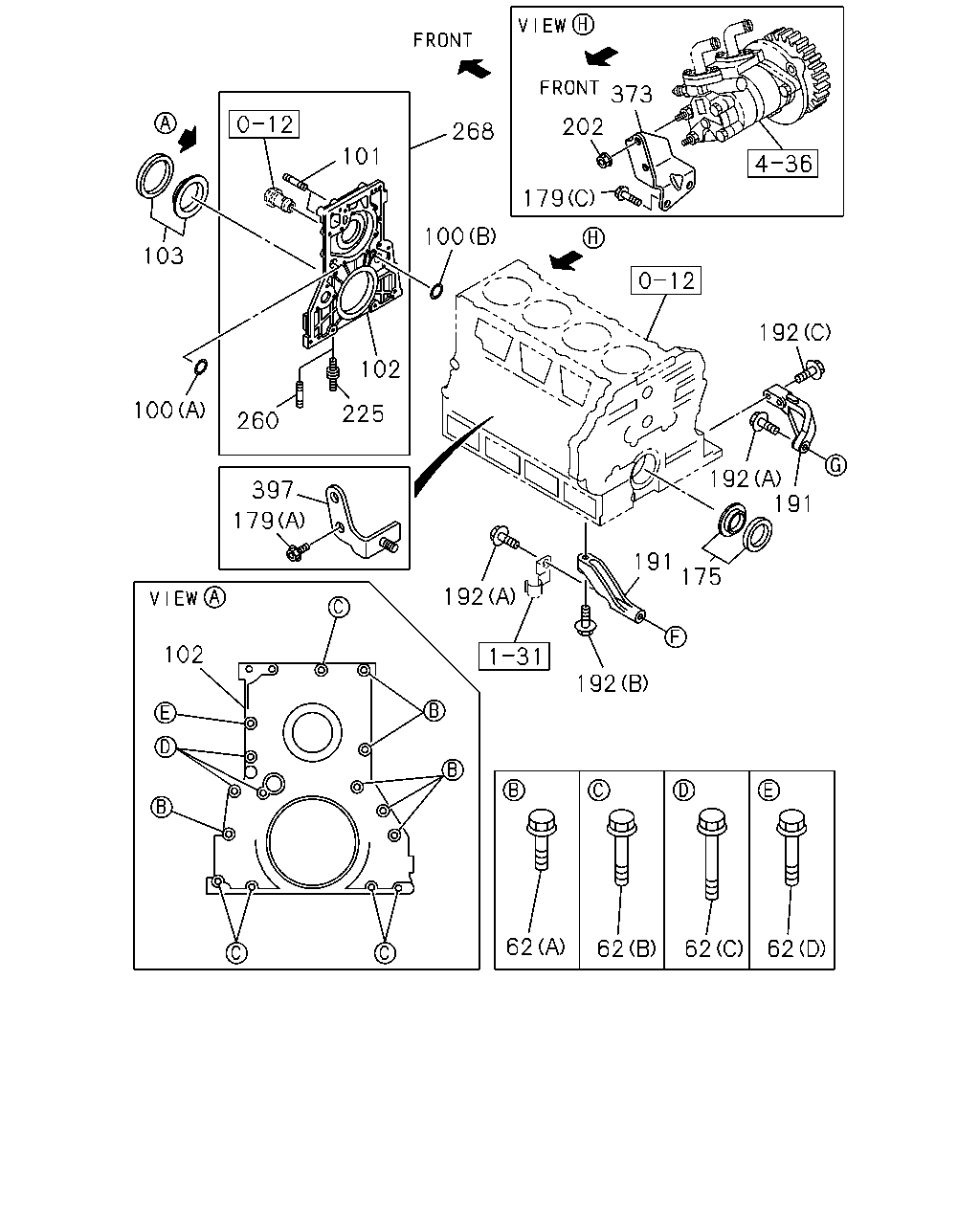

çizim 48956
373 202 268 101 179 100 103 192 102 100 225 260 192 191 397 179 191 175 192 102 192 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
62 00.206 BOLT; COVER
AIR INTAKE SYSTEM FRONT<6PC> 01.060 (B) M8X35 FLANGE 		0-28650-835-0 05 1 0709-0807 ●
62 00.206 BOLT; COVER
AIR INTAKE REAR VERTICAL<KJ3> SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 05 1 0709-0807 ●
62 00.206 BOLT; COVER
SAUDI ARABIA EQUIPMENT(EU2) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 05 1 0709-0807 ●
62 00.206 BOLT; COVER
AIR INTAKE SYSTEM FRONT<6PC> 01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0709-0807 ●
62 00.206 BOLT; COVER
AIR INTAKE REAR VERTICAL<KJ3> SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0709-0807 ●
62 00.206 BOLT; COVER
SAUDI ARABIA EQUIPMENT(EU2) 01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0709-0807 ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 05 1 0706-0706 ● ● ● ●
62 00.206 BOLT; COVER
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 01.060 (B) M8X35 FLANGE 		0-28650-835-0 05 1 0706-0706 ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0706-0706 ● ● ● ●
62 00.206 BOLT; COVER
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0706-0706 ● ●
62 00.206 BOLT; COVER
02.559 (A) M8X25 FLANGE 		0-28680-825-0 06 1 0211-0501 ● ● ●
62 00.206 BOLT; COVER
02.559 (A) M8X25 FLANGE 		0-28680-825-0 06 1 0502-0506 ● ● ● ● ● ●
62 00.206 BOLT; COVER
02.559 (A) M8X25 FLANGE 		0-28680-825-0 06 1 0507-0512 ● ● ● ● ● ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE 		0-28650-825-0 06 1 0601-0606 ● ● ● ● ● ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE 		0-28650-825-0 06 1 0607- ● ● ● ● ● ●
62 00.206 BOLT; COVER
02.183 (B) M8X35 FLANGE 		0-28680-835-0 05 1 0211-0501 ● ● ●
62 00.206 BOLT; COVER
02.183 (B) M8X35 FLANGE 		0-28680-835-0 05 1 0502-0506 ● ● ● ● ● ●
62 00.206 BOLT; COVER
02.183 (B) M8X35 FLANGE 		0-28680-835-0 05 1 0507-0512 ● ● ● ● ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 05 1 0601-0606 ● ● ● ● ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 05 1 0607-0705 ● ● ● ● ● ●
62 00.206 BOLT; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0706-0706 ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0707-0708 ● ● ● ● ● ●
62 00.206 BOLT; COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0709-0709 ● ● ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0709-0709 ● ●
62 00.206 BOLT; COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0710-0807 ● ● ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0710-0807 ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0808- ● ● ● ● ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0211-0501 ● ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0502-0506 ● ● ● ● ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0507-0606 ● ● ● ● ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0607-0705 ● ● ● ● ● ●
62 00.206 BOLT; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0706-0706 ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0707-0708 ● ● ● ● ● ●
62 00.206 BOLT; COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) 01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0709-0709 ● ● ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0709-0709 ● ●
62 00.206 BOLT; COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) 01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0710-0807 ● ● ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0710-0807 ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0808- ● ● ● ● ● ●
62 00.206 BOLT; COVER
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0306-0404 ● ● ●
62 00.206 BOLT; COVER
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0405-0501 ● ●
62 00.206 BOLT; COVER
CHARGE AIR COOLER<6PL> 04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0405-0501 ●
62 00.206 BOLT; COVER
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0502-0506 ● ● ● ● ● ●
62 00.206 BOLT; COVER
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0507-0508 ● ● ● ● ● ●
62 00.206 BOLT; COVER
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0509-0512 ● ● ● ●
62 00.206 BOLT; COVER
EXC. VOLTAGE 24V<7AE> 04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0509-0512 ● ●
62 00.206 BOLT; COVER
03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0606 ● ● ● ●
62 00.206 BOLT; COVER
EXC. VOLTAGE 24V<7AE> 03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0606 ● ●
62 00.206 BOLT; COVER
03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0607-0709 ● ● ● ●
62 00.206 BOLT; COVER
EXC. VOLTAGE 24V<7AE> 03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0607-0709 ● ●
62 00.206 BOLT; COVER
03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ● ● ●
62 00.206 BOLT; COVER
EXC. VOLTAGE 24V<7AE> 03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
62 00.206 BOLT; COVER
GENERATOR 24V80A(7YN) 03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0211-0501 ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0502-0506 ● ● ● ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0507-0606 ● ● ● ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0607- ● ● ● ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0211-0501 ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0502-0506 ● ● ● ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0507-0606 ● ● ● ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0607- ● ● ● ● ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 0211-0501 ● ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 0502-0506 ● ● ● ● ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 0507-0606 ● ● ● ● ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 0607- ● ● ● ● ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		9-04110-818-0 01 1 0211-0501 ● ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		9-04110-818-0 01 1 0502-0506 ● ● ● ● ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		9-04110-818-0 01 1 0507-0604 ● ● ● ● ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 0605-0606 ● ● ● ● ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 0607- ● ● ● ● ● ●
102 00.137 RETAINER; FRT
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98039-932-0 01 1 0706-0706 ● ●
102 00.137 RETAINER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) 		8-98039-932-1 01 1 0707-0709 ● ● ● ●
102 00.137 RETAINER; FRT 8-98039-932-1 01 1 0707-0709 ● ●
102 00.137 RETAINER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) 		8-98039-932-1 01 1 0710-1007 ● ● ● ●
102 00.137 RETAINER; FRT 8-98039-932-1 01 1 0710-1007 ● ●
102 00.137 RETAINER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) 		8-98039-932-1 01 1 1008-1103 ● ● ● ●
102 00.137 RETAINER; FRT
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. NOISE PACK FOR REGULATION VAR.2 		8-98039-932-1 01 1 1008-1103 ● ●
102 00.137 RETAINER; FRT
<7TF>,ANTI EROSION SPEC<7XK> 		8-98039-932-1 01 1 1008-1103 ● ●
102 00.137 RETAINER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) 		8-98039-932-2 01 1 1104-1302 ● ● ● ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1104-1302 ● ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1303- ● ● ● ●
102 00.137 RETAINER; FRT
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>,ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1303- ● ●
102 00.137 RETAINER; FRT
VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1303- ● ●
102 00.137 RETAINER; FRT
SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97212-677-0 01 1 0211-0508 ● ●
102 00.137 RETAINER; FRT
AIR INTAKE SYSTEM FRONT<6PC> 		8-97212-677-0 01 1 0509-0807 ●
102 00.137 RETAINER; FRT
AIR INTAKE REAR VERTICAL<KJ3> SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97212-677-0 01 1 0509-0807 ●
102 00.137 RETAINER; FRT
SAUDI ARABIA EQUIPMENT(EU2) 		8-97212-677-0 01 1 0509-0807 ●
102 00.137 RETAINER; FRT
AIR INTAKE SYSTEM FRONT<6PC> 		8-98081-351-1 01 1 0808-0910 ●
102 00.137 RETAINER; FRT
AIR INTAKE REAR VERTICAL<KJ3> SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-98081-351-1 01 1 0808-0910 ●
102 00.137 RETAINER; FRT
SAUDI ARABIA EQUIPMENT(EU2) 		8-98081-351-1 01 1 0808-0910 ●
102 00.137 RETAINER; FRT
SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-98081-351-1 01 1 0911-1007 ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 0911-1007 ●
102 00.137 RETAINER; FRT
SAUDI ARABIA EQUIPMENT(EU2) 		8-98081-351-1 01 1 0911-1007 ●
102 00.137 RETAINER; FRT
SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-98081-351-1 01 1 1008-1103 ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1008-1103 ● ●
102 00.137 RETAINER; FRT
SAUDI ARABIA EQUIPMENT(EU2) 		8-98081-351-1 01 1 1008-1103 ●
102 00.137 RETAINER; FRT
SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-98081-351-1 01 1 1104- ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1104- ●
102 00.137 RETAINER; FRT
SAUDI ARABIA EQUIPMENT(EU2) 		8-98081-351-1 01 1 1104- ●
102 00.137 RETAINER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4) 		8-97094-943-3 01 1 0211-0501 ● ●
102 00.137 RETAINER; FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97094-943-3 01 1 0211-0501 ●
102 00.137 RETAINER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4) 		8-97094-943-3 01 1 0502-0706 ● ●
102 00.137 RETAINER; FRT 8-97094-943-3 01 1 0502-0706 ● ●
102 00.137 RETAINER; FRT
CHARGE AIR COOLER<6PL> 		8-97148-938-1 01 1 0211-0501 ●
102 00.137 RETAINER; FRT 8-97148-938-1 01 1 0502-0506 ● ●
102 00.137 RETAINER; FRT 8-97148-938-1 01 1 0507-0606 ● ●
102 00.137 RETAINER; FRT 8-97148-938-1 01 1 0607-0705 ● ●
102 00.137 RETAINER; FRT
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-97148-938-1 01 1 0706-0706 ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0211-0501 ● ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0502-0506 ● ● ● ● ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0507-0606 ● ● ● ● ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0607- ● ● ● ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0211-0501 ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0502-0506 ● ● ● ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0507-0606 ● ● ● ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0607- ● ● ● ● ● ●
179 00.206 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ● ●
179 00.206 BOLT; BRKT
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
179 00.206 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(EU2) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ● ●
179 00.206 BOLT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ● ●
179 00.206 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(EU2) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
179 00.206 BOLT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 0211-0501 ● ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 0502-0506 ● ● ● ● ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 0507-0606 ● ● ● ● ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 0607-0910 ● ● ● ● ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 0911- ● ● ● ● ●
179 00.206 BOLT; BRKT
ENGINE POWER N-SPEC(7QV) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0211-0501 ●
179 00.206 BOLT; BRKT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0502-0512 ●
179 00.206 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
191 00.669 STAY; FLYWHEEL HSG
TURBOCHARGER(K51) 		8-97167-292-0 01 1 0211-0501 ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0211-0501 ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0502-0506 ● ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0507-0606 ● ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0607- ● ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0211-0501 ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0502-0506 ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0507-0606 ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0607- ● ●
192 00.206 BOLT; STAY TO HSG
TURBOCHARGER(K51) 00.685 (A) M12X50 FLANGE 		0-28181-250-0 01 1 0211-0501 ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28181-250-0 01 1 0502-0512 ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 01 1 0601- ●
192 00.206 BOLT; STAY TO HSG
TURBOCHARGER(K51) (B) M12X100 FLANGE 		0-28181-200-0 01 1 0211-0501 ●
192 00.206 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28181-200-0 01 1 0211-0501 ●
192 00.206 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28181-200-0 01 1 0502-0506 ● ● ●
192 00.206 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28181-200-0 01 1 0507-0512 ● ● ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 0601-0606 ● ● ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 0607- ● ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28181-250-0 02 1 0211-0501 ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28181-250-0 02 1 0502-0506 ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28181-250-0 02 1 0507-0512 ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 0601-0606 ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 0607- ● ●
192 00.206 BOLT; STAY TO HSG
04.510 (C) M10X40 FLANGE 		0-28181-040-0 02 1 0211-0501 ●
192 00.206 BOLT; STAY TO HSG
04.510 (C) M10X40 FLANGE 		0-28181-040-0 02 1 0502-0506 ● ●
192 00.206 BOLT; STAY TO HSG
04.510 (C) M10X40 FLANGE 		0-28181-040-0 02 1 0507-0512 ● ●
192 00.206 BOLT; STAY TO HSG
09.171 (C) M10X40 FLANGE 		0-28151-040-0 02 1 0601-0606 ● ●
192 00.206 BOLT; STAY TO HSG
09.171 (C) M10X40 FLANGE 		0-28151-040-0 02 1 0607- ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0311 ● ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0312-0501 ● ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ● ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ● ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ● ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-0910 ● ● ● ● ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0911- ● ● ● ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0211-0501 ● ●
225 01.428 STUD; OIL PAN
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0211-0501 ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0502-0506 ● ● ● ●
225 01.428 STUD; OIL PAN
NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0502-0506 ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0507-0606 ● ● ● ●
225 01.428 STUD; OIL PAN
NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0507-0606 ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0607- ● ● ● ●
225 01.428 STUD; OIL PAN
NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0607- ● ●
260 01.428 STUD; OIL PAN
HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION(NT2) VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> ANTI EROSION SPEC<7XK> EXC. VEHICLE CATEGORY NQR<7NQ>, NOISEPACK FOR REGULATION VAR.2<7TF> 02.510 M8X20 L=32 		0-41010-820-0 03 1 0911-0911 ●
260 01.428 STUD; OIL PAN
HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION(NT2) VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> ANTI EROSION SPEC<7XK> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 02.510 M8X20 L=32 		0-41010-820-0 03 1 0911-1002 ●
260 01.428 STUD; OIL PAN
HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION(NT2) VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> ANTI EROSION SPEC<7XK> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 02.510 M8X20 L=32 		0-41010-820-0 04 1 1003-1103 ●
260 01.428 STUD; OIL PAN
ANTI EROSION SPEC<7XK> 02.510 M8X20 L=32 		0-41010-820-0 04 1 1104- ● ●
268 00.206 COVER; FRT
HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION(NT2) VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> ANTI EROSION SPEC<7XK> EXC. VEHICLE CATEGORY NQR<7NQ>, NOISEPACK FOR REGULATION VAR.2<7TF> 		8-98096-851-0 01 1 0911-0911 ●
268 00.206 COVER; FRT
HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION(NT2) VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> ANTI EROSION SPEC<7XK> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-98096-851-1 01 1 0911-1103 ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98096-851-1 01 1 1104- ● ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97305-076-0 01 1 0211-0508 ● ●
268 00.206 COVER; FRT
AIR INTAKE SYSTEM FRONT<6PC> 		8-97305-076-1 01 1 0509-0807 ●
268 00.206 COVER; FRT
AIR INTAKE REAR VERTICAL<KJ3> SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97305-076-1 01 1 0509-0807 ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2) 		8-97305-076-1 01 1 0509-0807 ●
268 00.206 COVER; FRT
AIR INTAKE SYSTEM FRONT<6PC> 		8-98079-080-1 01 1 0808-1007 ●
268 00.206 COVER; FRT
AIR INTAKE REAR VERTICAL<KJ3> SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-98079-080-1 01 1 0808-1007 ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2) 		8-98079-080-1 01 1 0808-1007 ●
268 00.206 COVER; FRT
AIR INTAKE SYSTEM FRONT<6PC> 		8-98079-080-1 01 1 1008-1103 ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-98079-080-1 01 1 1008-1103 ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98079-080-1 01 1 1008-1103 ● ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2) 		8-98079-080-1 01 1 1008-1103 ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-98079-080-1 01 1 1104-1405 ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2) 		8-98079-080-1 01 1 1104-1405 ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98079-080-1 01 1 1104-1405 ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-98079-080-1 01 1 1406- ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98079-080-1 01 1 1406- ● ● ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2) 		8-98079-080-1 01 1 1406- ●
268 00.206 COVER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4) 		8-97259-416-0 01 1 0211-0501 ● ●
268 00.206 COVER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4) 		8-97259-416-0 01 1 0502-0706 ● ●
268 00.206 COVER; FRT 8-97259-416-0 01 1 0502-0706 ● ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97258-865-0 01 1 0211-0501 ●
268 00.206 COVER; FRT
VOLTAGE 24V<7AE> 		8-97258-865-0 01 1 0502-0506 ● ●
268 00.206 COVER; FRT
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97258-865-0 01 1 0507-0606 ● ●
268 00.206 COVER; FRT
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97258-865-0 01 1 0607-0705 ● ●
268 00.206 COVER; FRT
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98039-931-0 01 1 0706-0706 ● ●
268 00.206 COVER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) 		8-98039-931-1 01 1 0707-1007 ● ● ● ●
268 00.206 COVER; FRT
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98039-931-1 01 1 0707-1007 ● ●
268 00.206 COVER; FRT
AIR INTAKE SYSTEM FRONT<6PC> 		8-98039-931-1 01 1 1008-1103 ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-98039-931-1 01 1 1008-1103 ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98039-931-1 01 1 1008-1103 ● ●
268 00.206 COVER; FRT
SAUDI ARABIA EQUIPMENT(EU2) 		8-98039-931-1 01 1 1008-1103 ●
268 00.206 COVER; FRT
EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S),COLOMBIA EQUIPMENT(X74),EGYPT EQUIPMENT(YJ4) 		8-98039-931-2 01 1 1104- ● ● ● ●
268 00.206 COVER; FRT
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98039-931-2 01 1 1104- ● ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-97148-937-1 01 1 0211-0501 ●
268 00.206 COVER; FRT
EXC. VOLTAGE 24V<7AE> 		8-97148-937-1 01 1 0502-0506 ● ●
268 00.206 COVER; FRT
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-97148-937-1 01 1 0507-0606 ● ●
268 00.206 COVER; FRT
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-97148-937-3 01 1 0607- ● ●
268 00.206 COVER; FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97113-768-1 01 1 0211-0501 ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 0211-0501 ● ● ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 0502-0506 ● ● ● ● ● ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 0507-0606 ● ● ● ● ● ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 0607-0910 ● ● ● ● ● ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 0911- ● ● ● ● ●
397 00.206 BRACKET; CONNECTOR
ENGINE POWER N-SPEC(7QV) 		8-97163-042-0 01 1 0211-0501 ●
397 00.206 BRACKET; CONNECTOR 8-97163-042-0 01 1 0502- ●

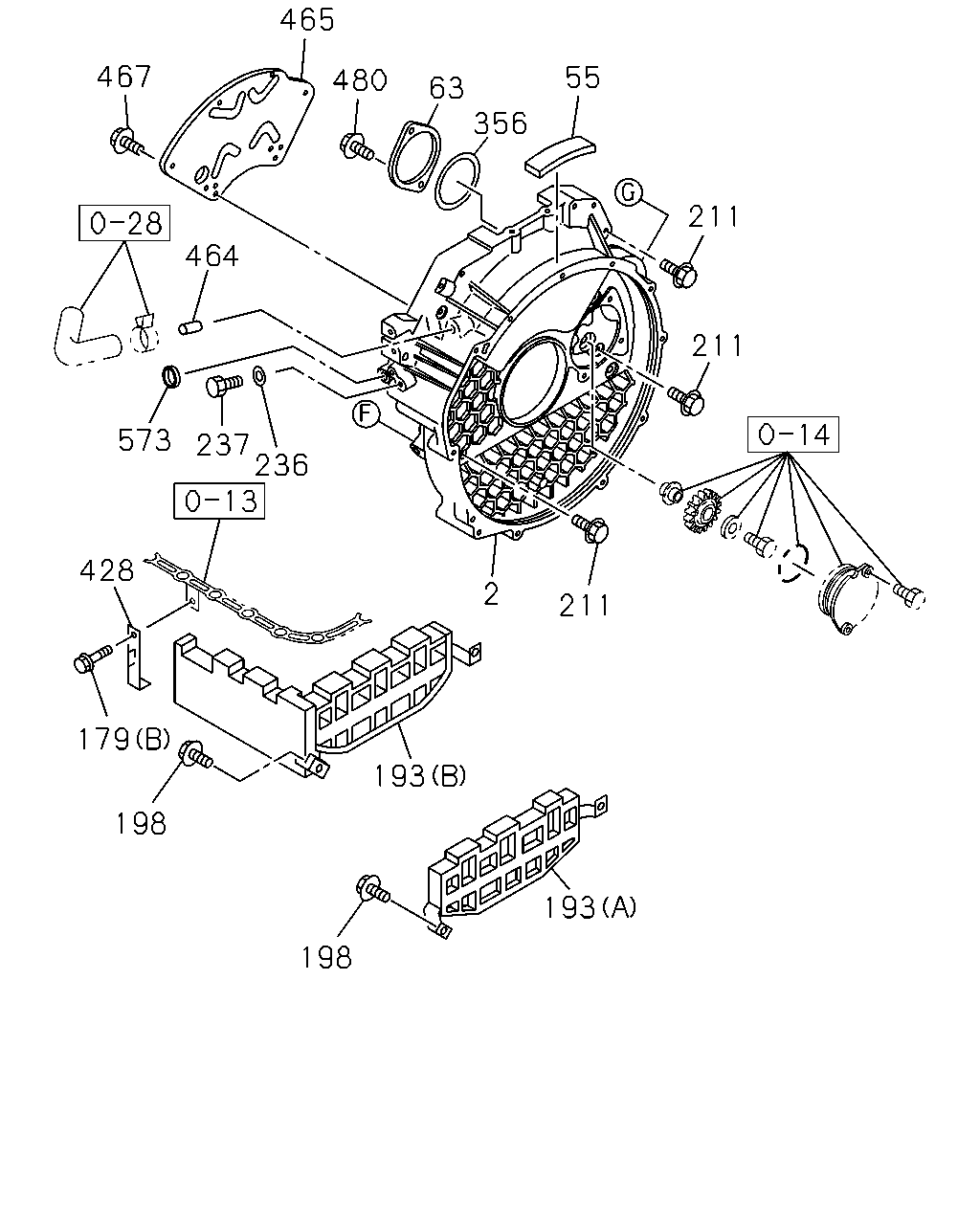

çizim 52382
465 467 55 480 63 356 211 464 211 573 237 236 428 2 211 179 193 198 193 198
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 00.683 HOUSING; FLYWHEEL 8-97241-584-0 01 1 0211-0308 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97364-899-2 01 1 0309-0501 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97364-899-6 01 1 0502- ● ● ● ●
2 00.683 HOUSING; FLYWHEEL 8-97209-886-3 01 1 0211-0308 ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-0 01 1 0309-0501 ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-0 01 1 0502-0506 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-1 01 1 0507-0606 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-5 01 1 0607- ● ●
55 00.206 COVER; NOISE SHIELD
SAUDI ARABIA EQUIPMENT(EU2) 		8-97215-618-0 01 1 0211- ●
63 00.206 COVER; P/S
EXC. POWER STEERING<N40> 		8-97126-392-0 01 1 0211-0501 ● ●
63 00.206 COVER; P/S
EXC. POWER STEERING<N40> 		8-97126-392-0 01 1 0502- ● ● ● ●
179 00.206 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ● ●
179 00.206 BOLT; BRKT
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
179 00.206 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(EU2) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ● ●
179 00.206 BOLT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ● ●
179 00.206 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(EU2) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
179 00.206 BOLT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 0211-0501 ● ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 0502-0506 ● ● ● ● ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 0507-0606 ● ● ● ● ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 0607-0910 ● ● ● ● ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE 		0-28181-018-0 02 1 0911- ● ● ● ● ●
179 00.206 BOLT; BRKT
ENGINE POWER N-SPEC(7QV) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0211-0501 ●
179 00.206 BOLT; BRKT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0502-0512 ●
179 00.206 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
193 01.428 SPACER; STAY TO OIL,PAN
SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) (B) 		8-97224-867-2 01 1 0211-0501 ● ●
193 01.428 SPACER; STAY TO OIL,PAN
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97224-867-2 01 1 0211-0501 ●
193 01.428 SPACER; STAY TO OIL,PAN
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97224-867-2 01 1 0502- ● ●
193 01.428 SPACER; STAY TO OIL,PAN
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97224-867-2 01 1 0502- ● ●
193 01.428 SPACER; STAY TO OIL,PAN
EURO2 SPECIFICATION(NT2) NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97259-536-0 01 1 0211-0501 ●
193 01.428 SPACER; STAY TO OIL,PAN
NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97259-536-0 01 1 0502-0502 ● ●
198 01.428 BOLT; STAY TO OIL PAN
SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0211-0501 ● ●
198 01.428 BOLT; STAY TO OIL PAN
NOISE PACK FOR REGULATION VAR.2<7TF> 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0211-0501 ●
198 01.428 BOLT; STAY TO OIL PAN
SAUDI ARABIA EQUIPMENT(EU2) 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0502-0512 ● ●
198 01.428 BOLT; STAY TO OIL PAN
SAUDI ARABIA EQUIPMENT(EU2) 03.162 M12X20 FLANGE 		0-28151-220-0 02 1 0601- ● ●
211 00.669 BOLT; HSG
TURBOCHARGER(K51) M8X20,M8X65 L=90 		8-97200-622-1 02 1 0211-0501 ●
211 00.669 BOLT; HSG
HYDRO BRAKE BOOSTER<7QQ> M8X20,M8X65 L=90 		8-97200-622-1 02 1 0211-0501 ●
211 00.669 BOLT; HSG
HYDRO BRAKE BOOSTER<7QQ> M8X20,M8X65 L=90 		8-97200-622-1 02 1 0502-0505 ●
211 00.669 BOLT; HSG
M8X20,M8X65 L=90 		8-97200-622-1 02 1 0502-0505 ●
211 00.669 BOLT; HSG
HYDRO BRAKE BOOSTER<7QQ> M8X20,M8X65 L=90 		8-97200-622-1 02 1 0506- ● ●
211 00.669 BOLT; HSG
M8X20,M8X65 L=90 		8-97200-622-1 02 1 0506- ●
211 00.669 BOLT; HSG
EXC. TURBOCHARGER(K51) M8X65 W/PL WASHER 		8-94388-781-0 02 1 0211-0501 ●
211 00.669 BOLT; HSG
EXC. HYDRO BRAKE BOOSTER<7QQ> M8X65 W/PL WASHER 		8-94388-781-0 02 1 0211-0501 ●
211 00.669 BOLT; HSG
EXC. HYDRO BRAKE BOOSTER<7QQ> M8X65 W/PL WASHER 		8-94388-781-0 02 1 0502-0505 ● ●
211 00.669 BOLT; HSG
M8X65 W/PL WASHER 		8-94388-781-0 02 1 0502-0505 ●
211 00.669 BOLT; HSG
EXC. HYDRO BRAKE BOOSTER<7QQ> M8X65 W/PL WASHER 		8-94388-781-0 02 1 0506- ● ● ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 0211-0501 ● ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 0502-1102 ● ● ● ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1103- ● ● ● ●
211 00.669 BOLT; HSG
EXC. POWER STEERING<N40> M14X35 FLANGE 		0-28791-435-0 01 1 0211-0501 ● ●
211 00.669 BOLT; HSG
EXC. POWER STEERING<N40> M14X35 FLANGE 		0-28791-435-0 01 1 0502-0512 ● ● ● ●
211 00.669 BOLT; HSG
EXC. POWER STEERING<N40> M14X35 FLANGE 		0-28761-435-0 01 1 0601- ● ● ● ●
211 00.669 BOLT; HSG
M10X40 FLANGE 		0-28781-040-0 01 1 0211-0501 ● ● ●
211 00.669 BOLT; HSG
M10X40 FLANGE 		0-28781-040-0 01 1 0502-0506 ● ● ● ● ● ●
211 00.669 BOLT; HSG
M10X40 FLANGE 		0-28781-040-0 01 1 0507-0512 ● ● ● ● ● ●
211 00.669 BOLT; HSG
00.029 M10X40 FLANGE 		0-28751-040-0 01 1 0601-0606 ● ● ● ● ● ●
211 00.669 BOLT; HSG
00.029 M10X40 FLANGE 		0-28751-040-0 01 1 0607- ● ● ● ● ● ●
211 00.669 BOLT; HSG
M12X30 FLANGE 		8-97135-419-0 01 1 0211-0501 ● ● ●
211 00.669 BOLT; HSG
M12X30 FLANGE 		8-97135-419-0 01 1 0502-0506 ● ● ● ● ● ●
211 00.669 BOLT; HSG
M12X30 FLANGE 		8-97135-419-0 01 1 0507-0606 ● ● ● ● ● ●
211 00.669 BOLT; HSG
M12X30 FLANGE 		8-97135-419-0 01 1 0607- ● ● ● ● ● ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0211-0501 ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0502-0506 ● ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0507-0606 ● ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0607-1102 ● ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ● ●
236 00.669 GASKET; FLYWHEEL HSG
ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 01 1 0211-0501 ●
236 00.669 GASKET; FLYWHEEL HSG
01.531 ID=10.2 OD=15.2 		1-09630-083-0 01 1 0502- ●
237 00.686 PLUG; FLYWHEEL HSG
ENGINE POWER N-SPEC(7QV) 04.640 M10X12 FLANGE 		0-28081-012-0 01 1 0211-0501 ●
237 00.686 PLUG; FLYWHEEL HSG
04.640 M10X12 FLANGE 		0-28081-012-0 01 1 0502-0506 ●
237 00.686 PLUG; FLYWHEEL HSG
04.640 M10X12 FLANGE 		0-28081-012-0 01 1 0507-0512 ●
237 00.686 PLUG; FLYWHEEL HSG
06.225 M10X12 FLANGE 		0-28051-012-0 01 1 0601-0606 ●
237 00.686 PLUG; FLYWHEEL HSG
06.225 M10X12 FLANGE 		0-28051-012-0 01 1 0607- ●
356 00.207 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. POWER STEERING<N40> 06.673 		8-97101-875-2 01 1 0211-0501 ● ●
356 00.207 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. POWER STEERING<N40> 06.673 		8-97101-875-2 01 1 0502- ● ● ● ●
428 00.206 BRACKET; SPACER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97215-647-0 01 1 0211-0501 ● ●
428 00.206 BRACKET; SPACER
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97215-647-0 01 1 0211-0501 ●
428 00.206 BRACKET; SPACER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97215-647-0 01 1 0502- ● ●
428 00.206 BRACKET; SPACER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97215-647-0 01 1 0502- ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0211-0501 ● ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0502-0508 ● ● ● ● ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0509-0606 ● ● ● ● ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0607- ● ● ● ● ● ●
465 00.686 PLATE; FLYWHEEL HSG
00.669 		8-94370-384-3 01 1 0211-0308 ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 0309-0501 ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 0502- ● ● ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97212-490-0 01 1 0211-0308 ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0309-0501 ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0502-0506 ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0507-0606 ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0607- ● ●
467 00.686 BOLT; PLATE
02.500 M6X10 FLANGE 		0-28080-610-0 06 1 0211-0501 ● ● ●
467 00.686 BOLT; PLATE
02.500 M6X10 FLANGE 		0-28080-610-0 06 1 0502-0507 ● ● ● ● ● ●
467 00.686 BOLT; PLATE
05.815 M6X10 		0-20800-610-0 06 1 0508-0508 ● ● ● ● ● ●
467 00.686 BOLT; PLATE
05.815 M6X10 		0-20800-610-0 06 1 0509-0606 ● ● ● ● ● ●
467 00.686 BOLT; PLATE
05.815 M6X10 		0-20800-610-0 06 1 0607-0805 ● ● ● ● ● ●
467 00.686 BOLT; PLATE
06.321 M6X10 		8-98030-649-0 06 1 0806- ● ● ● ● ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0211-0501 ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0502-0805 ● ● ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 04.439 M10X28 FLANGE 		8-98044-944-0 02 1 0806-1010 ● ● ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1011- ● ● ● ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 0211-0501 ● ● ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 0502- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
