◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15B - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15B — CRANKSHAFT,PISTON AND FLYWHEEL (#22551) — 74 parça

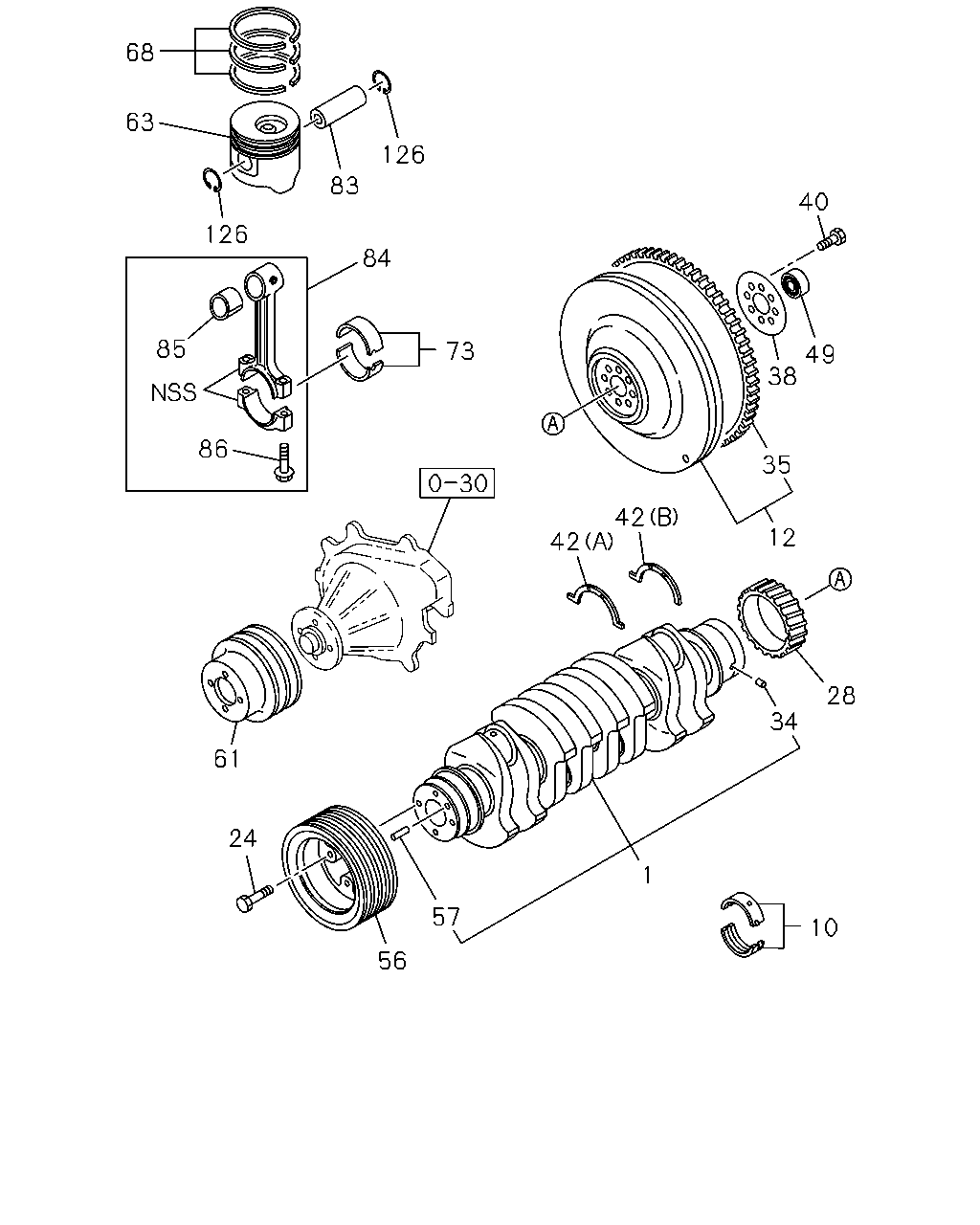

çizim 55301
68 63 126 83 40 126 84 85 73 49 38 86 35 42 12 42 28 34 61 24 1 57 10 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.646 CRANKSHAFT 8-97352-534-3 01 1 0507-0509 ●
1 00.646 CRANKSHAFT 8-98029-270-0 01 1 0510-0606 ●
1 00.646 CRANKSHAFT 8-98029-270-0 01 1 0607- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-0 05 1 0507-0606 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 0607- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-0 05 1 0507-0606 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 0607- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-0 05 1 0507-0606 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 0607- ● ●
12 00.666 FLYWHEEL 8-97326-227-0 01 1 0507-0606 ●
12 00.666 FLYWHEEL 8-97326-227-2 01 1 0607- ● ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 0507-0606 ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 0607- ● ●
28 00.728 GEAR; CR/SHF
Z=42 		8-94394-342-4 01 1 0507-0606 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-94394-342-4 01 1 0607- ● ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0507-0606 ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0607- ● ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97046-366-0 01 1 0507-0508 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 0509-0606 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 0607-0709 ● ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 0710- ● ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> ID=55 OD=110 		8-94397-496-1 01 1 0507-0508 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0509-0606 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0607-0709 ● ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0710- ● ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 0507-0508 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0509-0606 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0607-0709 ● ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0710- ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0507-0606 ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0607-0703 ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 0704- ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0507-0606 ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0607-0703 ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0704- ● ●
49 00.669 BEARING; PILOT
FLOOR REMOTE SHIFT<M11> 		8-97258-239-0 01 1 0507-0508 ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0509-0606 ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0607-0709 ● ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0710- ● ●
49 00.669 BEARING; PILOT
FLOOR REMOTE SHIFT<M11> BEST VALUE PARTS 		5-87610-164-0 01 1 0507-0508 ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 0509-0606 ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 0607-0709 ● ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 0710- ● ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97222-031-3 01 1 0507-0606 ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97222-031-3 01 1 0607- ● ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 02 1 0507-0606 ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 02 1 0607- ● ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97364-396-1 01 1 0507-0606 ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97364-396-1 01 1 0607- ● ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97602-800-0 04 1 0507-0606 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97602-800-0 04 1 0607- ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97603-423-1 04 1 0507-0606 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97603-423-1 04 1 0607- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-1 04 1 0507-0606 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-1 04 1 0607-0701 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-98055-480-0 04 1 0707- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-98064-282-0 04 1 0702-0706 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97131-186-1 04 1 0507-0606 ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97131-186-1 04 1 0607-0701 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-98055-479-0 04 1 0707- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-98064-281-0 04 1 0702-0706 ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-1 04 1 0507-0606 ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-1 04 1 0607- ● ●
84 00.603 ROD ASM; CONN 8-94399-661-2 04 1 0507-0606 ●
84 00.603 ROD ASM; CONN 8-94399-661-2 04 1 0607-0706 ● ●
84 00.603 ROD ASM; CONN 8-98018-425-3 04 1 0707- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 04 1 0507-0606 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 04 1 0607-0706 ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94391-794-1 04 1 0707- ● ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0509-0606 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0607-1004 ● ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 08 1 1005- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 08 1 0507-0606 ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 08 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
