0-13B — OIL PAN AND LEVEL GAUGE (#22547) — 56 parça

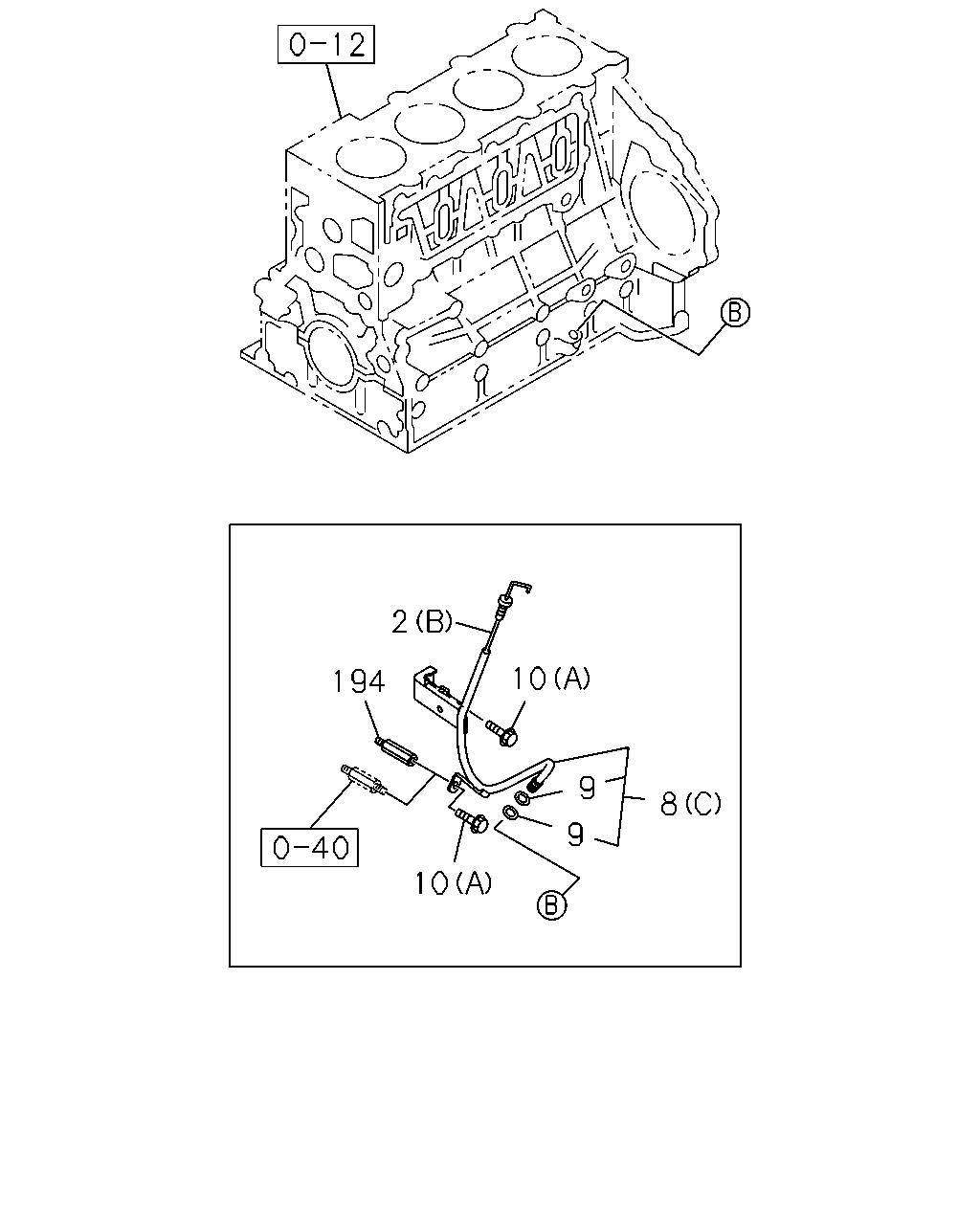

2 10 194 9 8 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.516 GAUGE; OIL LEVEL VOLTAGE 24V<7AE> (B)	8-97019-885-1	01	1	0507-0606	●
2	01.516 GAUGE; OIL LEVEL VOLTAGE 24V<7AE> (B)	8-97019-885-1	01	1	0607-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97357-173-1	01	1	0507-0606	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97357-173-1	01	1	0607-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97354-831-0	01	1	0507-0606	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97354-831-0	01	1	0607-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). VOLTAGE 24V<7AE> ID=11	1-09623-469-0	02	1	0507-0606	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). VOLTAGE 24V<7AE> ID=11	1-09623-469-0	02	1	0607-	●	●
10	01.516 BOLT; GUIDE TUBE VOLTAGE 24V<7AE> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●
10	01.516 BOLT; GUIDE TUBE VOLTAGE 24V<7AE> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●
10	01.516 BOLT; GUIDE TUBE VOLTAGE 24V<7AE> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0607-	●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0509-0606	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0607-	●	●

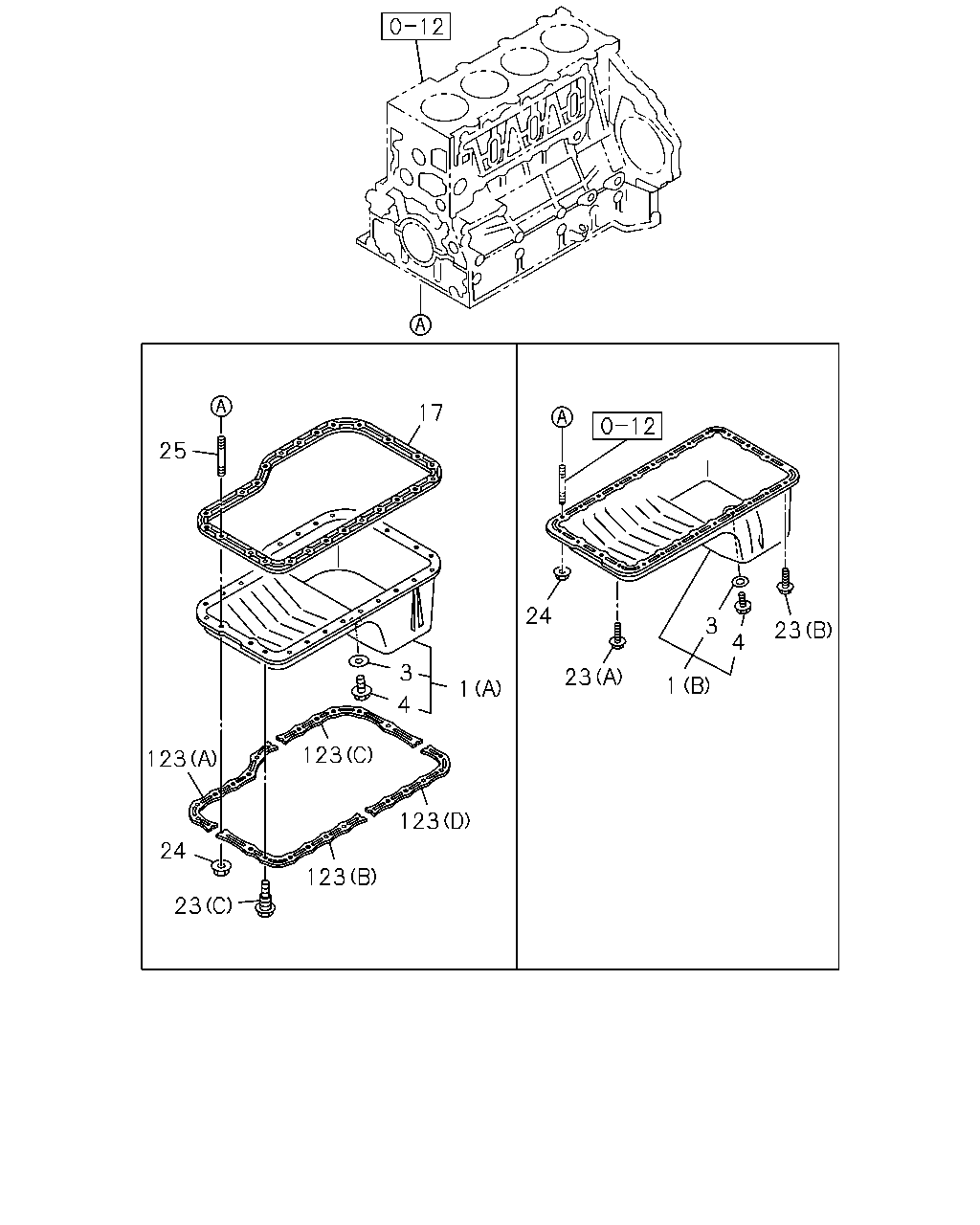

17 25 24 3 23 4 3 23 1 1 4 123 123 123 24 123 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.426 PAN ASM; OIL NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97385-243-0	01	1	0507-0606	●
1	01.426 PAN ASM; OIL NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97385-243-1	01	1	0607-	●	●
1	01.426 PAN ASM; OIL EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97149-314-0	01	1	0507-0606	●
1	01.426 PAN ASM; OIL EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97149-314-0	01	1	0607-	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0507-0606	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0607-	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0507-0606	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0607-	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). NOISE PACK FOR REGULATION VAR.2<7TF>	8-97364-386-0	01	1	0507-0606	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). NOISE PACK FOR REGULATION VAR.2<7TF>	8-97364-386-0	01	1	0607-0709	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). NOISE PACK FOR REGULATION VAR.2<7TF>	8-97364-386-0	01	1	0710-	●	●
23	01.428 BOLT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0507-0606	●
23	01.428 BOLT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0607-0709	●	●
23	01.428 BOLT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0710-	●	●
23	01.428 BOLT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	0507-0606	●
23	01.428 BOLT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	0607-	●	●
23	01.428 BOLT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) M8X14	8-97047-005-0	18	1	0507-0606	●
23	01.428 BOLT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) M8X14	8-97047-005-0	18	1	0607-	●	●
24	01.453 NUT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	13	1	0507-0602	●
24	01.453 NUT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	13	1	0603-0606	●
24	01.453 NUT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	13	1	0607-0709	●	●
24	01.453 NUT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	13	1	0710-	●	●
24	01.453 NUT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	0507-0606	●
24	01.453 NUT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	0607-0805	●	●
24	01.453 NUT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.417 M8 W/LK WASHER	8-97581-234-0	07	1	0806-	●	●
25	01.453 STUD; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0507-0606	●
25	01.453 STUD; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0607-0709	●	●
25	01.453 STUD; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0710-	●	●
25	01.453 STUD; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0507-0606	●
25	01.453 STUD; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0607-0709	●	●
25	01.453 STUD; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0710-	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97187-000-0	01	1	0507-0606	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97187-000-0	01	1	0607-0709	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97187-000-0	01	1	0710-	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97186-988-0	01	1	0507-0606	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97186-988-0	01	1	0607-0709	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97186-988-0	01	1	0710-	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97186-994-0	01	1	0507-0606	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97186-994-0	01	1	0607-0709	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97186-994-0	01	1	0710-	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97186-998-0	01	1	0507-0606	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97186-998-0	01	1	0607-0709	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97186-998-0	01	1	0710-	●	●
