Sayfa 0-13A - Isuzu EPC

0-13A — OIL PAN AND LEVEL GAUGE (#22546) — 228 parça

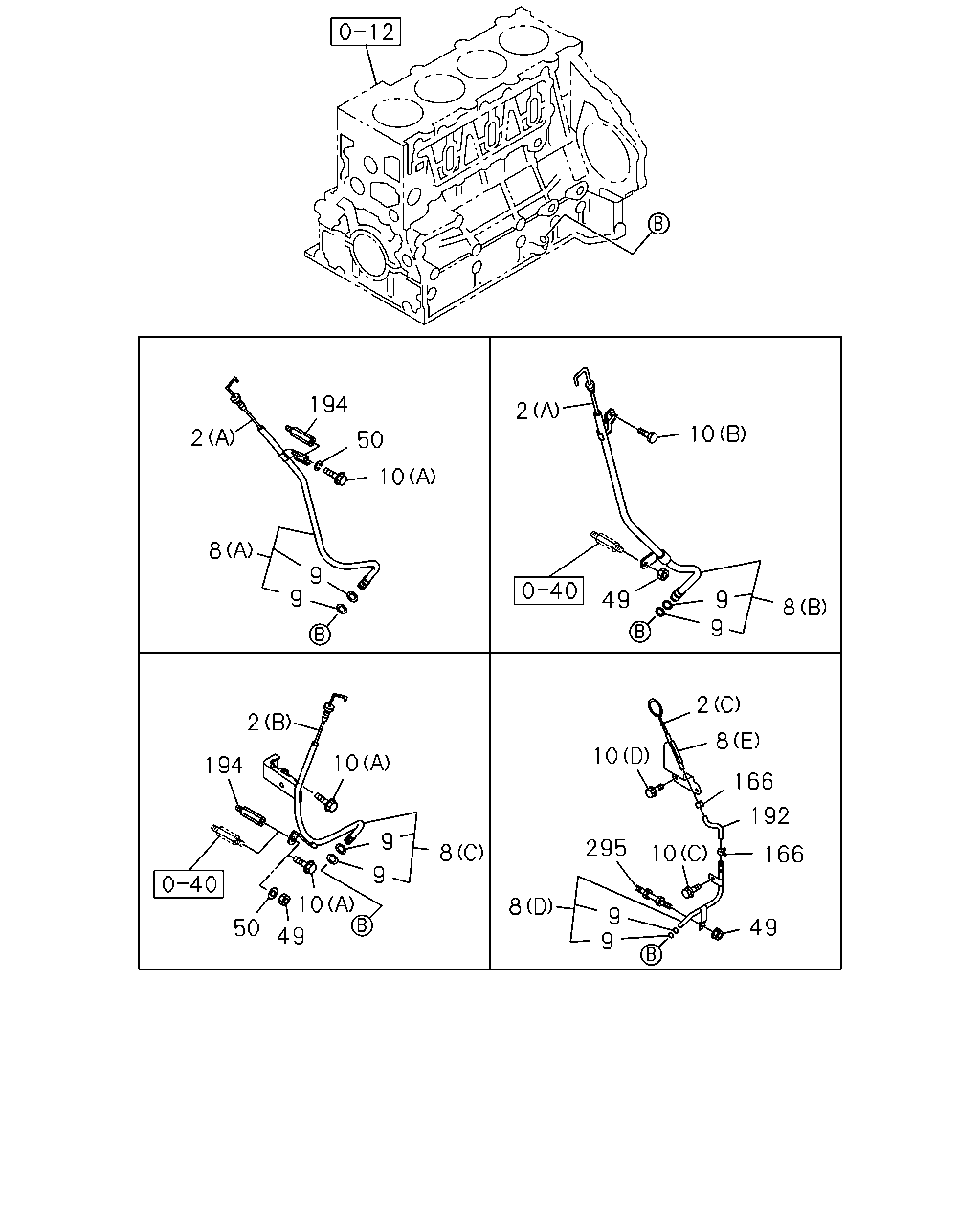

194 2 10 2 50 10 8 9 9 49 9 9 8 2 2 8 10 10 194 166 192 9 295 8 10 166 9 10 8 9 9 49 50 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	01.516 GAUGE; OIL LEVEL (A)	8-97094-460-2	01	1	0211-0501	●	●
2	01.516 GAUGE; OIL LEVEL (A)	8-97094-460-2	01	1	0502-	●	●	●	●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) (C)	8-97184-694-2	01	1	0211-0501					●
2	01.516 GAUGE; OIL LEVEL VENEZUELA EQUIPMENT(S2L) (C)	8-97184-694-2	01	1	0502-						●	●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) (B)	8-97019-885-1	01	1	0211-0501					●
2	01.516 GAUGE; OIL LEVEL VOLTAGE 24V<7AE> (B)	8-97019-885-1	01	1	0502-0506						●	●
2	01.516 GAUGE; OIL LEVEL VOLTAGE 24V<7AE> (B)	8-97019-885-1	01	1	0507-0606						●	●
2	01.516 GAUGE; OIL LEVEL VOLTAGE 24V<7AE> (B)	8-97019-885-1	01	1	0607-						●	●
2	01.516 GAUGE; OIL LEVEL EXC. CHARGE AIR COOLER<6PL> (B)	8-97227-945-0	01	1	0211-0501					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER(K51) (B)	8-97200-567-1	01	1	0211-0501	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-97200-567-1	01	1	0502-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER(K51) (A)	8-97101-907-1	01	1	0211-0501	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97101-907-1	01	1	0211-0501		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97101-907-1	01	1	0502-	●	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) (D)	8-97165-493-2	01	1	0211-0501					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. VOLTAGE 24V<7AE> (D)	8-97165-493-2	01	1	0502-						●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) (E)	8-97184-685-1	01	1	0211-0501					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VENEZUELA EQUIPMENT(S2L) (E)	8-97184-685-1	01	1	0502-						●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) (C)	8-97226-751-1	01	1	0211-0211					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) (C)	8-97354-831-0	01	1	0212-0501					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VOLTAGE 24V<7AE> (C)	8-97354-831-0	01	1	0502-0506						●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL> (C)	8-97130-265-0	01	1	0211-0501					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VOLTAGE 24V<7AE> (C)	8-97354-831-0	01	1	0507-0606						●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE VOLTAGE 24V<7AE> (C)	8-97354-831-0	01	1	0607-						●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51) ID=11	5-09623-002-0	02	1	0211-0211	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	0211-0211		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) ID=11	5-09623-002-0	02	1	0211-0211					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	0211-0211					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51) ID=11	5-09623-002-0	02	1	0212-0212	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	0212-0212		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	0212-0212					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	0212-0501	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) ID=11	5-09623-002-0	02	1	0212-0501					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	0212-0501					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	0502-	●	●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VOLTAGE 24V<7AE> ID=11	5-09623-002-0	02	1	0502-						●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) ID=11	1-09623-469-0	02	1	0212-0501					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). VOLTAGE 24V<7AE> ID=11	1-09623-469-0	02	1	0502-0506						●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). VOLTAGE 24V<7AE> ID=11	1-09623-469-0	02	1	0507-0606						●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). VOLTAGE 24V<7AE> ID=11	1-09623-469-0	02	1	0607-						●	●
10	01.516 BOLT; GUIDE TUBE TURBOCHARGER(K51) (B) M10X110 FLANGE	0-28186-011-0	01	1	0211-0501	●
10	01.516 BOLT; GUIDE TUBE (B) M10X110 FLANGE	0-28186-011-0	01	1	0502-0512			●
10	01.516 BOLT; GUIDE TUBE 09.171 (B) M10X110 FLANGE	0-28156-011-0	01	1	0601-			●
10	01.516 BOLT; GUIDE TUBE EXC. TURBOCHARGER(K51) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●
10	01.516 BOLT; GUIDE TUBE 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0211-0501		●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0211-0501					●
10	01.516 BOLT; GUIDE TUBE 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0502-0512	●	●		●
10	01.516 BOLT; GUIDE TUBE 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●		●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501					●
10	01.516 BOLT; GUIDE TUBE VENEZUELA EQUIPMENT(S2L) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512						●	●
10	01.516 BOLT; GUIDE TUBE VENEZUELA EQUIPMENT(S2L) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-						●	●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) 02.559 (D) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501					●
10	01.516 BOLT; GUIDE TUBE VENEZUELA EQUIPMENT(S2L) 02.559 (D) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512						●	●
10	01.516 BOLT; GUIDE TUBE VENEZUELA EQUIPMENT(S2L) 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0601-						●	●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501					●
10	01.516 BOLT; GUIDE TUBE VOLTAGE 24V<7AE> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0506						●	●
10	01.516 BOLT; GUIDE TUBE VOLTAGE 24V<7AE> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512						●	●
10	01.516 BOLT; GUIDE TUBE VOLTAGE 24V<7AE> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606						●	●
10	01.516 BOLT; GUIDE TUBE VOLTAGE 24V<7AE> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0607-						●	●
49	01.516 NUT; GUIDE TUBE TURBOCHARGER(K51) 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501	●
49	01.516 NUT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501					●
49	01.516 NUT; GUIDE TUBE 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602			●
49	01.516 NUT; GUIDE TUBE 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-			●
49	01.516 NUT; GUIDE TUBE CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501					●
49	01.516 NUT; GUIDE TUBE EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602						●	●
49	01.516 NUT; GUIDE TUBE EXC. VOLTAGE 24V<7AE> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-						●	●
50	01.516 WASHER; PL,GUIDE TUBE EXC. TURBOCHARGER(K51) 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0211-0501	●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0211-0501		●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0502-0605	●	●		●
50	01.516 WASHER; PL,GUIDE TUBE 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0606-	●	●		●
50	01.516 WASHER; PL,GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.085 ID=10.5 OD=26	9-09164-710-0	01	1	0211-0501					●
166	01.453 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) 01.762 ID=19	8-94238-569-0	02	1	0211-0501					●
166	01.453 CLIP; RUBBER HOSE VENEZUELA EQUIPMENT(S2L) 01.762 ID=19	8-94238-569-0	02	1	0502-						●	●
192	01.516 HOSE; GUIDE TUBE CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L)	8-97184-693-0	01	1	0211-0501					●
192	01.516 HOSE; GUIDE TUBE VENEZUELA EQUIPMENT(S2L)	8-97184-693-0	01	1	0502-						●	●
194	01.429 SPACER; GUIDE TUBE EXC. TURBOCHARGER(K51)	8-97101-215-0	01	1	0211-0501	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0211-0501		●
194	01.429 SPACER; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97101-215-0	01	1	0211-0501					●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0502-0508	●	●		●
194	01.429 SPACER; GUIDE TUBE VOLTAGE 24V<7AE>	8-97101-215-0	01	1	0502-0508						●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0509-0606	●	●		●
194	01.429 SPACER; GUIDE TUBE VOLTAGE 24V<7AE>	8-97101-215-0	01	1	0509-0606						●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0607-	●	●		●
194	01.429 SPACER; GUIDE TUBE VOLTAGE 24V<7AE>	8-97101-215-0	01	1	0607-						●	●
295	01.516 STUD; GUIDE TUBE CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L)	8-97182-961-0	01	1	0211-0501					●
295	01.516 STUD; GUIDE TUBE EXC. VOLTAGE 24V<7AE>	8-97182-961-0	01	1	0502-0701						●	●
295	01.516 STUD; GUIDE TUBE EXC. VOLTAGE 24V<7AE>	8-98048-397-0	01	1	0702-						●	●

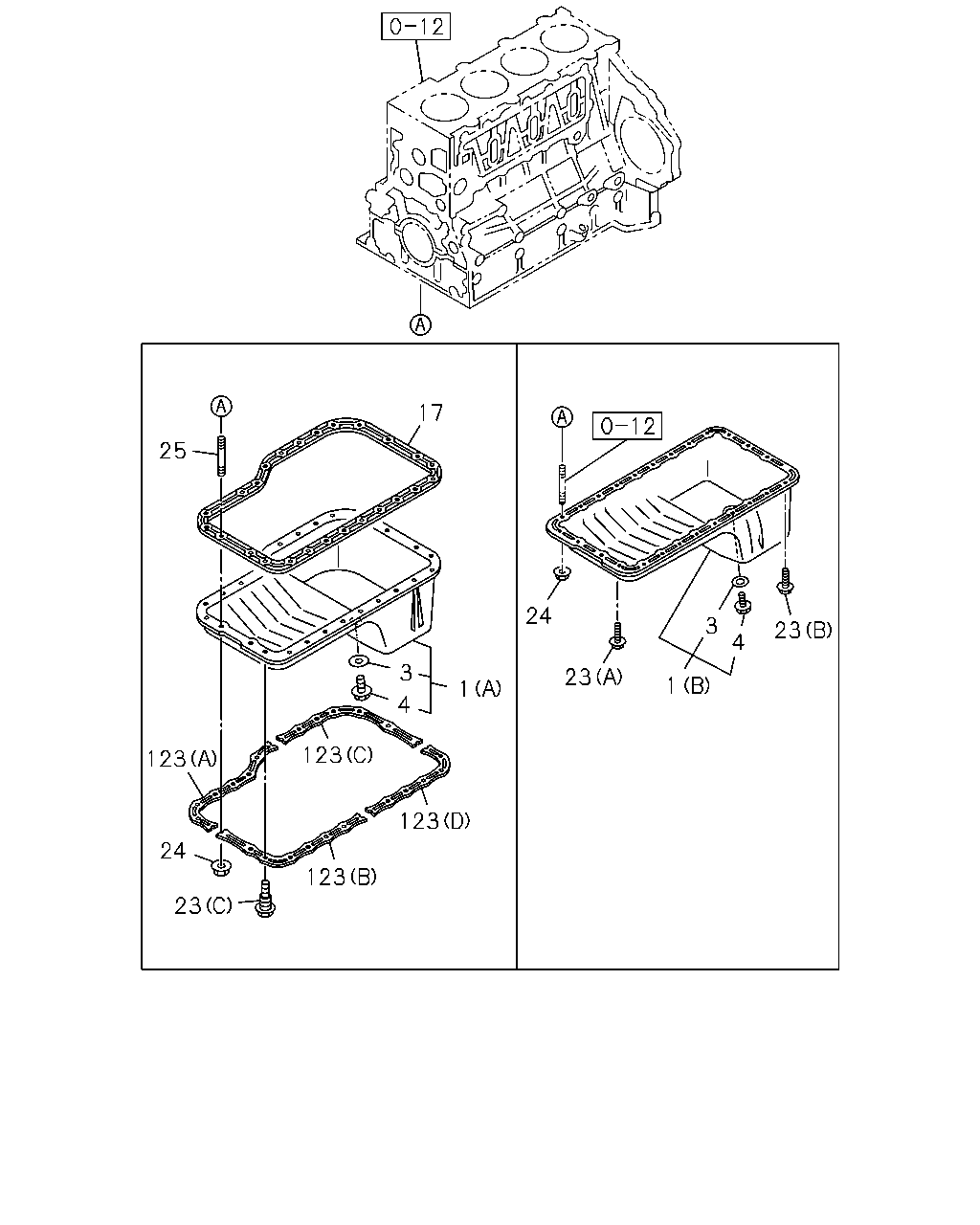

17 25 24 3 23 4 3 23 1 1 4 123 123 123 24 123 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.426 PAN ASM; OIL SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97385-242-0	01	1	1203-	●	●	●	●
1	01.426 PAN ASM; OIL (A)	8-97305-077-0	01	1	0211-0405	●	●
1	01.426 PAN ASM; OIL (A)	8-97385-249-0	01	1	0406-0501	●	●
1	01.426 PAN ASM; OIL (A)	8-97385-249-0	01	1	0502-1202	●	●	●	●
1	01.426 PAN ASM; OIL EXC. SAUDI ARABIA EQUIPMENT(EU2) (A)	8-98203-596-0	01	1	1203-	●	●	●	●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97209-847-2	01	1	0211-0405					●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97385-243-0	01	1	0406-0501					●
1	01.426 PAN ASM; OIL VOLTAGE 24V<7AE> (A)	8-97385-243-0	01	1	0502-0506						●	●
1	01.426 PAN ASM; OIL NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97385-243-0	01	1	0507-0606						●	●
1	01.426 PAN ASM; OIL NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97385-243-1	01	1	0607-						●	●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (B)	8-97149-314-0	01	1	0211-0501					●
1	01.426 PAN ASM; OIL EXC. VOLTAGE 24V<7AE> (B)	8-97149-314-0	01	1	0502-0506						●	●
1	01.426 PAN ASM; OIL EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (B)	8-97149-314-0	01	1	0507-0606						●	●
1	01.426 PAN ASM; OIL EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (B)	8-97149-314-0	01	1	0607-						●	●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL> (B)	8-97075-348-2	01	1	0211-0501					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0211-0501	●	●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0502-0506	●	●	●	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0507-0606	●	●	●	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0607-	●	●	●	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0211-0501	●	●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0502-0506	●	●	●	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0507-0606	●	●	●	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0607-	●	●	●	●		●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97190-191-1	01	1	0211-0402	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97190-191-1	01	1	0211-0402					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0403-0501	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97364-386-0	01	1	0403-0501					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0502-0506	●	●	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). NOISE PACK FOR REGULATION VAR.2<7TF>	8-97364-386-0	01	1	0502-0506						●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0507-0606	●	●	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). NOISE PACK FOR REGULATION VAR.2<7TF>	8-97364-386-0	01	1	0507-0606						●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0607-0709	●	●	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). NOISE PACK FOR REGULATION VAR.2<7TF>	8-97364-386-0	01	1	0607-0709						●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0710-	●	●	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). NOISE PACK FOR REGULATION VAR.2<7TF>	8-97364-386-0	01	1	0710-						●	●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0211-0501	●	●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0211-0501					●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0502-0506	●	●	●	●
23	01.428 BOLT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0502-0506						●	●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0507-0606	●	●	●	●
23	01.428 BOLT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0507-0606						●	●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0607-0709	●	●	●	●
23	01.428 BOLT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0607-0709						●	●
23	01.428 BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0710-	●	●	●	●
23	01.428 BOLT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0710-						●	●
23	01.428 BOLT; OIL PAN EXC. CHARGE AIR COOLER<6PL> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	0211-0501					●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	0211-0501					●
23	01.428 BOLT; OIL PAN EXC. VOLTAGE 24V<7AE> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	0502-0506						●	●
23	01.428 BOLT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	0507-0606						●	●
23	01.428 BOLT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	0607-						●	●
23	01.428 BOLT; OIL PAN EXC. CHARGE AIR COOLER<6PL> (B) M8X14	8-97047-005-0	18	1	0211-0501					●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (B) M8X14	8-97047-005-0	18	1	0211-0501					●
23	01.428 BOLT; OIL PAN EXC. VOLTAGE 24V<7AE> (B) M8X14	8-97047-005-0	18	1	0502-0506						●	●
23	01.428 BOLT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (B) M8X14	8-97047-005-0	18	1	0507-0606						●	●
23	01.428 BOLT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (B) M8X14	8-97047-005-0	18	1	0607-						●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0211-0501	●	●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	13	1	0211-0501					●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0502-0506	●	●	●	●
24	01.453 NUT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	13	1	0502-0506						●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0507-0602	●	●	●	●
24	01.453 NUT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	13	1	0507-0602						●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0603-0606	●	●	●	●
24	01.453 NUT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	13	1	0603-0606						●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0607-0709	●	●	●	●
24	01.453 NUT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	13	1	0607-0709						●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0710-	●	●	●	●
24	01.453 NUT; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	13	1	0710-						●	●
24	01.453 NUT; OIL PAN EXC. CHARGE AIR COOLER<6PL> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	0211-0501					●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	0211-0501					●
24	01.453 NUT; OIL PAN EXC. VOLTAGE 24V<7AE> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	0502-0506						●	●
24	01.453 NUT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	0507-0606						●	●
24	01.453 NUT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	0607-0805						●	●
24	01.453 NUT; OIL PAN EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 03.417 M8 W/LK WASHER	8-97581-234-0	07	1	0806-						●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0211-0501	●	●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0211-0501					●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0502-0506	●	●	●	●
25	01.453 STUD; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0502-0506						●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0507-0606	●	●	●	●
25	01.453 STUD; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0507-0606						●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0607-0709	●	●	●	●
25	01.453 STUD; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0607-0709						●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0710-	●	●	●	●
25	01.453 STUD; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0710-						●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0211-0501	●	●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0211-0501					●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0502-0506	●	●	●	●
25	01.453 STUD; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0502-0506						●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0507-0606	●	●	●	●
25	01.453 STUD; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0507-0606						●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0607-0709	●	●	●	●
25	01.453 STUD; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0607-0709						●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0710-	●	●	●	●
25	01.453 STUD; OIL PAN NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0710-						●	●
123	01.516 RUBBER; SEAL OIL EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) (D)	8-97187-000-0	01	1	0211-0308	●
123	01.516 RUBBER; SEAL OIL TURBOCHARGER(K51) (D)	8-97187-000-0	01	1	0211-0308	●
123	01.516 RUBBER; SEAL OIL EXC. SAUDI ARABIA EQUIPMENT(EU2) (D)	8-97187-000-0	01	1	0211-0308		●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) (D)	8-97187-000-0	01	1	0211-0308					●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0309-0501	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> EXC. CHARGE AIR COOLER<6PL> (D)	8-97187-000-0	01	1	0309-0501					●
123	01.516 RUBBER; SEAL OIL EXC. SAUDI ARABIA EQUIPMENT(EU2) (D)	8-97187-000-0	01	1	0502-0506	●	●		●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0502-0506			●
123	01.516 RUBBER; SEAL OIL EXC. SAUDI ARABIA EQUIPMENT(EU2) (D)	8-97187-000-0	01	1	0507-0606	●	●		●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0507-0606			●
123	01.516 RUBBER; SEAL OIL EXC. SAUDI ARABIA EQUIPMENT(EU2) (D)	8-97187-000-0	01	1	0607-0709	●	●		●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0607-0709			●
123	01.516 RUBBER; SEAL OIL EXC. SAUDI ARABIA EQUIPMENT(EU2) (D)	8-97187-000-0	01	1	0710-	●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0710-			●	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0211-0501	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97186-988-0	01	1	0211-0501					●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0502-0506	●	●	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97186-988-0	01	1	0502-0506						●	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0507-0606	●	●	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97186-988-0	01	1	0507-0606						●	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0607-0709	●	●	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97186-988-0	01	1	0607-0709						●	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0710-	●	●	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97186-988-0	01	1	0710-						●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0211-0501	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97186-994-0	01	1	0211-0501					●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0502-0506	●	●	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97186-994-0	01	1	0502-0506						●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0507-0606	●	●	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97186-994-0	01	1	0507-0606						●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0607-0709	●	●	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97186-994-0	01	1	0607-0709						●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0710-	●	●	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97186-994-0	01	1	0710-						●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0211-0501	●	●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97186-998-0	01	1	0211-0501					●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0502-0506	●	●	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97186-998-0	01	1	0502-0506						●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0507-0606	●	●	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97186-998-0	01	1	0507-0606						●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0607-0709	●	●	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97186-998-0	01	1	0607-0709						●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0710-	●	●	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97186-998-0	01	1	0710-						●	●
123	01.516 RUBBER; SEAL OIL SAUDI ARABIA EQUIPMENT(EU2) EXC. ENGINE POWER N-SPEC(7QV) (D)	8-97212-596-0	01	1	0211-0501	●	●
123	01.516 RUBBER; SEAL OIL EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97212-596-0	01	1	0211-0501					●
123	01.516 RUBBER; SEAL OIL SAUDI ARABIA EQUIPMENT(EU2) (D)	8-97212-596-0	01	1	0502-	●	●
123	01.516 RUBBER; SEAL OIL NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97212-596-0	01	1	0502-						●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
