0-12B — CYLINDER BLOCK (#22545) — 92 parça

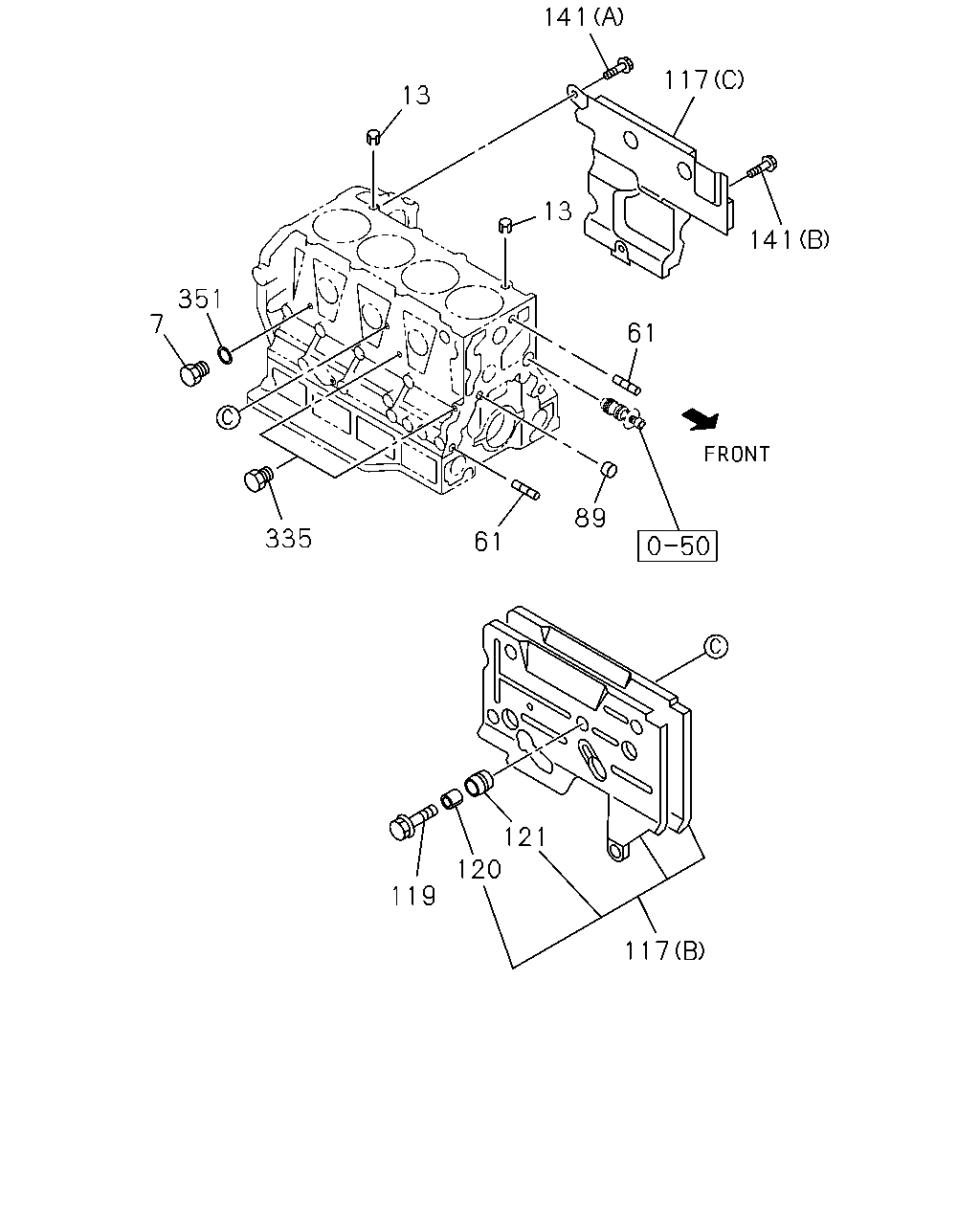

çizim 53224
141 117 13 13 141 351 7 61 89 335 61 121 120 119 117
BalonParca AdiParca NoAdetTipApplied Date A B
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0507-0606 ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0607- ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0507-0606 ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0607- ● ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0507-0606 ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0607- ● ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0507-0606 ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0607- ● ●
117 00.030 COVER ASM; C/BL
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97258-620-1 01 1 0507-0606 ●
117 00.030 COVER ASM; C/BL
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97258-620-1 01 1 0607-0709 ● ●
117 00.030 COVER ASM; C/BL
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97258-620-1 01 1 0710-1103 ● ●
117 00.030 COVER ASM; C/BL
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97258-620-1 01 1 1104- ● ●
117 00.030 COVER ASM; C/BL
NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-98020-693-0 01 1 0507-0601 ●
117 00.030 COVER ASM; C/BL
NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-98039-564-0 01 1 0602-0606 ●
117 00.030 COVER ASM; C/BL
NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-98039-564-0 01 1 0607- ● ●
119 00.034 BOLT; COVER FIX
NOISE PACK FOR REGULATION VAR.2<7TF> M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0507-0606 ●
119 00.034 BOLT; COVER FIX
NOISE PACK FOR REGULATION VAR.2<7TF> M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0607-0709 ● ●
119 00.034 BOLT; COVER FIX
NOISE PACK FOR REGULATION VAR.2<7TF> M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0710-1103 ● ●
119 00.034 BOLT; COVER FIX
NOISE PACK FOR REGULATION VAR.2<7TF> M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 1104- ● ●
120 00.034 BUSHING; MTG RUBBER
NOISE PACK FOR REGULATION VAR.2<7TF> OD=13 T=9.5 		8-94140-427-1 05 1 0507-0606 ●
120 00.034 BUSHING; MTG RUBBER
NOISE PACK FOR REGULATION VAR.2<7TF> OD=13 T=9.5 		8-94140-427-1 05 1 0607-0709 ● ●
120 00.034 BUSHING; MTG RUBBER
NOISE PACK FOR REGULATION VAR.2<7TF> OD=13 T=9.5 		8-94140-427-1 05 1 0710-1103 ● ●
120 00.034 BUSHING; MTG RUBBER
NOISE PACK FOR REGULATION VAR.2<7TF> OD=13 T=9.5 		8-94140-427-1 05 1 1104- ● ●
121 00.034 RUBBER; MTG,COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97315-987-0 05 1 0507-0606 ●
121 00.034 RUBBER; MTG,COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97315-987-0 05 1 0607-0709 ● ●
121 00.034 RUBBER; MTG,COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97315-987-0 05 1 0710-1103 ● ●
121 00.034 RUBBER; MTG,COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97315-987-0 05 1 1104- ● ●
141 01.531 BOLT; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0507-0512 ●
141 01.531 BOLT; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0606 ●
141 01.531 BOLT; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0607- ● ●
141 01.531 BOLT; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 03.604 (B) M10X16 FLANGE 		0-28181-016-0 01 1 0507-0512 ●
141 01.531 BOLT; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 00.029 (B) M10X16 FLANGE 		0-28151-016-0 01 1 0601-0606 ●
141 01.531 BOLT; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 00.029 (B) M10X16 FLANGE 		0-28151-016-0 01 1 0607- ● ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 0507-0606 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 0607-0712 ● ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 02 1 0801- ● ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0507-0606 ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0607- ● ●

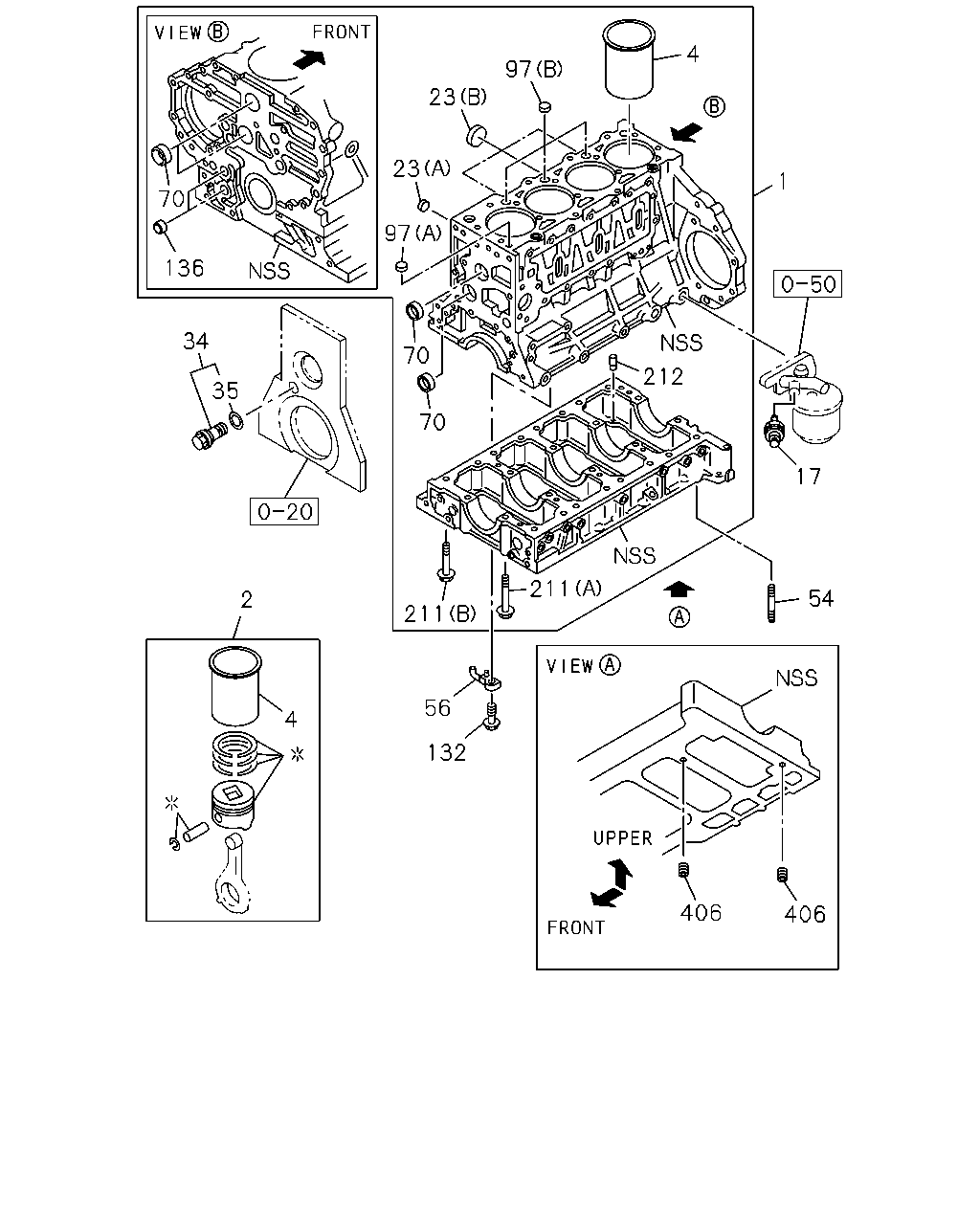

çizim 55566
4 97 23 70 23 1 97 136 34 70 212 35 70 17 211 54 2 211 56 4 132 406 406
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 BLOCK ASM; CYL 8-98005-443-3 01 1 0507-0606 ●
1 00.033 BLOCK ASM; CYL 8-98005-443-7 01 1 0607-1209 ● ●
1 00.033 BLOCK ASM; CYL 8-98204-528-0 01 1 1210- ● ●
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87814-579-0 04 1 0507-0606 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87814-579-0 04 1 0607-0706 ● ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87815-151-3 04 1 0707- ● ●
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87814-580-0 04 1 0507-0606 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87814-580-0 04 1 0607-0706 ● ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87815-152-3 04 1 0707- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-0 04 1 0507-0606 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-1 04 1 0607- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-0 04 1 0507-0606 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-1 04 1 0607- ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0507-0606 ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0607- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0507-0606 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0607- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0507-0606 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0607- ● ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0507-0606 ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0607-0706 ● ●
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 01 1 0707- ● ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0507-0606 ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0607- ● ●
54 01.428 STUD; OIL PAN TO BLOCK
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M8X20 L=38 		8-97021-431-0 03 1 0507-0606 ●
54 01.428 STUD; OIL PAN TO BLOCK
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M8X20 L=38 		8-97021-431-0 03 1 0607- ● ●
56 01.519 JET; OIL,PISTON COOLING 8-94395-194-0 04 1 0507-0606 ●
56 01.519 JET; OIL,PISTON COOLING 8-94395-194-0 04 1 0607-0703 ● ●
56 01.519 JET; OIL,PISTON COOLING 8-98020-649-0 04 1 0704-1007 ● ●
56 01.519 JET; OIL,PISTON COOLING 8-98173-342-0 04 1 1008- ● ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0507-0606 ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0607- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.293 OD=25 		1-09600-016-0 01 1 0507-0606 ●
70 00.034 CUP; SEALING,FRT & RR
00.293 OD=25 		1-09600-016-0 01 1 0607- ● ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 0507-0606 ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 0607-0709 ● ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 1008- ● ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 0507-0606 ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 0607-0709 ● ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 1008- ● ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0507-0606 ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0607-0704 ● ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 0705- ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 0507-0606 ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0607-0812 ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901- ● ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0507-0606 ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0607- ● ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0507-0606 ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0607- ● ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0507-0606 ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0607- ● ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0507-0606 ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0607- ● ●
