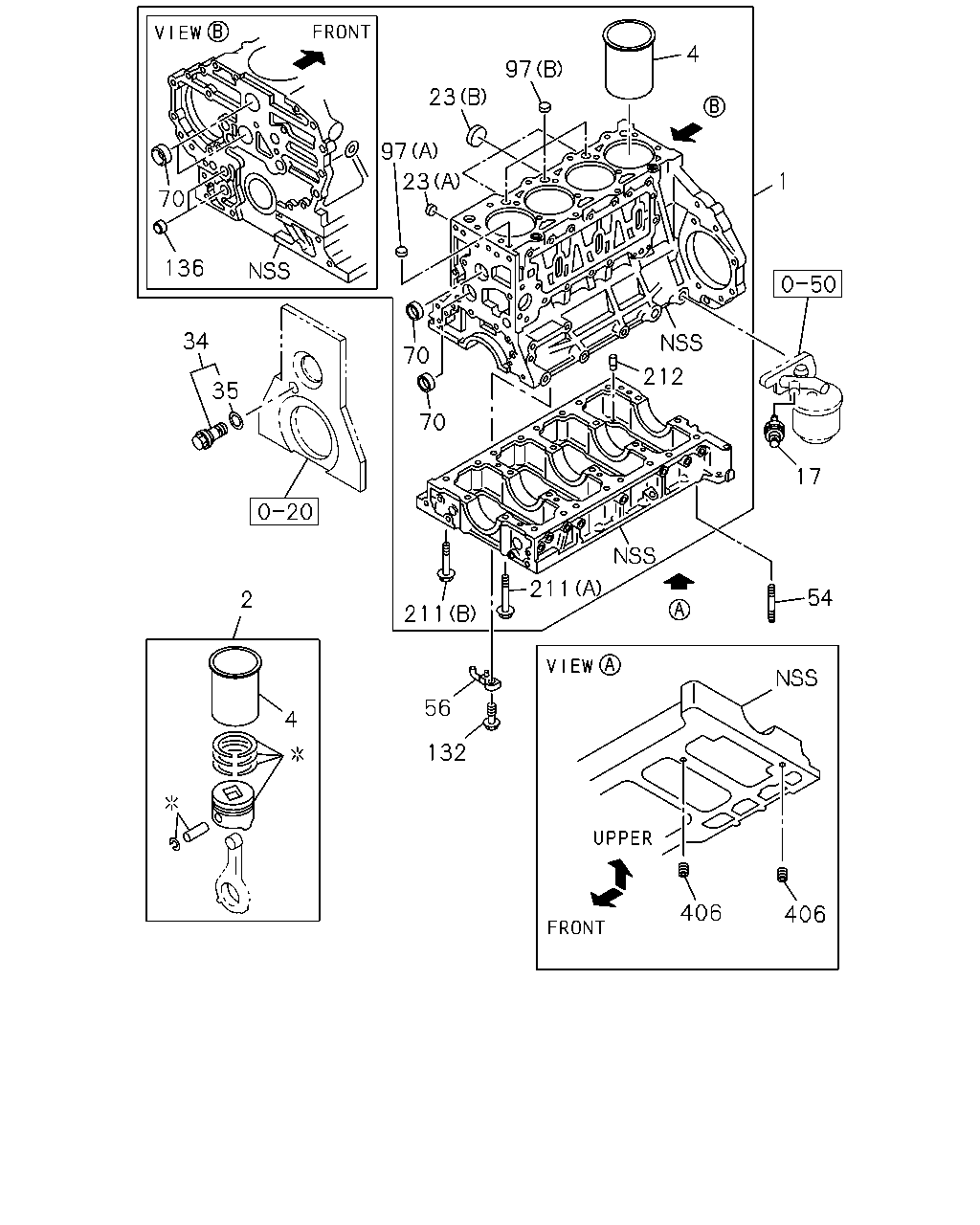

0-12A — CYLINDER BLOCK (#22544) — 224 parça
çizim 48955
4 97 23 70 97 1 23 136 34 70 212 35 70 17 211 54 2 211 56 4 132 406 406
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.033 BLOCK ASM; CYL
TURBOCHARGER(K51) 		8-97173-726-7 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97173-726-7 01 1 0502-0504 ●
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 0505-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL
EXC. TURBOCHARGER(K51) 		8-97191-846-7 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97191-846-7 01 1 0502-0504 ●
1 00.033 BLOCK ASM; CYL 8-98005-433-3 01 1 0505-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-533-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97163-853-5 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97163-853-7 01 1 0502- ● ●
1 00.033 BLOCK ASM; CYL 8-97148-885-3 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97148-885-6 01 1 0502-1209 ● ●
1 00.033 BLOCK ASM; CYL 8-98204-531-0 01 1 1210- ● ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER(K51) GRADE=1X 		5-87813-571-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-571-1 04 1 0502-0504 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87814-834-5 04 1 0505-1112 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87816-317-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER(K51) GRADE=3X 		5-87813-572-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-572-1 04 1 0502-0504 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87814-835-5 04 1 0505-1112 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87816-318-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER(K51) GRADE=1X 		5-87813-392-2 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-392-2 04 1 0502-0504 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87814-836-5 04 1 0505-1112 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87816-321-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER(K51) GRADE=3X 		5-87813-393-2 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-393-2 04 1 0502-0504 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87814-837-5 04 1 0505-1112 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87816-322-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-390-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-390-4 04 1 0502- ● ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-391-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-391-4 04 1 0502- ● ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=1X 		5-87813-744-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-744-1 04 1 0502-0706 ● ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87815-147-2 04 1 0707- ● ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=3X 		5-87813-745-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-745-1 04 1 0502-0706 ● ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87815-148-2 04 1 0707- ● ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=1X 		5-87813-328-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=3X 		5-87813-329-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97351-558-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97351-558-0 04 1 0502-0504 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-048-1 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97351-559-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97351-559-0 04 1 0502-0504 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-049-1 04 1 0505- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97176-727-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97176-727-1 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97176-728-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97176-728-1 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		8-97176-723-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		8-97176-723-1 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		8-97176-724-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		8-97176-724-1 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		8-97176-725-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		8-97176-725-1 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		8-97176-726-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		8-97176-726-1 04 1 0502- ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0211-0501 ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0502-0506 ● ● ● ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0507-0606 ● ● ● ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0607- ● ● ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0211-0501 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0502-0506 ● ● ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0507-0606 ● ● ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0607- ● ● ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0211-0501 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0502-0506 ● ● ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0507-0606 ● ● ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0607- ● ● ● ● ● ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0211-0501 ● ● ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0502-0506 ● ● ● ● ● ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0507-0606 ● ● ● ● ● ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0607-0706 ● ● ● ● ● ●
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 01 1 0707- ● ● ● ● ● ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0211-0501 ● ● ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0502-0506 ● ● ● ● ● ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0507-0606 ● ● ● ● ● ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0607- ● ● ● ● ● ●
54 01.428 STUD; OIL PAN TO BLOCK
EXC. CHARGE AIR COOLER<6PL> M8X20 L=38 		8-97021-431-0 03 1 0211-0501 ●
54 01.428 STUD; OIL PAN TO BLOCK
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> M8X20 L=38 		8-97021-431-0 03 1 0211-0501 ●
54 01.428 STUD; OIL PAN TO BLOCK
EXC. VOLTAGE 24V<7AE> M8X20 L=38 		8-97021-431-0 03 1 0502-0506 ● ●
54 01.428 STUD; OIL PAN TO BLOCK
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> M8X20 L=38 		8-97021-431-0 03 1 0507-0606 ● ●
54 01.428 STUD; OIL PAN TO BLOCK
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> M8X20 L=38 		8-97021-431-0 03 1 0607- ● ●
56 01.519 JET; OIL,PISTON COOLING 8-94399-166-0 04 1 0502- ● ●
56 01.519 JET; OIL,PISTON COOLING
TURBOCHARGER(K51) 		8-97213-294-0 04 1 0211-0501 ●
56 01.519 JET; OIL,PISTON COOLING 8-97213-294-1 04 1 0502- ●
56 01.519 JET; OIL,PISTON COOLING
EXC. TURBOCHARGER(K51) 		8-94370-579-0 04 1 0211-0501 ●
56 01.519 JET; OIL,PISTON COOLING 8-94370-579-0 04 1 0211-0501 ●
56 01.519 JET; OIL,PISTON COOLING 8-94370-579-1 04 1 0502- ● ● ●
56 01.519 JET; OIL,PISTON COOLING 8-94399-166-0 04 1 0211-0305 ●
56 01.519 JET; OIL,PISTON COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-94399-166-0 04 1 0306-0501 ●
56 01.519 JET; OIL,PISTON COOLING
CHARGE AIR COOLER<6PL> 		8-94399-166-0 04 1 0306-0501 ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0211-0501 ● ● ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0502-0506 ● ● ● ● ● ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0507-0606 ● ● ● ● ● ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0607- ● ● ● ● ● ●
70 00.034 CUP; SEALING,FRT & RR
00.293 OD=25 		1-09600-016-0 01 1 0211-0501 ●
70 00.034 CUP; SEALING,FRT & RR
00.293 OD=25 		1-09600-016-0 01 1 0502-0506 ● ●
70 00.034 CUP; SEALING,FRT & RR
00.293 OD=25 		1-09600-016-0 01 1 0507-0606 ● ●
70 00.034 CUP; SEALING,FRT & RR
00.293 OD=25 		1-09600-016-0 01 1 0607- ● ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 0211-0501 ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 0502-0506 ● ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 0507-0606 ● ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 0607-0709 ● ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 0710-1007 ● ● ● ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 1008- ● ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 0211-0501 ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 0502-0506 ● ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 0507-0606 ● ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 0607-0709 ● ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 0710-1007 ● ● ● ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 1008- ● ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0211-0501 ● ● ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0502-0506 ● ● ● ● ● ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0507-0606 ● ● ● ● ● ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0607-0704 ● ● ● ● ● ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 0705- ● ● ● ● ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 0211-0501 ● ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 0502-0506 ● ● ● ● ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 0507-0606 ● ● ● ● ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0607-0812 ● ● ● ● ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901- ● ● ● ● ● ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0211-0501 ● ● ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0502-0506 ● ● ● ● ● ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0507-0606 ● ● ● ● ● ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0607- ● ● ● ● ● ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0211-0501 ● ● ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0502-0506 ● ● ● ● ● ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0507-0606 ● ● ● ● ● ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0607- ● ● ● ● ● ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ● ● ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0502-0506 ● ● ● ● ● ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0507-0606 ● ● ● ● ● ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0607- ● ● ● ● ● ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0211-0501 ● ● ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0502-0506 ● ● ● ● ● ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0507-0606 ● ● ● ● ● ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0607- ● ● ● ● ● ●

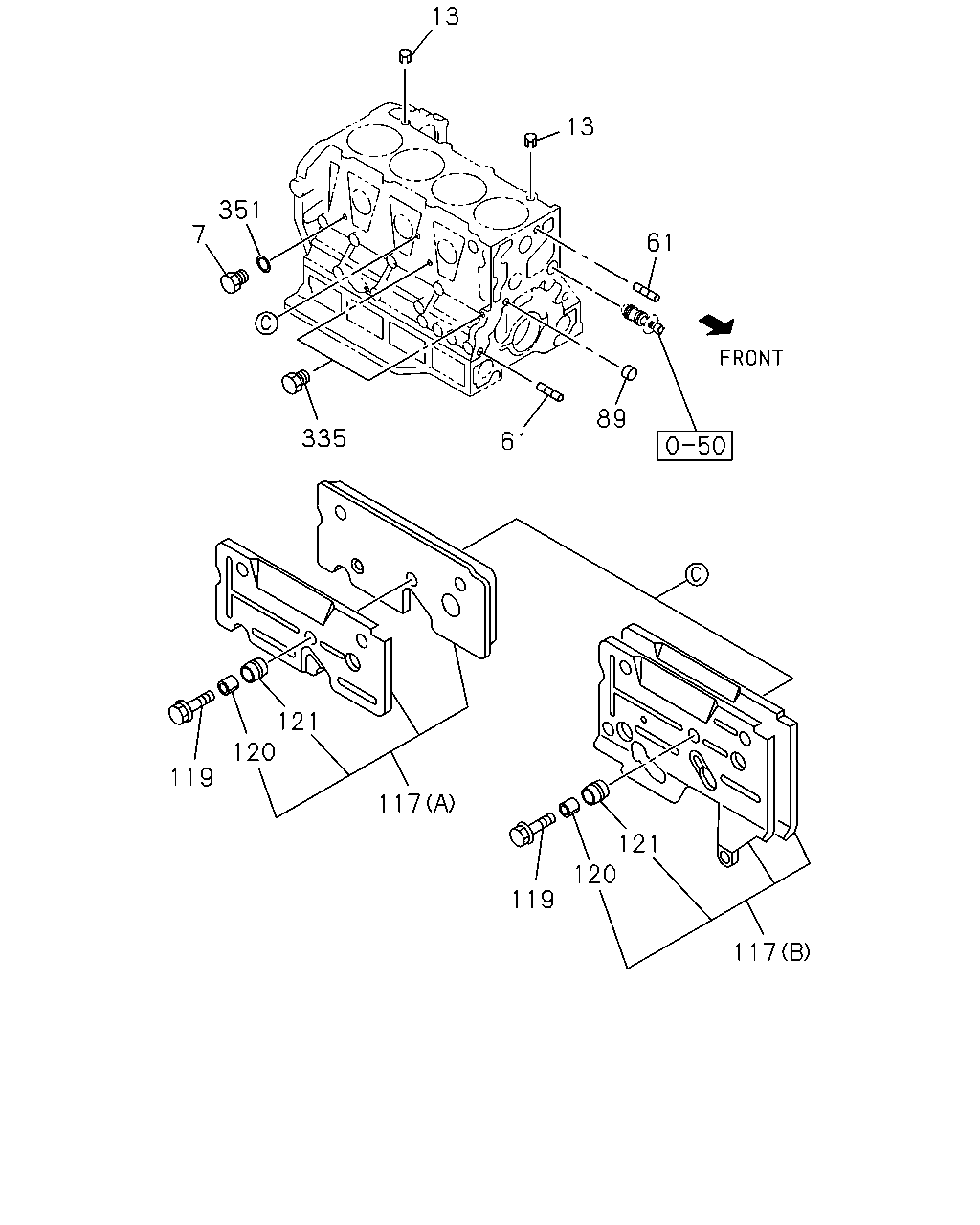

çizim 51269
13 13 351 7 61 89 335 61 121 120 119 117 121 120 119 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0211-0501 ● ● ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0502-0506 ● ● ● ● ● ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0507-0606 ● ● ● ● ● ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0607- ● ● ● ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0211-0501 ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0502-0506 ● ● ● ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0507-0606 ● ● ● ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0607- ● ● ● ● ● ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0211-0501 ● ● ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0502-0506 ● ● ● ● ● ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0507-0606 ● ● ● ● ● ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0607- ● ● ● ● ● ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0211-0501 ● ● ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0502-0506 ● ● ● ● ● ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0507-0606 ● ● ● ● ● ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0607- ● ● ● ● ● ●
117 00.030 COVER ASM; C/BL
SAUDI ARABIA EQUIPMENT(EU2) EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97258-620-1 01 1 0211-0501 ● ●
117 00.030 COVER ASM; C/BL
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97258-620-1 01 1 0211-0501 ●
117 00.030 COVER ASM; C/BL
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97258-620-1 01 1 0502-0506 ● ●
117 00.030 COVER ASM; C/BL
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97258-620-1 01 1 0502-0506 ● ●
117 00.030 COVER ASM; C/BL
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97258-620-1 01 1 0507-0606 ● ●
117 00.030 COVER ASM; C/BL
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97258-620-1 01 1 0507-0606 ● ●
117 00.030 COVER ASM; C/BL
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97258-620-1 01 1 0607-0709 ● ●
117 00.030 COVER ASM; C/BL
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97258-620-1 01 1 0607-0709 ● ●
117 00.030 COVER ASM; C/BL
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97258-620-1 01 1 0710-1103 ● ● ●
117 00.030 COVER ASM; C/BL
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97258-620-1 01 1 0710-1103 ● ●
117 00.030 COVER ASM; C/BL
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97258-620-1 01 1 1104- ● ●
117 00.030 COVER ASM; C/BL
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97258-620-1 01 1 1104- ● ●
117 00.030 COVER ASM; C/BL
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97118-347-0 01 1 0211-0501 ●
117 00.030 COVER ASM; C/BL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97118-347-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
SAUDI ARABIA EQUIPMENT(EU2) EXC. ENGINE POWER N-SPEC(7QV) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0211-0501 ● ●
119 00.034 BOLT; COVER FIX
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
EXC. CHARGE AIR COOLER<6PL> M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
SAUDI ARABIA EQUIPMENT(EU2) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0502-0506 ● ●
119 00.034 BOLT; COVER FIX
NOISE PACK FOR REGULATION VAR.2<7TF> M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0502-0506 ● ●
119 00.034 BOLT; COVER FIX
SAUDI ARABIA EQUIPMENT(EU2) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0507-0606 ● ●
119 00.034 BOLT; COVER FIX
NOISE PACK FOR REGULATION VAR.2<7TF> M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0507-0606 ● ●
119 00.034 BOLT; COVER FIX
SAUDI ARABIA EQUIPMENT(EU2) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0607-0709 ● ●
119 00.034 BOLT; COVER FIX
NOISE PACK FOR REGULATION VAR.2<7TF> M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0607-0709 ● ●
119 00.034 BOLT; COVER FIX
SAUDI ARABIA EQUIPMENT(EU2) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0710-1103 ● ● ●
119 00.034 BOLT; COVER FIX
NOISE PACK FOR REGULATION VAR.2<7TF> M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0710-1103 ● ●
119 00.034 BOLT; COVER FIX
SAUDI ARABIA EQUIPMENT(EU2) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 1104- ● ●
119 00.034 BOLT; COVER FIX
NOISE PACK FOR REGULATION VAR.2<7TF> M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 1104- ● ●
120 00.034 BUSHING; MTG RUBBER
SAUDI ARABIA EQUIPMENT(EU2) EXC. ENGINE POWER N-SPEC(7QV) OD=13 T=9.5 		8-94140-427-1 05 1 0211-0501 ● ●
120 00.034 BUSHING; MTG RUBBER
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> OD=13 T=9.5 		8-94140-427-1 05 1 0211-0501 ●
120 00.034 BUSHING; MTG RUBBER
EXC. CHARGE AIR COOLER<6PL> OD=13 T=9.5 		8-94140-427-1 04 1 0211-0501 ●
120 00.034 BUSHING; MTG RUBBER
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) OD=13 T=9.5 		8-94140-427-1 04 1 0211-0501 ●
120 00.034 BUSHING; MTG RUBBER
SAUDI ARABIA EQUIPMENT(EU2) OD=13 T=9.5 		8-94140-427-1 05 1 0502-0506 ● ●
120 00.034 BUSHING; MTG RUBBER
NOISE PACK FOR REGULATION VAR.2<7TF> OD=13 T=9.5 		8-94140-427-1 05 1 0502-0506 ● ●
120 00.034 BUSHING; MTG RUBBER
SAUDI ARABIA EQUIPMENT(EU2) OD=13 T=9.5 		8-94140-427-1 05 1 0507-0606 ● ●
120 00.034 BUSHING; MTG RUBBER
NOISE PACK FOR REGULATION VAR.2<7TF> OD=13 T=9.5 		8-94140-427-1 05 1 0507-0606 ● ●
120 00.034 BUSHING; MTG RUBBER
SAUDI ARABIA EQUIPMENT(EU2) OD=13 T=9.5 		8-94140-427-1 05 1 0607-0709 ● ●
120 00.034 BUSHING; MTG RUBBER
NOISE PACK FOR REGULATION VAR.2<7TF> OD=13 T=9.5 		8-94140-427-1 05 1 0607-0709 ● ●
120 00.034 BUSHING; MTG RUBBER
SAUDI ARABIA EQUIPMENT(EU2) OD=13 T=9.5 		8-94140-427-1 05 1 0710-1103 ● ● ●
120 00.034 BUSHING; MTG RUBBER
NOISE PACK FOR REGULATION VAR.2<7TF> OD=13 T=9.5 		8-94140-427-1 05 1 0710-1103 ● ●
120 00.034 BUSHING; MTG RUBBER
SAUDI ARABIA EQUIPMENT(EU2) OD=13 T=9.5 		8-94140-427-1 05 1 1104- ● ●
120 00.034 BUSHING; MTG RUBBER
NOISE PACK FOR REGULATION VAR.2<7TF> OD=13 T=9.5 		8-94140-427-1 05 1 1104- ● ●
121 00.034 RUBBER; MTG,COVER
SAUDI ARABIA EQUIPMENT(EU2) EXC. ENGINE POWER N-SPEC(7QV) 		8-97315-987-0 05 1 0211-0501 ● ●
121 00.034 RUBBER; MTG,COVER
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97315-987-0 05 1 0211-0501 ●
121 00.034 RUBBER; MTG,COVER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97315-987-0 05 1 0502-0506 ● ●
121 00.034 RUBBER; MTG,COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97315-987-0 05 1 0502-0506 ● ●
121 00.034 RUBBER; MTG,COVER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97315-987-0 05 1 0507-0606 ● ●
121 00.034 RUBBER; MTG,COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97315-987-0 05 1 0507-0606 ● ●
121 00.034 RUBBER; MTG,COVER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97315-987-0 05 1 0607-0709 ● ●
121 00.034 RUBBER; MTG,COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97315-987-0 05 1 0607-0709 ● ●
121 00.034 RUBBER; MTG,COVER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97315-987-0 05 1 0710-1103 ● ● ●
121 00.034 RUBBER; MTG,COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97315-987-0 05 1 0710-1103 ● ●
121 00.034 RUBBER; MTG,COVER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97315-987-0 05 1 1104- ● ●
121 00.034 RUBBER; MTG,COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97315-987-0 05 1 1104- ● ●
121 00.034 RUBBER; MTG,COVER
EXC. CHARGE AIR COOLER<6PL> OD=22 		8-94140-428-1 04 1 0211-0501 ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) OD=22 		8-94140-428-1 04 1 0211-0501 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 01 1 0211-0501 ● ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 01 1 0502-0712 ● ● ● ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 01 1 0801- ● ● ● ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 0211-0501 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 0502-0506 ● ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 0507-0606 ● ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 0607-0712 ● ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 02 1 0801- ● ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0211-0501 ● ● ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0502-0506 ● ● ● ● ● ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0507-0606 ● ● ● ● ● ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0607- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
