◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11B - CYLINDER HEAD ▶
0-11B — CYLINDER HEAD (#22543) — 94 parça

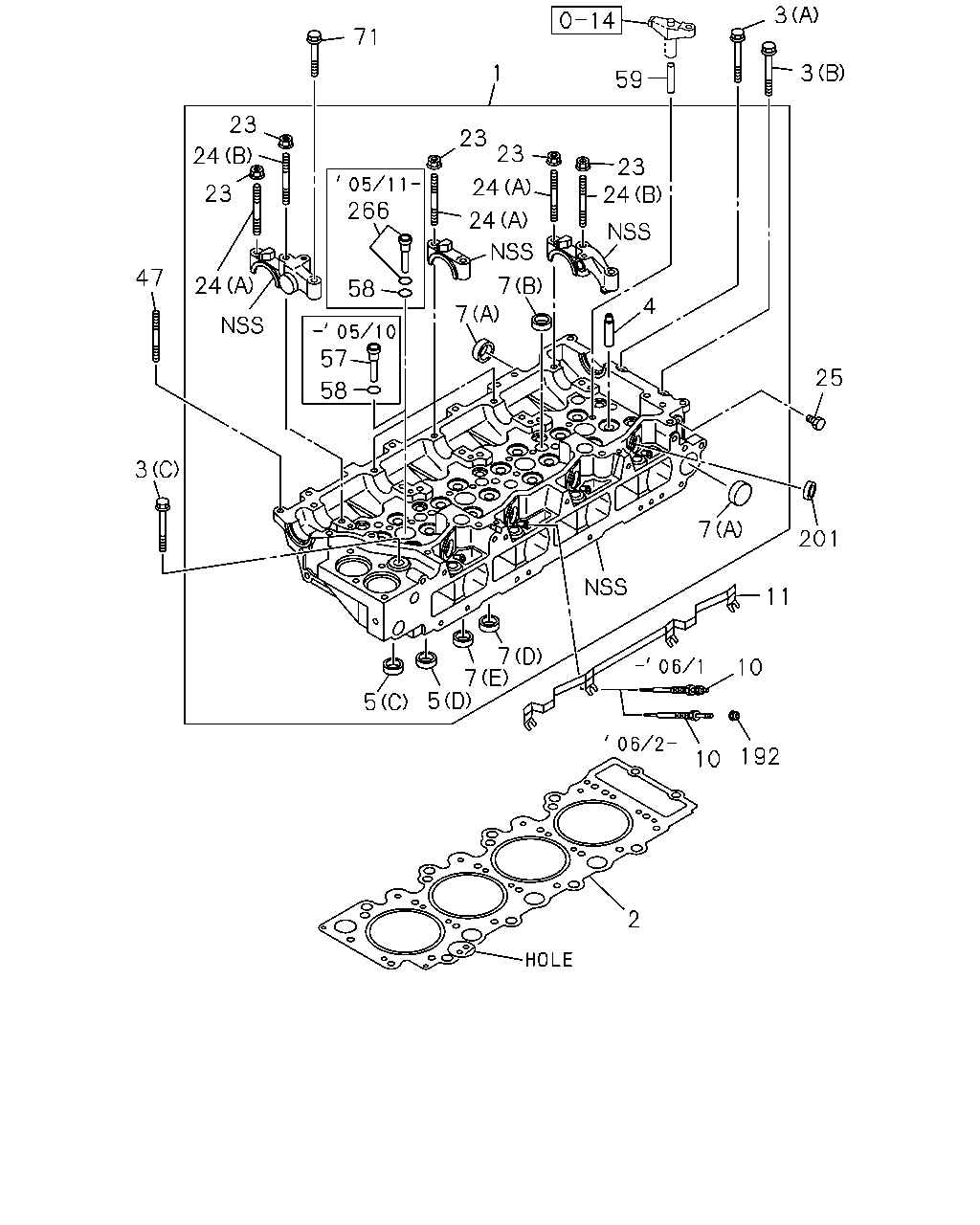

çizim 12434
201 25 4 24 23 23 23 1 71 23 24 23 24 41 58 57 11 10 192 10 2 7 59 3 3 3 5 5 7 7 24 7 24 7 58 266
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-97383-041-1 01 1 0507-0510 ●
1 00.269 HEAD ASM; CYL 8-98008-363-2 01 1 0511-0606 ●
1 00.269 HEAD ASM; CYL 8-98008-363-8 01 1 0607-1005 ● ●
1 00.269 HEAD ASM; CYL 8-98170-617-1 01 1 1006- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97375-433-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97375-434-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97375-435-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97375-433-0 01 1 0607- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97375-434-0 01 1 0607- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97375-435-0 01 1 0607- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0507-0606 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0607- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0507-0606 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0607- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0507-0508 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0509-0606 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0607-0811 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0812-1103 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1104-1503 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ● ●
4 00.283 GUIDE; VLV
L=57 		8-94390-780-0 16 1 0507-0606 ●
4 00.283 GUIDE; VLV
L=57 		8-94390-780-0 16 1 0607-0707 ● ●
4 00.283 GUIDE; VLV
L=57 		8-97376-719-2 16 1 0708- ● ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=38 		8-94395-888-0 08 1 0507-0606 ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=38 		8-94395-888-2 08 1 0607- ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=38 		8-97216-511-0 08 1 0507-0606 ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=38 		8-97216-511-0 08 1 0607-0703 ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 0704- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 04 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 04 1 0607- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0607- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 05 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 05 1 0607- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=20 		9-11129-128-0 07 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=20 		9-11129-128-0 07 1 0607- ● ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-5 04 1 0507-0606 ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 0607- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 0507-0606 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 0607- ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0507-0602 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0603-0606 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0607- ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0507-0606 ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0607- ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0507-0606 ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0607- ● ●
25 00.293 PLUG; CYL HD
00.309 M8X10 		8-98003-416-0 01 1 0507-0606 ●
25 00.293 PLUG; CYL HD
00.309 M8X10 		8-98003-416-0 01 1 0607- ● ●
47 00.413 STUD; CYL HD
03.278 M8X60 L=72 		0-49740-860-0 02 1 0507-0512 ●
47 00.413 STUD; CYL HD
01.073 M8X60 L=72 		0-49140-860-0 02 1 0601-0606 ●
47 00.413 STUD; CYL HD
01.073 M8X60 L=72 		0-49140-860-0 02 1 0607- ● ●
57 00.293 SLEEVE; NOZZLE HOLDER 8-97602-301-1 04 1 0507-0510 ●
58 00.289 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 04 1 0507-0606 ●
58 00.289 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 04 1 0607- ● ●
59 00.283 GUIDE; BRIDGE 8-97381-603-0 08 1 0507-0606 ●
59 00.283 GUIDE; BRIDGE 8-97381-603-1 08 1 0607- ● ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0507-0512 ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0601-0606 ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0607- ● ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 0602-0606 ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 0607- ● ●
201 03.306 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 04 1 0507-0606 ●
201 03.306 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 04 1 0607- ● ●
266 00.293 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 04 1 0604-0606 ●
266 00.293 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 04 1 0607- ● ●

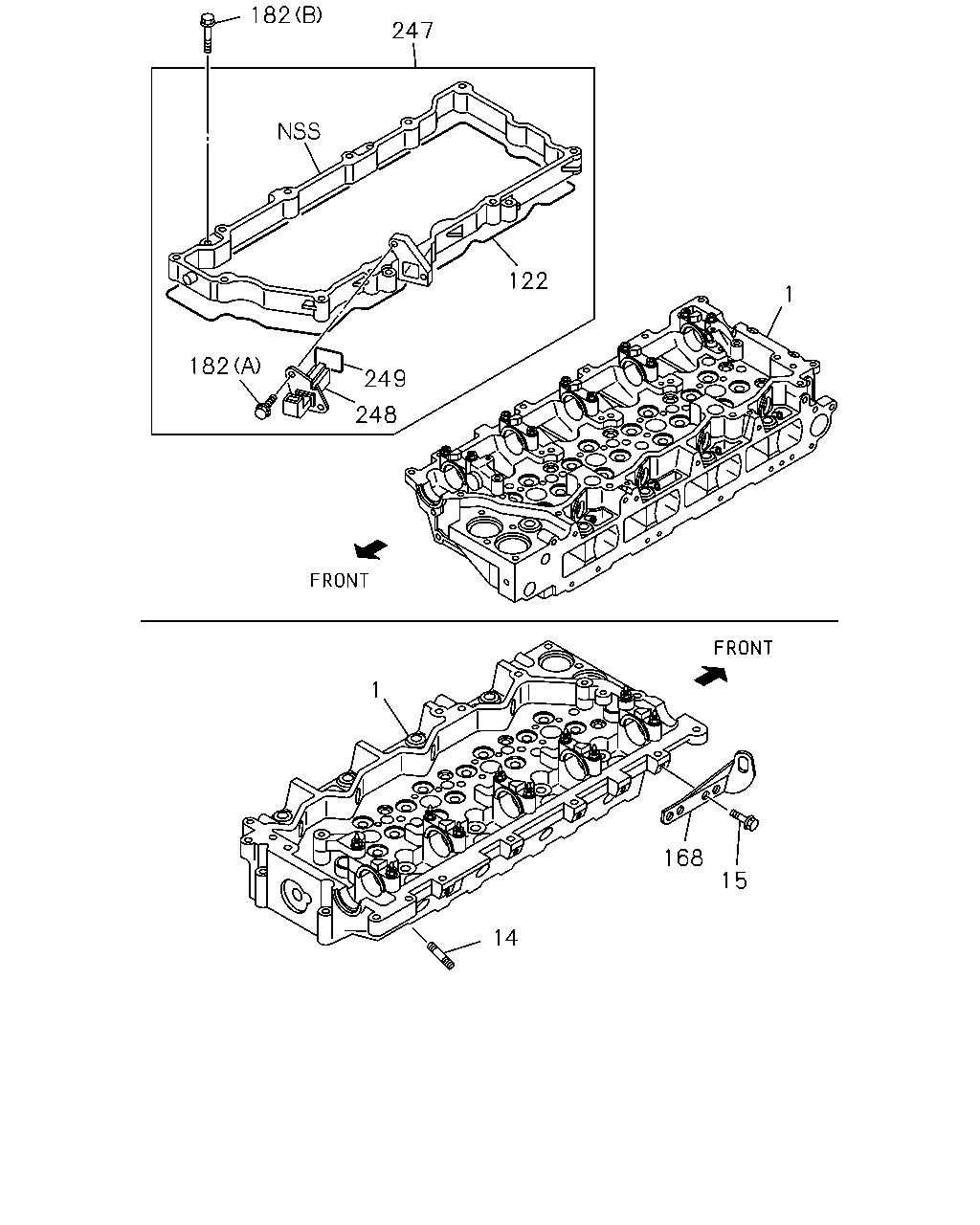

çizim 53251
182 247 122 1 182 249 248 1 168 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-97383-041-1 01 1 0507-0510 ●
1 00.269 HEAD ASM; CYL 8-98008-363-2 01 1 0511-0606 ●
1 00.269 HEAD ASM; CYL 8-98008-363-8 01 1 0607-1005 ● ●
1 00.269 HEAD ASM; CYL 8-98170-617-1 01 1 1006- ● ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0507-0606 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0607- ● ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0507-0512 ●
15 00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0601-0606 ●
15 00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0607- ● ●
47 00.413 STUD; CYL HD
03.278 M8X60 L=72 		0-49740-860-0 02 1 0507-0512 ●
47 00.413 STUD; CYL HD
01.073 M8X60 L=72 		0-49140-860-0 02 1 0601-0606 ●
47 00.413 STUD; CYL HD
01.073 M8X60 L=72 		0-49140-860-0 02 1 0607- ● ●
122 00.206 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-360-1 01 1 0507-0606 ●
122 00.206 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-360-1 01 1 0607- ● ●
168 00.004 HANGER; ENG,FRT 8-97310-254-2 01 1 0507-0606 ●
168 00.004 HANGER; ENG,FRT 8-97310-254-2 01 1 0607- ● ●
182 00.206 BOLT; CASE
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ●
182 00.206 BOLT; CASE
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0606 ●
182 00.206 BOLT; CASE
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0607- ● ●
182 00.206 BOLT; CASE
01.540 (B) M8X45 FLANGE 		0-28080-845-0 04 1 0507-0512 ●
182 00.206 BOLT; CASE
09.173 (B) M8X45 FLANGE 		0-28050-845-0 04 1 0601-0606 ●
182 00.206 BOLT; CASE
09.173 (B) M8X45 FLANGE 		0-28050-845-0 04 1 0607- ● ●
247 00.269 CASE; CYL HEAD,C/H COVER 8-97331-362-1 01 1 0507-0606 ●
247 00.269 CASE; CYL HEAD,C/H COVER 8-97331-362-1 01 1 0607- ● ●
248 02.251 CONNECTOR
01.150 		8-94390-858-1 01 1 0507-0606 ●
248 02.251 CONNECTOR
01.150 		8-94390-858-1 01 1 0607- ● ●
249 03.300 GASKET; CONNECTOR
01.152 		8-94391-310-0 01 1 0507-0606 ●
249 03.300 GASKET; CONNECTOR
01.152 		8-94391-310-0 01 1 0607- ● ●
