0-10A — CYLINDER HEAD COVER (#22540) — 93 parça

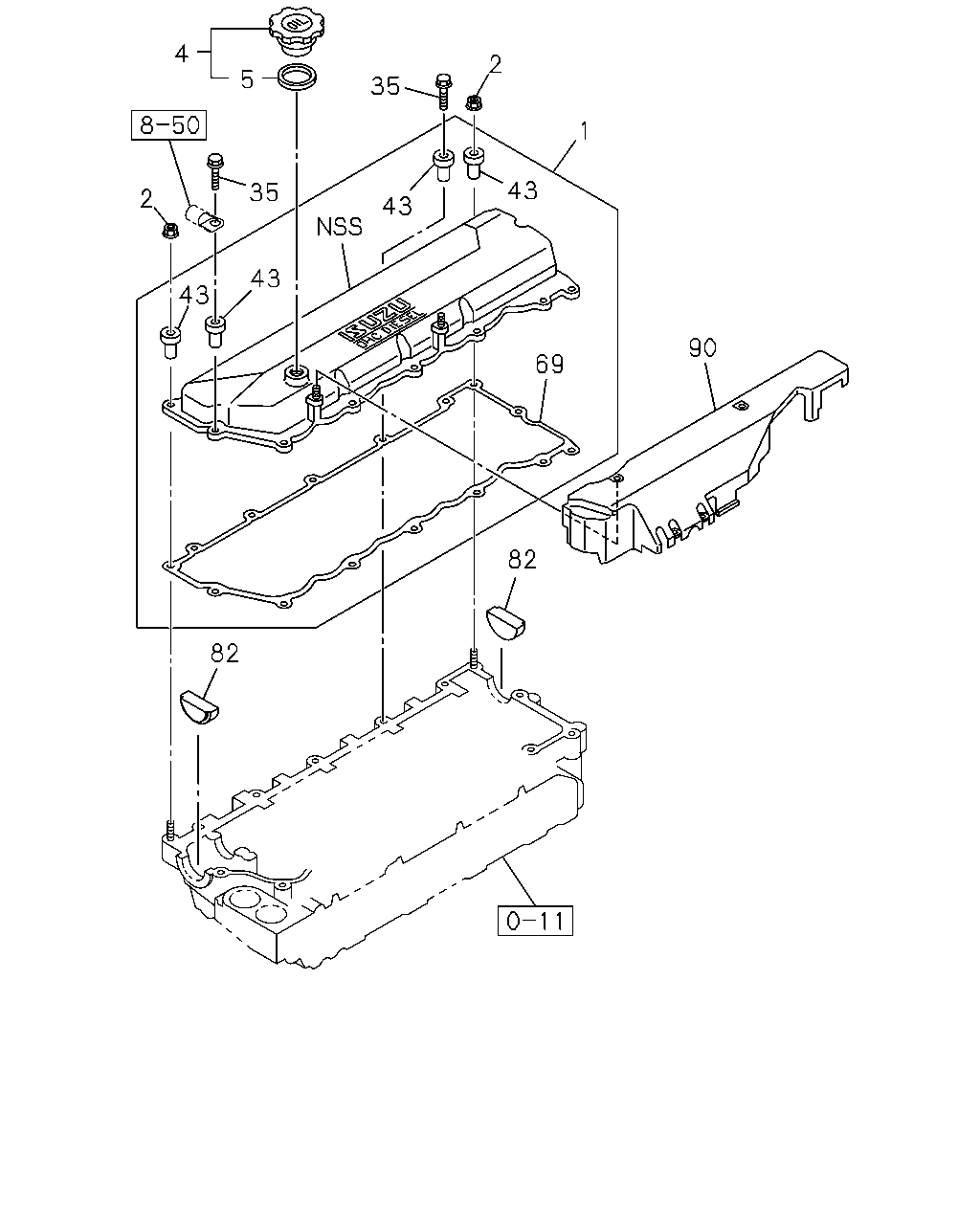

4 2 5 35 1 43 35 2 43 43 43 90 69 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1007-1007	●	●	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1008-	●	●	●	●
1	00.386 COVER; CYL HD TURBOCHARGER(K51)	8-97113-025-3	01	1	0211-0501	●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0211-0501					●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0502-0910				●		●	●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0911-1006	●	●	●	●		●	●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	1007-						●	●
1	00.386 COVER; CYL HD EXC. TURBOCHARGER(K51)	8-97226-760-1	01	1	0211-0501	●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0211-0501			●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0502-0910	●	●	●
2	00.413 NUT; COVER,HD TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602				●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-				●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●		●		●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●	●		●	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0211-0501	●		●		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0502-0506	●	●	●	●		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0507-0606	●	●	●	●		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0607-	●	●	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0502-0506	●	●	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0507-0606	●	●	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0607-	●	●	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0211-0501	●		●		●
35	00.293 BOLT; NOISE SHIELD COVER TURBOCHARGER(K51) 04.686 M8X30 FLANGE	0-28680-830-0	12	1	0211-0501	●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	12	1	0502-0512				●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	12	1	0601-				●
35	00.293 BOLT; NOISE SHIELD COVER EXC. TURBOCHARGER(K51) 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0211-0501	●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0211-0501			●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0502-0512	●	●	●
35	00.293 BOLT; NOISE SHIELD COVER 00.685 M8X40 FLANGE	0-28650-840-0	06	1	0601-0910	●	●	●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	0211-0501					●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	0502-0512						●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	0601-0910						●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	0911-	●	●	●			●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER TURBOCHARGER(K51) 03.265 OD=23	8-97105-689-6	15	1	0211-0501	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	0211-0501					●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	0502-0910				●		●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	0911-	●	●	●	●		●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER EXC. TURBOCHARGER(K51) OD=23	8-97190-120-2	08	1	0211-0501	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=23	8-97190-120-2	08	1	0211-0501			●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=23	8-97190-120-2	08	1	0502-0910	●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	0211-0501	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	0211-0501					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	0502-0910				●		●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	0911-	●	●	●	●		●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97189-871-1	01	1	0211-0501	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97189-871-1	01	1	0211-0501			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97189-871-1	01	1	0502-0910	●	●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0211-0501	●		●		●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0502-0506	●	●	●	●		●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0507-0606	●	●	●	●		●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0607-1005	●	●	●	●		●	●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1006-	●	●	●	●		●	●
90	00.386 COVER; NOZZLE,INJ CHARGE AIR COOLER<6PL>	8-97175-141-0	01	1	0211-0501					●
90	00.386 COVER; NOZZLE,INJ	8-97175-141-0	01	1	0502-						●	●

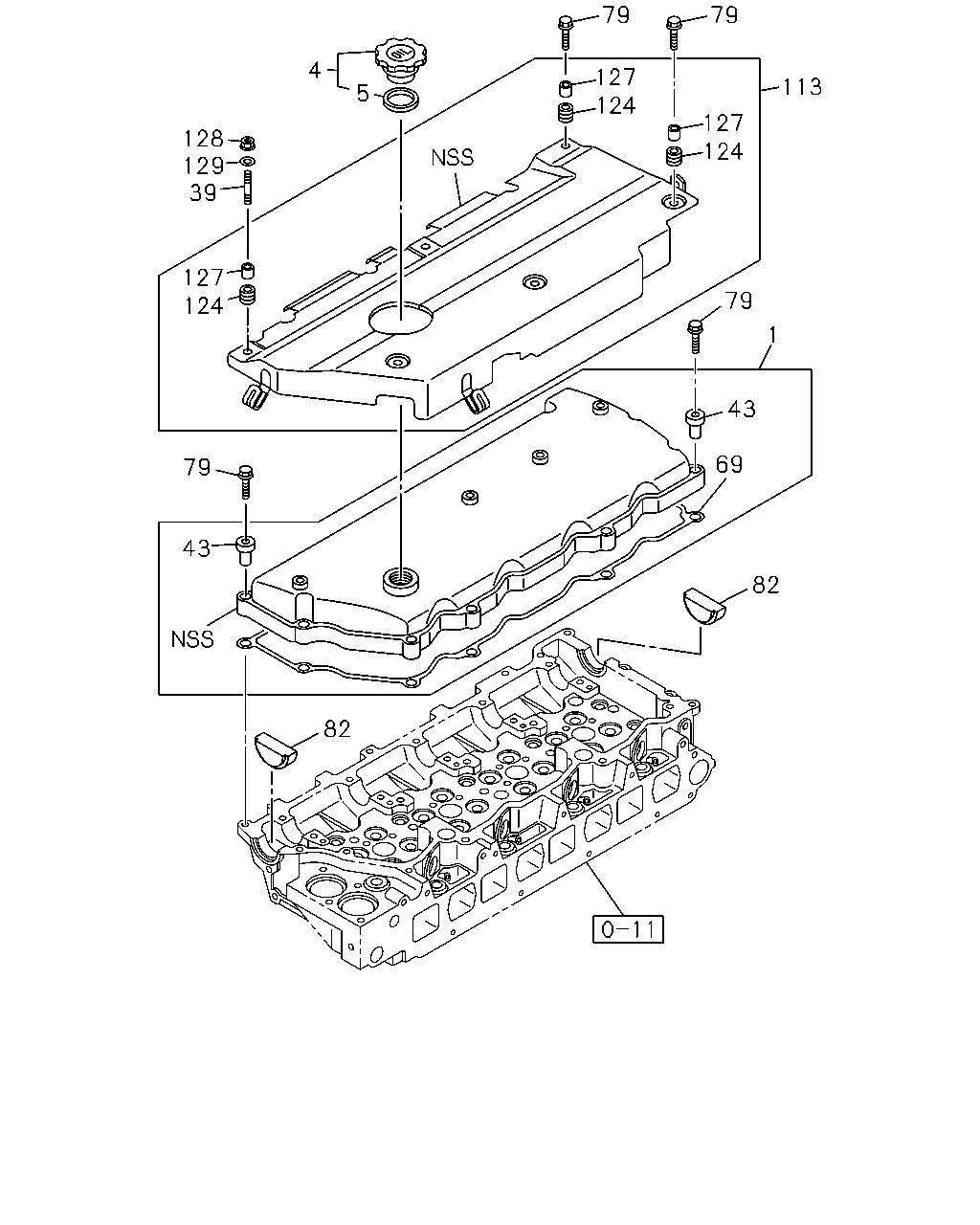

79 79 4 127 124 113 5 127 124 128 129 39 127 124 79 1 43 69 79 43 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1007-1007	●	●	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1008-	●	●	●	●
1	00.386 COVER; CYL HD TURBOCHARGER(K51)	8-97113-025-3	01	1	0211-0501	●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0211-0501					●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0502-0910				●		●	●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0911-1006	●	●	●	●		●	●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	1007-						●	●
1	00.386 COVER; CYL HD EXC. TURBOCHARGER(K51)	8-97226-760-1	01	1	0211-0501	●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0211-0501			●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0502-0910	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0211-0501	●		●		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0502-0506	●	●	●	●		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0507-0606	●	●	●	●		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0607-	●	●	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0502-0506	●	●	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0507-0606	●	●	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0607-	●	●	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0211-0501	●		●		●
43	00.413 RUBBER; MTG,HD COVER,OUTER TURBOCHARGER(K51) 03.265 OD=23	8-97105-689-6	15	1	0211-0501	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	0211-0501					●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	0502-0910				●		●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	0911-	●	●	●	●		●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER EXC. TURBOCHARGER(K51) OD=23	8-97190-120-2	08	1	0211-0501	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=23	8-97190-120-2	08	1	0211-0501			●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=23	8-97190-120-2	08	1	0502-0910	●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	0211-0501	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	0211-0501					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	0502-0910				●		●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	0911-	●	●	●	●		●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97189-871-1	01	1	0211-0501	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97189-871-1	01	1	0211-0501			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97189-871-1	01	1	0502-0910	●	●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0211-0501	●		●		●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0502-0506	●	●	●	●		●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0507-0606	●	●	●	●		●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0607-1005	●	●	●	●		●	●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1006-	●	●	●	●		●	●
