◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05A - ENGINE GASKET KIT ▶
0-05A — ENGINE GASKET KIT (#22538) — 186 parça
çizim 11640
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87813-963-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 0502-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87813-964-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 0502-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87813-965-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 0502-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-232-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-232-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 0911-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-035-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-233-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-233-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 0911-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-036-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-234-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-234-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 0911-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-037-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-229-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-229-1 01 1 0502-0910 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-957-4 01 1 0911-1312 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-123-1 01 1 1401- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-230-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-230-1 01 1 0502-0910 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-958-4 01 1 0911-1312 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-124-1 01 1 1401- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-231-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-231-1 01 1 0502-0910 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-959-4 01 1 0911-1312 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-125-1 01 1 1401- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-338-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87814-338-4 01 1 0502-1312 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87817-079-1 01 1 1401- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-339-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87814-339-4 01 1 0502-1312 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87817-080-1 01 1 1401- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-340-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87814-340-4 01 1 0502-1312 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87817-081-1 01 1 1401- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-353-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-354-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-355-2 01 1 0211-0501 ●

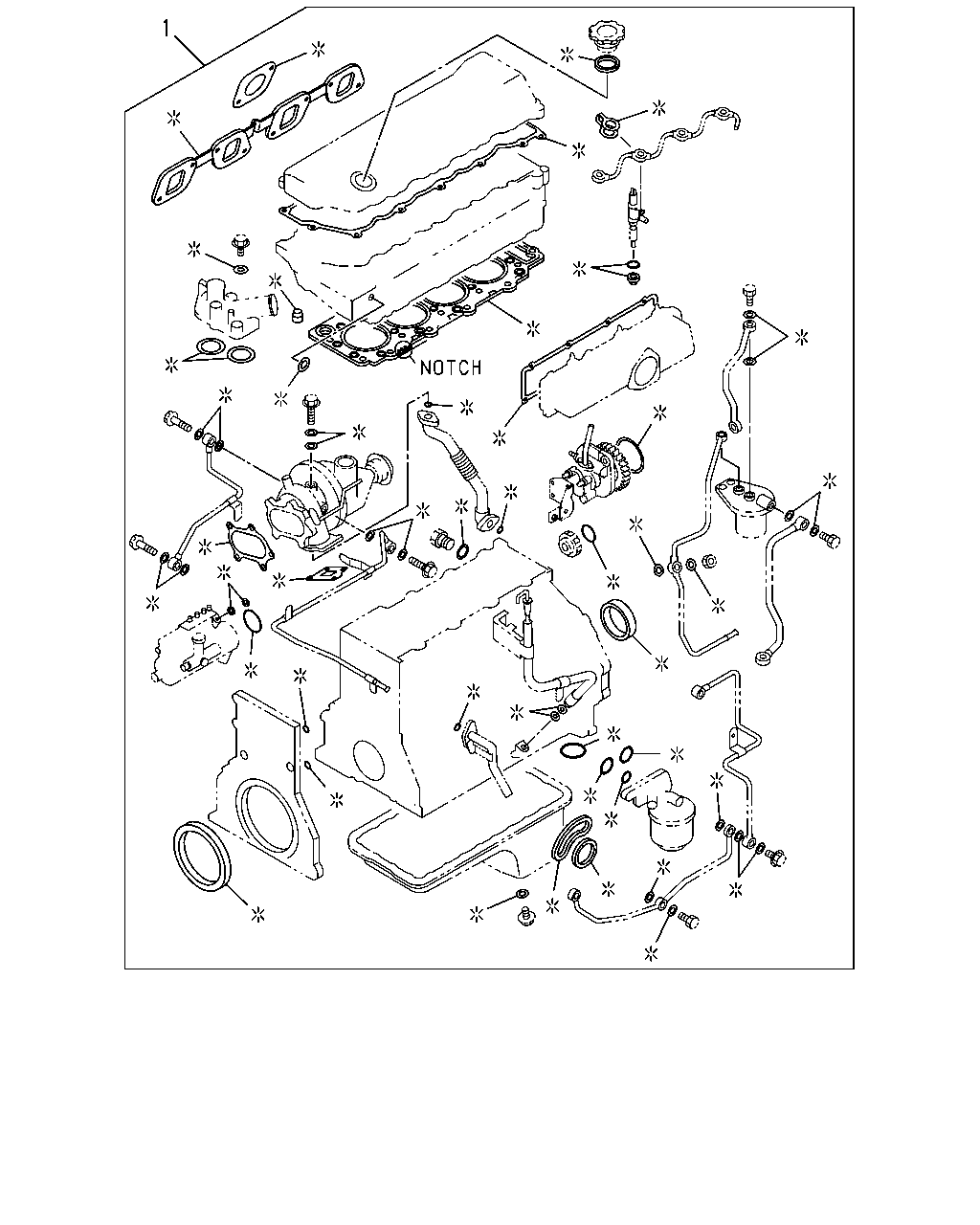

çizim 12424
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.70 WO/NOTCH 		5-87815-667-0 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.70 WO/NOTCH 		5-87815-730-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		5-87815-990-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		5-87817-195-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.75 1-NOTCH 		5-87815-668-0 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.75 1-NOTCH 		5-87815-731-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		5-87815-991-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		5-87817-196-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.80 2-NOTCH 		5-87815-669-0 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.80 2-NOTCH 		5-87815-732-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		5-87815-992-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		5-87817-197-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) T=1.70 WO/NOTCH 		5-87815-485-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) T=1.70 WO/NOTCH 		5-87815-721-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) T=1.70 WO/NOTCH 		5-87815-984-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) T=1.70 WO/NOTCH 		5-87817-189-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) T=1.75 1-NOTCH 		5-87815-486-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) T=1.75 1-NOTCH 		5-87815-722-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) T=1.75 1-NOTCH 		5-87815-985-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) T=1.75 1-NOTCH 		5-87817-190-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) T=1.80 2-NOTCH 		5-87815-487-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) T=1.80 2-NOTCH 		5-87815-723-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) T=1.80 2-NOTCH 		5-87815-986-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO3 SPECIFICATION(NT3) T=1.80 2-NOTCH 		5-87817-191-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87815-479-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87815-718-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87815-981-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		5-87817-110-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87815-480-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87815-719-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87815-982-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		5-87817-111-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87815-481-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87815-720-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87815-983-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF> 		5-87817-112-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87815-488-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87815-724-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87815-974-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> 		5-87817-116-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87815-489-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87815-725-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87815-975-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> 		5-87817-117-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87815-490-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87815-726-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87815-976-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> 		5-87817-118-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-350-2 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-350-3 01 1 0502-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-494-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-351-2 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-351-3 01 1 0502-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-495-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-352-2 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-352-3 01 1 0502-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-496-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-347-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-347-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 0911-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-029-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-348-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-348-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 0911-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-030-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-349-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-349-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 0911-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-031-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-344-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-344-4 01 1 0502-0910 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-428-4 01 1 0911-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-207-1 01 1 1401- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-345-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-345-4 01 1 0502-0910 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-429-4 01 1 0911-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-208-1 01 1 1401- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-346-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-346-4 01 1 0502-0910 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-430-4 01 1 0911-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-209-1 01 1 1401- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87814-335-1 01 1 0211-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87814-436-2 01 1 0308-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
VOLTAGE 24V<7AE> T=1.70 WO/NOTCH 		5-87814-436-2 01 1 0502-0506 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87814-436-3 01 1 0507-0902 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.70 WO/NOTCH 		5-87815-491-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.70 WO/NOTCH 		5-87815-727-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.70 WO/NOTCH 		5-87815-987-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.70 WO/NOTCH 		5-87817-192-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87814-336-1 01 1 0211-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87814-437-2 01 1 0308-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
VOLTAGE 24V<7AE> T=1.75 1-NOTCH 		5-87814-437-2 01 1 0502-0506 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87814-437-3 01 1 0507-0902 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.75 1-NOTCH 		5-87815-492-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.75 1-NOTCH 		5-87815-728-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.75 1-NOTCH 		5-87815-988-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.75 1-NOTCH 		5-87817-193-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87814-337-1 01 1 0211-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87814-438-2 01 1 0308-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
VOLTAGE 24V<7AE> T=1.80 2-NOTCH 		5-87814-438-2 01 1 0502-0506 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87814-438-3 01 1 0507-0902 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.80 2-NOTCH 		5-87815-493-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.80 2-NOTCH 		5-87815-729-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.80 2-NOTCH 		5-87815-989-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.80 2-NOTCH 		5-87817-194-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.70 WO/NOTCH 		5-87814-332-1 01 1 0211-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.70 WO/NOTCH 		5-87814-433-1 01 1 0308-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VOLTAGE 24V<7AE> T=1.70 WO/NOTCH 		5-87814-433-1 01 1 0502-0506 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.70 WO/NOTCH 		5-87814-433-2 01 1 0507-0902 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87815-482-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87815-712-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87815-971-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87817-076-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.75 1-NOTCH 		5-87814-333-1 01 1 0211-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.75 1-NOTCH 		5-87814-434-1 01 1 0308-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VOLTAGE 24V<7AE> T=1.75 1-NOTCH 		5-87814-434-1 01 1 0502-0506 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.75 1-NOTCH 		5-87814-434-2 01 1 0507-0902 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87815-483-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87815-713-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87815-972-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87817-077-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.80 2-NOTCH 		5-87814-334-1 01 1 0211-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.80 2-NOTCH 		5-87814-435-1 01 1 0308-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VOLTAGE 24V<7AE> T=1.80 2-NOTCH 		5-87814-435-1 01 1 0502-0506 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> T=1.80 2-NOTCH 		5-87814-435-2 01 1 0507-0902 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87815-484-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87815-714-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87815-973-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87817-078-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-341-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-342-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-343-3 01 1 0211-0501 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
