Isuzu WW
▶
TRUCKS
▶
NPR
▶
50947 - NPR/NQR LHDEXC.EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-01A - PARTIAL ENGINE
▶

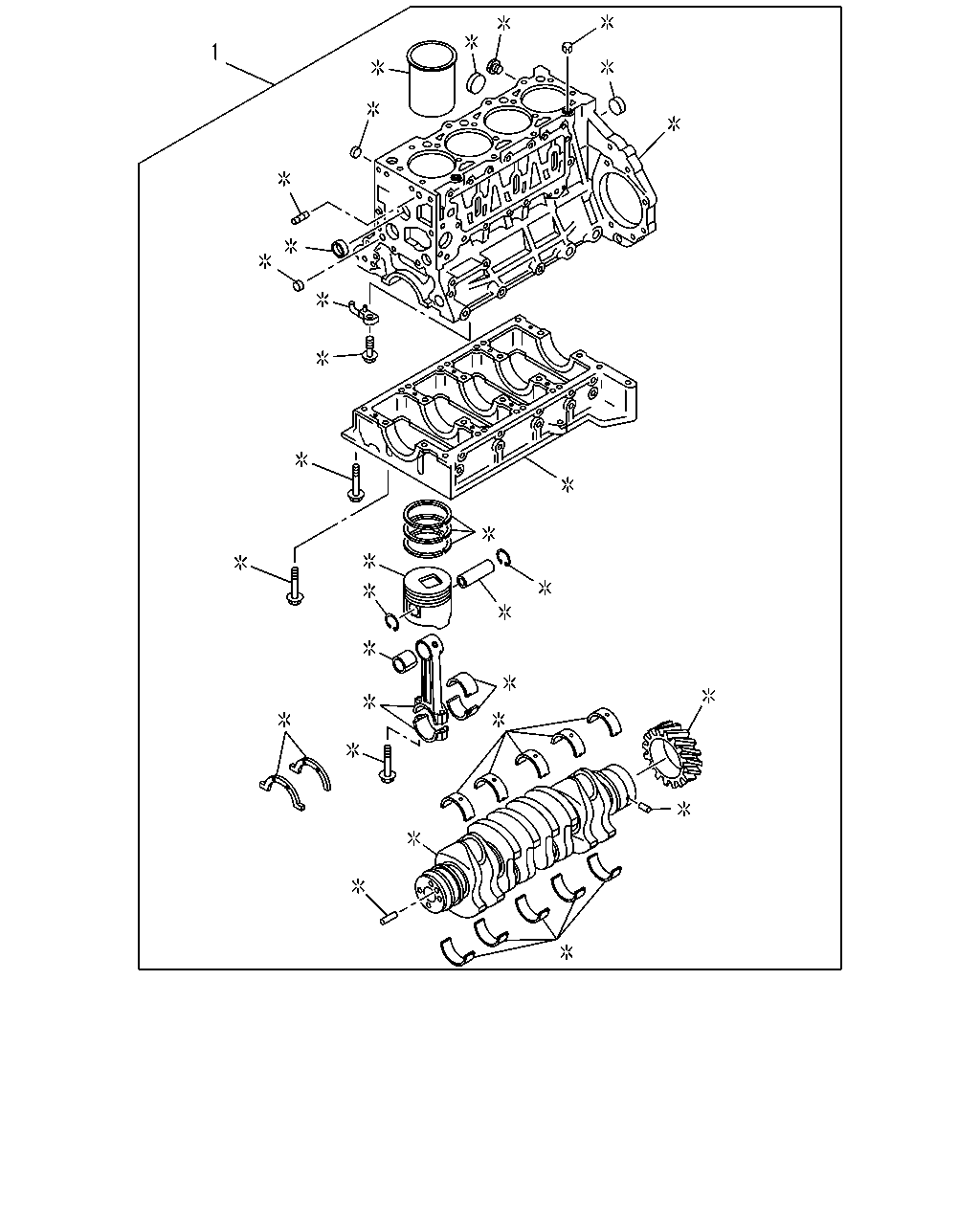

0-01A — PARTIAL ENGINE
(#22536) — 21 parça
Tümü
A - 4HG1 ENG
B - 4HG1-T ENG
C - 4HF1-S ENG
D - 4HF1-N ENG
E - 4HE1 ENG
F - 4HE1-TCN ENG
G - 4HE1-TCS ENG
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
1
00.033 ENGINE ASM; PARTIAL
TURBOCHARGER(K51)
5-87310-541-4
01
1
0211-0501
●
1
00.033 ENGINE ASM; PARTIAL
5-87310-541-4
01
1
0502-0504
●
1
00.033 ENGINE ASM; PARTIAL
5-87310-777-3
01
1
0505-0704
●
1
00.033 ENGINE ASM; PARTIAL
5-87310-934-4
01
1
0705-0910
●
1
00.033 ENGINE ASM; PARTIAL
5-87311-087-3
01
1
0911-1112
●
1
00.033 ENGINE ASM; PARTIAL
5-87311-155-2
01
1
1201-
●
1
00.033 ENGINE ASM; PARTIAL
EXC. TURBOCHARGER(K51)
5-87310-540-4
01
1
0211-0501
●
1
00.033 ENGINE ASM; PARTIAL
5-87310-540-4
01
1
0502-0504
●
1
00.033 ENGINE ASM; PARTIAL
5-87310-774-3
01
1
0505-0704
●
1
00.033 ENGINE ASM; PARTIAL
5-87310-933-4
01
1
0705-0910
●
1
00.033 ENGINE ASM; PARTIAL
5-87311-086-3
01
1
0911-1112
●
1
00.033 ENGINE ASM; PARTIAL
5-87311-157-2
01
1
1201-
●
1
00.033 ENGINE ASM; PARTIAL
5-87310-539-4
01
1
0211-0501
●
1
00.033 ENGINE ASM; PARTIAL
5-87310-539-7
01
1
0502-0704
●
●
1
00.033 ENGINE ASM; PARTIAL
5-87310-932-5
01
1
0705-0910
●
●
1
00.033 ENGINE ASM; PARTIAL
5-87311-085-3
01
1
0911-
●
●
1
00.033 ENGINE ASM; PARTIAL
CHARGE AIR COOLER<6PL>
5-87310-556-2
01
1
0211-0501
●
1
00.033 ENGINE ASM; PARTIAL
5-87310-556-5
01
1
0502-0706
●
●
1
00.033 ENGINE ASM; PARTIAL
5-87310-935-4
01
1
0707-0912
●
●
1
00.033 ENGINE ASM; PARTIAL
5-87311-083-4
01
1
1001-
●
●
1
00.033 ENGINE ASM; PARTIAL
EXC. CHARGE AIR COOLER<6PL>
5-87310-538-3
01
1
0211-0501
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
