◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#22525) — 189 parça

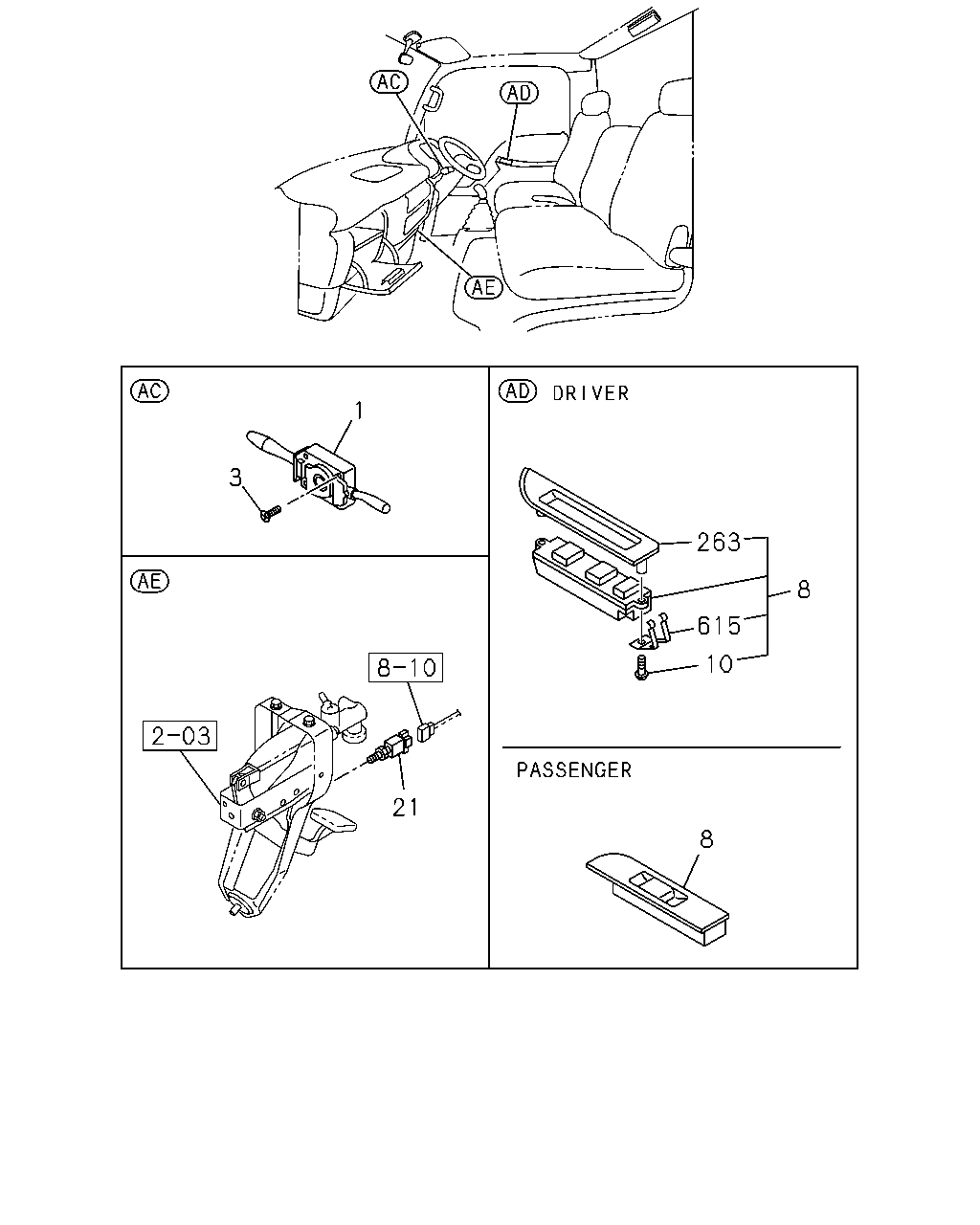

çizim 12737
1 3 263 8 615 10 21 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> 		8-97364-080-0 01 1 0302-0506 ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> 		8-97383-523-0 01 1 0507-0606 ● ● ●
1 02.895 SWITCH; COMB 8-97383-523-0 01 1 0607- ● ● ●
1 02.895 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8> 		8-97364-081-0 01 1 0302-0506 ● ● ●
1 02.895 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8> 		8-97383-524-0 01 1 0507-0606 ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0302-0604 ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		0-36220-520-0 04 1 0605-0612 ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 04 1 0701- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-398-0 01 1 0302-0703 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98075-445-0 01 1 0704-0907 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98147-235-0 01 1 0908- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97364-112-0 01 1 0302-0606 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-176-0 01 1 0607-0907 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98147-225-0 01 1 0908- ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0302- ● ● ●
21 02.575 SWITCH; CLU
4JH1 ENG(RJX) 		8-97260-603-0 01 1 0302-0506 ● ● ●
21 02.575 SWITCH; CLU
4JH1-TC ENG(RDM) 		8-97260-603-0 01 1 0507-0606 ● ● ●
21 02.575 SWITCH; CLU
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0607- ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 0302- ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0302- ● ● ●

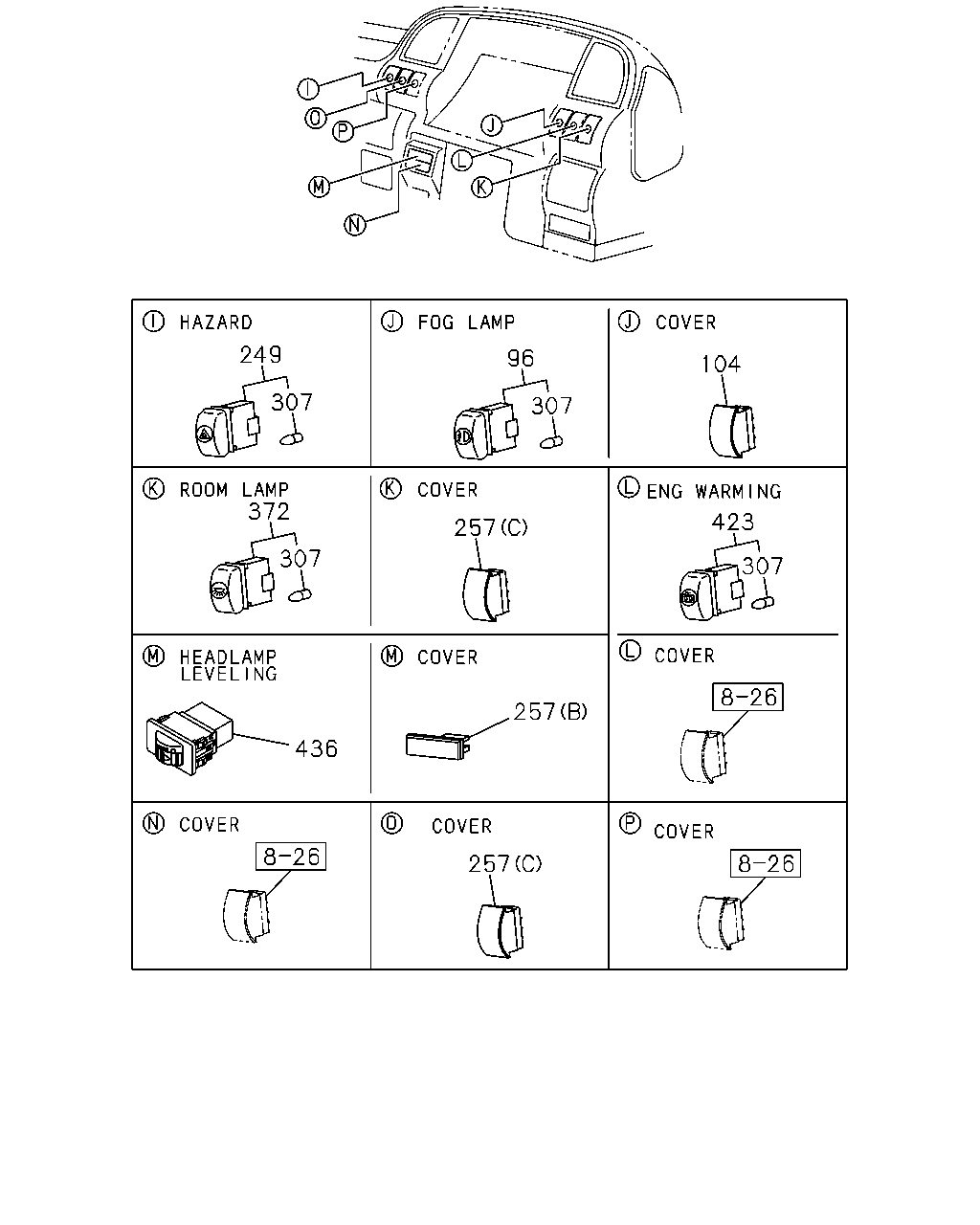

çizim 50884
249 96 104 307 307 372 423 257 307 307 257 436 257
BalonParca AdiParca NoAdetTipApplied Date A B C
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97206-020-1 01 1 0302-0606 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. ROOM LAMP SWITCH<7KL> 		8-97364-308-1 01 1 0607- ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0302-0606 ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-476-0 01 1 0302-0606 ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0302-0606 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.494 (A) 		8-94229-914-1 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0302-0506 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0507-0606 ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (C) 		8-97136-694-0 01 1 0507-0606 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP<T96>,ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (C) 		8-97136-694-0 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0302- ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 14V 60MA 		8-97116-329-0 02 1 0302-0504 ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0302-0504 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0505-0606 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 0607- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0607- ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 01 1 0607- ● ● ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) 14V 60MA 		8-97116-329-0 01 1 0302-0404 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0302-0404 ● ● ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) 14V 60MA 		8-97116-329-0 01 1 0405-0504 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0405-0504 ● ● ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) 14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ● ●
307 08.991 BULB ASM; SW
4JH1-TC ENG(RDM) 14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0607- ● ● ●
307 08.991 BULB ASM; SW
4JJ1 ENG(LFB) 28V 40MA 		8-97116-331-0 02 1 0607- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 02 1 0607- ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-692-0 01 1 0302-0606 ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. FOG LAMP<T96> 		8-97363-946-1 01 1 0607- ● ● ●
423 03.883 SWITCH; ENG WARMING
4JH1 ENG(RJX) 		8-97140-965-1 01 1 0302-0506 ● ● ●
423 03.883 SWITCH; ENG WARMING
4JH1-TC ENG(RDM) 		8-97140-965-1 01 1 0507-0606 ● ● ●
423 03.883 SWITCH; ENG WARMING
4JJ1 ENG(LFB) 		8-97136-814-1 01 1 0607- ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97260-401-1 01 1 0302- ● ● ●

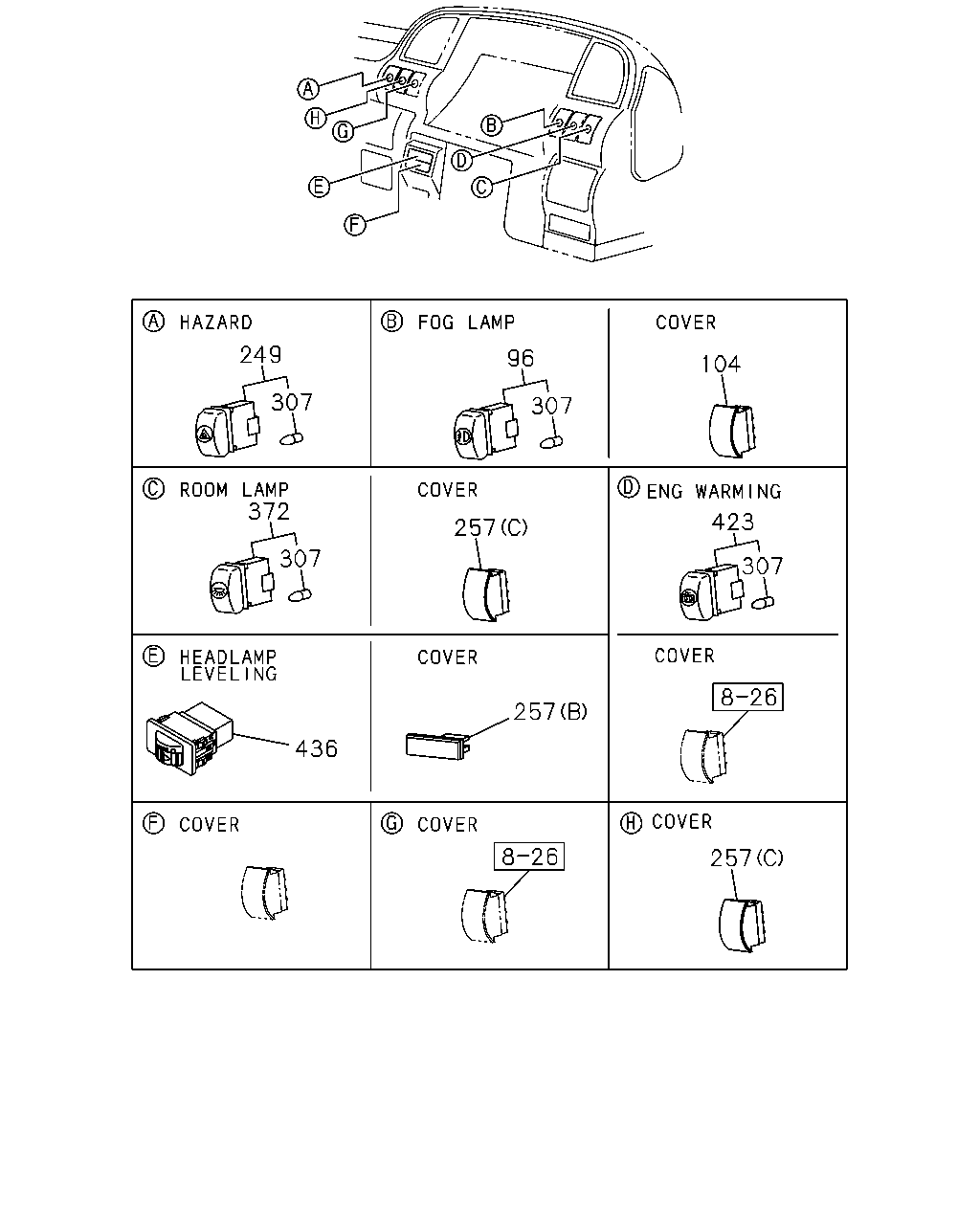

çizim 52135
249 96 104 307 307 372 423 257 307 307 257 436 257
BalonParca AdiParca NoAdetTipApplied Date A B C
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97206-020-1 01 1 0302-0606 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. ROOM LAMP SWITCH<7KL> 		8-97364-308-1 01 1 0607- ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0302-0606 ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-476-0 01 1 0302-0606 ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0302-0606 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.494 (A) 		8-94229-914-1 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0302-0506 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0507-0606 ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (C) 		8-97136-694-0 01 1 0507-0606 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP<T96>,ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (C) 		8-97136-694-0 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0302- ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 14V 60MA 		8-97116-329-0 02 1 0302-0504 ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0302-0504 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0505-0606 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 0607- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0607- ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 01 1 0607- ● ● ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) 14V 60MA 		8-97116-329-0 01 1 0302-0404 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0302-0404 ● ● ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) 14V 60MA 		8-97116-329-0 01 1 0405-0504 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0405-0504 ● ● ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) 14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ● ●
307 08.991 BULB ASM; SW
4JH1-TC ENG(RDM) 14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0607- ● ● ●
307 08.991 BULB ASM; SW
4JJ1 ENG(LFB) 28V 40MA 		8-97116-331-0 02 1 0607- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 02 1 0607- ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-692-0 01 1 0302-0606 ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. FOG LAMP<T96> 		8-97363-946-1 01 1 0607- ● ● ●
423 03.883 SWITCH; ENG WARMING
4JH1 ENG(RJX) 		8-97140-965-1 01 1 0302-0506 ● ● ●
423 03.883 SWITCH; ENG WARMING
4JH1-TC ENG(RDM) 		8-97140-965-1 01 1 0507-0606 ● ● ●
423 03.883 SWITCH; ENG WARMING
4JJ1 ENG(LFB) 		8-97136-814-1 01 1 0607- ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97260-401-1 01 1 0302- ● ● ●

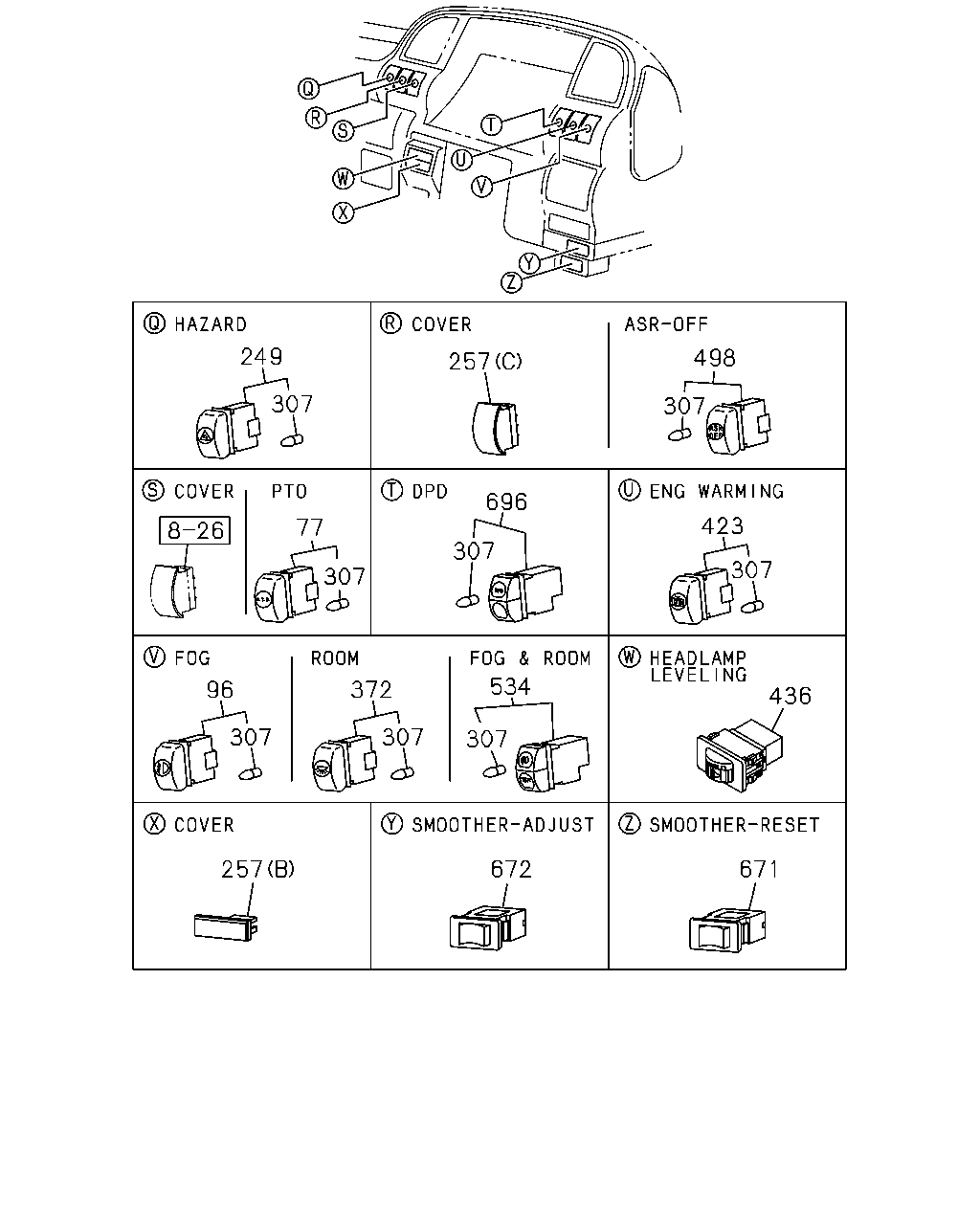

çizim 52734
249 498 257 307 307 696 423 77 307 307 307 534 372 96 436 307 307 307 257 672 671
BalonParca AdiParca NoAdetTipApplied Date A B C
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82340-537-0 01 1 0607- ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97206-020-1 01 1 0302-0606 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. ROOM LAMP SWITCH<7KL> 		8-97364-308-1 01 1 0607- ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-476-0 01 1 0302-0606 ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0302-0606 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.494 (A) 		8-94229-914-1 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0302-0506 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0507-0606 ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (C) 		8-97136-694-0 01 1 0507-0606 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP<T96>,ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (C) 		8-97136-694-0 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0302- ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 14V 60MA 		8-97116-329-0 02 1 0302-0504 ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0302-0504 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0505-0606 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 0607- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0607- ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 01 1 0607- ● ● ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) 14V 60MA 		8-97116-329-0 01 1 0302-0404 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0302-0404 ● ● ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) 14V 60MA 		8-97116-329-0 01 1 0405-0504 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0405-0504 ● ● ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) 14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ● ●
307 08.991 BULB ASM; SW
4JH1-TC ENG(RDM) 14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0607- ● ● ●
307 08.991 BULB ASM; SW
4JJ1 ENG(LFB) 28V 40MA 		8-97116-331-0 02 1 0607- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 02 1 0607- ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-692-0 01 1 0302-0606 ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. FOG LAMP<T96> 		8-97363-946-1 01 1 0607- ● ● ●
423 03.883 SWITCH; ENG WARMING
4JH1 ENG(RJX) 		8-97140-965-1 01 1 0302-0506 ● ● ●
423 03.883 SWITCH; ENG WARMING
4JH1-TC ENG(RDM) 		8-97140-965-1 01 1 0507-0606 ● ● ●
423 03.883 SWITCH; ENG WARMING
4JJ1 ENG(LFB) 		8-97136-814-1 01 1 0607- ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97260-401-1 01 1 0302- ● ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97140-601-0 01 1 0607- ● ● ●
534 02.780 SWITCH SET; FOG & ROOM
FOG LAMP<T96> ROOM LAMP SWITCH<7KL> 		8-97140-585-0 01 1 0607- ● ● ●
671 02.895 SWITCH; SMOOTHER,RESET
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.263 		8-97329-833-0 01 1 0607- ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97329-781-0 01 1 0607- ● ● ●
696 02.780 SWITCH; DPD 8-97366-763-2 01 1 0607- ● ● ●

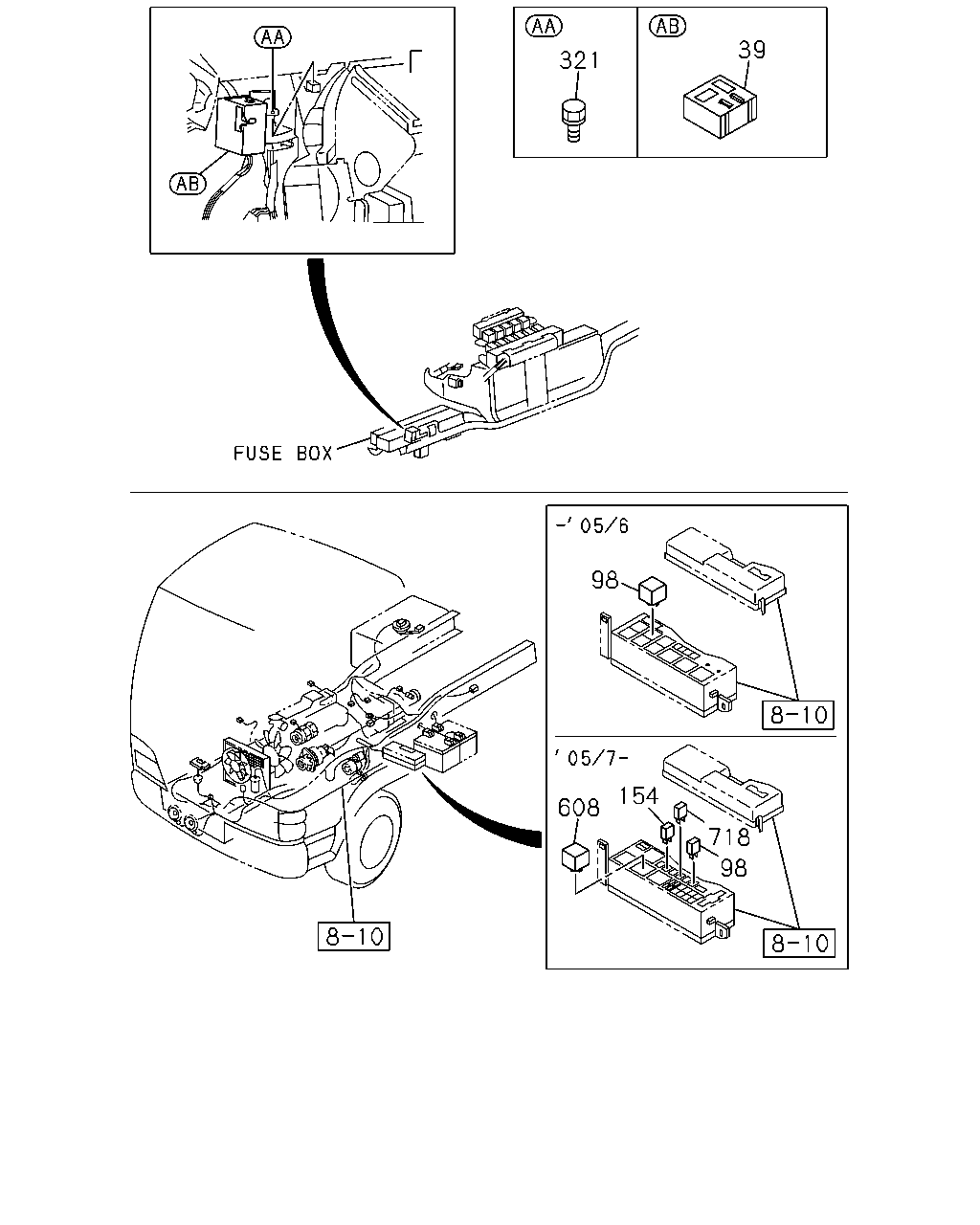

çizim 53046
39 321 98 154 608 718 98
BalonParca AdiParca NoAdetTipApplied Date A B C
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97359-591-0 01 1 0302-0606 ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 0607- ● ● ●
98 02.485 RELAY; RR FOG LAMP
08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
98 02.485 RELAY; RR FOG LAMP
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
154 09.277 RELAY; CONDENSER FAN
4JJ1 ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0607- ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 0302-0612 ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 TAPPING 		0-72180-516-0 01 1 0701-1101 ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 TAPPING 		0-72180-516-0 01 1 1301- ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A JIDECO 		8-97238-540-0 01 1 0607- ● ● ●
718 02.510 RELAY; DPD
08.852 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0607- ● ● ●

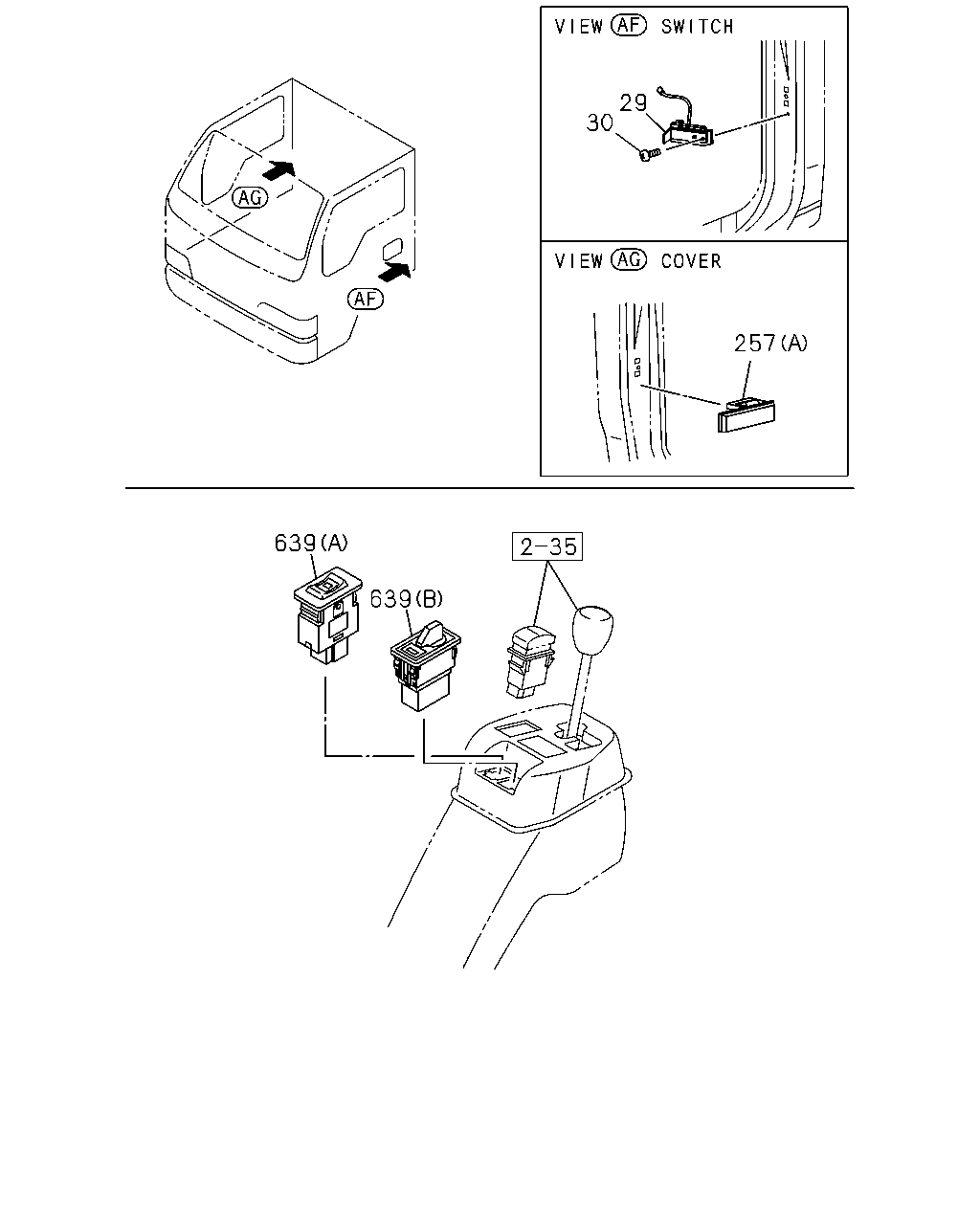

çizim 53609
29 30 257 639 639
BalonParca AdiParca NoAdetTipApplied Date A B C
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 0302-0606 ● ● ●
29 16.263 SWITCH; DOOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97855-032-3 01 1 0607- ● ● ●
29 16.263 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97855-032-3 02 1 0607- ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0302-0606 ● ● ●
30 16.263 SCREW; DOOR SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M5X16 		8-94279-341-0 01 1 0607- ● ● ●
30 16.263 SCREW; DOOR SW
TRANSMISSION CONTROL-SMOOTHER(8GF) M5X16 		8-94279-341-0 02 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0302-0606 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.494 (A) 		8-94229-914-1 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0302-0506 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0507-0606 ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (C) 		8-97136-694-0 01 1 0507-0606 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP<T96>,ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (C) 		8-97136-694-0 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0302- ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		1-82350-361-0 01 1 0607- ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97331-179-0 01 1 0607- ● ● ●
çizim 55314
85 531 550 12
BalonParca AdiParca NoAdetTipApplied Date A B C
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0607- ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0607- ● ● ●
531 02.515 RELAY; ECU
4JH1 ENG(RJX) 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
531 02.515 RELAY; ECU
4JH1-TC ENG(RDM) 08.852 12V 20A 		8-97060-926-1 01 1 0507-0606 ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●

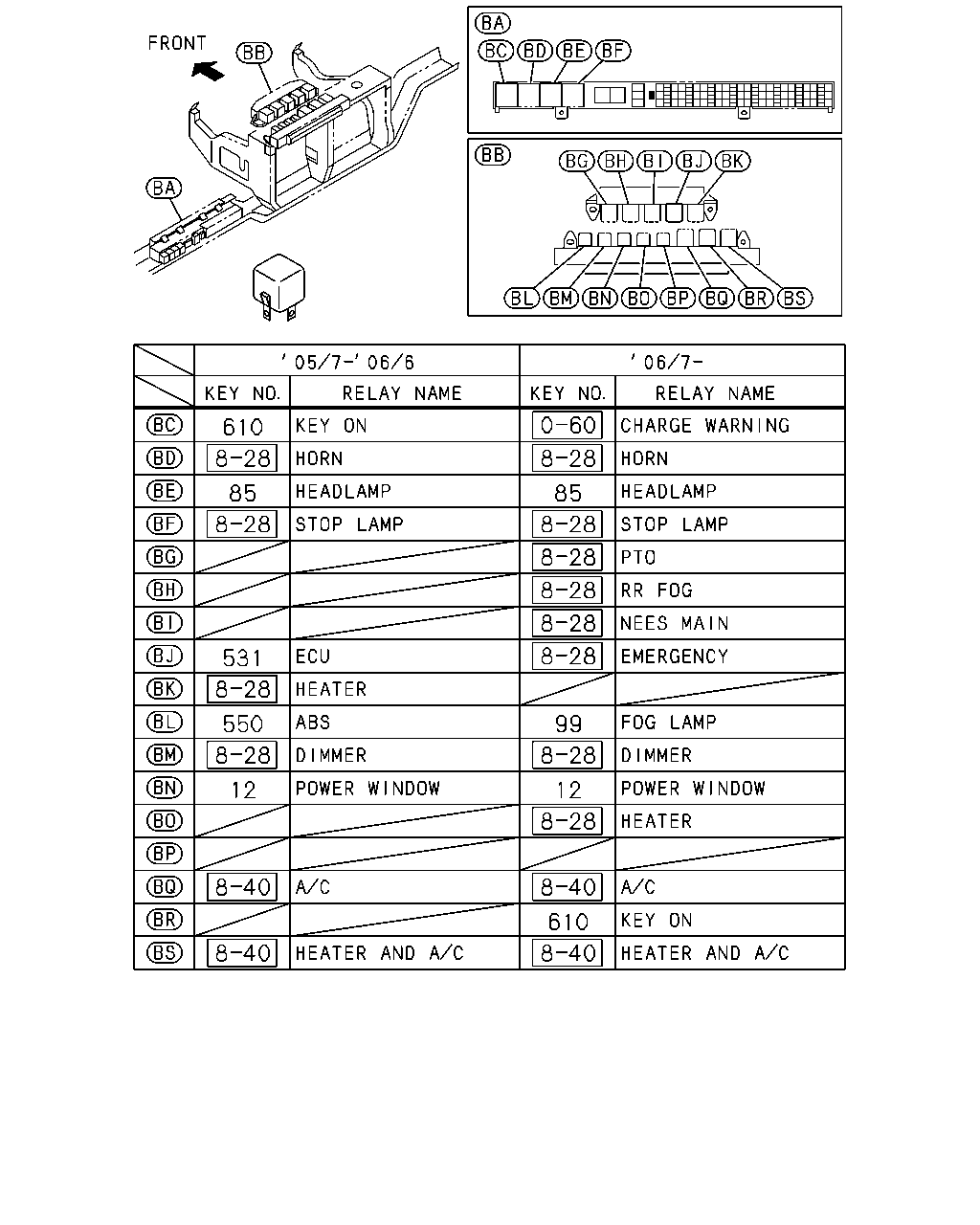

çizim 55378
610 85 85 531 550 99 12 12 610
BalonParca AdiParca NoAdetTipApplied Date A B C
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0607- ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0607- ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0607- ● ● ●
531 02.515 RELAY; ECU
4JH1 ENG(RJX) 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
531 02.515 RELAY; ECU
4JH1-TC ENG(RDM) 08.852 12V 20A 		8-97060-926-1 01 1 0507-0606 ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
610 02.510 RELAY; KEY ON
12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0607- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
