Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#22520) — 331 parça

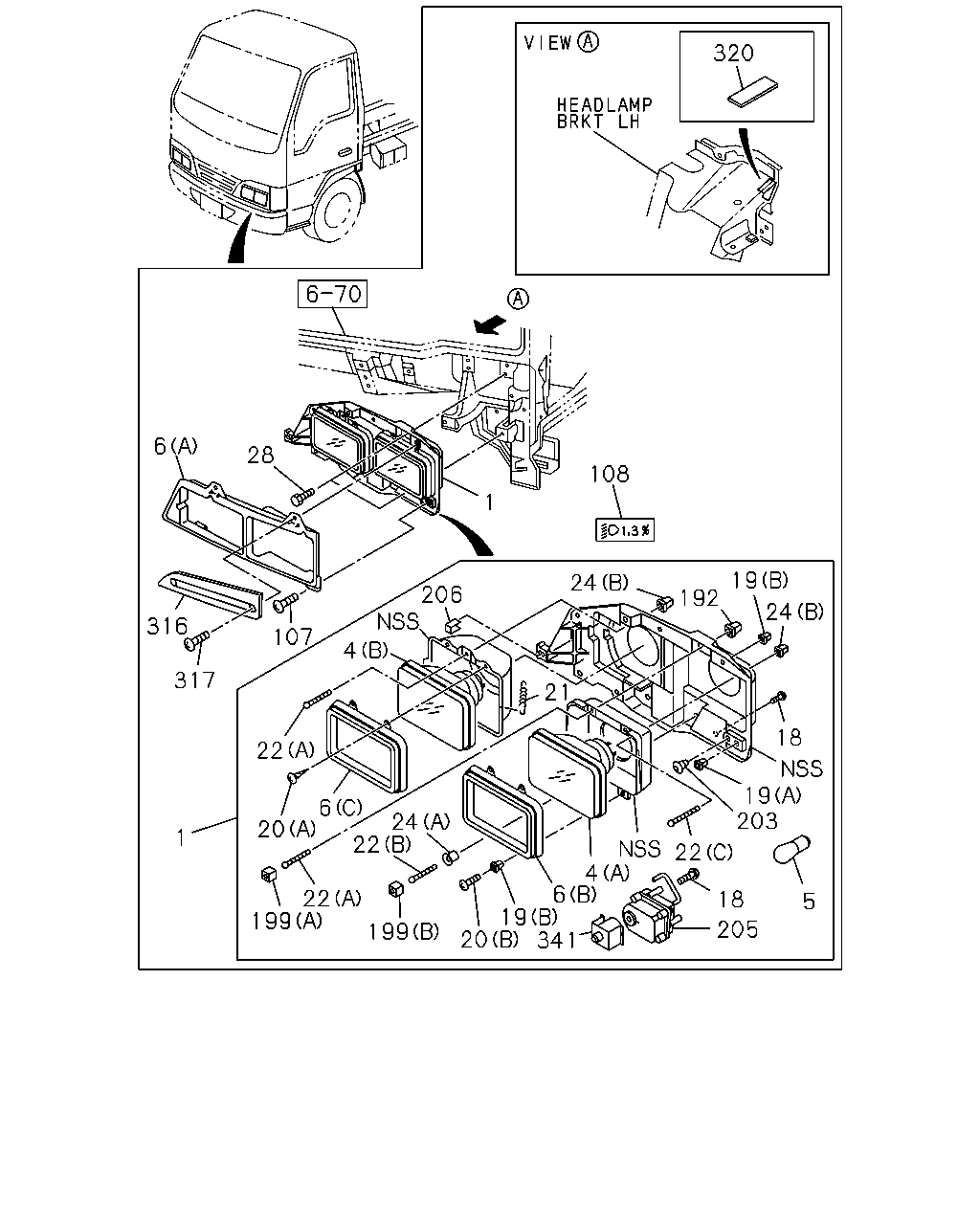

320 6 28 108 1 19 24 206 192 24 316 107 21 4 317 18 22 19 203 6 24 22 20 1 4 6 19 22 22 199 18 5 205 199 341 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC> 12V 60/55W	8-97260-772-0	01	1	0302-0506	●	●	●
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC> 12V 60/55W	8-97365-161-6	01	1	0507-0606	●	●	●
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC> 24V 75/70W	8-97365-163-6	01	1	0607-	●	●	●
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC> 12V 60/55W	8-97260-771-0	01	1	0302-0506	●	●	●
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC> 12V 60/55W	8-97365-160-6	01	1	0507-0606	●	●	●
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC> 24V 75/70W	8-97365-162-6	01	1	0607-	●	●	●
1	02.725 LAMP ASM; HEAD EXC. ADJUST HEADLAMP<6RC> 12V 60/55W	8-97855-050-4	01	1	0302-0506	●	●	●
1	02.725 LAMP ASM; HEAD EXC. ADJUST HEADLAMP<6RC> 12V 60/55W	8-97372-527-5	01	1	0507-0606	●	●	●
1	02.725 LAMP ASM; HEAD EXC. ADJUST HEADLAMP<6RC> 24V 75/70W	8-97372-529-5	01	1	0607-	●	●	●
1	02.725 LAMP ASM; HEAD EXC. ADJUST HEADLAMP<6RC> 12V 60/55W	8-97855-049-4	01	1	0302-0506	●	●	●
1	02.725 LAMP ASM; HEAD EXC. ADJUST HEADLAMP<6RC> 12V 60/55W	8-97372-526-5	01	1	0507-0606	●	●	●
1	02.725 LAMP ASM; HEAD EXC. ADJUST HEADLAMP<6RC> 24V 75/70W	8-97372-528-5	01	1	0607-	●	●	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (A) 12V 40/60W	8-97855-197-0	02	1	0302-0506	●	●	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (C)	8-98009-816-0	01	1	0507-0606	●	●	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (C)	8-98009-814-0	01	1	0607-	●	●	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (B)	8-97855-202-0	02	1	0302-0506	●	●	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (C)	8-98009-817-0	01	1	0507-0606	●	●	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (C)	8-98009-815-0	01	1	0607-	●	●	●
4	02.727 HEADLAMP UNIT EXC. ADJUST HEADLAMP<6RC> (A)	8-97855-200-0	02	1	0302-0506	●	●	●
4	02.727 HEADLAMP UNIT EXC. ADJUST HEADLAMP<6RC> (C)	8-98009-820-0	01	1	0507-0606	●	●	●
4	02.727 HEADLAMP UNIT EXC. ADJUST HEADLAMP<6RC> (C)	8-98009-818-0	01	1	0607-	●	●	●
4	02.727 HEADLAMP UNIT EXC. ADJUST HEADLAMP<6RC> (B)	8-97855-204-0	02	1	0302-0506	●	●	●
4	02.727 HEADLAMP UNIT EXC. ADJUST HEADLAMP<6RC> (C)	8-98009-821-0	01	1	0507-0606	●	●	●
4	02.727 HEADLAMP UNIT EXC. ADJUST HEADLAMP<6RC> (C)	8-98009-819-0	01	1	0607-	●	●	●
5	02.727 BULB; HEADLAMP 12V 55W	5-82195-001-0	02	1	0302-0506	●	●	●
5	02.727 BULB; HEADLAMP 12V 60/55W	8-94217-817-0	02	1	0302-0506	●	●	●
5	02.727 BULB; HEADLAMP 12V 60/55W	8-97106-708-0	02	1	0507-0606	●	●	●
5	02.727 BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	0607-	●	●	●
6	02.728 RIM; HEADLAMP (C)	1-82114-016-0	02	1	0302-0506	●	●	●
6	02.728 RIM; HEADLAMP (B)	8-97855-211-0	02	1	0302-0506	●	●	●
6	02.728 RIM; HEADLAMP (A)	8-97581-089-0	01	1	0302-0506	●	●	●
6	02.728 RIM; HEADLAMP (A)	8-97581-088-0	01	1	0302-0506	●	●	●
18	02.726 SCREW; GEAR CASE ADJUST HEADLAMP<6RC>	1-82119-086-0	06	1	0302-0506	●	●	●
19	02.726 NUT; HEADLAMP (A)	8-97044-618-0	08	1	0302-0506	●	●	●
19	02.726 NUT; HEADLAMP (B)	8-97044-623-0	08	1	0302-0506	●	●	●
20	02.736 SCREW; HEADLAMP (A) M4X8	8-94165-886-0	08	1	0302-0506	●	●	●
20	02.736 SCREW; HEADLAMP (C)	8-97378-871-0	02	1	0507-	●	●	●
20	02.736 SCREW; HEADLAMP (B)	8-97228-675-0	08	1	0302-0506	●	●	●
21	02.737 SPRING; ADJ HEADLAMP	1-82119-021-0	02	1	0302-0506	●	●	●
22	02.726 SCREW; ADJ,HEADLAMP (A)	8-97855-205-0	04	1	0302-0506	●	●	●
22	02.726 SCREW; ADJ,HEADLAMP (C)	8-97855-207-0	02	1	0302-0506	●	●	●
22	02.726 SCREW; ADJ,HEADLAMP EXC. ADJUST HEADLAMP<6RC> (B)	8-97855-206-0	02	1	0302-0506	●	●	●
24	02.737 MOUNTING; ADJ SCREW HD LAMP (B)	8-94387-097-0	06	1	0302-0506	●	●	●
24	02.737 MOUNTING; ADJ SCREW HD LAMP EXC. ADJUST HEADLAMP<6RC> (A)	8-97855-208-0	02	1	0302-0506	●	●	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0302-0607	●	●	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0608-	●	●	●
107	02.729 SCREW; RIM,HEADLAMP M4X20 TAPPING	8-97326-998-0	04	1	0302-0506	●	●	●
108	02.729 SEAL; HEADLAMP RIM ADJUST HEADLAMP<6RC>	8-97049-114-0	01	1	0302-0506	●	●	●
192	02.765 PIVOT; HEADLAMP 02.737	8-94381-595-0	02	1	0302-0506	●	●	●
199	02.737 BUSHING (A)	8-94381-605-0	04	1	0302-0506	●	●	●
199	02.737 BUSHING (B)	8-97855-212-0	02	1	0302-0506	●	●	●
203	02.726 FASTENER; HEADLAMP	8-94382-231-0	04	1	0302-0506	●	●	●
205	02.727 ACTUATOR; HEADLAMP ADJUST HEADLAMP<6RC>	8-97309-102-0	02	1	0302-0506	●	●	●
206	02.727 HOLDER; HEADLAMP	8-97868-156-0	02	1	0302-0506	●	●	●
316	02.726 ORNAMENT; HEAD LAMP EXTERIOR ORNAMENTATION DELUXE<B57>	8-97994-793-0	01	1	0302-0506	●	●	●
316	02.726 ORNAMENT; HEAD LAMP EXTERIOR ORNAMENTATION DELUXE<B57>	8-97994-791-0	01	1	0302-0406	●	●	●
316	02.726 ORNAMENT; HEAD LAMP EXTERIOR ORNAMENTATION DELUXE<B57>	8-97580-591-0	01	1	0407-0506	●	●	●
316	02.726 ORNAMENT; HEAD LAMP EXC. EXTERIOR ORNAMENTATION DELUXE<B57>	8-97867-863-0	01	1	0302-0506	●	●	●
316	02.726 ORNAMENT; HEAD LAMP EXC. EXTERIOR ORNAMENTATION DELUXE<B57>	8-97867-864-0	01	1	0302-0506	●	●	●
317	02.726 SCREW; ORNAMENT 02.729 M4X20 TAPPING	8-97326-998-0	04	1	0302-0506	●	●	●
320	02.726 SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	0302-	●	●	●
341	02.726 BRACKET; ACTUATOR ADJUST HEADLAMP<6RC>	8-97855-210-0	02	1	0302-0506	●	●	●

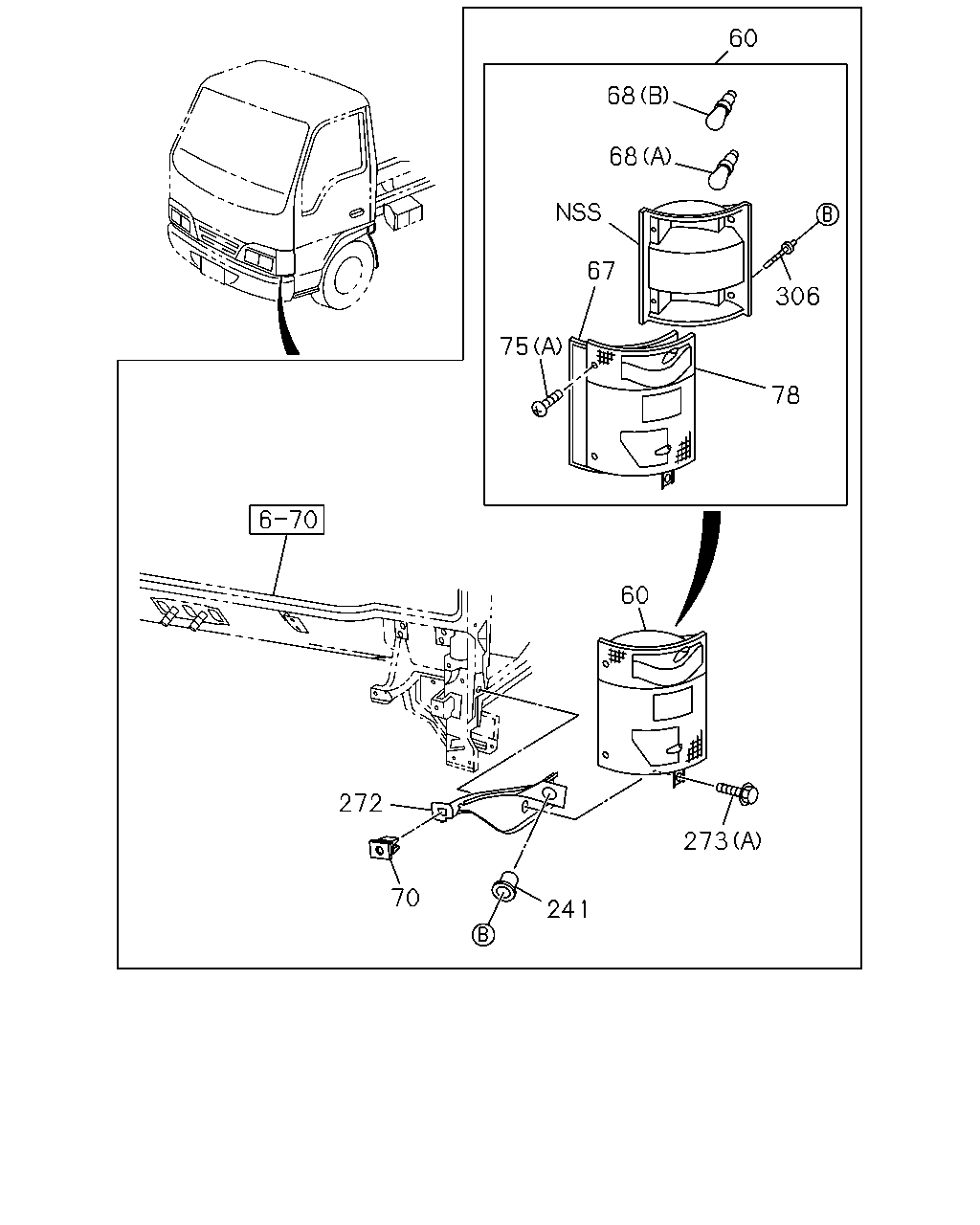

60 68 68 67 306 75 78 60 272 273 70 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
60	02.585 LAMP ASM; FRT COMB	8-97855-111-2	01	1	0302-0506	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98010-882-0	01	1	0507-0606	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98010-884-0	01	1	0607-0701	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98053-941-0	01	1	0702-	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-97855-110-2	01	1	0302-0506	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98010-881-0	01	1	0507-0606	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98010-883-0	01	1	0607-0701	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98053-940-0	01	1	0702-	●	●	●
67	02.590 GASKET; FRT COMB LAMP	8-97855-121-0	02	1	0302-0506	●	●	●
67	02.590 GASKET; FRT COMB LAMP	8-97378-948-0	02	1	0507-	●	●	●
68	08.991 BULB; FRT COMB LAMP (B) 12V 21W	8-94124-074-0	02	1	0302-0506	●	●	●
68	08.991 BULB; FRT COMB LAMP (C) 12V 21/5W	8-94125-959-0	02	1	0507-0606	●	●	●
68	08.991 BULB; FRT COMB LAMP (C) 24V 21/5W	8-94125-957-0	02	1	0607-	●	●	●
68	08.991 BULB; FRT COMB LAMP (A) 12V 10W	8-94126-494-0	02	1	0302-0506	●	●	●
68	08.991 BULB; FRT COMB LAMP (D) 12V 21W	8-97304-590-0	02	1	0507-0606	●	●	●
68	08.991 BULB; FRT COMB LAMP (D) 24V 21W AMBER	8-97323-806-0	02	1	0607-	●	●	●
70	02.587 GROMMET; SCREW,FRT COMB LAMP	8-97030-792-0	04	1	0302-0506	●	●	●
70	02.587 GROMMET; SCREW,FRT COMB LAMP 16.445	1-09983-081-0	02	1	0507-	●	●	●
75	02.587 SCREW; FRT COMB LAMP 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0302-0506	●	●	●
75	02.587 SCREW; FRT COMB LAMP (C) M6X16 TAPPING	8-97374-995-0	02	1	0507-	●	●	●
75	02.587 SCREW; FRT COMB LAMP (B) M4X12	8-97378-944-0	14	1	0507-	●	●	●
78	02.589 LENS ASM; FRT COMB	8-97855-133-0	01	1	0302-0506	●	●	●
78	02.589 LENS ASM; FRT COMB	8-97855-130-0	01	1	0302-0506	●	●	●
241	02.726 GROMMET; FRT LAMP	8-94452-095-0	04	1	0302-0506	●	●	●
241	02.726 GROMMET; FRT LAMP	8-97380-030-0	02	1	0507-	●	●	●
272	02.726 BRACKET; FRT COMB LAMP	8-97853-237-2	01	1	0302-0506	●	●	●
272	02.726 BRACKET; FRT COMB LAMP	8-97853-236-2	01	1	0302-0506	●	●	●
273	02.726 BOLT; BRKT 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0302-0506	●	●	●
273	02.726 BOLT; BRKT EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.023 (B) M10X30 FLANGE	0-28691-030-0	01	1	0302-0512			●
273	02.726 BOLT; BRKT EXC. IDENTIFICATION LABEL FOR KD<6UT> 07.068 (B) M10X30 FLANGE	0-28661-030-0	01	1	0601-			●
306	02.587 PIVOT; FRT COMB LAMP	8-97219-053-0	04	1	0302-0506	●	●	●

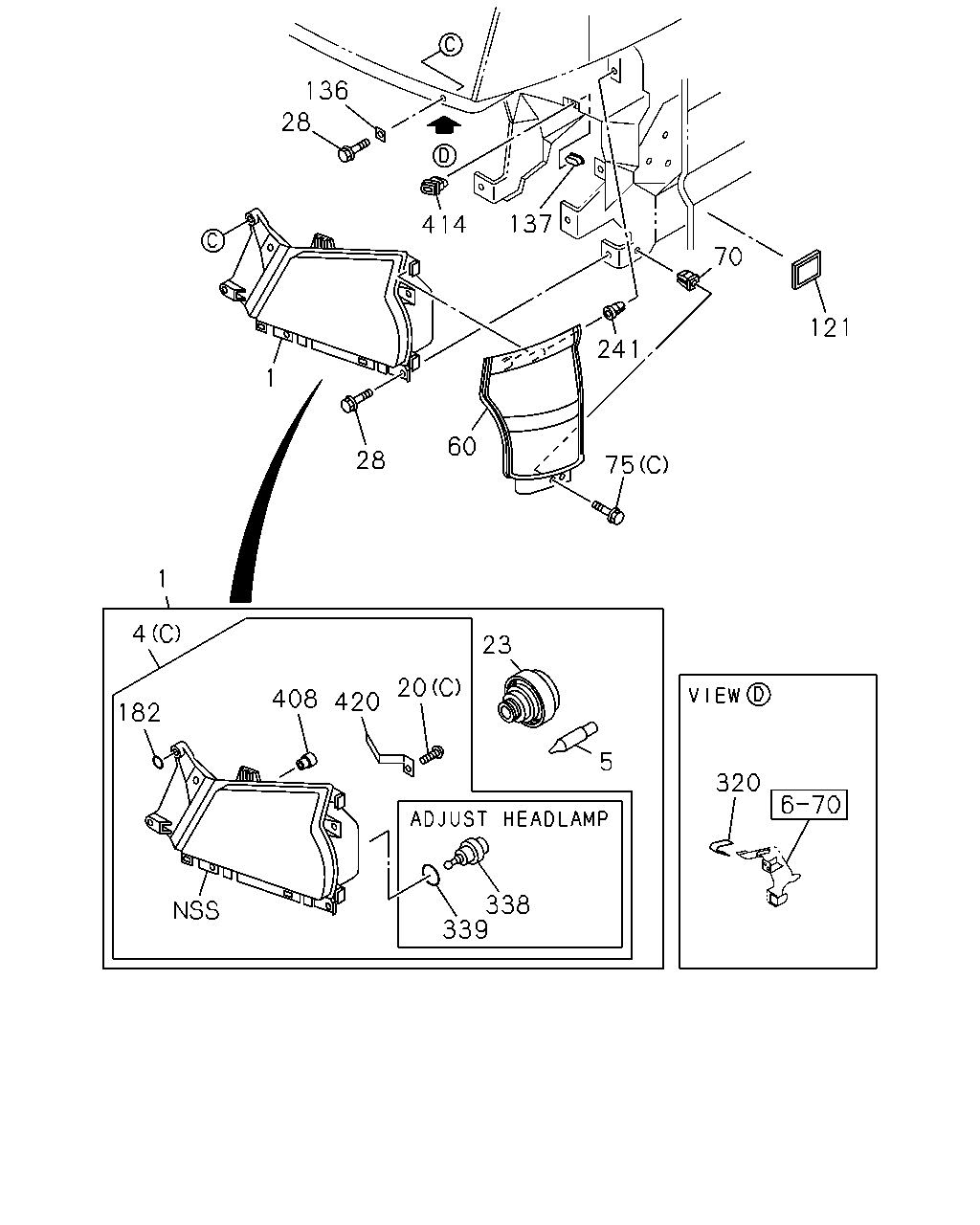

136 28 137 414 70 121 241 1 60 28 75 1 4 23 20 408 420 182 5 320 338 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC> 12V 60/55W	8-97260-772-0	01	1	0302-0506	●	●	●
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC> 12V 60/55W	8-97365-161-6	01	1	0507-0606	●	●	●
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC> 24V 75/70W	8-97365-163-6	01	1	0607-	●	●	●
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC> 12V 60/55W	8-97260-771-0	01	1	0302-0506	●	●	●
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC> 12V 60/55W	8-97365-160-6	01	1	0507-0606	●	●	●
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC> 24V 75/70W	8-97365-162-6	01	1	0607-	●	●	●
1	02.725 LAMP ASM; HEAD EXC. ADJUST HEADLAMP<6RC> 12V 60/55W	8-97855-050-4	01	1	0302-0506	●	●	●
1	02.725 LAMP ASM; HEAD EXC. ADJUST HEADLAMP<6RC> 12V 60/55W	8-97372-527-5	01	1	0507-0606	●	●	●
1	02.725 LAMP ASM; HEAD EXC. ADJUST HEADLAMP<6RC> 24V 75/70W	8-97372-529-5	01	1	0607-	●	●	●
1	02.725 LAMP ASM; HEAD EXC. ADJUST HEADLAMP<6RC> 12V 60/55W	8-97855-049-4	01	1	0302-0506	●	●	●
1	02.725 LAMP ASM; HEAD EXC. ADJUST HEADLAMP<6RC> 12V 60/55W	8-97372-526-5	01	1	0507-0606	●	●	●
1	02.725 LAMP ASM; HEAD EXC. ADJUST HEADLAMP<6RC> 24V 75/70W	8-97372-528-5	01	1	0607-	●	●	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (A) 12V 40/60W	8-97855-197-0	02	1	0302-0506	●	●	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (C)	8-98009-816-0	01	1	0507-0606	●	●	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (C)	8-98009-814-0	01	1	0607-	●	●	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (B)	8-97855-202-0	02	1	0302-0506	●	●	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (C)	8-98009-817-0	01	1	0507-0606	●	●	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (C)	8-98009-815-0	01	1	0607-	●	●	●
4	02.727 HEADLAMP UNIT EXC. ADJUST HEADLAMP<6RC> (A)	8-97855-200-0	02	1	0302-0506	●	●	●
4	02.727 HEADLAMP UNIT EXC. ADJUST HEADLAMP<6RC> (C)	8-98009-820-0	01	1	0507-0606	●	●	●
4	02.727 HEADLAMP UNIT EXC. ADJUST HEADLAMP<6RC> (C)	8-98009-818-0	01	1	0607-	●	●	●
4	02.727 HEADLAMP UNIT EXC. ADJUST HEADLAMP<6RC> (B)	8-97855-204-0	02	1	0302-0506	●	●	●
4	02.727 HEADLAMP UNIT EXC. ADJUST HEADLAMP<6RC> (C)	8-98009-821-0	01	1	0507-0606	●	●	●
4	02.727 HEADLAMP UNIT EXC. ADJUST HEADLAMP<6RC> (C)	8-98009-819-0	01	1	0607-	●	●	●
5	02.727 BULB; HEADLAMP 12V 55W	5-82195-001-0	02	1	0302-0506	●	●	●
5	02.727 BULB; HEADLAMP 12V 60/55W	8-94217-817-0	02	1	0302-0506	●	●	●
5	02.727 BULB; HEADLAMP 12V 60/55W	8-97106-708-0	02	1	0507-0606	●	●	●
5	02.727 BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	0607-	●	●	●
20	02.736 SCREW; HEADLAMP (A) M4X8	8-94165-886-0	08	1	0302-0506	●	●	●
20	02.736 SCREW; HEADLAMP (C)	8-97378-871-0	02	1	0507-	●	●	●
20	02.736 SCREW; HEADLAMP (B)	8-97228-675-0	08	1	0302-0506	●	●	●
23	02.727 COVER; BULB,HEADLAMP	8-97232-491-0	02	1	0507-	●	●	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0302-0607	●	●	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0608-	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-97855-111-2	01	1	0302-0506	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98010-882-0	01	1	0507-0606	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98010-884-0	01	1	0607-0701	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98053-941-0	01	1	0702-	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-97855-110-2	01	1	0302-0506	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98010-881-0	01	1	0507-0606	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98010-883-0	01	1	0607-0701	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98053-940-0	01	1	0702-	●	●	●
70	02.587 GROMMET; SCREW,FRT COMB LAMP	8-97030-792-0	04	1	0302-0506	●	●	●
70	02.587 GROMMET; SCREW,FRT COMB LAMP 16.445	1-09983-081-0	02	1	0507-	●	●	●
75	02.587 SCREW; FRT COMB LAMP 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0302-0506	●	●	●
75	02.587 SCREW; FRT COMB LAMP (C) M6X16 TAPPING	8-97374-995-0	02	1	0507-	●	●	●
75	02.587 SCREW; FRT COMB LAMP (B) M4X12	8-97378-944-0	14	1	0507-	●	●	●
121	02.575 REFLECTOR; REFLEX	8-98013-990-1	02	1	0507-	●	●	●
136	02.726 SEAL; HEADLAMP 03.602 25X25	8-94272-533-0	02	1	0507-	●	●	●
137	02.726 GROMMET; HEADLAMP	8-97581-666-0	02	1	0507-	●	●	●
182	02.722 GASKET; HEADLAMP	8-97378-869-0	02	1	0507-	●	●	●
241	02.726 GROMMET; FRT LAMP	8-94452-095-0	04	1	0302-0506	●	●	●
241	02.726 GROMMET; FRT LAMP	8-97380-030-0	02	1	0507-	●	●	●
320	02.726 SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	0302-	●	●	●
338	02.727 LEVELING; HEADLAMP ADJUST HEADLAMP<6RC>	8-98010-256-0	02	1	0507-	●	●	●
339	02.587 GASKET; LEVELING ADJUST HEADLAMP<6RC>	8-97378-870-0	02	1	0507-	●	●	●
408	02.727 CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	0507-	●	●	●
414	02.736 PIN; HEADLAMP,RIM	8-97581-667-0	02	1	0507-	●	●	●
420	02.737 SPRING; BULB,HEADLAMP	8-97378-875-0	02	1	0507-	●	●	●

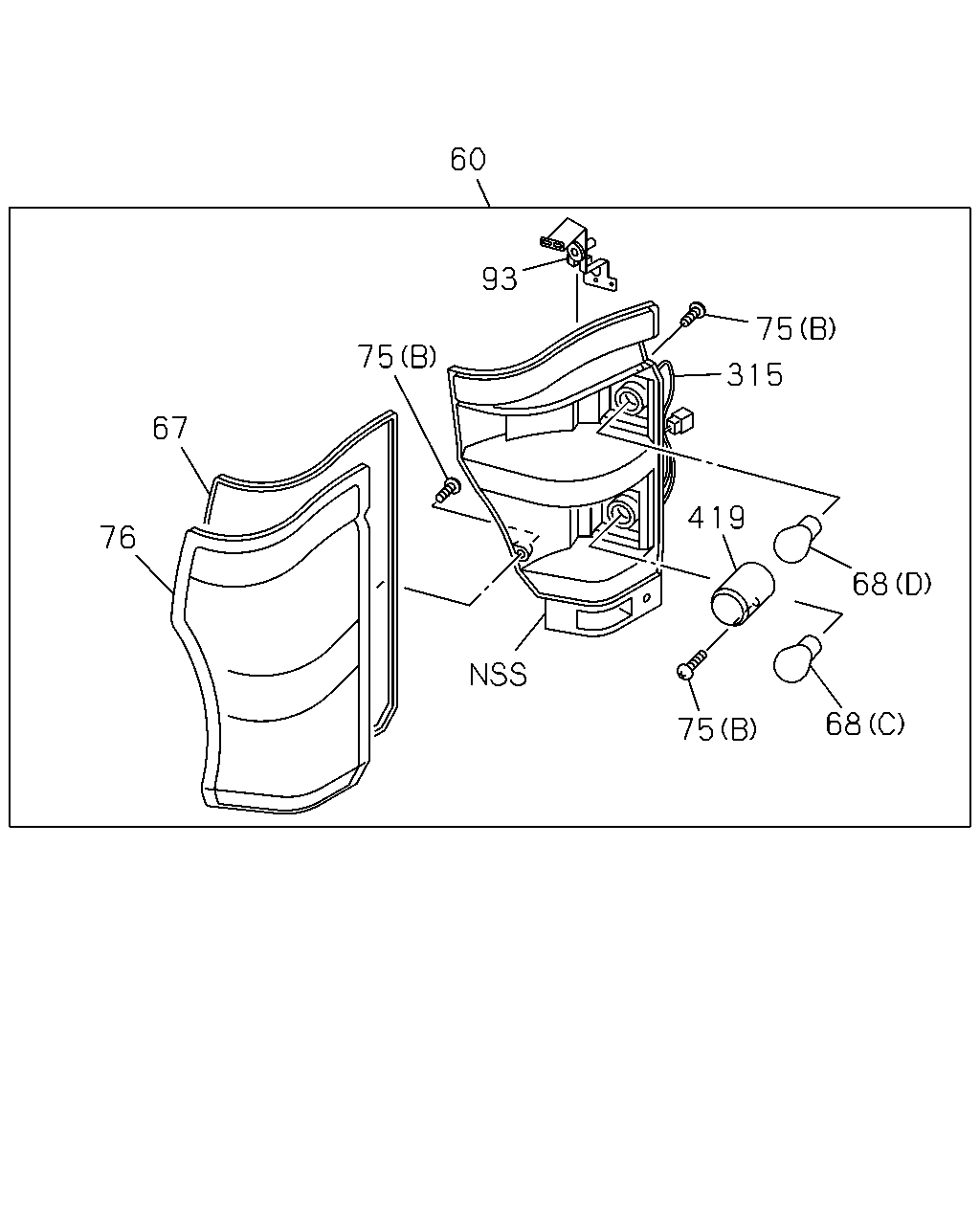

60 93 75 75 315 67 419 76 68 68 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
60	02.585 LAMP ASM; FRT COMB	8-97855-111-2	01	1	0302-0506	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98010-882-0	01	1	0507-0606	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98010-884-0	01	1	0607-0701	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98053-941-0	01	1	0702-	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-97855-110-2	01	1	0302-0506	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98010-881-0	01	1	0507-0606	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98010-883-0	01	1	0607-0701	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-98053-940-0	01	1	0702-	●	●	●
67	02.590 GASKET; FRT COMB LAMP	8-97855-121-0	02	1	0302-0506	●	●	●
67	02.590 GASKET; FRT COMB LAMP	8-97378-948-0	02	1	0507-	●	●	●
68	08.991 BULB; FRT COMB LAMP (B) 12V 21W	8-94124-074-0	02	1	0302-0506	●	●	●
68	08.991 BULB; FRT COMB LAMP (C) 12V 21/5W	8-94125-959-0	02	1	0507-0606	●	●	●
68	08.991 BULB; FRT COMB LAMP (C) 24V 21/5W	8-94125-957-0	02	1	0607-	●	●	●
68	08.991 BULB; FRT COMB LAMP (A) 12V 10W	8-94126-494-0	02	1	0302-0506	●	●	●
68	08.991 BULB; FRT COMB LAMP (D) 12V 21W	8-97304-590-0	02	1	0507-0606	●	●	●
68	08.991 BULB; FRT COMB LAMP (D) 24V 21W AMBER	8-97323-806-0	02	1	0607-	●	●	●
75	02.587 SCREW; FRT COMB LAMP 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0302-0506	●	●	●
75	02.587 SCREW; FRT COMB LAMP (C) M6X16 TAPPING	8-97374-995-0	02	1	0507-	●	●	●
75	02.587 SCREW; FRT COMB LAMP (B) M4X12	8-97378-944-0	14	1	0507-	●	●	●
76	02.589 LENS; FRT COMB LAMP	8-97378-962-0	01	1	0507-	●	●	●
76	02.589 LENS; FRT COMB LAMP	8-97378-961-0	01	1	0507-	●	●	●
93	02.892 BRACKET; SIDE COMB LAMP	8-97378-945-0	01	1	0507-	●	●	●
93	02.892 BRACKET; SIDE COMB LAMP	8-97378-943-0	01	1	0507-	●	●	●
315	02.596 HARNESS; FRT COMB LAMP	8-98010-917-0	02	1	0507-	●	●	●
419	02.589 LENS; INNER,FRT COMB LAMP	8-97378-947-0	01	1	0507-	●	●	●
419	02.589 LENS; INNER,FRT COMB LAMP	8-97378-946-0	01	1	0507-	●	●	●

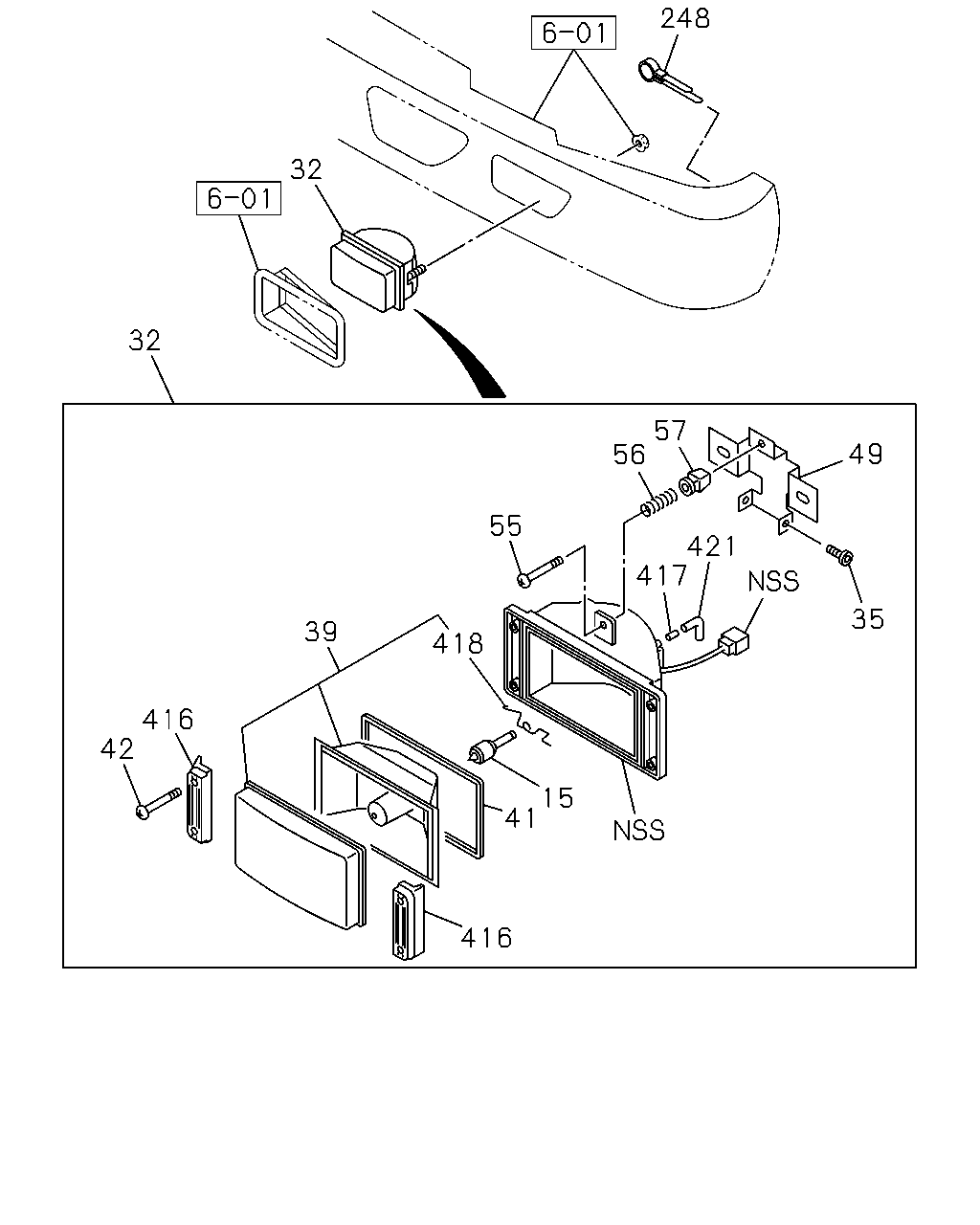

248 32 32 57 56 49 55 421 417 35 39 418 416 42 15 41 416

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	08.991 BULB; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP) 12V 55W	8-97093-859-0	02	1	0302-0506	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> 12V 55W	8-97093-859-0	02	1	0302-0506		●	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP) 12V 55W	8-97093-859-0	02	1	0507-0606	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> 12V 55W	8-97093-859-0	02	1	0507-0606		●	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> 24V 70W	8-97203-926-0	02	1	0607-	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97248-540-0	01	1	0302-0506	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-97248-540-0	01	1	0302-0506		●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97248-540-0	01	1	0507-0606	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-97248-540-0	01	1	0507-0606		●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98022-409-0	01	1	0607-	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97248-539-0	01	1	0302-0506	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-97248-539-0	01	1	0302-0506		●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97248-539-0	01	1	0507-0606	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-97248-539-0	01	1	0507-0606		●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98022-408-0	01	1	0607-	●	●	●
35	02.726 SCREW; RIM,FOG LAMP FOG LAMP<T96>	8-97378-979-0	04	1	0607-	●	●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97119-300-0	01	1	0302-0506	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-97119-300-0	01	1	0302-0506		●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97119-300-0	01	1	0507-0606	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-97119-300-0	01	1	0507-0606		●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-060-0	01	1	0302-0506	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-97104-060-0	01	1	0302-0506		●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-060-0	01	1	0507-0606	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-97104-060-0	01	1	0507-0606		●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-98020-463-0	02	1	0607-	●	●	●
41	02.575 GASKET; LENS,FOG LAMP FOG LAMP<T96>	8-97378-986-0	02	1	0607-	●	●	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-089-0	04	1	0302-0506	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96>	8-97104-089-0	04	1	0302-0506		●	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-089-0	04	1	0507-0606	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96>	8-97104-089-0	04	1	0507-0606		●	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96>	8-97378-977-0	08	1	0607-	●	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-091-0	01	1	0302-0506	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97104-091-0	01	1	0302-0506		●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-091-0	01	1	0507-0606	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97104-091-0	01	1	0507-0606		●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97379-141-0	01	1	0607-	●	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-090-0	01	1	0302-0506	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97104-090-0	01	1	0302-0506		●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-090-0	01	1	0507-0606	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97104-090-0	01	1	0507-0606		●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97378-985-0	01	1	0607-	●	●	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-087-0	02	1	0302-0506	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96>	8-97104-087-0	02	1	0302-0506		●	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-087-0	02	1	0507-0606	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96>	8-97104-087-0	02	1	0507-0606		●	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96>	8-97378-978-0	02	1	0607-	●	●	●
56	02.737 SPRING; COIL,FOG LAMP FOG LAMP<T96>	8-97378-980-0	02	1	0607-	●	●	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-94379-806-0	06	1	0302-0506	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96>	8-94379-806-0	06	1	0302-0506		●	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-94379-806-0	06	1	0507-0606	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96>	8-94379-806-0	06	1	0507-0606		●	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96>	8-97378-981-0	02	1	0607-	●	●	●
248	02.727 CLIP; HARNESS FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP) 02.559 ID=20	5-09700-321-0	02	1	0302-0506	●
248	02.727 CLIP; HARNESS FOG LAMP<T96> 02.559 ID=20	5-09700-321-0	02	1	0302-0506		●	●
248	02.727 CLIP; HARNESS FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP) 02.559 ID=20	5-09700-321-0	02	1	0507-0606	●
248	02.727 CLIP; HARNESS FOG LAMP<T96> 02.559 ID=20	5-09700-321-0	02	1	0507-0606		●	●
248	02.727 CLIP; HARNESS FOG LAMP<T96> 02.559 ID=20	5-09700-321-0	04	1	0607-	●	●	●
416	02.587 CLAMP; LENS,FOG LAMP FOG LAMP<T96>	8-97378-976-0	04	1	0607-	●	●	●
417	02.596 FILTER; BREATHER,LAMP FOG LAMP<T96>	8-97378-983-0	04	1	0607-	●	●	●
418	02.737 SPRING; BULB,FOG LAMP FOG LAMP<T96>	8-97378-982-0	02	1	0607-	●	●	●
421	02.593 TUBE; BREATHER,FOG LAMP FOG LAMP<T96>	8-97378-984-0	04	1	0607-	●	●	●

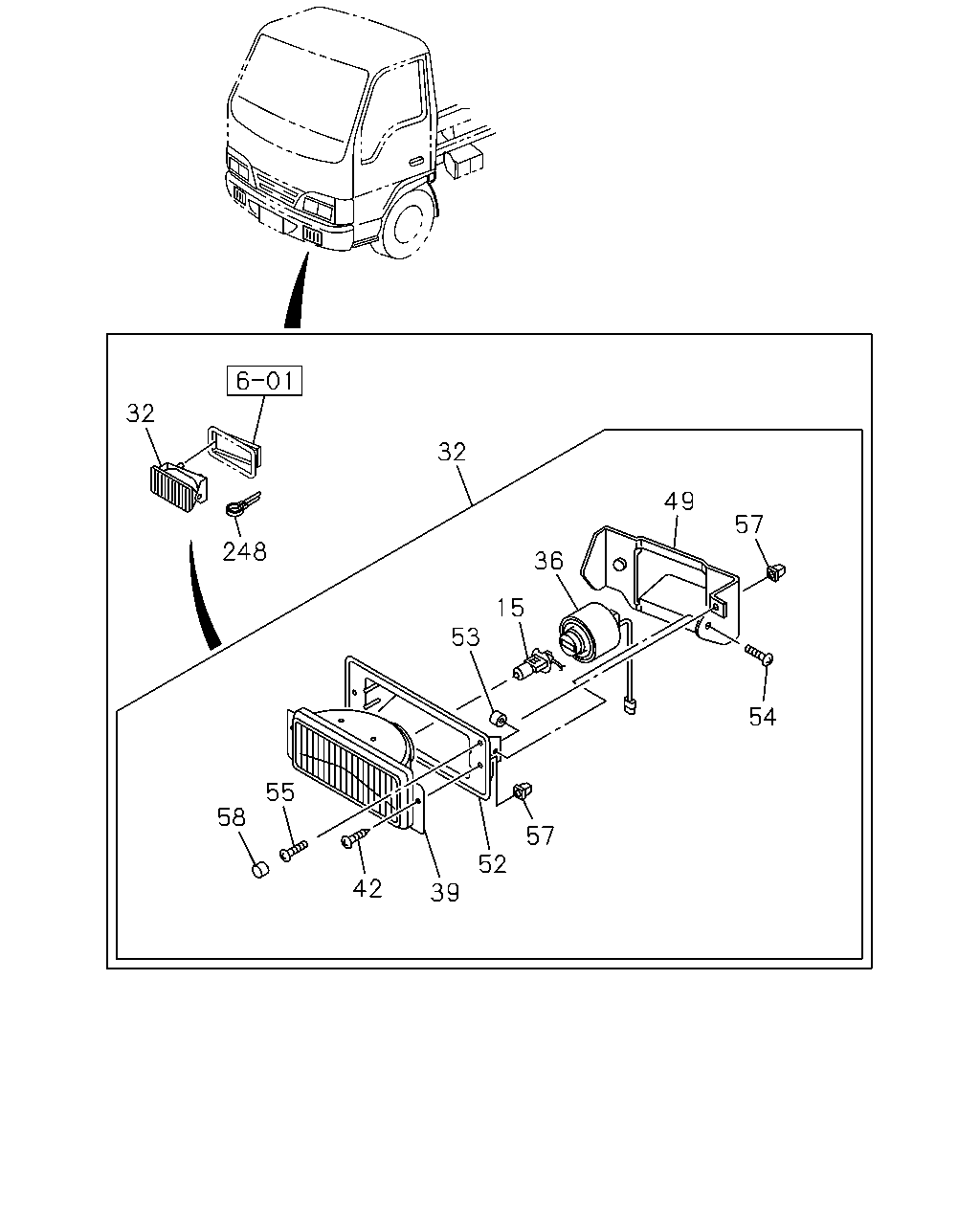

32 32 49 57 248 36 15 53 54 55 58 57 52 42 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	08.991 BULB; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP) 12V 55W	8-97093-859-0	02	1	0302-0506	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> 12V 55W	8-97093-859-0	02	1	0302-0506		●	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP) 12V 55W	8-97093-859-0	02	1	0507-0606	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> 12V 55W	8-97093-859-0	02	1	0507-0606		●	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> 24V 70W	8-97203-926-0	02	1	0607-	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97248-540-0	01	1	0302-0506	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-97248-540-0	01	1	0302-0506		●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97248-540-0	01	1	0507-0606	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-97248-540-0	01	1	0507-0606		●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98022-409-0	01	1	0607-	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97248-539-0	01	1	0302-0506	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-97248-539-0	01	1	0302-0506		●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97248-539-0	01	1	0507-0606	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-97248-539-0	01	1	0507-0606		●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98022-408-0	01	1	0607-	●	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97095-518-0	02	1	0302-0506	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96>	8-97095-518-0	02	1	0302-0506		●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97095-518-0	02	1	0507-0606	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96>	8-97095-518-0	02	1	0507-0606		●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97119-300-0	01	1	0302-0506	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-97119-300-0	01	1	0302-0506		●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97119-300-0	01	1	0507-0606	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-97119-300-0	01	1	0507-0606		●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-060-0	01	1	0302-0506	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-97104-060-0	01	1	0302-0506		●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-060-0	01	1	0507-0606	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-97104-060-0	01	1	0507-0606		●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-98020-463-0	02	1	0607-	●	●	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-089-0	04	1	0302-0506	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96>	8-97104-089-0	04	1	0302-0506		●	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-089-0	04	1	0507-0606	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96>	8-97104-089-0	04	1	0507-0606		●	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96>	8-97378-977-0	08	1	0607-	●	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-091-0	01	1	0302-0506	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97104-091-0	01	1	0302-0506		●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-091-0	01	1	0507-0606	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97104-091-0	01	1	0507-0606		●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97379-141-0	01	1	0607-	●	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-090-0	01	1	0302-0506	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97104-090-0	01	1	0302-0506		●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-090-0	01	1	0507-0606	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97104-090-0	01	1	0507-0606		●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97378-985-0	01	1	0607-	●	●	●
52	02.726 RING; MTG,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-062-0	02	1	0302-0506	●
52	02.726 RING; MTG,FOG LAMP FOG LAMP<T96>	8-97104-062-0	02	1	0302-0506		●	●
52	02.726 RING; MTG,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-062-0	02	1	0507-0606	●
52	02.726 RING; MTG,FOG LAMP FOG LAMP<T96>	8-97104-062-0	02	1	0507-0606		●	●
53	02.726 NUT; MTG RING,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-94379-802-0	04	1	0302-0506	●
53	02.726 NUT; MTG RING,FOG LAMP FOG LAMP<T96>	8-94379-802-0	04	1	0302-0506		●	●
53	02.726 NUT; MTG RING,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-94379-802-0	04	1	0507-0606	●
53	02.726 NUT; MTG RING,FOG LAMP FOG LAMP<T96>	8-94379-802-0	04	1	0507-0606		●	●
54	02.726 BOLT; MTG RING,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP) M5X12	8-94379-803-0	04	1	0302-0506	●
54	02.726 BOLT; MTG RING,FOG LAMP FOG LAMP<T96> M5X12	8-94379-803-0	04	1	0302-0506		●	●
54	02.726 BOLT; MTG RING,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP) M5X12	8-94379-803-0	04	1	0507-0606	●
54	02.726 BOLT; MTG RING,FOG LAMP FOG LAMP<T96> M5X12	8-94379-803-0	04	1	0507-0606		●	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-087-0	02	1	0302-0506	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96>	8-97104-087-0	02	1	0302-0506		●	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-087-0	02	1	0507-0606	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96>	8-97104-087-0	02	1	0507-0606		●	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96>	8-97378-978-0	02	1	0607-	●	●	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-94379-806-0	06	1	0302-0506	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96>	8-94379-806-0	06	1	0302-0506		●	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-94379-806-0	06	1	0507-0606	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96>	8-94379-806-0	06	1	0507-0606		●	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96>	8-97378-981-0	02	1	0607-	●	●	●
58	02.726 HOLDER; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-088-0	02	1	0302-0506	●
58	02.726 HOLDER; FOG LAMP FOG LAMP<T96>	8-97104-088-0	02	1	0302-0506		●	●
58	02.726 HOLDER; FOG LAMP FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP)	8-97104-088-0	02	1	0507-0606	●
58	02.726 HOLDER; FOG LAMP FOG LAMP<T96>	8-97104-088-0	02	1	0507-0606		●	●
248	02.727 CLIP; HARNESS FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP) 02.559 ID=20	5-09700-321-0	02	1	0302-0506	●
248	02.727 CLIP; HARNESS FOG LAMP<T96> 02.559 ID=20	5-09700-321-0	02	1	0302-0506		●	●
248	02.727 CLIP; HARNESS FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP) 02.559 ID=20	5-09700-321-0	02	1	0507-0606	●
248	02.727 CLIP; HARNESS FOG LAMP<T96> 02.559 ID=20	5-09700-321-0	02	1	0507-0606		●	●
248	02.727 CLIP; HARNESS FOG LAMP<T96> 02.559 ID=20	5-09700-321-0	04	1	0607-	●	●	●

161 398 91 321 133 327 102 104 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
91	08.991 BULB; SIDE TURN SIGNAL 12V 21W	8-94124-074-0	02	1	0302-0606			●
91	08.991 BULB; SIDE TURN SIGNAL 24V 21W	1-82194-036-0	02	1	0607-			●
102	02.589 LENS; SIDE TURN SIGNAL 02.682	1-82213-021-0	01	1	0302-			●
102	02.589 LENS; SIDE TURN SIGNAL 02.682	1-82213-020-0	01	1	0302-			●
104	02.587 SCREW; SIDE TURN SIGNAL 02.688	8-97224-571-0	02	1	0302-			●
133	02.587 WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	0302-			●
161	02.726 NUT; BRKT EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.917 M10 FLANGE	0-91150-210-0	01	1	0302-0602			●
161	02.726 NUT; BRKT EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-			●
273	02.726 BOLT; BRKT 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0302-0506	●	●	●
273	02.726 BOLT; BRKT EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.023 (B) M10X30 FLANGE	0-28691-030-0	01	1	0302-0512			●
273	02.726 BOLT; BRKT EXC. IDENTIFICATION LABEL FOR KD<6UT> 07.068 (B) M10X30 FLANGE	0-28661-030-0	01	1	0601-			●
321	02.596 HARNESS; SIDE FLASHER LAMP 02.664	8-97224-569-0	02	1	0302-			●
327	02.585 LAMP ASM; SIDE TURN SIGNAL 02.679	8-97221-277-0	01	1	0302-0606			●
327	02.585 LAMP ASM; SIDE TURN SIGNAL 02.679	8-97221-814-0	01	1	0607-			●
327	02.585 LAMP ASM; SIDE TURN SIGNAL 02.679	8-97221-276-0	01	1	0302-0606			●
327	02.585 LAMP ASM; SIDE TURN SIGNAL 02.679	8-97221-813-0	01	1	0607-			●
398	02.726 BRACKET; TURN SIGNAL	8-97222-071-0	01	1	0302-			●
398	02.726 BRACKET; TURN SIGNAL	8-97222-070-0	01	1	0302-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
