Isuzu WW
▶
BUSES
▶
MT
▶
10650 - MT111,112
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

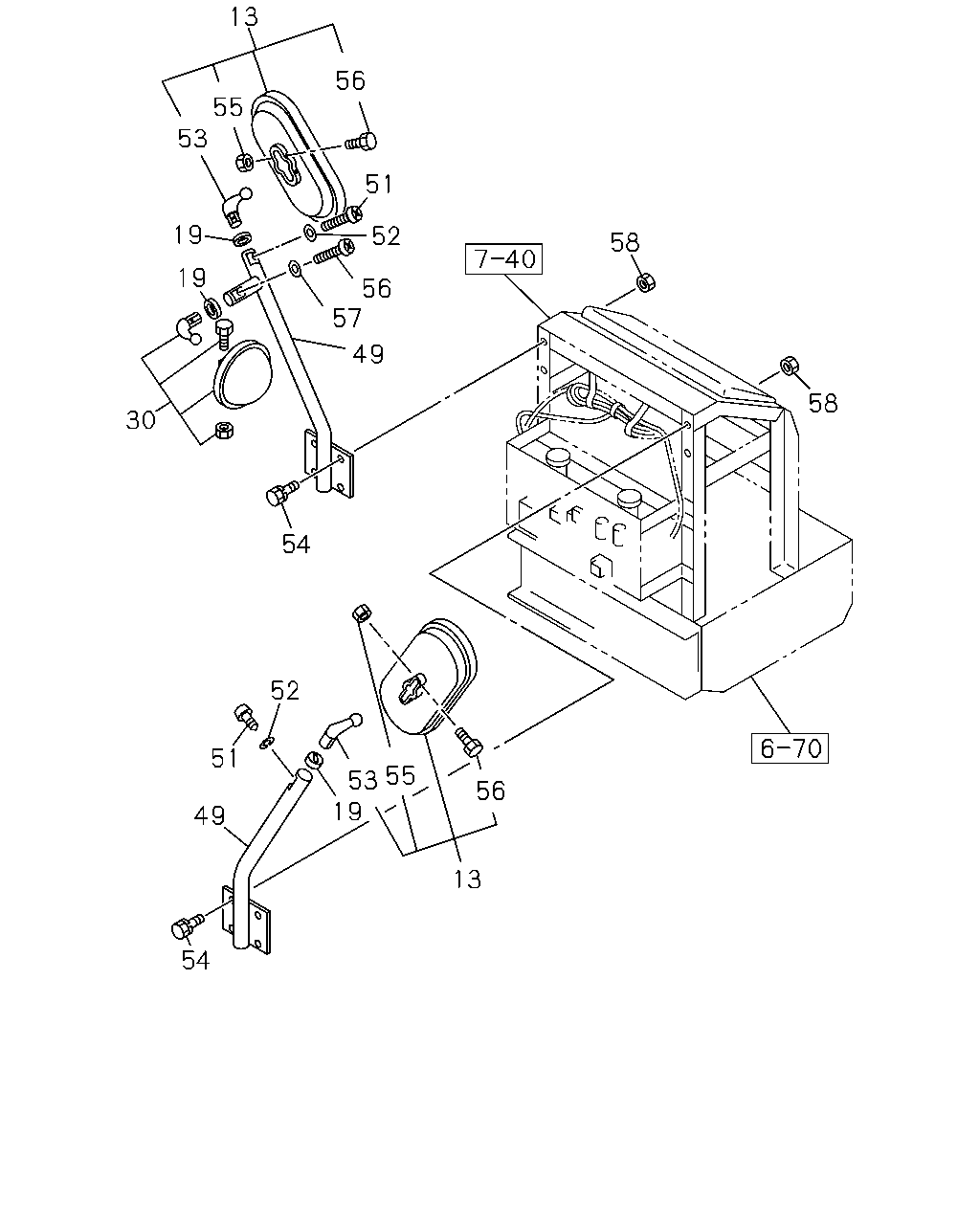

7-20 — MIRROR AND MIRROR STAY
(#2252) — 15 parça
Tümü
A - MTR5FB
B - MTR6FB
13
56
55
53
51
52
19
58
19
56
57
49
58
30
54
52
51
53
55
19
56
49
13
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
MIRROR ASM; OUTSIDE RR VIEW
MIRROR O/S RR VIEW<D37>
9-61176-764-1
02
1
9101-
●
●
19
GASKET; MIRROR
MIRROR O/S RR VIEW<D37>
9-61176-650-0
03
1
9101-
●
●
30
MIRROR; UNDER
MIRROR O/S RR VIEW<D37>
9-61176-762-1
01
1
9101-
●
●
49
STAY; MIRROR SIDE
MIRROR O/S RR VIEW<D37>
9-68599-122-0
01
1
9101-
●
●
49
STAY; MIRROR SIDE
MIRROR O/S RR VIEW<D37>
9-68599-123-0
01
1
9101-
●
●
51
SCREW; MIRROR
MIRROR O/S RR VIEW<D37> M6X12
9-03490-612-0
02
1
9101-
●
●
52
WASHER; LK,MIRROR
MIRROR O/S RR VIEW<D37> ID=6.1
9-09150-506-0
02
1
9101-
●
●
53
PIVOT; SIDE MIRROR
MIRROR O/S RR VIEW<D37>
9-61176-537-0
02
1
9101-
●
●
54
BOLT; STAY
MIRROR O/S RR VIEW<D37> M10X25 W/LK WASHER
0-50041-025-0
04
1
9101-
●
●
55
NUT; SIDE MIRROR
MIRROR O/S RR VIEW<D37> M3
9-99110-403-0
04
1
9101-
●
●
56
SCREW; SIDE MIRROR
MIRROR O/S RR VIEW<D37> M6X12
9-03490-612-0
01
1
9101-
●
●
56
SCREW; SIDE MIRROR
MIRROR O/S RR VIEW<D37> M3X16
9-93490-316-0
04
1
9101-
●
●
57
WASHER; LK,UNDER MIRROR
MIRROR O/S RR VIEW<D37> ID=6.1
9-09150-506-0
01
1
9101-
●
●
58
NUT; MIRROR STAY
MIRROR O/S RR VIEW<D37> M10
9-09110-410-0
04
1
9101-9307
●
●
58
NUT; MIRROR STAY
MIRROR O/S RR VIEW<D37> M10
9-09110-510-0
04
1
9308-
●
●
