◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶
7-42 — ASH TRAY (#22516) — 10 parça

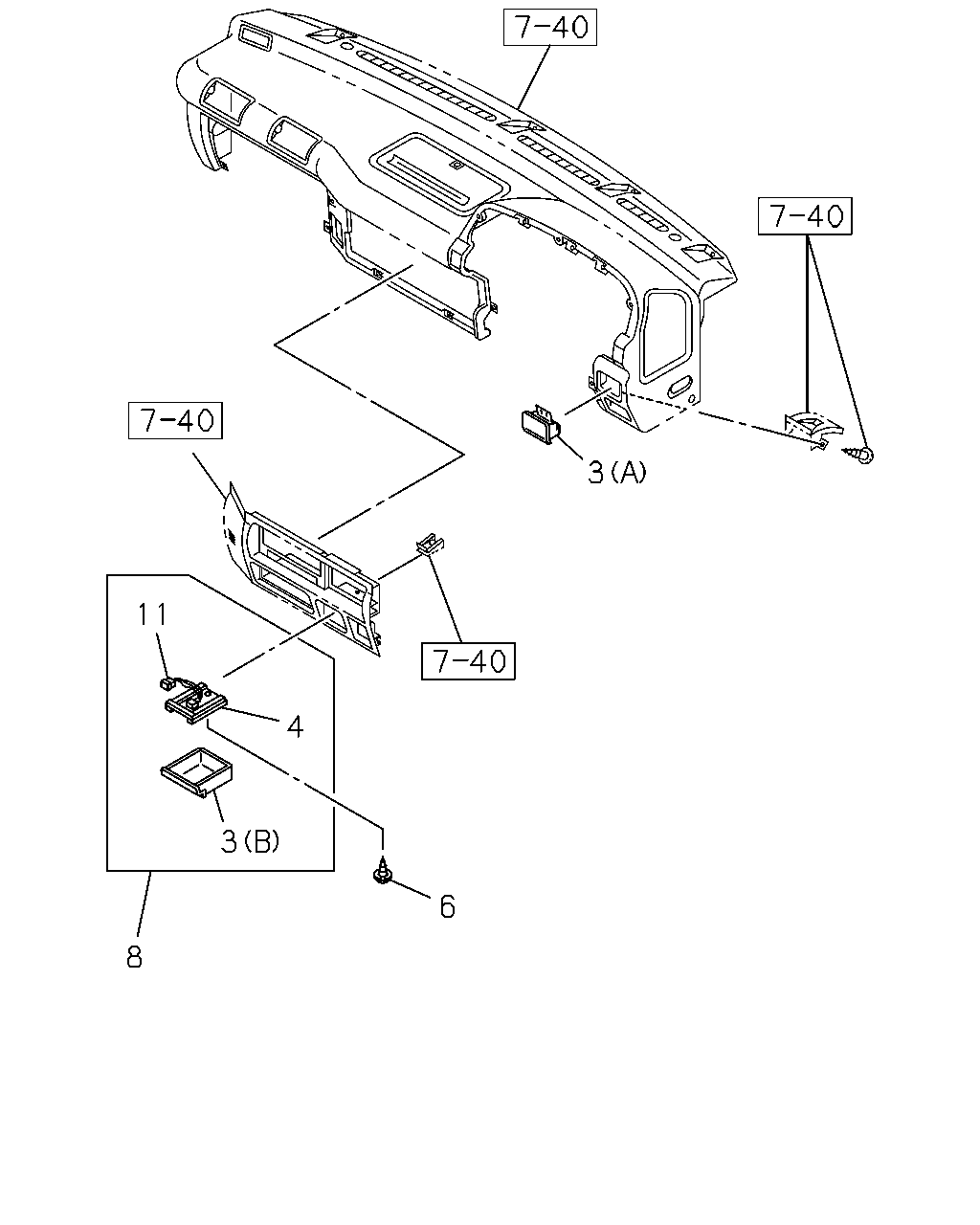

çizim 50738
3 11 4 3 6 8
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.120 CASE ASM; ASH TRAY INNER
(B) DARK GRAY 		8-97993-294-0 01 1 0302-0606 ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
(B) DARK GRAY 		8-97898-280-0 01 1 0607- ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY 		8-97198-913-0 01 1 0302-0506 ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY 		8-97582-213-0 01 1 0507- ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER 8-97898-279-0 01 1 0302- ● ● ●
6 16.120 SCREW; ASH TRAY
07.874 M6X16 TRUSS-HEAD 		8-94318-980-0 01 1 0302- ● ● ●
8 16.120 TRAY ASM; ASH 8-97898-282-0 01 1 0302-0606 ● ● ●
8 16.120 TRAY ASM; ASH 8-97898-278-0 01 1 0607- ● ● ●
11 08.991 BULB; ASH TRAY 8-97898-283-0 01 1 0302-0606 ● ● ●
11 08.991 BULB; ASH TRAY
16.120 		8-97898-281-0 01 1 0607- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
