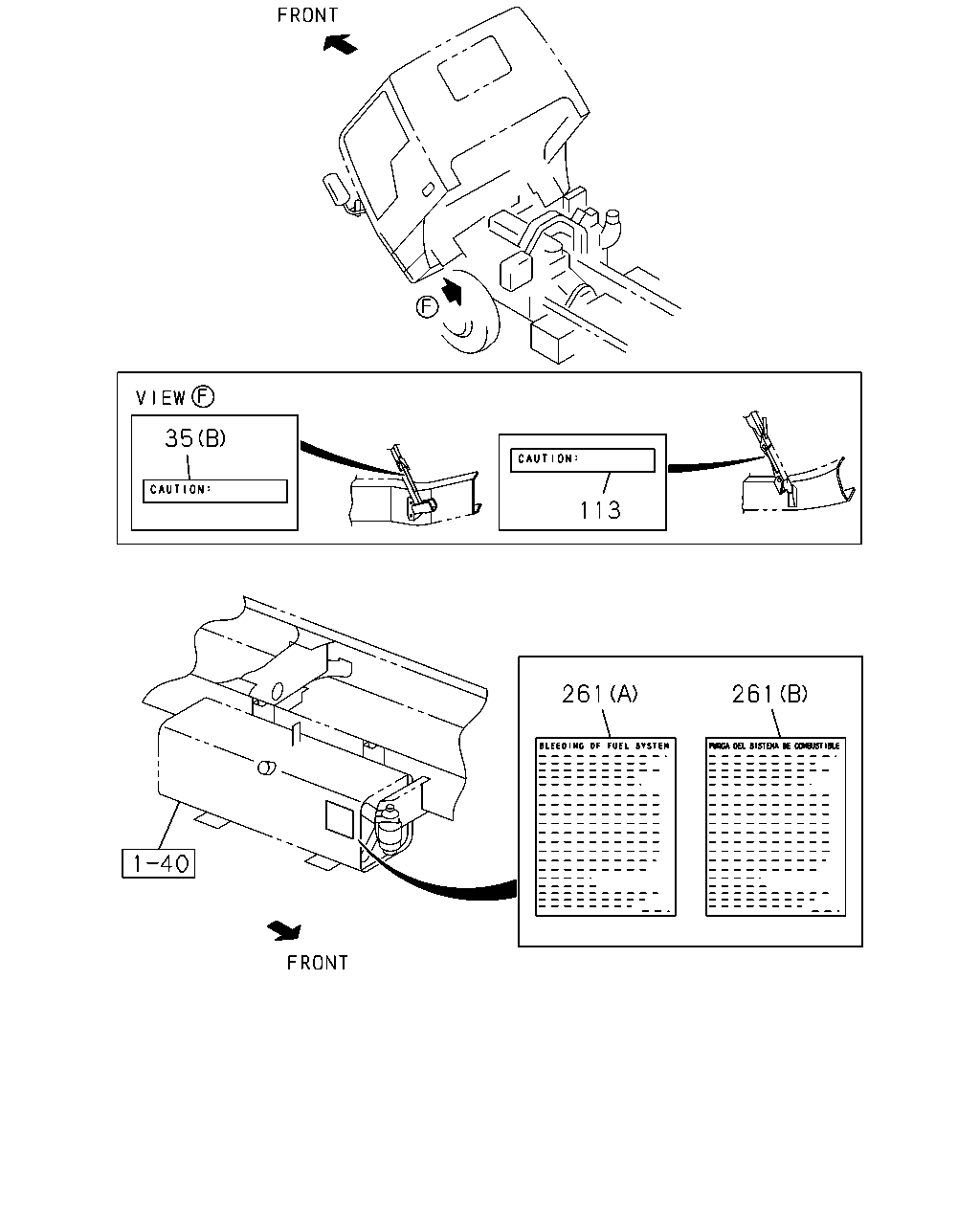

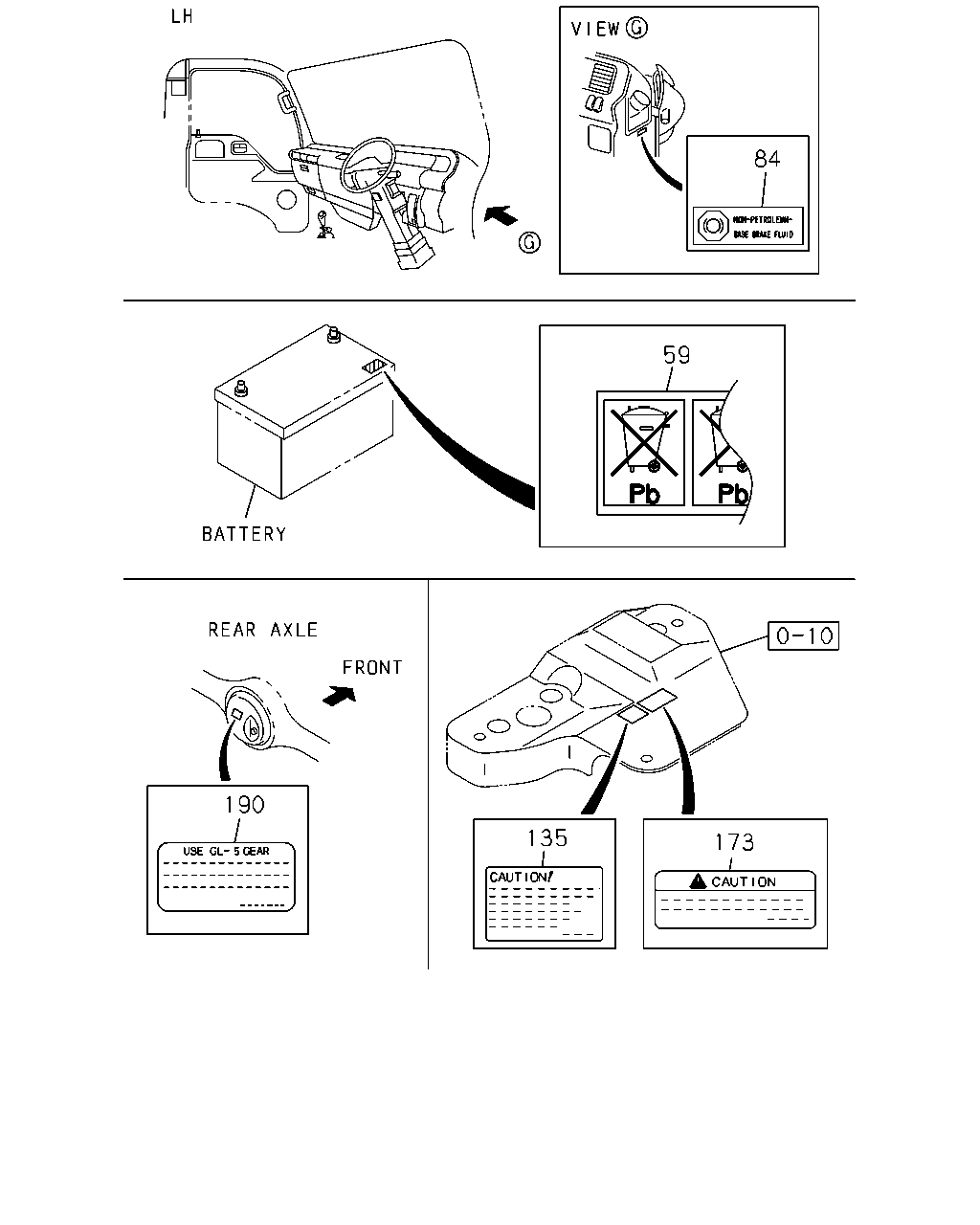

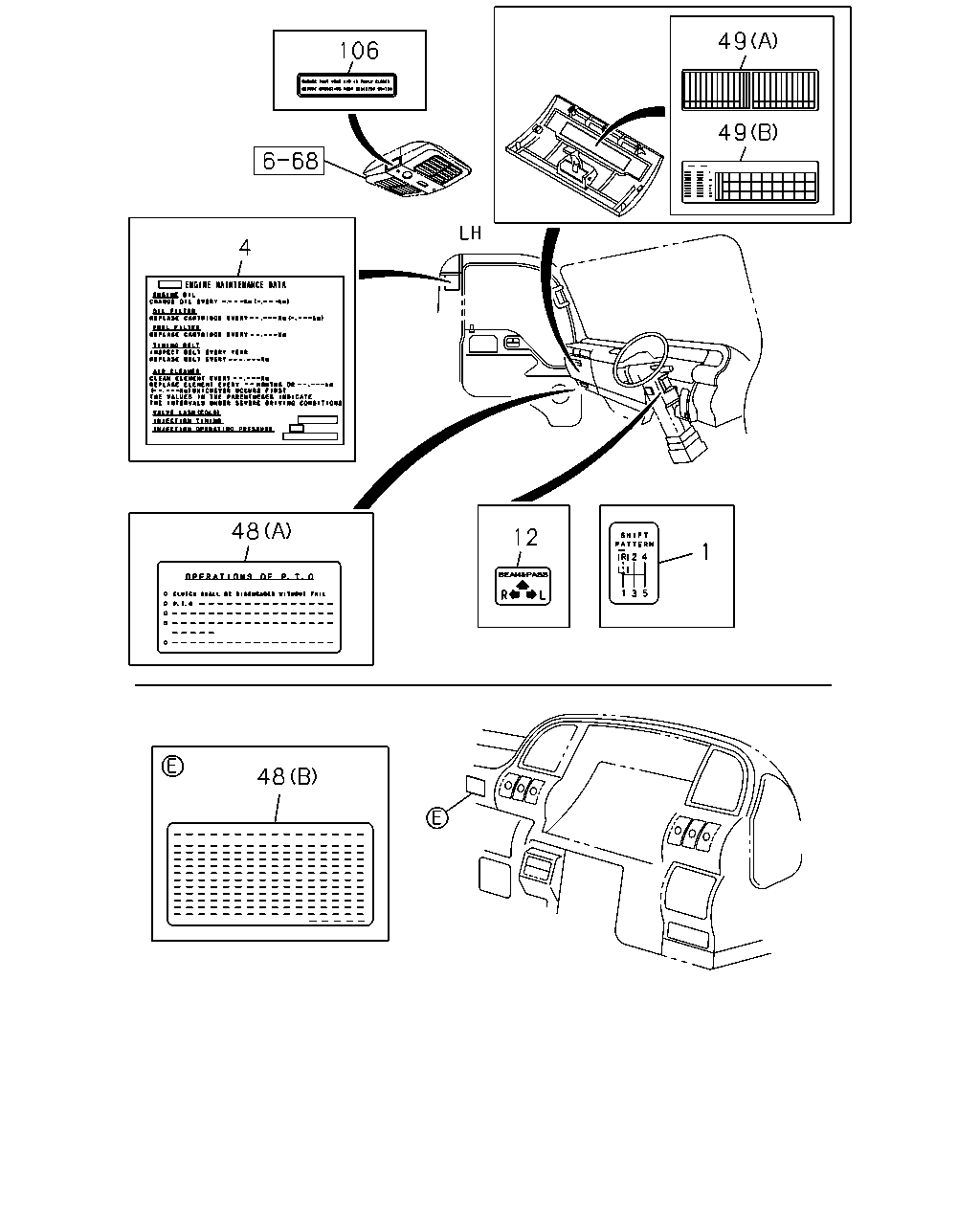

7-10 — CAUTION PLATE AND LABEL (#22511) — 69 parça

35 113 261 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
35	08.808 PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A)	8-97857-419-1	01	1	0302-1005	●	●	●
35	08.808 PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A)	8-98070-512-0	01	1	1006-	●	●	●
35	08.808 PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B)	5-85881-328-1	01	1	0302-	●	●	●
35	08.808 PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A)	8-97856-228-0	01	1	0302-1005	●	●	●
35	08.808 PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A)	8-98067-809-0	01	1	1006-	●	●	●
113	08.808 PLATE; CAUTION,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97108-090-0	01	1	0302-0606	●
113	08.808 PLATE; CAUTION,CAB STAY MANUAL TILT CAB<RWZ>	8-97108-090-0	01	1	0607-	●
261	08.808 PLATE; CAUTION,FUEL SYSTEM 4JH1 ENG(RJX) CAUTION SPANISH<YN1> (B)	8-97319-705-0	01	1	0302-0506	●	●	●
261	08.808 PLATE; CAUTION,FUEL SYSTEM 4JH1-TC ENG(RDM) CAUTION SPANISH<YN1> (B)	8-97319-705-0	01	1	0507-0606	●	●	●
261	08.808 PLATE; CAUTION,FUEL SYSTEM 4JH1 ENG(RJX) EXC. CAUTION SPANISH<YN1> (A)	8-97315-725-0	01	1	0302-0506	●	●	●
261	08.808 PLATE; CAUTION,FUEL SYSTEM 4JH1-TC ENG(RDM) EXC. CAUTION SPANISH<YN1> (A)	8-97315-725-0	01	1	0507-0606	●	●	●

49 106 49 4 48 12 1 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.017 PLATE; CAUTION,SHIFT PATTERN	8-97305-983-0	01	1	0302-0606	●	●	●
1	04.017 PLATE; CAUTION,SHIFT PATTERN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-983-0	01	1	0607-	●	●	●
4	00.004 LABEL; ENG MAINTENANCE 4JH1 ENG(RJX) CAUTION SPANISH<YN1>	8-97260-428-1	01	1	0302-0506	●	●	●
4	00.004 LABEL; ENG MAINTENANCE 4JH1-TC ENG(RDM) CAUTION SPANISH<YN1>	8-97260-428-1	01	1	0507-0606	●	●	●
4	00.004 LABEL; ENG MAINTENANCE 4JJ1 ENG(LFB) CAUTION SPANISH<YN1>	8-98030-803-1	01	1	0607-	●	●	●
4	00.004 LABEL; ENG MAINTENANCE 4JH1 ENG(RJX) EXC. CAUTION SPANISH<YN1>	8-97260-427-1	01	1	0302-0506	●	●	●
4	00.004 LABEL; ENG MAINTENANCE 4JH1-TC ENG(RDM) EXC. CAUTION SPANISH<YN1>	8-97260-427-1	01	1	0507-0606	●	●	●
4	00.004 LABEL; ENG MAINTENANCE 4JJ1 ENG(LFB) EXC. CAUTION SPANISH<YN1>	8-98030-757-0	01	1	0607-	●	●	●
12	02.459 LABEL; TURN	8-94273-445-0	01	1	0302-	●	●	●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (A)	8-94313-054-0	01	1	0302-0606		●	●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-94313-054-0	01	1	0607-		●	●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97387-811-0	01	1	0607-		●	●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (A)	8-94469-277-0	01	1	0302-0606		●	●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-94469-277-0	01	1	0607-		●	●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> (B)	8-97387-810-0	01	1	0607-		●	●
49	08.808 PLATE; CAUTION,FUSE BOX 4JH1 ENG(RJX) (A)	8-97260-561-0	01	1	0302-0506	●	●	●
49	08.808 PLATE; CAUTION,FUSE BOX 4JH1-TC ENG(RDM) (B)	8-97377-716-0	01	1	0507-0606	●	●	●
49	08.808 PLATE; CAUTION,FUSE BOX 4JJ1 ENG(LFB) (B)	8-98019-629-0	01	1	0607-	●	●	●
106	08.808 PLATE; CAUTION,ROOF VENT ROOF VENTILATOR<C55> CAUTION SPANISH<YN1>	8-97580-590-0	01	1	0302-	●	●	●
106	08.808 PLATE; CAUTION,ROOF VENT ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1>	8-97580-589-0	01	1	0302-	●	●	●

35 96 9 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	05.880 LABEL; TIRE AIR PRESSURE FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) EXC. CAUTION SPANISH<YN1>	8-97188-832-0	01	1	0302-0302	●
5	05.880 LABEL; TIRE AIR PRESSURE FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) EXC. CAUTION SPANISH<YN1>	8-97188-832-0	01	1	0303-	●
5	05.880 LABEL; TIRE AIR PRESSURE FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) CAUTION SPANISH<YN1>	8-97188-833-0	01	1	0302-0302	●
5	05.880 LABEL; TIRE AIR PRESSURE FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) CAUTION SPANISH<YN1>	8-97188-833-0	01	1	0303-	●
9	08.808 PLATE; NAME,SPD RANGE 4JH1 ENG(RJX) CAUTION SPANISH<YN1> EXC. TACHOMETER<U16>	8-94158-938-0	01	1	0302-0506	●	●	●
9	08.808 PLATE; NAME,SPD RANGE 4JH1-TC ENG(RDM) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>	8-94158-938-0	01	1	0507-0606	●	●	●
9	08.808 PLATE; NAME,SPD RANGE 4JH1 ENG(RJX) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1>	8-94158-936-0	01	1	0302-0506	●	●	●
9	08.808 PLATE; NAME,SPD RANGE 4JH1-TC ENG(RDM) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1>	8-94158-936-0	01	1	0507-0606	●	●	●
9	08.808 PLATE; NAME,SPD RANGE 4JH1 ENG(RJX) EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1>	8-94158-944-0	01	1	0302-0506	●	●	●
9	08.808 PLATE; NAME,SPD RANGE 4JH1-TC ENG(RDM) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1>	8-94158-944-0	01	1	0507-0606	●	●	●
35	08.808 PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A)	8-97857-419-1	01	1	0302-1005	●	●	●
35	08.808 PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A)	8-98070-512-0	01	1	1006-	●	●	●
35	08.808 PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B)	5-85881-328-1	01	1	0302-	●	●	●
35	08.808 PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A)	8-97856-228-0	01	1	0302-1005	●	●	●
35	08.808 PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A)	8-98067-809-0	01	1	1006-	●	●	●
96	08.808 PLATE; CAUTION,ENGINE OIL 4JH1 ENG(RJX)	8-97066-479-1	01	1	0302-0311	●	●	●
96	08.808 PLATE; CAUTION,ENGINE OIL 4JH1 ENG(RJX)	8-97092-930-1	01	1	0312-0506	●	●	●
96	08.808 PLATE; CAUTION,ENGINE OIL 4JH1-TC ENG(RDM)	8-97092-930-1	01	1	0507-0606	●	●	●
96	08.808 PLATE; CAUTION,ENGINE OIL 4JJ1 ENG(LFB) CAUTION SPANISH<YN1>	8-98036-733-0	01	1	0607-	●	●	●
96	08.808 PLATE; CAUTION,ENGINE OIL 4JJ1 ENG(LFB) EXC. CAUTION SPANISH<YN1>	8-98036-732-0	01	1	0607-	●	●	●

84 59 190 135 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
59	08.808 PLATE; CAUTION,BATTERY EXC. LEYLAND EQUIPMENT<S9Z> 10 PER 1 SHEET	8-97116-760-0	02	1	0302-	●	●	●
84	08.808 PLATE; CAUTION,BRAKE FLUID	8-97062-755-2	01	1	0302-	●	●	●
135	08.808 PLATE; CAUTION,ENGINE 4JH1 ENG(RJX)	8-97383-253-0	01	1	0412-0506	●	●	●
135	08.808 PLATE; CAUTION,ENGINE 4JH1-TC ENG(RDM)	8-97383-253-0	01	1	0507-0606	●	●	●
135	08.808 PLATE; CAUTION,ENGINE 4JJ1 ENG(LFB) CAUTION SPANISH<YN1>	8-98036-112-0	01	1	0607-	●	●	●
135	08.808 PLATE; CAUTION,ENGINE 4JJ1 ENG(LFB) EXC. CAUTION SPANISH<YN1>	8-98036-111-1	01	1	0607-	●	●	●
173	08.808 PLATE; CAUTION,FUEL FILTER 4JJ1 ENG(LFB) CAUTION SPANISH<YN1>	8-98036-253-0	01	1	0607-0705	●	●	●
173	08.808 PLATE; CAUTION,FUEL FILTER 4JJ1 ENG(LFB) CAUTION SPANISH<YN1> 03.680	8-98083-876-0	01	1	0706-	●	●	●
173	08.808 PLATE; CAUTION,FUEL FILTER 4JJ1 ENG(LFB) EXC. CAUTION SPANISH<YN1>	8-98036-252-0	01	1	0607-	●	●	●
190	08.808 PLATE; CAUTION,OIL CHANGE 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP)	8-97200-740-0	01	1	0302-0303	●
190	08.808 PLATE; CAUTION,OIL CHANGE 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97200-740-0	01	1	0302-0303		●	●
190	08.808 PLATE; CAUTION,OIL CHANGE 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV>	8-97200-740-0	01	1	0302-0303		●	●
190	08.808 PLATE; CAUTION,OIL CHANGE 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP)	8-97200-740-0	01	1	0304-0506	●
190	08.808 PLATE; CAUTION,OIL CHANGE 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV>	8-97200-740-0	01	1	0304-0506		●	●
190	08.808 PLATE; CAUTION,OIL CHANGE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP)	8-97200-740-0	01	1	0507-0606	●
190	08.808 PLATE; CAUTION,OIL CHANGE 4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV>	8-97200-740-0	01	1	0507-0606		●	●
190	08.808 PLATE; CAUTION,OIL CHANGE LIMITED SLIP DIFF<6LV>	8-97200-740-0	01	1	0607-	●	●	●

274

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	274	08.808 PLATE; CAUTION,DPD 4JJ1 ENG(LFB)	8-98049-618-0	01	1	0607-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
