◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#22509) — 30 parça

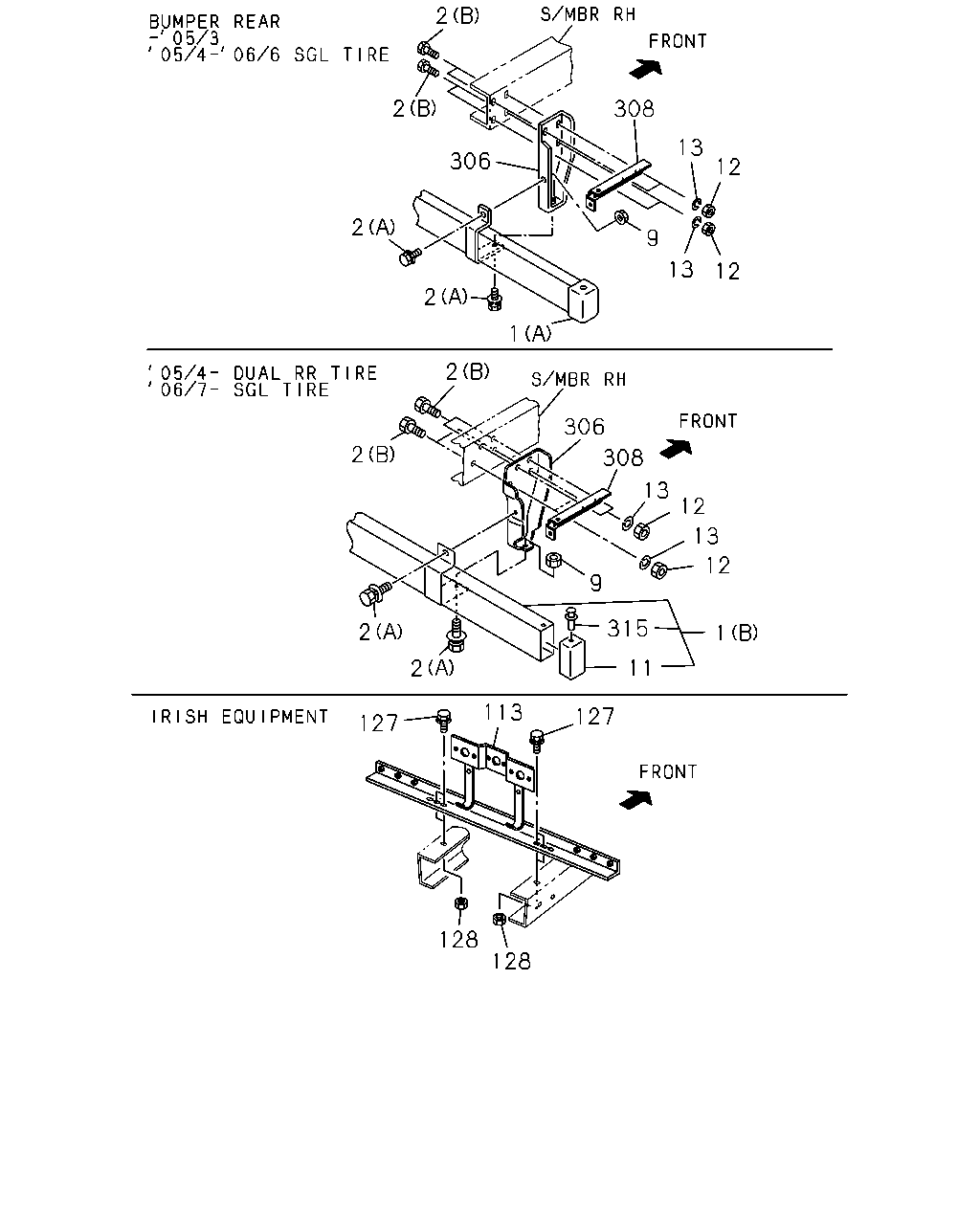

çizim 53562
2 2 308 13 306 12 2 9 13 12 2 2 306 2 308 13 12 13 12 9 315 2 1 2 11 113 127 127 128 128
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.070 BUMPER; RR
(A) 		8-97174-004-2 01 1 0302-0606 ●
1 07.070 BUMPER; RR
(B) STAMP IJ2G 		8-98000-144-1 01 1 0607- ●
1 07.070 BUMPER; RR
(A) 		8-97174-005-2 01 1 0302-0503 ● ●
1 07.070 BUMPER; RR
(B) STAMP IJ2H 		8-98000-145-1 01 1 0504- ● ●
2 07.874 BOLT; BACK BAR
07.347 (B) M14X30 		0-20801-430-0 08 1 0302-0512 ● ● ●
2 07.874 BOLT; BACK BAR
(B) M14X30 		0-20851-430-0 08 1 0601- ● ● ●
2 07.874 BOLT; BACK BAR
01.271 (A) M10X30 		8-94324-205-0 04 1 0302- ● ● ●
9 07.070 NUT; BUMPER
08.917 M10 FLANGE 		0-91150-210-0 02 1 0302-0602 ● ● ●
9 07.070 NUT; BUMPER
04.085 M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
11 07.829 CAP; RR BUMPER 8-97174-008-0 02 1 0504-0606 ● ●
11 07.829 CAP; RR BUMPER 8-97174-008-0 02 1 0607- ● ● ●
12 07.833 NUT; BRKT
07.529 M14 		9-99110-514-0 08 1 0302-0512 ● ● ●
12 07.833 NUT; BRKT
M14 		0-91110-514-0 08 1 0601-0610 ● ● ●
12 07.833 NUT; BRKT
00.429 M14 FLANGE 		0-91180-214-0 08 1 0611- ● ● ●
13 07.833 WASHER; LK,BACK BAR TO FRAME
05.422 ID=14.2 		9-09150-814-0 08 1 0302-0603 ● ● ●
13 07.833 WASHER; LK,BACK BAR TO FRAME
06.174 ID=14.2 		0-91510-814-0 08 1 0604-0610 ● ● ●
113 07.800 BRACKET; LICENSE PLATE
IRISH EQUIPMENT(6CU) 02.662 		8-97096-644-3 01 1 0302-0606 ● ● ●
127 02.662 BOLT; CROSS PLATE
IRISH EQUIPMENT(6CU) 03.483 M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 0302-0403 ● ● ●
127 02.662 BOLT; CROSS PLATE
IRISH EQUIPMENT(6CU) 03.704 M8X40 FLANGE 		0-28680-840-0 02 1 0404-0512 ● ● ●
127 02.662 BOLT; CROSS PLATE
IRISH EQUIPMENT(6CU) 00.685 M8X40 FLANGE 		0-28650-840-0 02 1 0601-0606 ● ● ●
128 02.662 NUT; CROSS PLATE
IRISH EQUIPMENT(6CU) 02.559 M8 		9-09110-408-0 02 1 0302-0512 ● ● ●
128 02.662 NUT; CROSS PLATE
IRISH EQUIPMENT(6CU) 02.334 M8 		0-91110-508-0 02 1 0601-0606 ● ● ●
306 07.836 BAR; BACK,RR
STAMP BL 		8-97128-333-0 01 1 0302-0503 ● ● ●
306 07.836 BAR; BACK,RR
STAMP IA2 		8-98000-171-0 01 1 0504- ● ● ●
306 07.836 BAR; BACK,RR
STAMP BR 		8-97128-334-0 01 1 0302-0503 ● ● ●
306 07.836 BAR; BACK,RR
STAMP IA2 		8-98000-172-0 01 1 0504- ● ● ●
308 07.068 BRACKET; RAIL 8-97094-278-1 01 1 0302- ● ● ●
308 07.068 BRACKET; RAIL 8-97094-277-1 01 1 0302- ● ● ●
315 07.829 RIVET; CAP
08.155 D8X13.5 		1-09987-248-1 04 1 0504-0606 ● ●
315 07.829 RIVET; CAP
08.155 D8X13.5 		1-09987-248-1 04 1 0607- ● ● ●
