◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#22508) — 12 parça

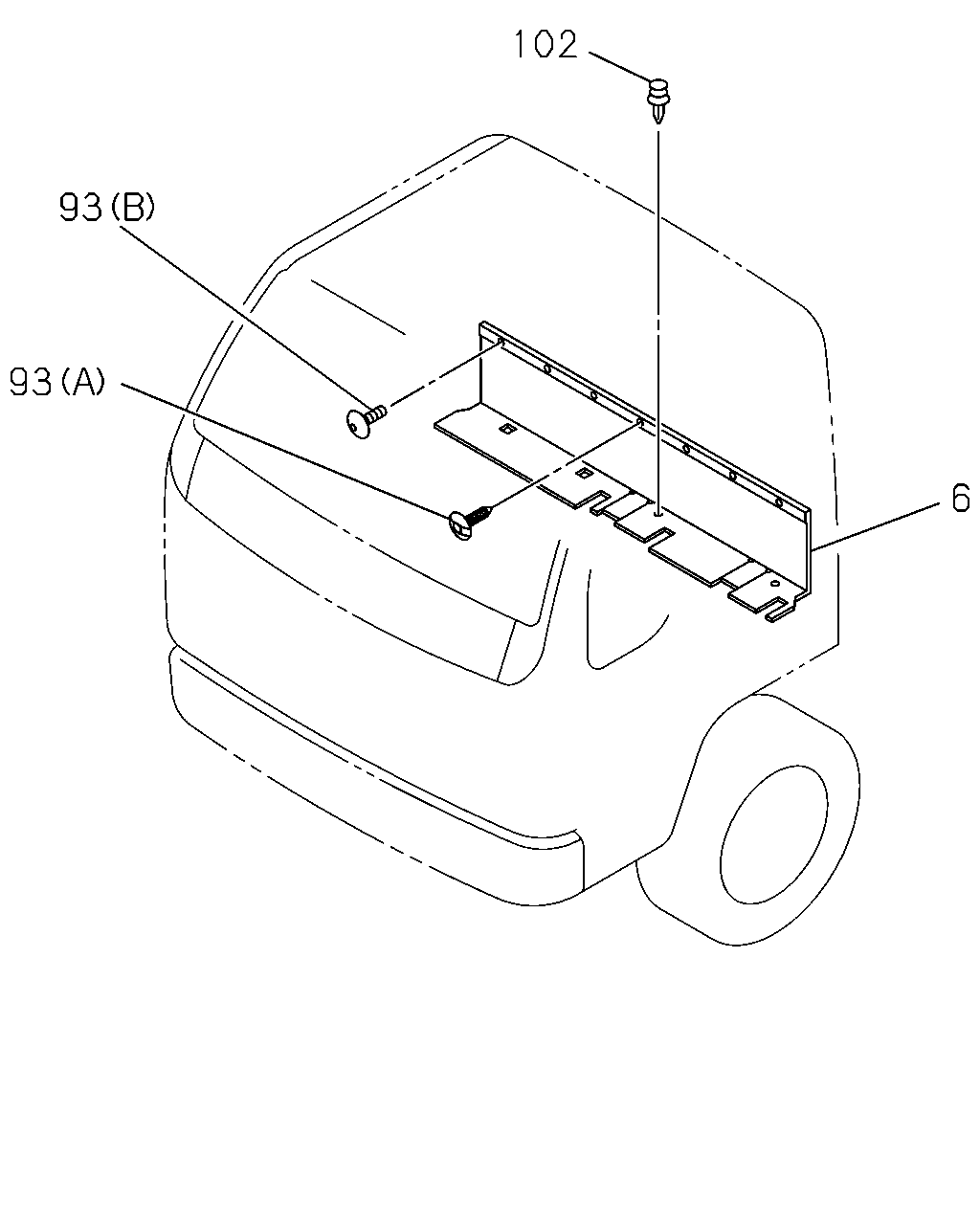

çizim 11173
102 93 93 6
BalonParca AdiParca NoAdetTipApplied Date A B C
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR DELUXE<RBB> DARK GRAY 		8-97859-869-5 01 1 0302-0506 ● ● ●
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR DELUXE<RBB> GRAY 		8-97582-257-6 01 1 0507-0606 ● ● ●
6 16.592 MAT; SILENCER,CAB BACK
GRAY 		8-97407-847-0 01 1 0607- ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (B) DARK GRAY 		8-97857-054-0 05 1 0302-0506 ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (A) GRAY 		8-97582-259-0 02 1 0507-0606 ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
(A) GRAY 		8-97582-259-0 02 1 0607-0610 ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
16.166 (A) GRAY 		8-97405-295-0 02 1 0611- ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (A) DARK GRAY 		8-97866-675-0 02 1 0302-0506 ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (B) GRAY 		8-97582-278-0 05 1 0507-0606 ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
(B) GRAY 		8-97582-278-0 05 1 0607-0610 ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
16.587 (B) GRAY 		8-97406-432-0 05 1 0611- ● ● ●
102 16.584 CLIP; TRAY,BACK PANEL
16.165 OD=7.9 BLACK 		8-94279-974-1 01 1 0302- ● ● ●
