◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#22504) — 109 parça

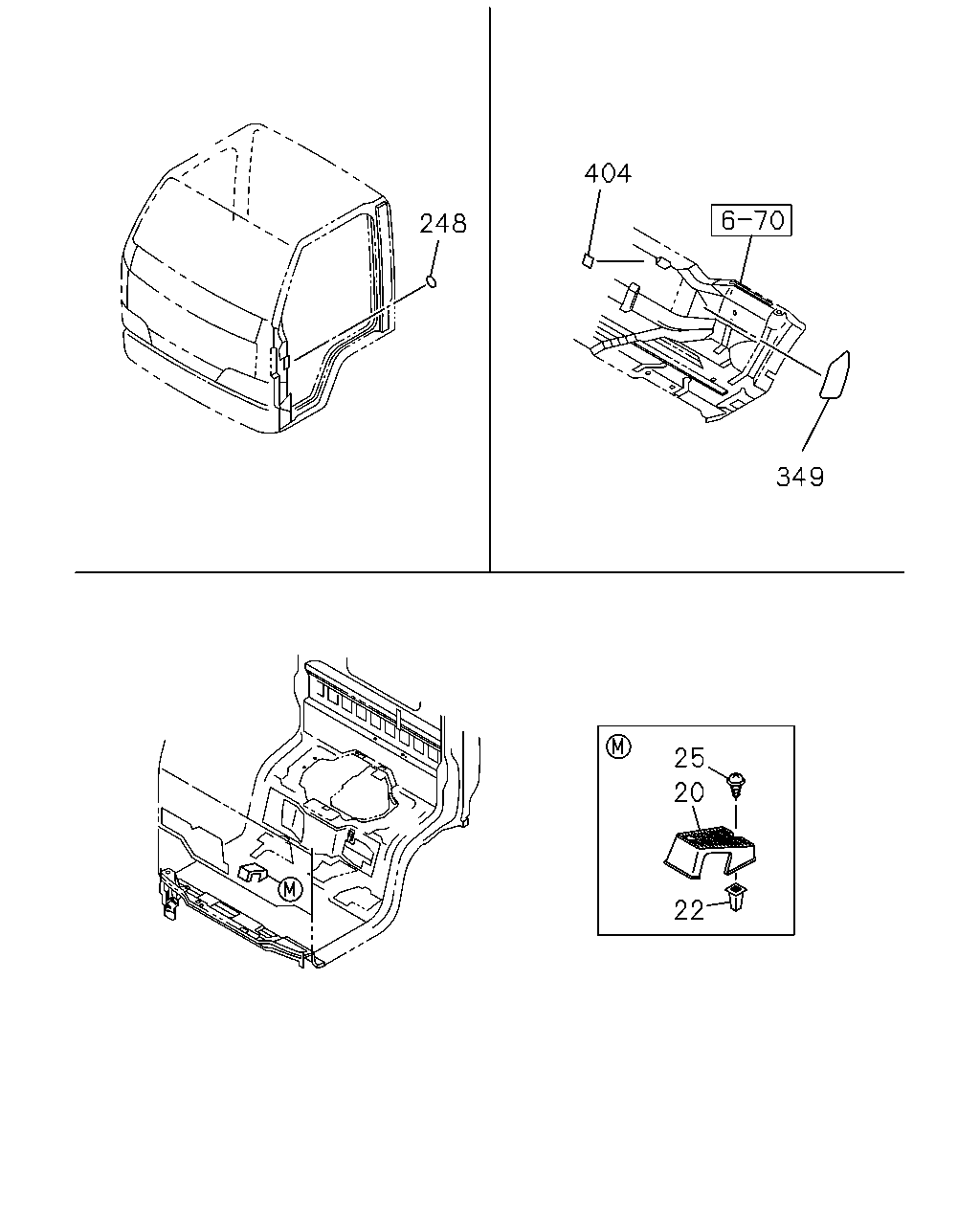

çizim 9611
404 248 349 25 20 22
BalonParca AdiParca NoAdetTipApplied Date A B C
20 16.547 REST; FOOT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-767-2 01 1 0607- ● ● ●
22 16.547 GROMMET; SCREW,FOOT REST
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.931 H=15 		8-94463-268-1 02 1 0607- ● ● ●
25 16.549 SCREW; FOOT REST
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0607-0612 ● ● ●
25 16.549 SCREW; FOOT REST
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.570 M5X16 HEX SOCKET 		0-72380-516-0 02 1 0701- ● ● ●
248 16.850 SEAL; EXT,FRT & RR
02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 0307-0506 ● ● ●
349 16.549 PROTECTOR 8-98039-389-1 01 1 0607-0705 ● ● ●
349 16.549 PROTECTOR 8-98090-192-1 01 1 0706- ● ● ●
349 16.549 PROTECTOR 8-98039-388-1 01 1 0607-0705 ● ● ●
349 16.549 PROTECTOR 8-98090-191-1 01 1 0706- ● ● ●
404 16.549 SEAL; FLOOR,HOLE 8-98040-837-0 01 1 0607- ● ● ●

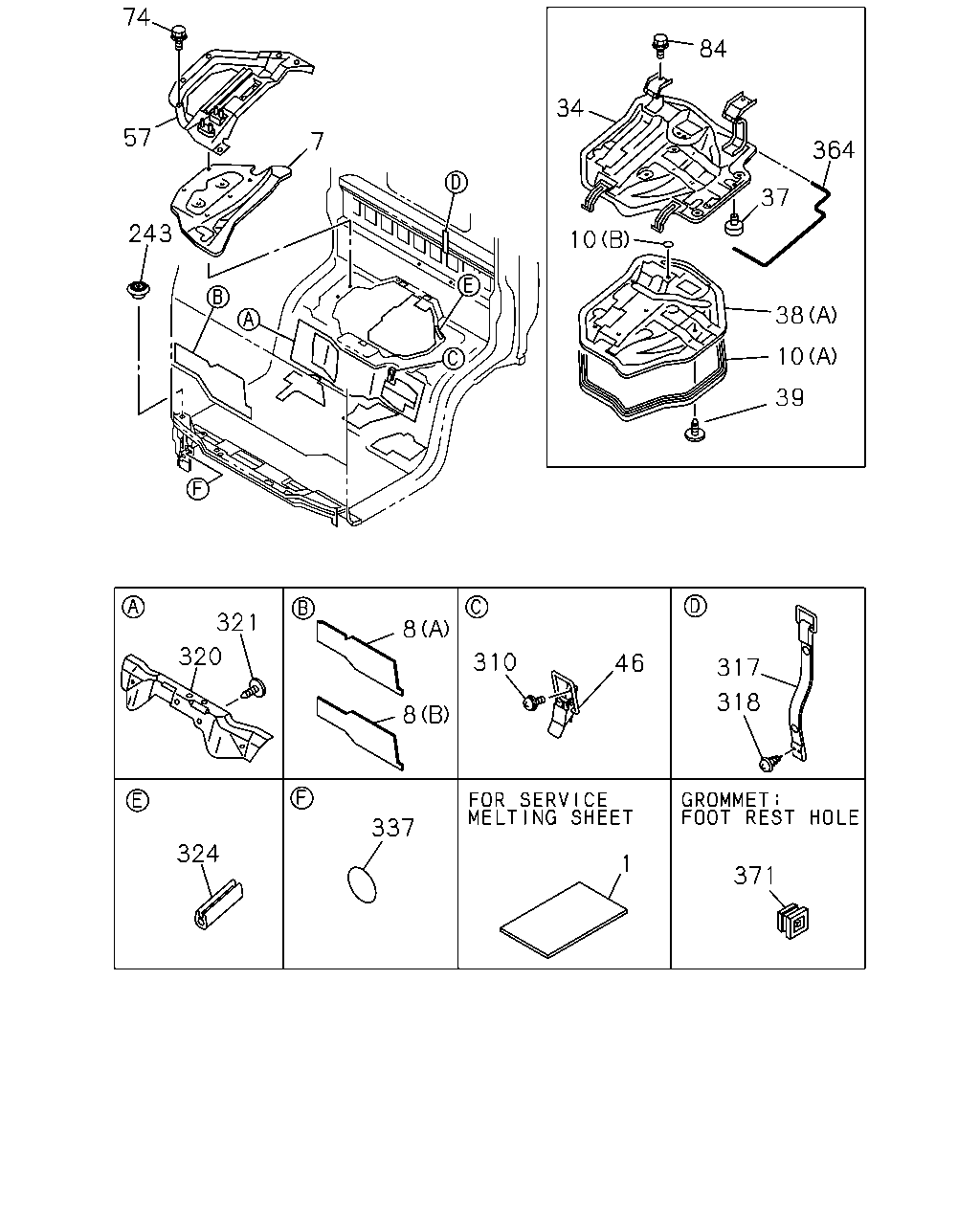

çizim 52458
74 84 34 57 7 364 37 243 10 38 10 39 321 8 320 310 46 317 318 8 337 324 1 371
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0302- ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97853-543-3 01 1 0302- ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-544-3 01 1 0302-0606 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-604-2 01 1 0302-0506 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-659-3 01 1 0507-0606 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-603-2 01 1 0302-0506 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-658-3 01 1 0507-0606 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-98019-713-1 02 1 0607- ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-010-4 01 1 0302- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0302- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0302-0710 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-673-1 01 1 0302- ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0302- ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97859-917-0 01 1 0302- ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 0302-0606 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 0302- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0302-0606 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0302-0606 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 02 1 0302-0606 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0607- ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0302- ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-687-1 01 1 0302- ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-688-1 01 1 0302-0606 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0302-0512 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0512 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0302-0512 ● ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0302- ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0302-0612 ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0302- ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0302-0604 ● ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ●
318 16.549 SCREW; BAND
16.570 M5X16 HEX SOCKET 		0-72380-516-0 02 1 0701- ● ● ●
320 16.549 INSULATOR; FLOOR,FRT 8-97856-277-6 01 1 0302-0606 ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 04 1 0302-0304 ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 03 1 0305-0606 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0302- ● ● ●
337 16.545 SEAL; CLIP HOLE
4JH1 ENG(RJX) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0302-0506 ● ● ●
337 16.545 SEAL; CLIP HOLE
4JH1-TC ENG(RDM) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0507-0606 ● ● ●
337 16.545 SEAL; CLIP HOLE
4JJ1 ENG(LFB) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0607- ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 0302- ● ● ●
371 16.549 GROMMET; LOCATION HOLE
16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0304-0606 ● ● ●
371 16.549 GROMMET; LOCATION HOLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0607- ● ● ●

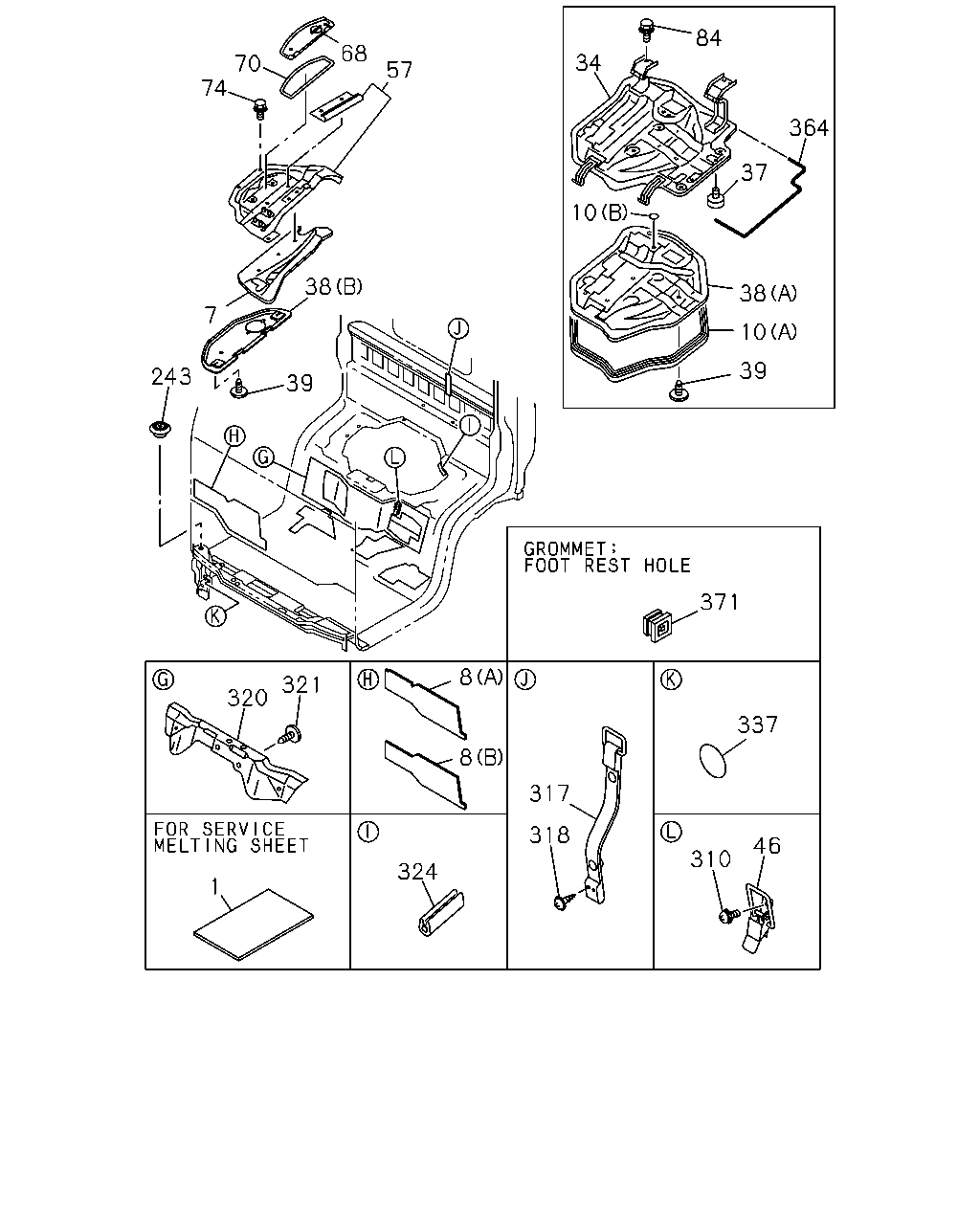

çizim 53593
84 68 34 70 74 57 364 37 10 38 38 7 10 39 243 39 371 8 321 320 337 8 317 318 46 310 324 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0302- ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97853-543-3 01 1 0302- ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-544-3 01 1 0302-0606 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-604-2 01 1 0302-0506 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-659-3 01 1 0507-0606 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-603-2 01 1 0302-0506 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-658-3 01 1 0507-0606 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-98019-713-1 02 1 0607- ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-010-4 01 1 0302- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0302- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0302-0710 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-673-1 01 1 0302- ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0302- ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97859-917-0 01 1 0302- ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 0302-0606 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 0302- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0302-0606 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0302-0606 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 02 1 0302-0606 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0607- ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0302- ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-687-1 01 1 0302- ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-688-1 01 1 0302-0606 ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 0302-0312 ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0401-0606 ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0302-0606 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0302-0512 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0512 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0302-0512 ● ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0302- ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0302-0612 ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0302- ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0302-0604 ● ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ●
318 16.549 SCREW; BAND
16.570 M5X16 HEX SOCKET 		0-72380-516-0 02 1 0701- ● ● ●
320 16.549 INSULATOR; FLOOR,FRT 8-97856-277-6 01 1 0302-0606 ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 04 1 0302-0304 ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 03 1 0305-0606 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0302- ● ● ●
337 16.545 SEAL; CLIP HOLE
4JH1 ENG(RJX) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0302-0506 ● ● ●
337 16.545 SEAL; CLIP HOLE
4JH1-TC ENG(RDM) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0507-0606 ● ● ●
337 16.545 SEAL; CLIP HOLE
4JJ1 ENG(LFB) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0607- ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 0302- ● ● ●
371 16.549 GROMMET; LOCATION HOLE
16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0304-0606 ● ● ●
371 16.549 GROMMET; LOCATION HOLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0607- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
