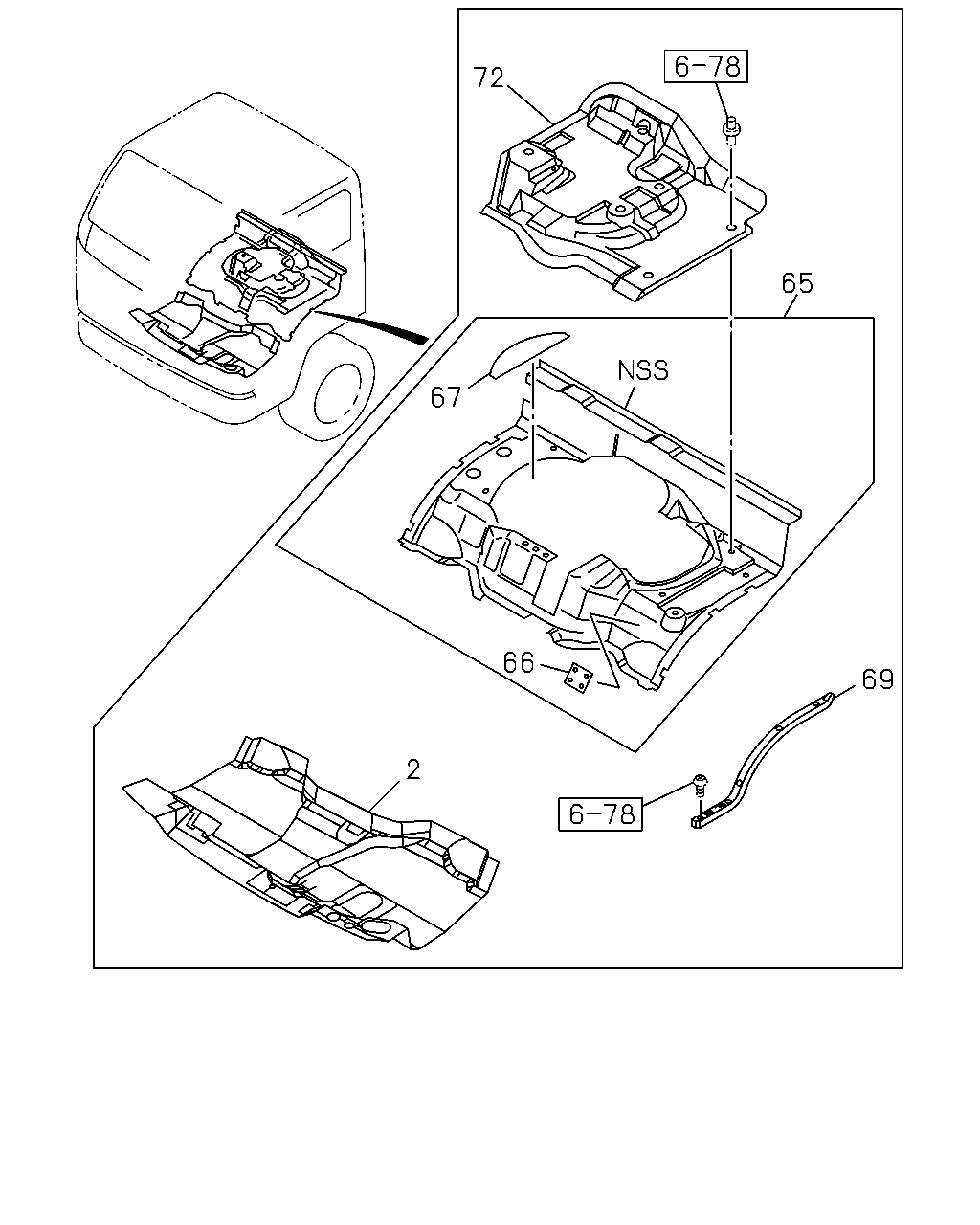

6-75 — MAT AND CARPET (#22503) — 27 parça

72 65 67 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-652-2	01	1	0302-0506	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97582-920-3	01	1	0507-0606	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97582-920-4	01	1	0607-	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97582-922-4	01	1	0607-	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-650-2	01	1	0302-0506	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97582-919-3	01	1	0507-0606	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60), TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97582-919-4	01	1	0607-	●	●	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97582-921-3	01	1	0607-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> DARK GRAY	8-97996-694-0	01	1	0302-0506	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> GRAY	8-97588-864-1	01	1	0507-0606	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ>	8-97407-851-0	01	1	0607-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97996-696-0	01	1	0302-0506	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ> GRAY	8-97587-470-1	01	1	0507-0606	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0302-0506	●	●	●
66	16.549 HOOK; COVER GRAY	8-97583-948-0	02	1	0507-0606	●	●	●
66	16.549 HOOK; COVER MANUAL TILT CAB<RWZ> GRAY	8-97583-948-0	02	1	0607-	●	●	●
67	16.549 LID; COVER EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97997-586-0	01	1	0302-0506	●	●	●
67	16.549 LID; COVER EXC. MANUAL TILT CAB<RWZ> GRAY	8-97583-947-0	01	1	0507-0606	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	0302-0506	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-229-1	01	1	0507-0702	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-479-0	01	1	0703-	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	0302-0506	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-228-1	01	1	0507-0702	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-478-0	01	1	0703-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-720-0	01	1	0302-0506	●	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97587-473-1	01	1	0507-0606	●	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-98041-107-0	01	1	0607-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
