◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#22502) — 73 parça

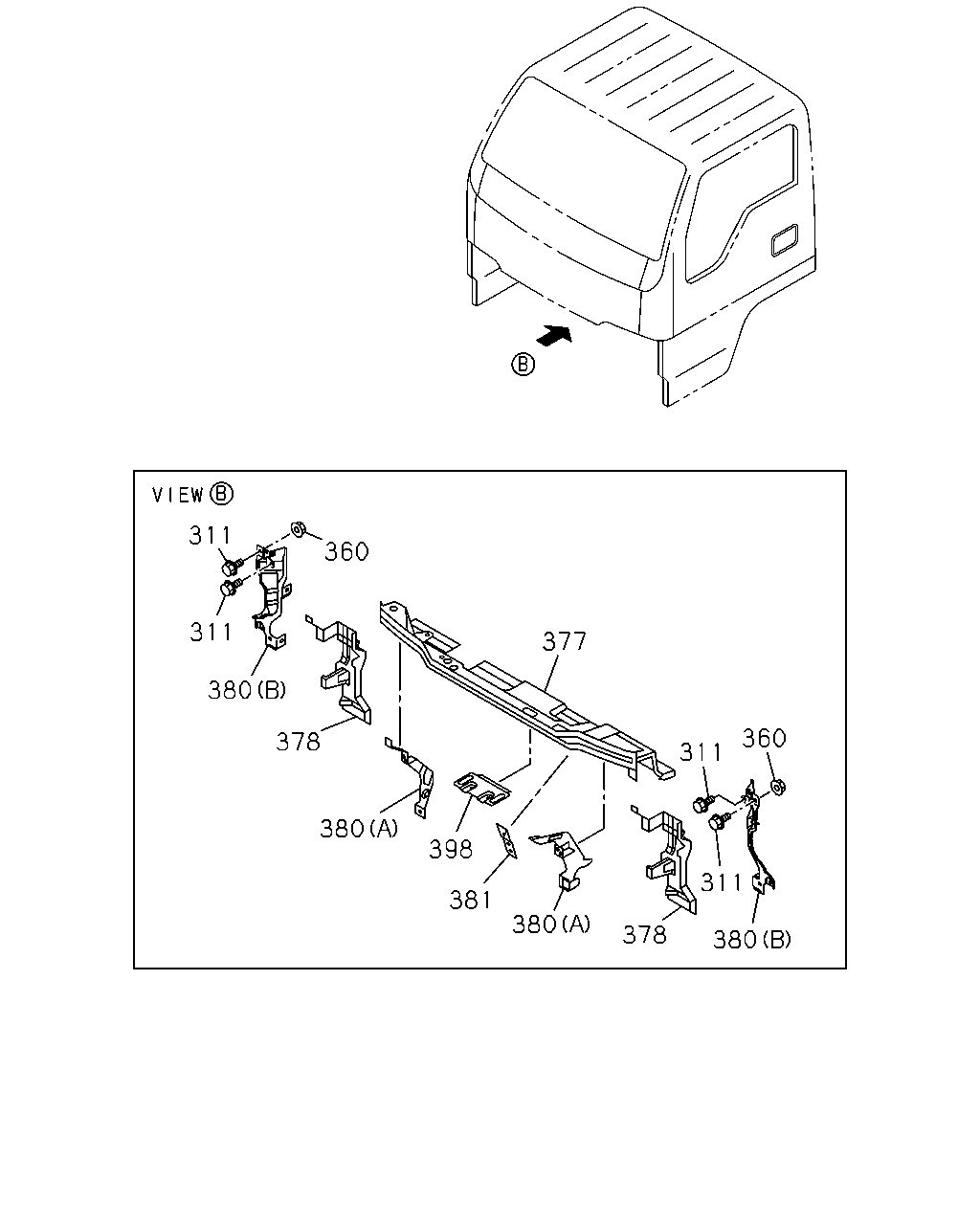

çizim 52429
311 360 311 377 380 360 378 311 380 398 311 381 380 378 380
BalonParca AdiParca NoAdetTipApplied Date A B C
311 16.545 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0507-0804 ● ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0805- ● ● ●
360 16.545 NUT; BRKT
16.570 M6 POP NUT 		8-94279-537-0 02 1 0507-0805 ● ● ●
360 16.545 NUT; BRKT
09.786 M6 POP NUT 		8-98013-752-0 02 1 0806- ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-049-8 01 1 0302-0303 ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97997-547-0 01 1 0304-0606 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97997-547-1 01 1 0607- ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 0302-0305 ● ● ●
378 16.545 GASSET; LWR 8-97581-828-2 01 1 0306-0606 ● ● ●
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97581-828-2 01 1 0607- ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 0302-0305 ● ● ●
378 16.545 GASSET; LWR 8-97581-827-1 01 1 0306-0606 ● ● ●
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97581-827-2 01 1 0607- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-705-0 01 1 0302-0606 ● ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> (A) 		8-97850-705-0 01 1 0607- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-090-2 01 1 0302-0606 ● ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> (A) 		8-97850-090-2 01 1 0607- ● ● ●
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-088-0 01 1 0507- ● ● ●
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-087-0 01 1 0507- ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 0302-0606 ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT
MANUAL TILT CAB<RWZ> 		8-97850-221-5 01 1 0607- ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0302-0606 ● ● ●
398 16.545 BRACKET; PIPE SUPPORT
MANUAL TILT CAB<RWZ> 		8-97850-318-1 01 1 0607- ● ● ●

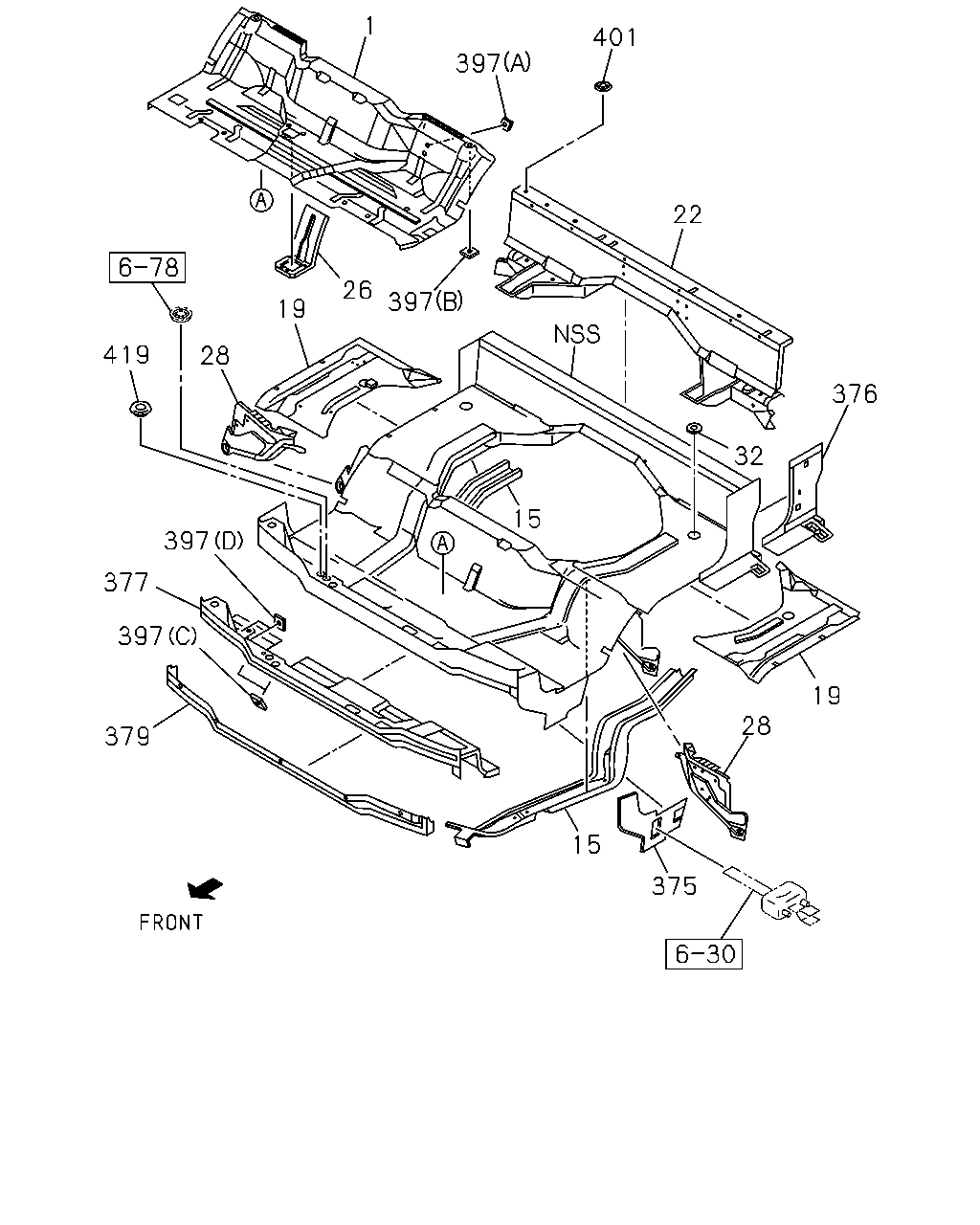

çizim 52475
1 401 397 22 26 397 19 419 28 376 32 15 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.545 PANEL; FLOOR 8-97850-004-7 01 1 0302-0303 ● ● ●
1 16.545 PANEL; FLOOR 8-97581-770-0 01 1 0304-0606 ● ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97581-770-0 01 1 0607- ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0302-0606 ● ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 0607- ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0302-0505 ● ● ●
15 16.545 FRAME; UNDER 8-98013-405-0 01 1 0506-0606 ● ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-98013-405-0 01 1 0607- ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 0302-0606 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-008-5 01 1 0607- ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-002-6 01 1 0302-0606 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-002-7 01 1 0607- ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97866-659-3 01 1 0302-0612 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-98036-436-0 01 1 0701-0701 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97866-659-8 01 1 0701- ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-519-7 01 1 0302-0606 ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 0302-0606 ● ● ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97850-005-6 01 1 0607- ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0302-0606 ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 0607-1106 ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-98170-771-0 01 1 1107- ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0302-0606 ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 0607-1106 ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-98170-770-0 01 1 1107- ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 OD=53.5 		8-94356-253-0 02 1 0302- ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-4 01 1 0302-0606 ● ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-087-4 01 1 0607- ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-5 01 1 0302-0606 ● ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-086-5 01 1 0607- ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0302-0606 ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 0607- ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0302-0606 ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 0607- ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-049-8 01 1 0302-0303 ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97997-547-0 01 1 0304-0606 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97997-547-1 01 1 0607- ● ● ●
379 16.545 PANEL 8-97850-050-2 01 1 0302-0306 ● ● ●
379 16.545 PANEL 8-97581-639-0 01 1 0307-0606 ● ● ●
379 16.545 PANEL
MANUAL TILT CAB<RWZ> 		8-97581-639-0 01 1 0607- ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0302-0606 ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 0607- ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0302-0606 ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0607- ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 0302-0606 ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 0607- ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 05 1 0302-0606 ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 05 1 0607- ● ● ●
401 16.545 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0302- ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 0302- ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 0302- ● ●
