◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#22500) — 30 parça

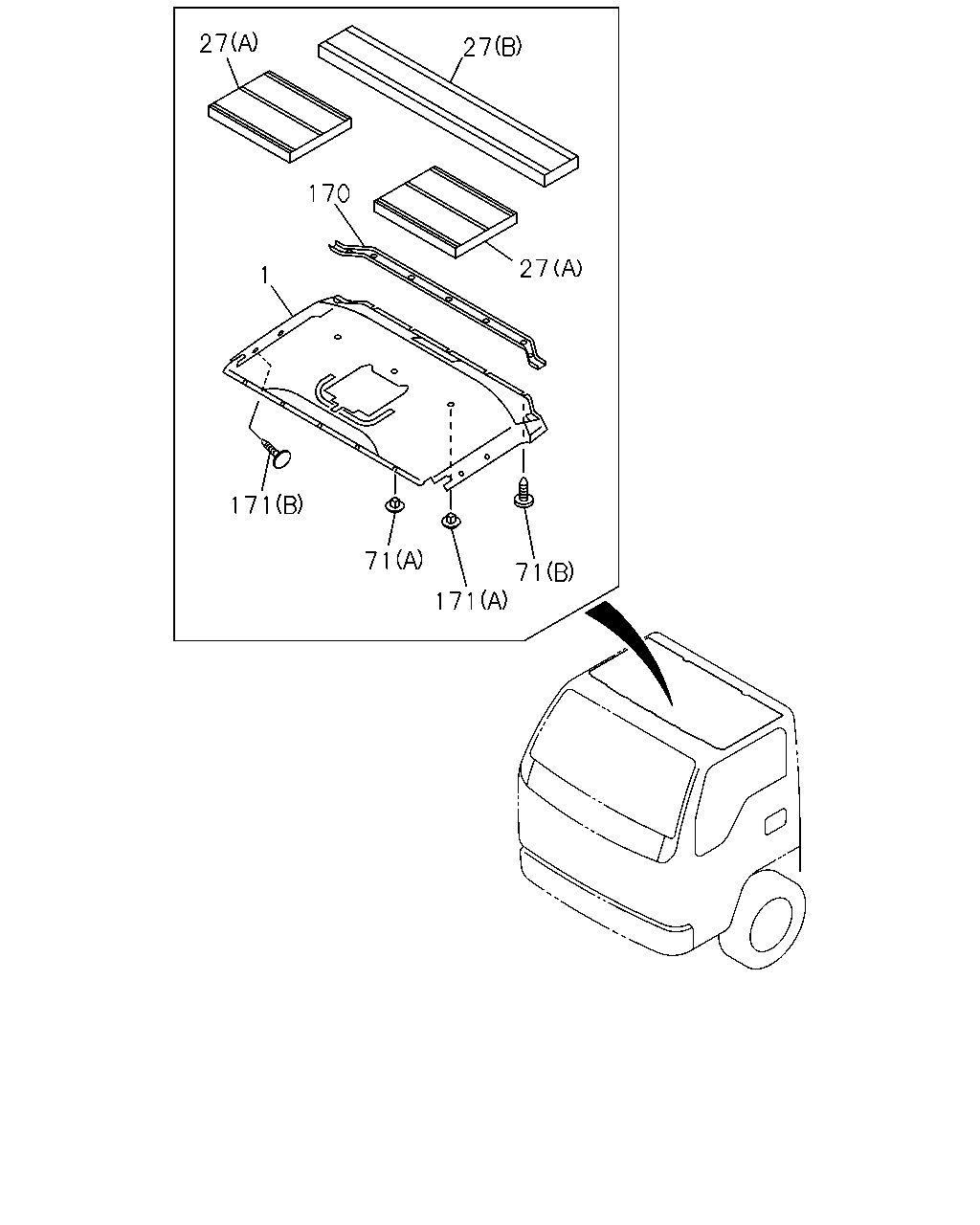

çizim 11235
27 27 170 27 1 171 71 71 171
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.742 LINING; HD
INTERIOR DELUXE<RBB> LIGHT GRAY 		8-97859-858-8 01 1 0302- ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. INTERIOR DELUXE<RBB>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-645-3 01 1 0302- ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. INTERIOR DELUXE<RBB> LIGHT GRAY 		8-97868-646-3 01 1 0302- ● ● ●
1 16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE<RBB>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-644-3 01 1 0302- ● ● ●
1 16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE<RBB> LIGHT GRAY 		8-97859-861-4 01 1 0302- ● ● ●
27 16.165 INSULATION; ROOF
INTERIOR DELUXE<RBB> (A) 		8-97856-987-6 02 1 0302- ● ● ●
27 16.165 INSULATION; ROOF
INTERIOR DELUXE<RBB> (B) 		8-97856-988-3 01 1 0302- ● ● ●
71 16.742 FASTENER; HD LINING
(A) LIGHT GRAY 		8-97867-230-2 03 1 0302-0610 ● ● ●
71 16.742 FASTENER; HD LINING
(A) DARK GRAY 		8-97405-301-2 03 1 0611- ● ● ●
71 16.742 FASTENER; HD LINING
INTERIOR DELUXE<RBB> (B) D5.8X20 		8-97857-353-0 04 1 0302- ● ● ●
170 16.742 FINISHER; HEAD LINING
INTERIOR DELUXE<RBB> LIGHT GRAY 		8-97859-864-3 01 1 0302- ● ● ●
171 16.742 CLIP; HEAD LINING
INTERIOR DELUXE<RBB> (A) LIGHT GRAY 		8-97859-865-0 02 1 0302- ● ● ●
171 16.742 CLIP; HEAD LINING
INTERIOR DELUXE<RBB> (B) LIGHT GRAY 		8-97859-866-0 05 1 0302- ● ● ●
çizim 49476
175 6 175 6 1 6 175 71 215 6 215 172 173
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.742 LINING; HD
INTERIOR DELUXE<RBB> LIGHT GRAY 		8-97859-858-8 01 1 0302- ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. INTERIOR DELUXE<RBB>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-645-3 01 1 0302- ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. INTERIOR DELUXE<RBB> LIGHT GRAY 		8-97868-646-3 01 1 0302- ● ● ●
1 16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE<RBB>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-644-3 01 1 0302- ● ● ●
1 16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE<RBB> LIGHT GRAY 		8-97859-861-4 01 1 0302- ● ● ●
6 16.742 SPACER; HD LINING
EXC. INTERIOR DELUXE<RBB> (A) 		8-94353-014-0 03 1 0302- ● ● ●
6 16.742 SPACER; HD LINING
EXC. INTERIOR DELUXE<RBB> 16.588 (B) H=10 L=55 		8-97857-444-0 02 1 0302-0410 ● ● ●
6 16.742 SPACER; HD LINING
EXC. INTERIOR DELUXE<RBB> 16.588 (B) H=10 L=55 		8-97410-832-0 02 1 0411- ● ● ●
71 16.742 FASTENER; HD LINING
(A) LIGHT GRAY 		8-97867-230-2 03 1 0302-0610 ● ● ●
71 16.742 FASTENER; HD LINING
(A) DARK GRAY 		8-97405-301-2 03 1 0611- ● ● ●
71 16.742 FASTENER; HD LINING
INTERIOR DELUXE<RBB> (B) D5.8X20 		8-97857-353-0 04 1 0302- ● ● ●
172 16.742 RETAINER; HEAD LINING
EXC. INTERIOR DELUXE<RBB> LIGHT GRAY 		8-97867-191-4 01 1 0302- ● ● ●
173 16.742 CLIP; RETAINER,HEAD LINING
EXC. INTERIOR DELUXE<RBB> LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 04 1 0302-0708 ● ● ●
173 16.742 CLIP; RETAINER,HEAD LINING
EXC. INTERIOR DELUXE<RBB> DARK GRAY 		8-97406-299-0 04 1 0709- ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR DELUXE<RBB> (B) 		8-97856-791-4 02 1 0302- ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR DELUXE<RBB> (A) 		8-97856-792-4 01 1 0302- ● ● ●
215 16.592 CUSHION; TRAY BACK PANEL
ROOF VENTILATOR<C55> EXC. INTERIOR DELUXE<RBB> 16.587 L=100 		8-97866-625-0 02 1 0302- ● ● ●
