◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#2250) — 35 parça

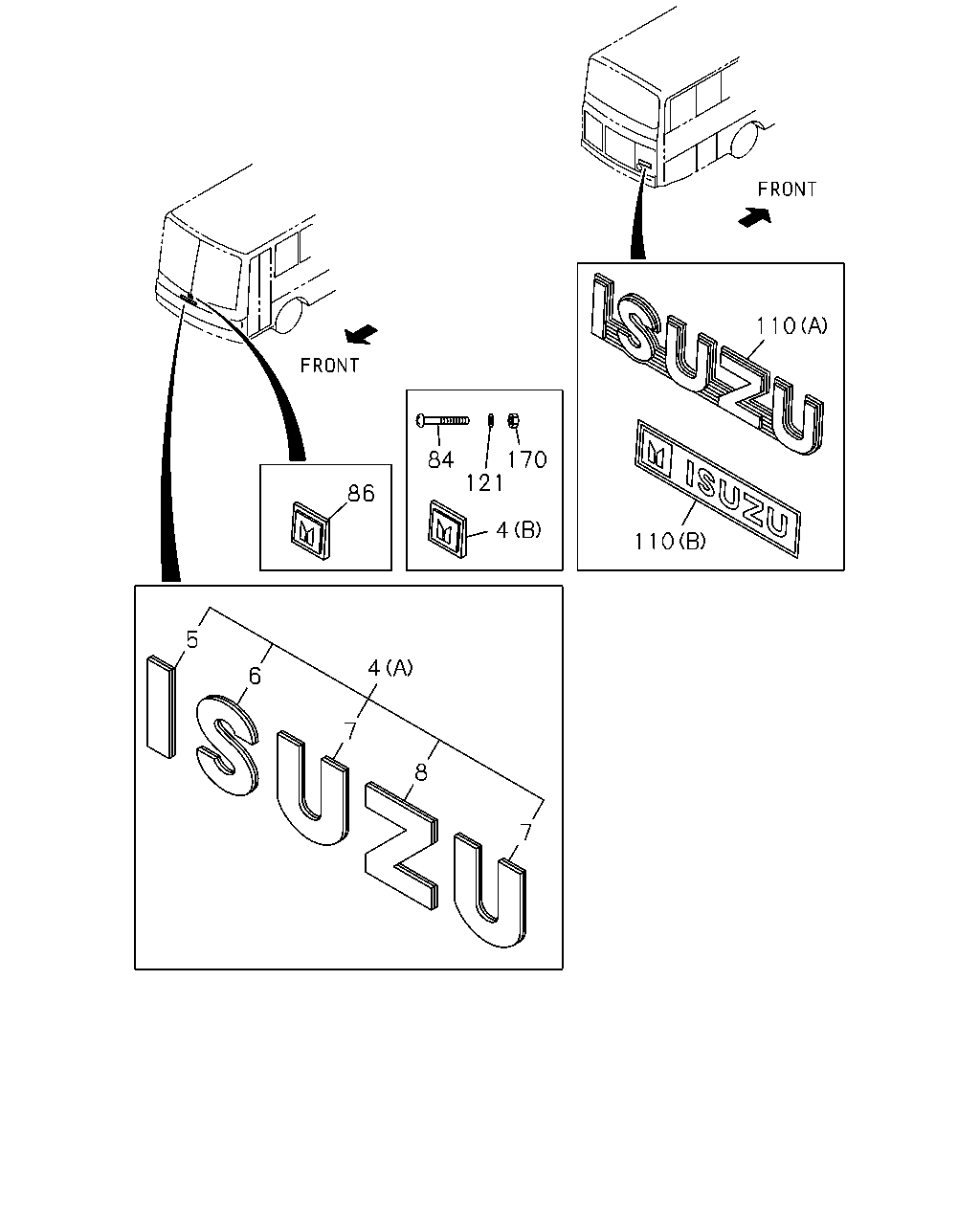

çizim 96447
110 84 170 121 86 4 110 5 4 6 7 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
4 EMBLEM; RAD GRILLE
BUS BODY APPLICATION<SS8> (B) 		1-76210-048-1 02 1 9101- ● ●
4 EMBLEM; RAD GRILLE
USER DAEWOO MOTORS<D4S> (A) 		1-76230-072-0 01 1 9101-0203 ● ●
4 EMBLEM; RAD GRILLE
CENTER MARK LETTER ISUZU<RS4> (A) 		1-76230-072-0 01 1 9101-0203 ● ●
4 EMBLEM; RAD GRILLE
CENTER MARK LETTER ISUZU<RS4> (A) 		1-76230-072-0 01 1 0204- ● ●
4 EMBLEM; RAD GRILLE
EXC. USER DAEWOO MOTORS<D4S> (B) 		1-76210-048-1 01 1 9101-0203 ● ●
4 EMBLEM; RAD GRILLE
(B) 		1-76210-048-1 01 1 0204- ● ●
5 MARK; "I"
BUS BODY APPLICATION<SS8> 		1-76231-020-0 01 1 9101- ● ●
5 MARK; "I"
USER DAEWOO MOTORS<D4S> 		1-76231-024-0 01 1 9101-0203 ● ●
5 MARK; "I"
CENTER MARK LETTER ISUZU<RS4> 		1-76231-024-0 01 1 9101-0203 ● ●
5 MARK; "I"
CENTER MARK LETTER ISUZU<RS4> 		1-76231-024-0 01 1 0204- ● ●
6 MARK; "S"
BUS BODY APPLICATION<SS8> 		1-76231-021-0 01 1 9101- ● ●
6 MARK; "S"
USER DAEWOO MOTORS<D4S> 		1-76231-025-0 01 1 9101-0203 ● ●
6 MARK; "S"
CENTER MARK LETTER ISUZU<RS4> 		1-76231-025-0 01 1 9101-0203 ● ●
6 MARK; "S"
CENTER MARK LETTER ISUZU<RS4> 		1-76231-025-0 01 1 0204- ● ●
7 MARK; "U"
BUS BODY APPLICATION<SS8> 		1-76231-022-0 02 1 9101- ● ●
7 MARK; "U"
USER DAEWOO MOTORS<D4S> 		1-76231-026-0 02 1 9101-0203 ● ●
7 MARK; "U"
CENTER MARK LETTER ISUZU<RS4> 		1-76231-026-0 02 1 9101-0203 ● ●
7 MARK; "U"
CENTER MARK LETTER ISUZU<RS4> 		1-76231-026-0 02 1 0204- ● ●
8 MARK; "Z"
BUS BODY APPLICATION<SS8> 		1-76231-023-0 01 1 9101- ● ●
8 MARK; "Z"
USER DAEWOO MOTORS<D4S> 		1-76231-027-0 01 1 9101-0203 ● ●
8 MARK; "Z"
CENTER MARK LETTER ISUZU<RS4> 		1-76231-027-0 01 1 9101-0203 ● ●
8 MARK; "Z"
CENTER MARK LETTER ISUZU<RS4> 		1-76231-027-0 01 1 0204- ● ●
84 SCREW; TOP MARK
BUS BODY APPLICATION<SS8> M3X10 		9-93290-310-0 04 1 9101- ● ●
86 EMBLEM; SYMBOL,BODY FRT
USER DAEWOO MOTORS<D4S> 		1-76210-452-0 01 1 9101-0203 ● ●
110 EMBLEM; "ISUZU",RR BODY
(B) RR & FACIA 		1-76210-310-0 02 1 9101- ● ●
110 EMBLEM; "ISUZU",RR BODY
BUS BODY APPLICATION<SS8> (B) RR & FACIA 		1-76210-310-0 02 1 9101- ● ●
110 EMBLEM; "ISUZU",RR BODY
(A) RR 		5-76217-046-1 01 1 9101-0203 ● ●
110 EMBLEM; "ISUZU",RR BODY
BUS BODY APPLICATION<SS8> (A) RR 		5-76217-046-1 01 1 9101-0203 ● ●
110 EMBLEM; "ISUZU",RR BODY
EXC. USER DAEWOO MOTORS<D4S> (A) RR 		5-76217-046-1 01 1 9101-0203 ● ●
110 EMBLEM; "ISUZU",RR BODY
(A) RR 		5-76217-046-1 01 1 0204- ● ●
110 EMBLEM; "ISUZU",RR BODY
BUS BODY APPLICATION<SS8> (A) RR 		5-76217-046-1 01 1 0204- ● ●
121 WASHER; PL,MARK
ID=3.1 		9-09150-503-0 04 1 9101-0203 ● ●
121 WASHER; PL,MARK
BUS BODY APPLICATION<SS8> ID=3.1 		9-09150-503-0 04 1 0204- ● ●
170 NUT; TOP MARK
M3 		9-99110-403-0 04 1 9101-0203 ● ●
170 NUT; TOP MARK
BUS BODY APPLICATION<SS8> M3 		9-99110-403-0 04 1 0204- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
