◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10625 - FSR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#225) — 189 parça

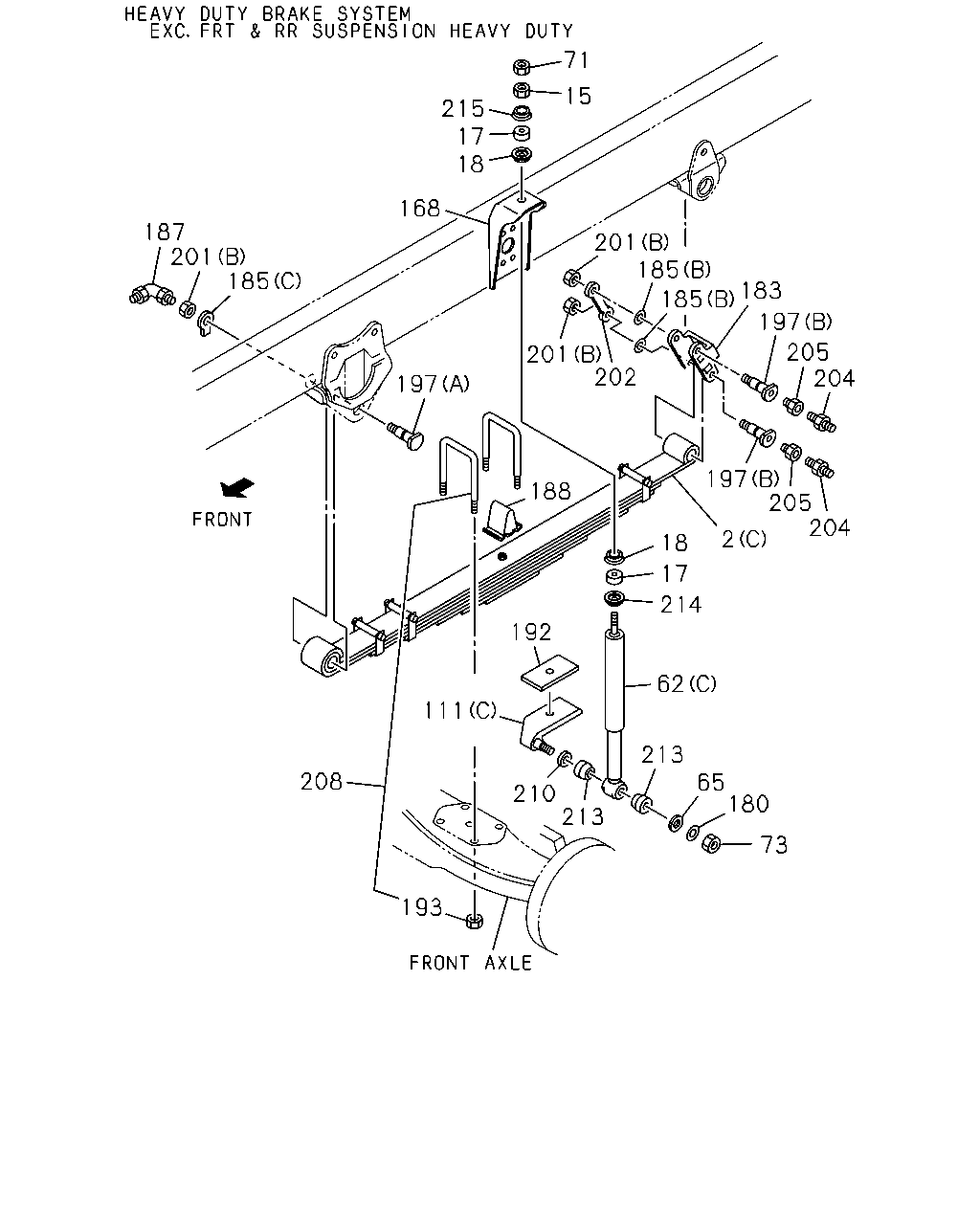

çizim 28015
71 15 215 17 18 168 201 185 187 201 185 183 185 197 205 204 201 202 197 197 205 204 188 2 18 17 214 192 62 111 213 208 65 180 210 213 73 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7-LEAF 		1-51130-265-0 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7-LEAF 		1-51130-264-0 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-51130-267-0 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 8-LEAF 		1-51130-266-0 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 7-LEAF 		1-51130-156-1 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 7-LEAF 		1-51130-155-1 01 1 9212-
15 NUT; S/ABS,UPR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 		1-09400-006-0 02 1 9212-
15 NUT; S/ABS,UPR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10 FLANGE 		0-91150-110-0 02 1 9212-
17 BUSHING; RUBBER,S/ABS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-51631-050-0 04 1 9212-
17 BUSHING; RUBBER,S/ABS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-51631-004-0 04 1 9212-
18 WASHER; CENTERING,S/ABS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16.8 		1-51631-022-0 04 1 9212-
62 ABSORBER ASM; SHOCK,FRT
FRT & RR SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-51630-180-3 02 1 9212-
62 ABSORBER ASM; SHOCK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 		1-51630-302-0 02 1 9212-
62 ABSORBER ASM; SHOCK,FRT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-51630-290-1 02 1 9212-
65 WASHER; S/ABS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=23 		1-51631-019-0 02 1 9212-
65 WASHER; S/ABS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.5 OD=26 		9-09164-612-0 02 1 9212-
71 NUT; LK,S/ABS,UPR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09400-006-0 02 1 9212-
71 NUT; LK,S/ABS,UPR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-09111-410-0 02 1 9212-
73 NUT; BRKT,SHOCK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 		9-99110-416-0 02 1 9212-
73 NUT; BRKT,SHOCK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 		9-99110-512-0 02 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
FRT & RR SUSPENSION HEAVY DUTY<F40> (A) 		1-51681-559-1 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
FRT & RR SUSPENSION HEAVY DUTY<F40> (A) 		1-51681-558-1 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-51681-573-5 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-51681-572-5 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 		1-51681-642-1 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 		1-51681-641-1 01 1 9212-
168 BRACKET; S/ABS,FRT SUSP
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-51681-306-0 02 1 9212-
168 BRACKET; S/ABS,FRT SUSP
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-51681-522-0 02 1 9212-
180 WASHER; PL,PIN
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17 		9-09160-516-0 02 1 9212-
183 SHACKLE; FRT SUSP
FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51162-029-4 02 1 9212-
183 SHACKLE; FRT SUSP
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51162-037-0 02 1 9212-
185 WASHER; LK,PIN
FRT & RR SUSPENSION HEAVY DUTY<F40> (A) 		9-09150-612-0 12 1 9212-
185 WASHER; LK,PIN
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (B) ID=25.5 		1-09503-011-0 04 1 9212-
185 WASHER; LK,PIN
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) ID=23 		1-51169-003-0 02 1 9212-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9212-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51172-085-0 02 1 9212-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51172-080-2 02 1 9212-9307
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51172-098-0 02 1 9308-9408
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51172-107-0 02 1 9409-
192 PIECE; DIST
FRT & RR SUSPENSION HEAVY DUTY<F40> 80X144 ID=17.5 		1-51177-284-1 AR 1 9212-
192 PIECE; DIST
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> T=4.5 		1-51177-149-0 AR 1 9212-
193 NUT; U BOLT
FRT & RR SUSPENSION HEAVY DUTY<F40> 		9-09112-822-0 08 1 9212-
193 NUT; U BOLT
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> M16 		1-09440-028-1 08 1 9212-
197 PIN; FRT SPR,FRT
FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51161-031-0 06 1 9212-
197 PIN; FRT SPR,FRT
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (A) 		1-51161-004-3 02 1 9212-
197 PIN; FRT SPR,FRT
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (B) 		1-51161-005-3 04 1 9212-
201 NUT; PIN LK
FRT & RR SUSPENSION HEAVY DUTY<F40> (A) M12 		9-99110-512-0 12 1 9212-
201 NUT; PIN LK
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (B) M22 		9-09111-522-0 06 1 9212-
202 PLATE; LK,SPR PIN
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51169-016-0 02 1 9212-
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9212-
205 ATTACHMENT; GREASE NIPPLE
FRT & RR SUSPENSION HEAVY DUTY<F40> 		9-43165-001-0 06 1 9212-
205 ATTACHMENT; GREASE NIPPLE
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		9-43165-001-0 04 1 9508-
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY<F40> L=210 		1-87870-118-3 04 1 9212-9307
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY<F40> L=210 		1-87870-380-0 04 1 9308-
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=175 		1-87870-350-0 04 1 9212-
208 U-BOLT SET; FRT SPRING
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> L=190 		1-87870-361-0 04 1 9212-
210 WASHER; S/ABS,OUTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17 		1-51631-020-0 02 1 9212-
210 WASHER; S/ABS,OUTER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17 		9-09164-516-0 02 1 9212-
213 BUSHING; RUBBER,LWR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-51631-009-1 04 1 9212-
214 WASHER; S/ABS,UPR,INNER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-51631-051-0 02 1 9212-
214 WASHER; S/ABS,UPR,INNER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.5 OD=40 T=3.2 		9-09651-094-0 04 1 9212-
215 WASHER; S/ABS,UPR,OUTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.5 		9-51631-051-0 02 1 9212-
215 WASHER; S/ABS,UPR,OUTER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-51631-023-0 02 1 9212-

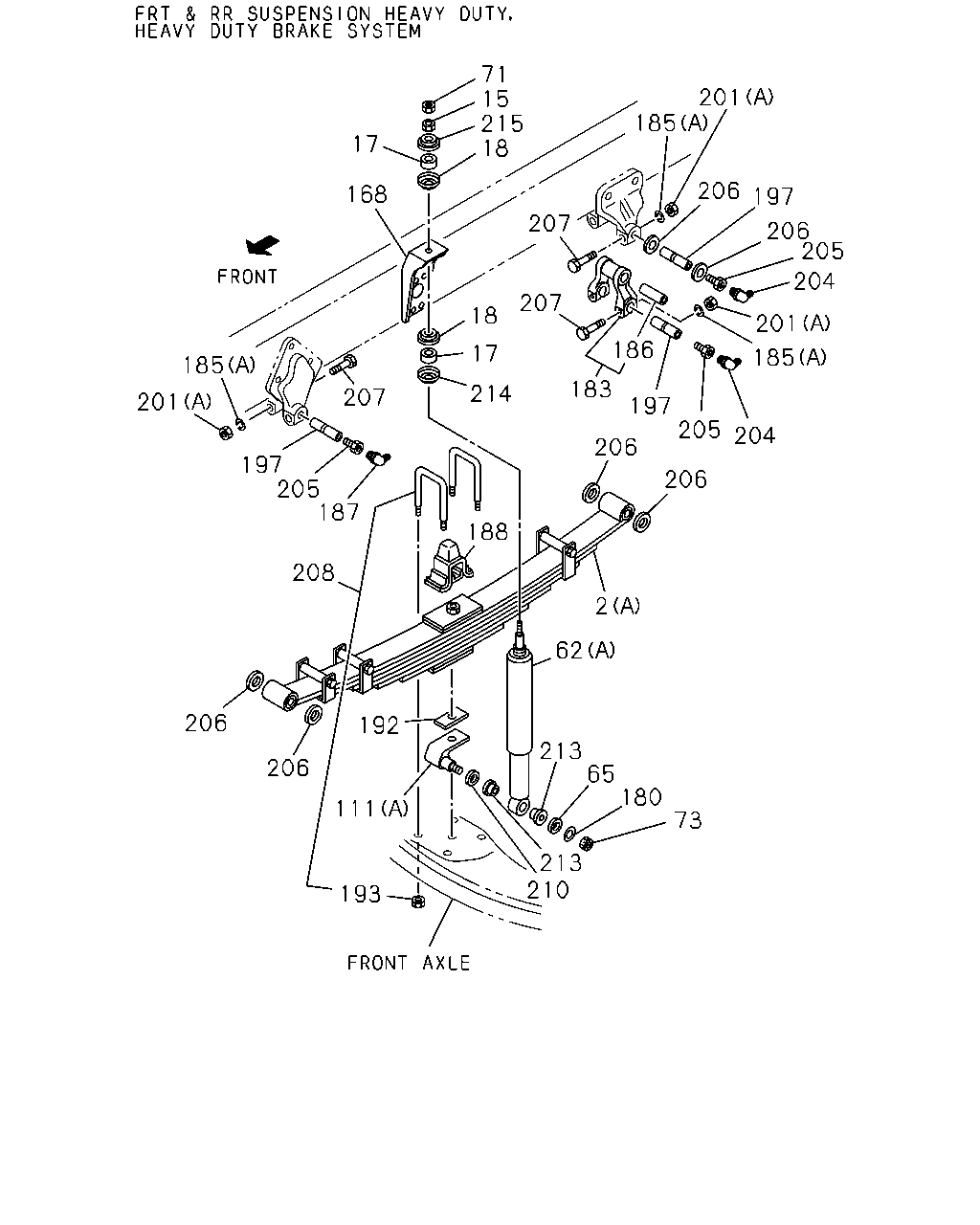

çizim 28636
71 15 215 18 201 185 17 206 168 197 207 206 205 204 207 18 201 186 17 185 185 183 214 207 201 197 205 204 206 197 205 187 206 188 208 2 62 206 192 213 65 180 206 111 73 213 210 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7-LEAF 		1-51130-265-0 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7-LEAF 		1-51130-264-0 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-51130-267-0 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 8-LEAF 		1-51130-266-0 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 7-LEAF 		1-51130-156-1 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 7-LEAF 		1-51130-155-1 01 1 9212-
15 NUT; S/ABS,UPR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 		1-09400-006-0 02 1 9212-
15 NUT; S/ABS,UPR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10 FLANGE 		0-91150-110-0 02 1 9212-
17 BUSHING; RUBBER,S/ABS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-51631-050-0 04 1 9212-
17 BUSHING; RUBBER,S/ABS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-51631-004-0 04 1 9212-
18 WASHER; CENTERING,S/ABS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16.8 		1-51631-022-0 04 1 9212-
62 ABSORBER ASM; SHOCK,FRT
FRT & RR SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-51630-180-3 02 1 9212-
62 ABSORBER ASM; SHOCK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 		1-51630-302-0 02 1 9212-
62 ABSORBER ASM; SHOCK,FRT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-51630-290-1 02 1 9212-
65 WASHER; S/ABS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=23 		1-51631-019-0 02 1 9212-
65 WASHER; S/ABS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.5 OD=26 		9-09164-612-0 02 1 9212-
71 NUT; LK,S/ABS,UPR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09400-006-0 02 1 9212-
71 NUT; LK,S/ABS,UPR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-09111-410-0 02 1 9212-
73 NUT; BRKT,SHOCK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 		9-99110-416-0 02 1 9212-
73 NUT; BRKT,SHOCK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 		9-99110-512-0 02 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
FRT & RR SUSPENSION HEAVY DUTY<F40> (A) 		1-51681-559-1 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
FRT & RR SUSPENSION HEAVY DUTY<F40> (A) 		1-51681-558-1 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-51681-573-5 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-51681-572-5 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 		1-51681-642-1 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 		1-51681-641-1 01 1 9212-
168 BRACKET; S/ABS,FRT SUSP
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-51681-306-0 02 1 9212-
168 BRACKET; S/ABS,FRT SUSP
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-51681-522-0 02 1 9212-
180 WASHER; PL,PIN
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17 		9-09160-516-0 02 1 9212-
183 SHACKLE; FRT SUSP
FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51162-029-4 02 1 9212-
183 SHACKLE; FRT SUSP
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51162-037-0 02 1 9212-
185 WASHER; LK,PIN
FRT & RR SUSPENSION HEAVY DUTY<F40> (A) 		9-09150-612-0 12 1 9212-
185 WASHER; LK,PIN
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (B) ID=25.5 		1-09503-011-0 04 1 9212-
185 WASHER; LK,PIN
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) ID=23 		1-51169-003-0 02 1 9212-
186 BUSHING; SHACKLE
FRT & RR SUSPENSION HEAVY DUTY<F40> OD=38 		1-51351-009-0 02 1 9212-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9212-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51172-085-0 02 1 9212-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51172-080-2 02 1 9212-9307
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51172-098-0 02 1 9308-9408
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51172-107-0 02 1 9409-
192 PIECE; DIST
FRT & RR SUSPENSION HEAVY DUTY<F40> 80X144 ID=17.5 		1-51177-284-1 AR 1 9212-
192 PIECE; DIST
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> T=4.5 		1-51177-149-0 AR 1 9212-
193 NUT; U BOLT
FRT & RR SUSPENSION HEAVY DUTY<F40> 		9-09112-822-0 08 1 9212-
193 NUT; U BOLT
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> M16 		1-09440-028-1 08 1 9212-
197 PIN; FRT SPR,FRT
FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51161-031-0 06 1 9212-
197 PIN; FRT SPR,FRT
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (A) 		1-51161-004-3 02 1 9212-
197 PIN; FRT SPR,FRT
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (B) 		1-51161-005-3 04 1 9212-
201 NUT; PIN LK
FRT & RR SUSPENSION HEAVY DUTY<F40> (A) M12 		9-99110-512-0 12 1 9212-
201 NUT; PIN LK
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (B) M22 		9-09111-522-0 06 1 9212-
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9212-
205 ATTACHMENT; GREASE NIPPLE
FRT & RR SUSPENSION HEAVY DUTY<F40> 		9-43165-001-0 06 1 9212-
205 ATTACHMENT; GREASE NIPPLE
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		9-43165-001-0 04 1 9508-
206 WASHER; LK,SPRING PIN
FRT & RR SUSPENSION HEAVY DUTY<F40> ID=32.4 		1-51169-018-0 12 1 9212-
207 BOLT; SPR TO SHACKLE
FRT & RR SUSPENSION HEAVY DUTY<F40> M12X80 		0-10806-280-0 12 1 9212-
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY<F40> L=210 		1-87870-118-3 04 1 9212-9307
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY<F40> L=210 		1-87870-380-0 04 1 9308-
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=175 		1-87870-350-0 04 1 9212-
208 U-BOLT SET; FRT SPRING
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> L=190 		1-87870-361-0 04 1 9212-
210 WASHER; S/ABS,OUTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17 		1-51631-020-0 02 1 9212-
210 WASHER; S/ABS,OUTER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17 		9-09164-516-0 02 1 9212-
213 BUSHING; RUBBER,LWR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-51631-009-1 04 1 9212-
214 WASHER; S/ABS,UPR,INNER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-51631-051-0 02 1 9212-
214 WASHER; S/ABS,UPR,INNER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.5 OD=40 T=3.2 		9-09651-094-0 04 1 9212-
215 WASHER; S/ABS,UPR,OUTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.5 		9-51631-051-0 02 1 9212-
215 WASHER; S/ABS,UPR,OUTER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-51631-023-0 02 1 9212-

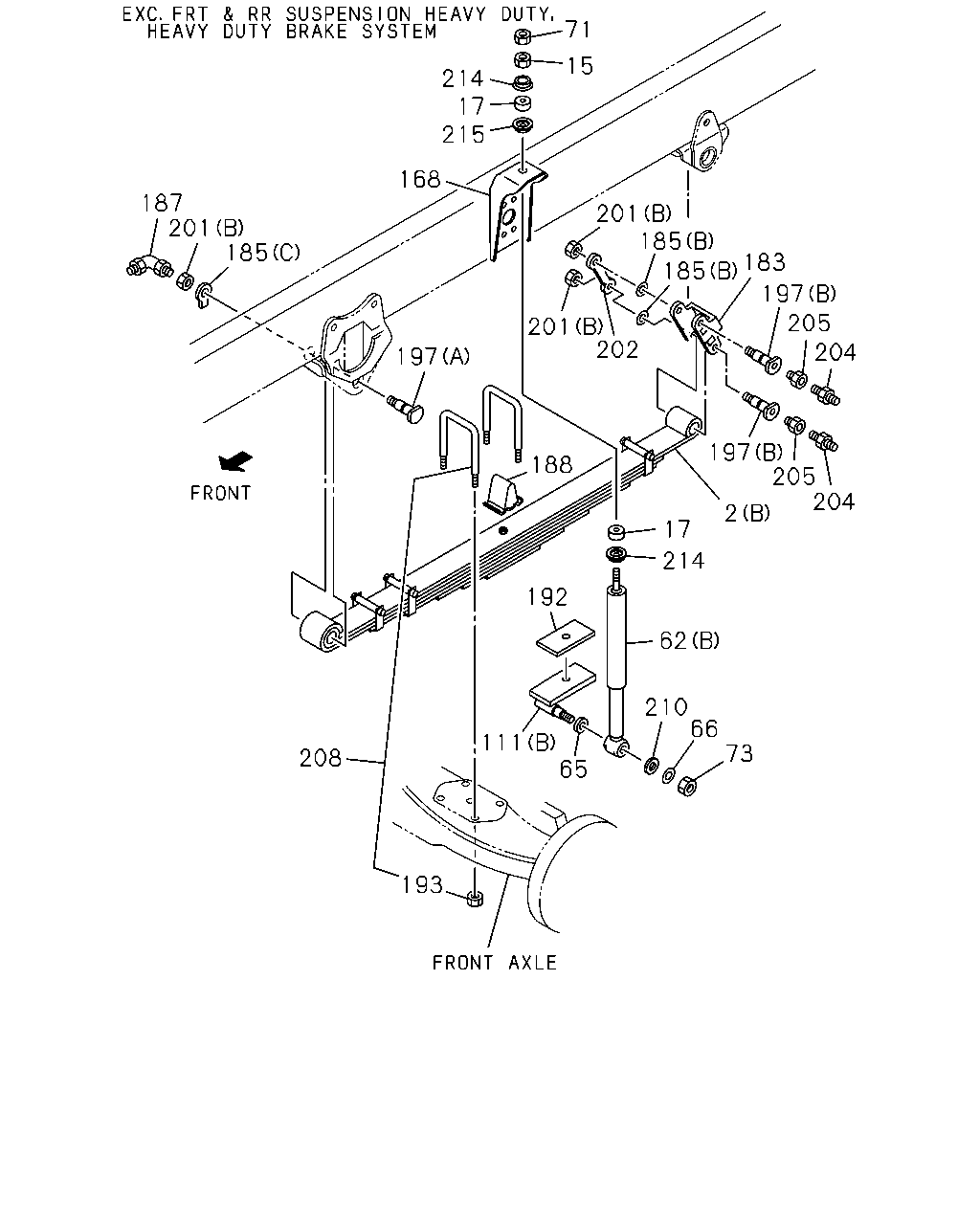

çizim 28640
71 15 214 17 215 168 201 185 187 201 185 183 185 197 205 204 201 202 197 197 205 204 188 2 17 214 192 62 210 66 73 111 65 208 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7-LEAF 		1-51130-265-0 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7-LEAF 		1-51130-264-0 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-51130-267-0 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 8-LEAF 		1-51130-266-0 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 7-LEAF 		1-51130-156-1 01 1 9212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 7-LEAF 		1-51130-155-1 01 1 9212-
15 NUT; S/ABS,UPR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 		1-09400-006-0 02 1 9212-
15 NUT; S/ABS,UPR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10 FLANGE 		0-91150-110-0 02 1 9212-
17 BUSHING; RUBBER,S/ABS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-51631-050-0 04 1 9212-
17 BUSHING; RUBBER,S/ABS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-51631-004-0 04 1 9212-
62 ABSORBER ASM; SHOCK,FRT
FRT & RR SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-51630-180-3 02 1 9212-
62 ABSORBER ASM; SHOCK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 		1-51630-302-0 02 1 9212-
62 ABSORBER ASM; SHOCK,FRT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-51630-290-1 02 1 9212-
65 WASHER; S/ABS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=23 		1-51631-019-0 02 1 9212-
65 WASHER; S/ABS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.5 OD=26 		9-09164-612-0 02 1 9212-
66 WASHER; LK,S/ABS SETTING
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.2 		9-09150-512-0 02 1 9212-
71 NUT; LK,S/ABS,UPR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09400-006-0 02 1 9212-
71 NUT; LK,S/ABS,UPR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-09111-410-0 02 1 9212-
73 NUT; BRKT,SHOCK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 		9-99110-416-0 02 1 9212-
73 NUT; BRKT,SHOCK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 		9-99110-512-0 02 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
FRT & RR SUSPENSION HEAVY DUTY<F40> (A) 		1-51681-559-1 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
FRT & RR SUSPENSION HEAVY DUTY<F40> (A) 		1-51681-558-1 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-51681-573-5 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-51681-572-5 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 		1-51681-642-1 01 1 9212-
111 SUPPORTER; S/ABS,FRT SUSP
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) 		1-51681-641-1 01 1 9212-
168 BRACKET; S/ABS,FRT SUSP
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-51681-306-0 02 1 9212-
168 BRACKET; S/ABS,FRT SUSP
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-51681-522-0 02 1 9212-
183 SHACKLE; FRT SUSP
FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51162-029-4 02 1 9212-
183 SHACKLE; FRT SUSP
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51162-037-0 02 1 9212-
185 WASHER; LK,PIN
FRT & RR SUSPENSION HEAVY DUTY<F40> (A) 		9-09150-612-0 12 1 9212-
185 WASHER; LK,PIN
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (B) ID=25.5 		1-09503-011-0 04 1 9212-
185 WASHER; LK,PIN
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (C) ID=23 		1-51169-003-0 02 1 9212-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9212-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51172-085-0 02 1 9212-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51172-080-2 02 1 9212-9307
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51172-098-0 02 1 9308-9408
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51172-107-0 02 1 9409-
192 PIECE; DIST
FRT & RR SUSPENSION HEAVY DUTY<F40> 80X144 ID=17.5 		1-51177-284-1 AR 1 9212-
192 PIECE; DIST
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> T=4.5 		1-51177-149-0 AR 1 9212-
193 NUT; U BOLT
FRT & RR SUSPENSION HEAVY DUTY<F40> 		9-09112-822-0 08 1 9212-
193 NUT; U BOLT
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> M16 		1-09440-028-1 08 1 9212-
197 PIN; FRT SPR,FRT
FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51161-031-0 06 1 9212-
197 PIN; FRT SPR,FRT
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (A) 		1-51161-004-3 02 1 9212-
197 PIN; FRT SPR,FRT
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (B) 		1-51161-005-3 04 1 9212-
201 NUT; PIN LK
FRT & RR SUSPENSION HEAVY DUTY<F40> (A) M12 		9-99110-512-0 12 1 9212-
201 NUT; PIN LK
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> (B) M22 		9-09111-522-0 06 1 9212-
202 PLATE; LK,SPR PIN
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		1-51169-016-0 02 1 9212-
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9212-
205 ATTACHMENT; GREASE NIPPLE
FRT & RR SUSPENSION HEAVY DUTY<F40> 		9-43165-001-0 06 1 9212-
205 ATTACHMENT; GREASE NIPPLE
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> 		9-43165-001-0 04 1 9508-
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY<F40> L=210 		1-87870-118-3 04 1 9212-9307
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY<F40> L=210 		1-87870-380-0 04 1 9308-
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=175 		1-87870-350-0 04 1 9212-
208 U-BOLT SET; FRT SPRING
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRT & RR SUSPENSION HEAVY DUTY<F40> L=190 		1-87870-361-0 04 1 9212-
210 WASHER; S/ABS,OUTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17 		1-51631-020-0 02 1 9212-
210 WASHER; S/ABS,OUTER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17 		9-09164-516-0 02 1 9212-
214 WASHER; S/ABS,UPR,INNER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-51631-051-0 02 1 9212-
214 WASHER; S/ABS,UPR,INNER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.5 OD=40 T=3.2 		9-09651-094-0 04 1 9212-
215 WASHER; S/ABS,UPR,OUTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.5 		9-51631-051-0 02 1 9212-
215 WASHER; S/ABS,UPR,OUTER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-51631-023-0 02 1 9212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
