Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#22498) — 317 parça

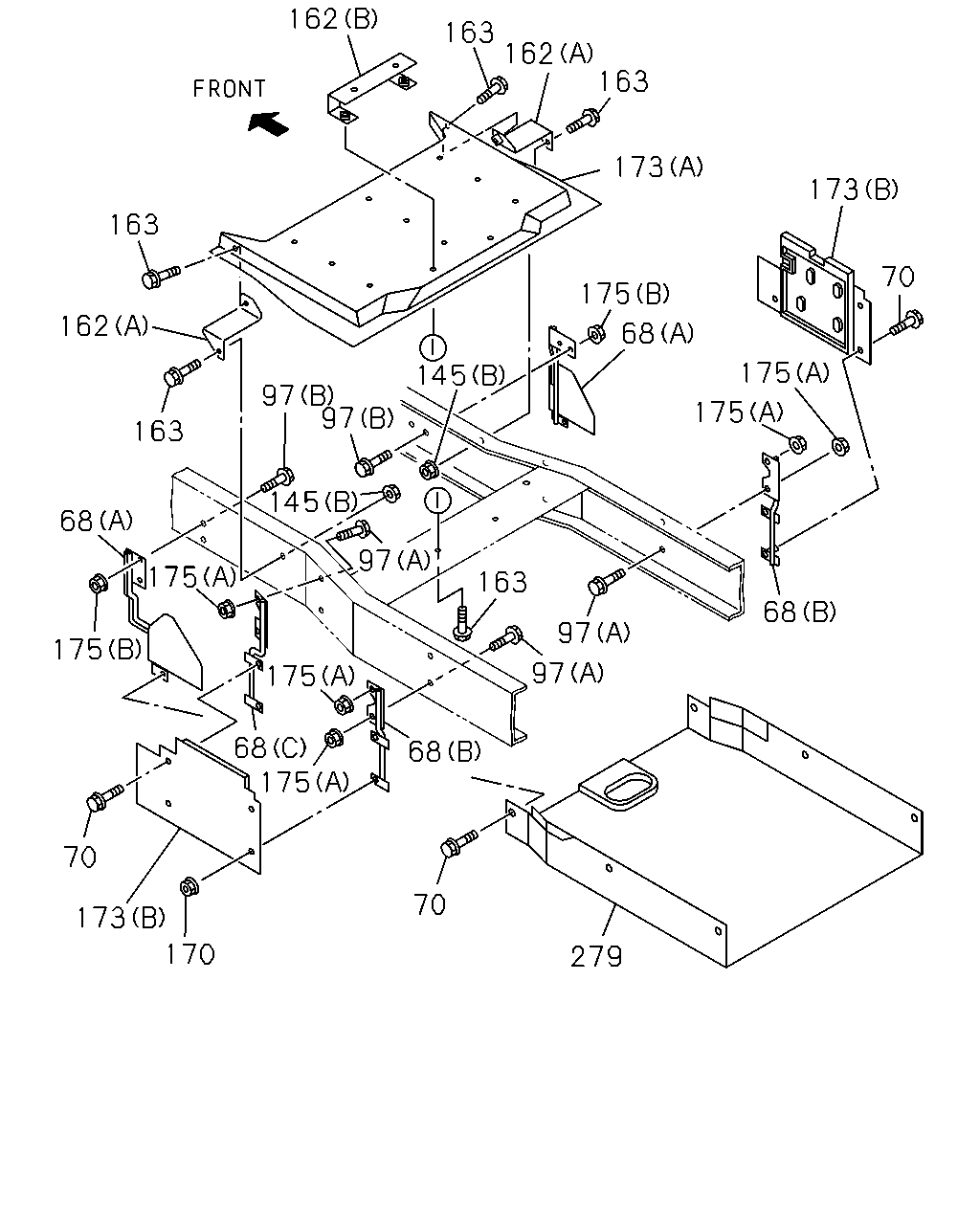

162 163 162 163 173 163 162 173 175 70 175 68 97 163 145 97 145 97 97 68 175 68 163 175 97 68 173 68 175 97 175 68 70 70 279 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
68	08.155 STAY; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97314-379-0	01	1	0302-0506	●	●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97314-379-0	01	1	0507-0606	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97314-382-0	01	1	0302-0506	●	●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97314-382-0	01	1	0507-0606	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97314-384-0	01	1	0302-0506	●	●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97314-384-0	01	1	0507-0606	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97314-383-0	01	1	0302-0506	●	●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97314-383-0	01	1	0507-0606	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97314-385-0	01	1	0302-0506	●	●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97314-385-0	01	1	0507-0606	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) (F)	8-97205-955-2	01	1	0302-0506		●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) (F)	8-97205-955-2	01	1	0507-0606		●	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) (D)	8-97205-968-2	01	1	0302-0506		●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) (D)	8-97205-968-2	01	1	0507-0606		●	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) (E)	8-97259-956-0	01	1	0302-0506		●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) (E)	8-97259-956-0	01	1	0507-0606		●	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) (F)	8-97205-956-2	01	1	0302-0506		●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) (F)	8-97205-956-2	01	1	0507-0606		●	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) (E)	8-97205-971-4	01	1	0302-0506		●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) (E)	8-97205-971-4	01	1	0507-0606		●	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) (D)	8-97259-092-0	01	1	0302-0506		●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) (D)	8-97259-092-0	01	1	0507-0606		●	●
70	08.153 BOLT; COVER TO STAY 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0302-0506	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0507-0512	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0601-0606	●
70	08.153 BOLT; COVER TO STAY 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	06	1	0302-0506	●	●	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	06	1	0507-0512	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X20 FLANGE	0-28650-820-0	06	1	0601-0606	●
70	08.153 BOLT; COVER TO STAY 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	05	1	0302-0506		●	●
70	08.153 BOLT; COVER TO STAY 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	05	1	0302-0506		●	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE	0-28680-820-0	05	1	0507-0512		●	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE	0-28680-820-0	05	1	0507-0512		●	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE	0-28650-820-0	05	1	0601-0606		●	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE	0-28650-820-0	05	1	0601-0606		●	●
97	08.155 BOLT; STAY TO FRAME 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X25 FLANGE	0-28681-025-0	04	1	0302-0506	●
97	08.155 BOLT; STAY TO FRAME 4JH1 ENG(RJX) 03.405 (A) M10X25 FLANGE	0-28681-025-0	04	1	0302-0506		●	●
97	08.155 BOLT; STAY TO FRAME 4JH1 ENG(RJX) 03.405 (A) M10X25 FLANGE	0-28681-025-0	04	1	0302-0506		●	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X25 FLANGE	0-28681-025-0	04	1	0507-0512	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) 03.405 (A) M10X25 FLANGE	0-28681-025-0	04	1	0507-0512		●	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) 03.405 (A) M10X25 FLANGE	0-28681-025-0	04	1	0507-0512		●	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-0606	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-0606		●	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-0606		●	●
97	08.155 BOLT; STAY TO FRAME 4JH1 ENG(RJX) 02.664 (B) M8X20 FLANGE	0-28680-820-0	04	1	0302-0506	●	●	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) 02.664 (B) M8X20 FLANGE	0-28680-820-0	04	1	0507-0512	●	●	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) 01.531 (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-0606	●	●	●
97	08.155 BOLT; STAY TO FRAME 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X25 FLANGE	0-28681-025-0	02	1	0302-0506	●	●	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X25 FLANGE	0-28681-025-0	02	1	0507-0512	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 00.029 (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-0606	●
145	08.155 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	06	1	0302-0602	●	●	●
145	08.155 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
145	08.155 NUT; BRKT 4JH1 ENG(RJX) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●
145	08.155 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
145	08.155 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●
162	04.275 BRACKET 4JH1 ENG(RJX) (B)	8-97327-215-0	01	1	0302-0506	●	●	●
162	04.275 BRACKET 4JH1-TC ENG(RDM) (B)	8-97327-215-0	01	1	0507-0606	●	●	●
162	04.275 BRACKET 4JH1 ENG(RJX) (A)	8-97259-959-1	01	1	0302-0506	●	●	●
162	04.275 BRACKET 4JH1-TC ENG(RDM) (A)	8-97259-959-1	01	1	0507-0606	●	●	●
162	04.275 BRACKET 4JH1 ENG(RJX) (A)	8-97259-958-1	01	1	0302-0506	●	●	●
162	04.275 BRACKET 4JH1-TC ENG(RDM) (A)	8-97259-958-1	01	1	0507-0606	●	●	●
163	08.155 BOLT; BRKT 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	08	1	0302-0506	●	●	●
163	08.155 BOLT; BRKT 4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE	0-28680-820-0	08	1	0507-0512	●	●	●
163	08.155 BOLT; BRKT 4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE	0-28650-820-0	08	1	0601-0606	●	●	●
170	08.155 NUT; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506	●
170	08.155 NUT; COVER 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506		●	●
170	08.155 NUT; COVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●
170	08.155 NUT; COVER 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●
170	08.155 NUT; COVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●
170	08.155 NUT; COVER 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) (A)	8-97327-214-0	01	1	0302-0506	●
173	08.155 COVER; TRANS SIDE 4JH1-TC ENG(RDM) (A)	8-97327-214-1	01	1	0507-0606	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97306-993-0	01	1	0302-0506	●	●	●
173	08.155 COVER; TRANS SIDE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97306-993-0	01	1	0507-0606	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97306-989-0	01	1	0302-0506	●	●	●
173	08.155 COVER; TRANS SIDE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97306-989-0	01	1	0507-0606	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) (A)	8-97327-213-0	01	1	0302-0506		●	●
173	08.155 COVER; TRANS SIDE 4JH1-TC ENG(RDM) (A)	8-97327-213-1	01	1	0507-0606		●	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) (B)	8-97306-997-0	01	1	0302-0506		●	●
173	08.155 COVER; TRANS SIDE 4JH1-TC ENG(RDM) (B)	8-97306-997-0	01	1	0507-0606		●	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) (B)	8-97306-995-0	01	1	0302-0506		●	●
173	08.155 COVER; TRANS SIDE 4JH1-TC ENG(RDM) (B)	8-97306-995-0	01	1	0507-0606		●	●
175	08.155 NUT; STAY FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	0302-0506	●
175	08.155 NUT; STAY FIX 4JH1 ENG(RJX) 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	0302-0506		●	●
175	08.155 NUT; STAY FIX 4JH1 ENG(RJX) 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	0302-0506		●	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	0507-0602	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	0507-0602		●	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	0507-0602		●	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	0603-0606	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	0603-0606		●	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	0603-0606		●	●
175	08.155 NUT; STAY FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0302-0506	●	●	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0507-0602	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-0606	●
175	08.155 NUT; STAY FIX 4JH1 ENG(RJX) 07.633 (B) M8 FLANGE	0-91150-108-0	04	1	0302-0506		●	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) 07.633 (B) M8 FLANGE	0-91150-108-0	04	1	0507-0602		●	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0603-0606		●	●
279	08.153 COVER; UNDER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97352-227-0	01	1	0302-0506	●	●	●
279	08.153 COVER; UNDER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97352-227-0	01	1	0507-0606	●
279	08.153 COVER; UNDER 4JH1 ENG(RJX)	8-97352-228-0	01	1	0302-0506		●	●
279	08.153 COVER; UNDER 4JH1-TC ENG(RDM)	8-97352-228-0	01	1	0507-0606		●	●

286 301 288 192 289 289 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
192	08.153 SEAL; MUD COVER (A)	8-97857-297-4	02	1	0302-0606	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-97896-994-1	02	1	0607-1106	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-98192-033-0	02	1	1107-	●	●	●
192	08.153 SEAL; MUD COVER 4JJ1 ENG(LFB) (B)	8-98032-333-1	01	1	0607-	●	●	●
192	08.153 SEAL; MUD COVER 4JJ1 ENG(LFB) (B)	8-98032-335-1	01	1	0607-	●	●	●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0302-	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	0302-	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	0302-	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0302-	●	●	●
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0302-	●	●	●

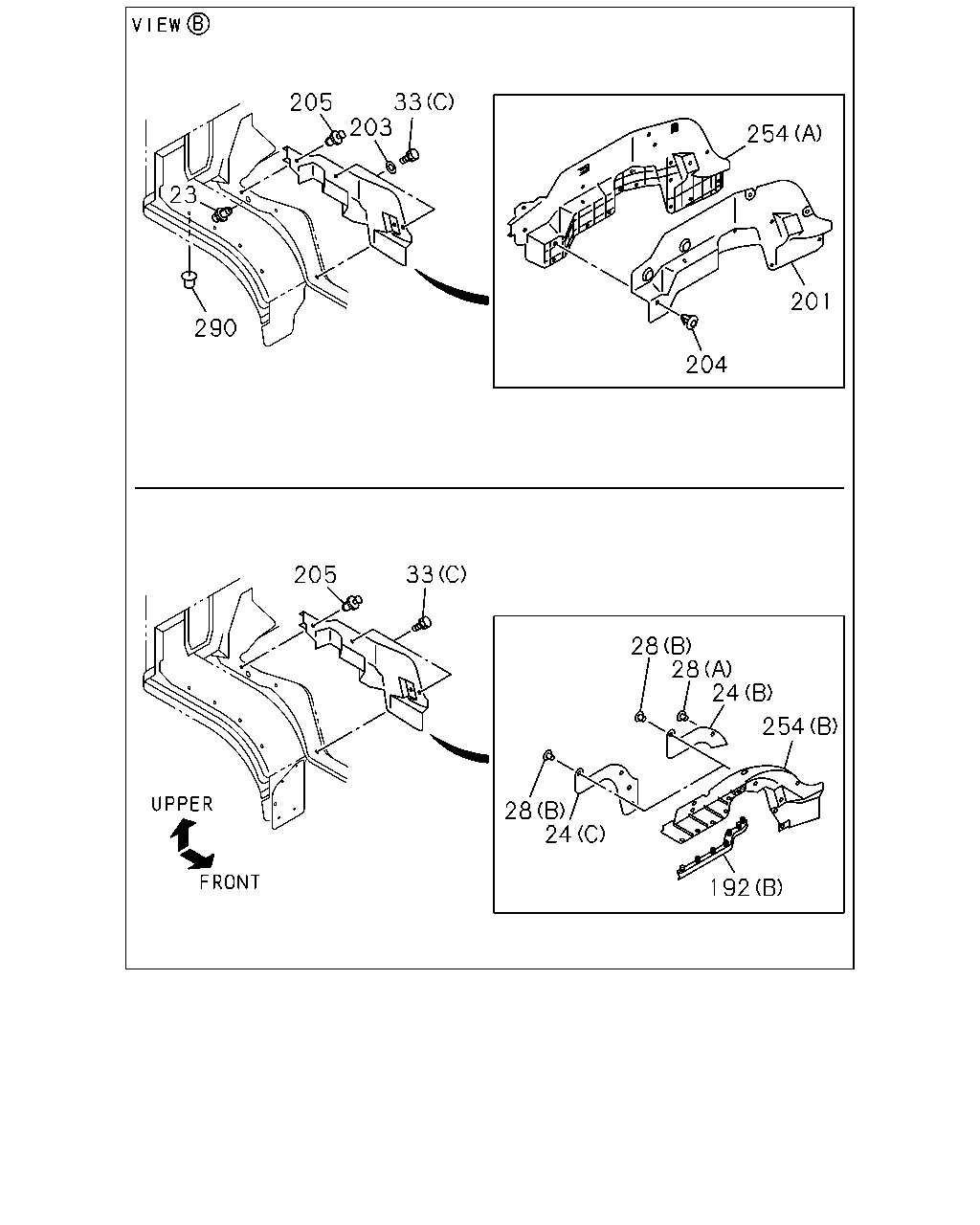

33 203 205 254 23 201 290 204 33 205 28 28 24 254 28 24 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0302-0606	●	●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	10	1	0607-	●	●	●
24	08.155 PLATE; MUD COVER 4JJ1 ENG(LFB) (B)	8-97581-170-1	01	1	0607-	●
24	08.155 PLATE; MUD COVER (A)	8-97095-186-0	02	1	0302-	●	●	●
24	08.155 PLATE; MUD COVER 4JJ1 ENG(LFB) (C)	8-97996-187-2	01	1	0607-		●	●
28	08.154 CLIP 4JJ1 ENG(LFB) 08.155 (A) OD=16 L=11	1-76378-155-0	01	1	0607-	●
28	08.154 CLIP 4JJ1 ENG(LFB) (B) OD=14	8-97582-733-0	01	1	0607-	●
28	08.154 CLIP 4JJ1 ENG(LFB) (B) OD=14	8-97582-733-0	04	1	0607-		●	●
33	08.155 BOLT; MUD COVER 04.785 (E) M6X16	0-20800-616-0	02	1	0302-	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	0302-0512	●	●	●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	06	1	0601-	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0302-0512	●	●	●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0302-0512	●	●	●
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0302-0805	●	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-97857-297-4	02	1	0302-0606	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-97896-994-1	02	1	0607-1106	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-98192-033-0	02	1	1107-	●	●	●
192	08.153 SEAL; MUD COVER 4JJ1 ENG(LFB) (B)	8-98032-333-1	01	1	0607-	●	●	●
192	08.153 SEAL; MUD COVER 4JJ1 ENG(LFB) (B)	8-98032-335-1	01	1	0607-	●	●	●
201	08.155 INSULATOR; VALANCE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97892-209-3	01	1	0302-0506	●
201	08.155 INSULATOR; VALANCE 4JH1-TC ENG(RDM)	8-97892-209-4	01	1	0507-0606		●	●
201	08.155 INSULATOR; VALANCE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97892-211-3	01	1	0302-0506	●
201	08.155 INSULATOR; VALANCE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97892-211-4	01	1	0507-0606	●
201	08.155 INSULATOR; VALANCE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97892-208-2	01	1	0302-0506	●
201	08.155 INSULATOR; VALANCE 4JH1-TC ENG(RDM)	8-97892-208-3	01	1	0507-0606		●	●
201	08.155 INSULATOR; VALANCE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97892-210-2	01	1	0302-0506	●
201	08.155 INSULATOR; VALANCE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97892-210-3	01	1	0507-0606	●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0302-0604	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0302-0308	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	10	1	0309-0606	●	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0302-	●	●	●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97853-112-5	01	1	0302-0606	●
254	08.153 COVER; MUD,VALANCE 4JJ1 ENG(LFB) (B)	8-97898-947-5	01	1	0607-		●	●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97853-111-5	01	1	0302-0606	●
254	08.153 COVER; MUD,VALANCE 4JJ1 ENG(LFB) (B)	8-97898-946-6	01	1	0607-		●	●
254	08.153 COVER; MUD,VALANCE (A)	8-97853-072-4	01	1	0302-0606		●	●
254	08.153 COVER; MUD,VALANCE 4JJ1 ENG(LFB) (B)	8-97581-169-2	01	1	0607-	●
254	08.153 COVER; MUD,VALANCE (A)	8-97853-071-4	01	1	0302-0606		●	●
254	08.153 COVER; MUD,VALANCE 4JJ1 ENG(LFB) (B)	8-97581-168-2	01	1	0607-	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0302-	●	●	●

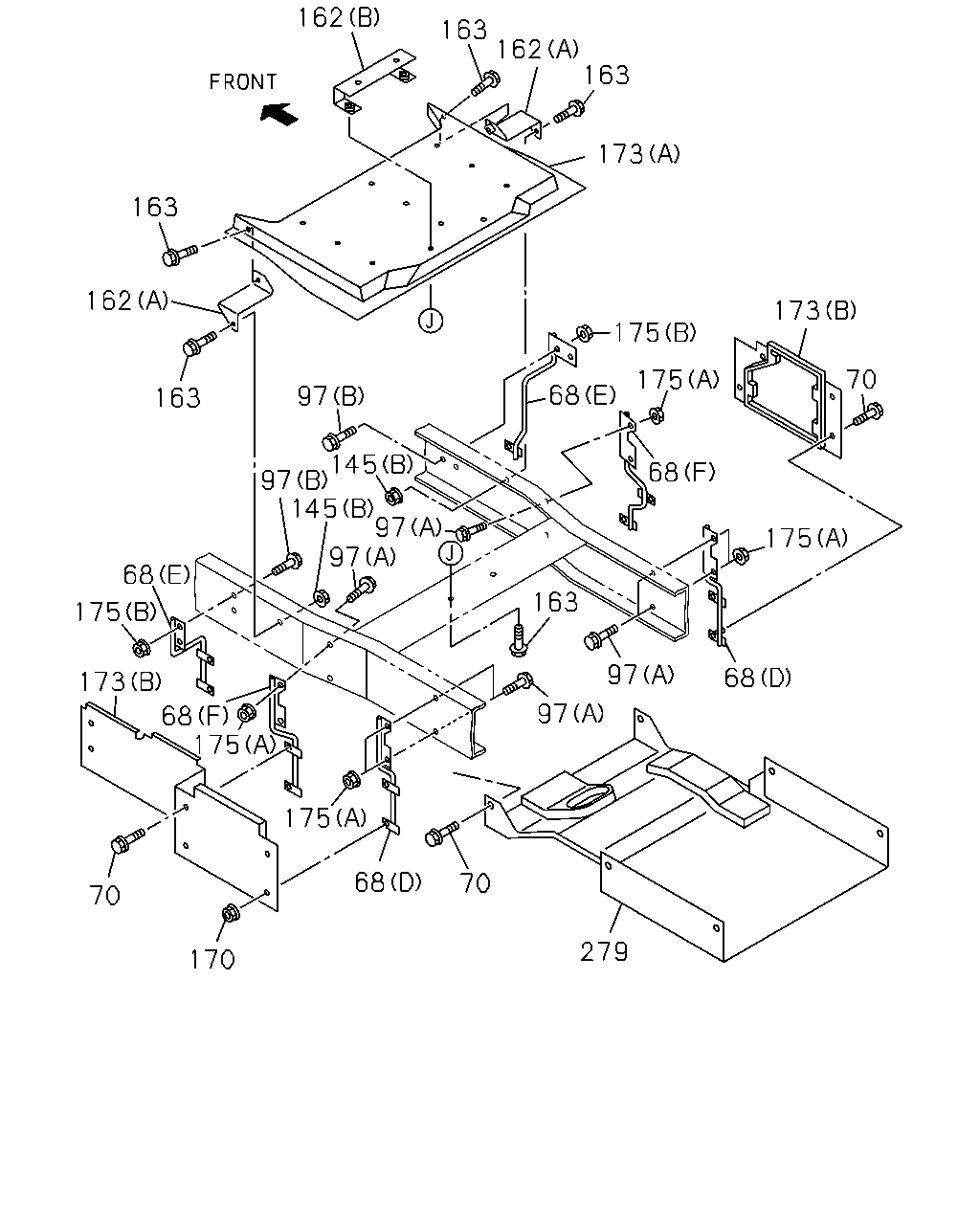

162 163 162 163 173 173 163 70 175 162 68 145 175 97 97 175 163 145 68 97 175 163 68 97 175 97 175 68 175 68 70 70 173 170 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
68	08.155 STAY; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97314-379-0	01	1	0302-0506	●	●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97314-379-0	01	1	0507-0606	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97314-382-0	01	1	0302-0506	●	●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97314-382-0	01	1	0507-0606	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97314-384-0	01	1	0302-0506	●	●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97314-384-0	01	1	0507-0606	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97314-383-0	01	1	0302-0506	●	●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97314-383-0	01	1	0507-0606	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97314-385-0	01	1	0302-0506	●	●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97314-385-0	01	1	0507-0606	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) (F)	8-97205-955-2	01	1	0302-0506		●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) (F)	8-97205-955-2	01	1	0507-0606		●	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) (D)	8-97205-968-2	01	1	0302-0506		●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) (D)	8-97205-968-2	01	1	0507-0606		●	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) (E)	8-97259-956-0	01	1	0302-0506		●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) (E)	8-97259-956-0	01	1	0507-0606		●	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) (F)	8-97205-956-2	01	1	0302-0506		●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) (F)	8-97205-956-2	01	1	0507-0606		●	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) (E)	8-97205-971-4	01	1	0302-0506		●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) (E)	8-97205-971-4	01	1	0507-0606		●	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) (D)	8-97259-092-0	01	1	0302-0506		●	●
68	08.155 STAY; COVER 4JH1-TC ENG(RDM) (D)	8-97259-092-0	01	1	0507-0606		●	●
70	08.153 BOLT; COVER TO STAY 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0302-0506	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0507-0512	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0601-0606	●
70	08.153 BOLT; COVER TO STAY 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	06	1	0302-0506	●	●	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	06	1	0507-0512	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X20 FLANGE	0-28650-820-0	06	1	0601-0606	●
70	08.153 BOLT; COVER TO STAY 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	05	1	0302-0506		●	●
70	08.153 BOLT; COVER TO STAY 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	05	1	0302-0506		●	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE	0-28680-820-0	05	1	0507-0512		●	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE	0-28680-820-0	05	1	0507-0512		●	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE	0-28650-820-0	05	1	0601-0606		●	●
70	08.153 BOLT; COVER TO STAY 4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE	0-28650-820-0	05	1	0601-0606		●	●
97	08.155 BOLT; STAY TO FRAME 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X25 FLANGE	0-28681-025-0	04	1	0302-0506	●
97	08.155 BOLT; STAY TO FRAME 4JH1 ENG(RJX) 03.405 (A) M10X25 FLANGE	0-28681-025-0	04	1	0302-0506		●	●
97	08.155 BOLT; STAY TO FRAME 4JH1 ENG(RJX) 03.405 (A) M10X25 FLANGE	0-28681-025-0	04	1	0302-0506		●	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X25 FLANGE	0-28681-025-0	04	1	0507-0512	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) 03.405 (A) M10X25 FLANGE	0-28681-025-0	04	1	0507-0512		●	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) 03.405 (A) M10X25 FLANGE	0-28681-025-0	04	1	0507-0512		●	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-0606	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-0606		●	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-0606		●	●
97	08.155 BOLT; STAY TO FRAME 4JH1 ENG(RJX) 02.664 (B) M8X20 FLANGE	0-28680-820-0	04	1	0302-0506	●	●	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) 02.664 (B) M8X20 FLANGE	0-28680-820-0	04	1	0507-0512	●	●	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) 01.531 (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-0606	●	●	●
97	08.155 BOLT; STAY TO FRAME 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X25 FLANGE	0-28681-025-0	02	1	0302-0506	●	●	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X25 FLANGE	0-28681-025-0	02	1	0507-0512	●
97	08.155 BOLT; STAY TO FRAME 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 00.029 (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-0606	●
145	08.155 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	06	1	0302-0602	●	●	●
145	08.155 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
145	08.155 NUT; BRKT 4JH1 ENG(RJX) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●
145	08.155 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
145	08.155 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●
162	04.275 BRACKET 4JH1 ENG(RJX) (B)	8-97327-215-0	01	1	0302-0506	●	●	●
162	04.275 BRACKET 4JH1-TC ENG(RDM) (B)	8-97327-215-0	01	1	0507-0606	●	●	●
162	04.275 BRACKET 4JH1 ENG(RJX) (A)	8-97259-959-1	01	1	0302-0506	●	●	●
162	04.275 BRACKET 4JH1-TC ENG(RDM) (A)	8-97259-959-1	01	1	0507-0606	●	●	●
162	04.275 BRACKET 4JH1 ENG(RJX) (A)	8-97259-958-1	01	1	0302-0506	●	●	●
162	04.275 BRACKET 4JH1-TC ENG(RDM) (A)	8-97259-958-1	01	1	0507-0606	●	●	●
163	08.155 BOLT; BRKT 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	08	1	0302-0506	●	●	●
163	08.155 BOLT; BRKT 4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE	0-28680-820-0	08	1	0507-0512	●	●	●
163	08.155 BOLT; BRKT 4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE	0-28650-820-0	08	1	0601-0606	●	●	●
170	08.155 NUT; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506	●
170	08.155 NUT; COVER 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506		●	●
170	08.155 NUT; COVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●
170	08.155 NUT; COVER 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●
170	08.155 NUT; COVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●
170	08.155 NUT; COVER 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) (A)	8-97327-214-0	01	1	0302-0506	●
173	08.155 COVER; TRANS SIDE 4JH1-TC ENG(RDM) (A)	8-97327-214-1	01	1	0507-0606	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97306-993-0	01	1	0302-0506	●	●	●
173	08.155 COVER; TRANS SIDE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97306-993-0	01	1	0507-0606	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97306-989-0	01	1	0302-0506	●	●	●
173	08.155 COVER; TRANS SIDE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97306-989-0	01	1	0507-0606	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) (A)	8-97327-213-0	01	1	0302-0506		●	●
173	08.155 COVER; TRANS SIDE 4JH1-TC ENG(RDM) (A)	8-97327-213-1	01	1	0507-0606		●	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) (B)	8-97306-997-0	01	1	0302-0506		●	●
173	08.155 COVER; TRANS SIDE 4JH1-TC ENG(RDM) (B)	8-97306-997-0	01	1	0507-0606		●	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) (B)	8-97306-995-0	01	1	0302-0506		●	●
173	08.155 COVER; TRANS SIDE 4JH1-TC ENG(RDM) (B)	8-97306-995-0	01	1	0507-0606		●	●
175	08.155 NUT; STAY FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	0302-0506	●
175	08.155 NUT; STAY FIX 4JH1 ENG(RJX) 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	0302-0506		●	●
175	08.155 NUT; STAY FIX 4JH1 ENG(RJX) 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	0302-0506		●	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	0507-0602	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	0507-0602		●	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	0507-0602		●	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	0603-0606	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	0603-0606		●	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	0603-0606		●	●
175	08.155 NUT; STAY FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0302-0506	●	●	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0507-0602	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-0606	●
175	08.155 NUT; STAY FIX 4JH1 ENG(RJX) 07.633 (B) M8 FLANGE	0-91150-108-0	04	1	0302-0506		●	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) 07.633 (B) M8 FLANGE	0-91150-108-0	04	1	0507-0602		●	●
175	08.155 NUT; STAY FIX 4JH1-TC ENG(RDM) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0603-0606		●	●
279	08.153 COVER; UNDER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97352-227-0	01	1	0302-0506	●	●	●
279	08.153 COVER; UNDER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97352-227-0	01	1	0507-0606	●
279	08.153 COVER; UNDER 4JH1 ENG(RJX)	8-97352-228-0	01	1	0302-0506		●	●
279	08.153 COVER; UNDER 4JH1-TC ENG(RDM)	8-97352-228-0	01	1	0507-0606		●	●

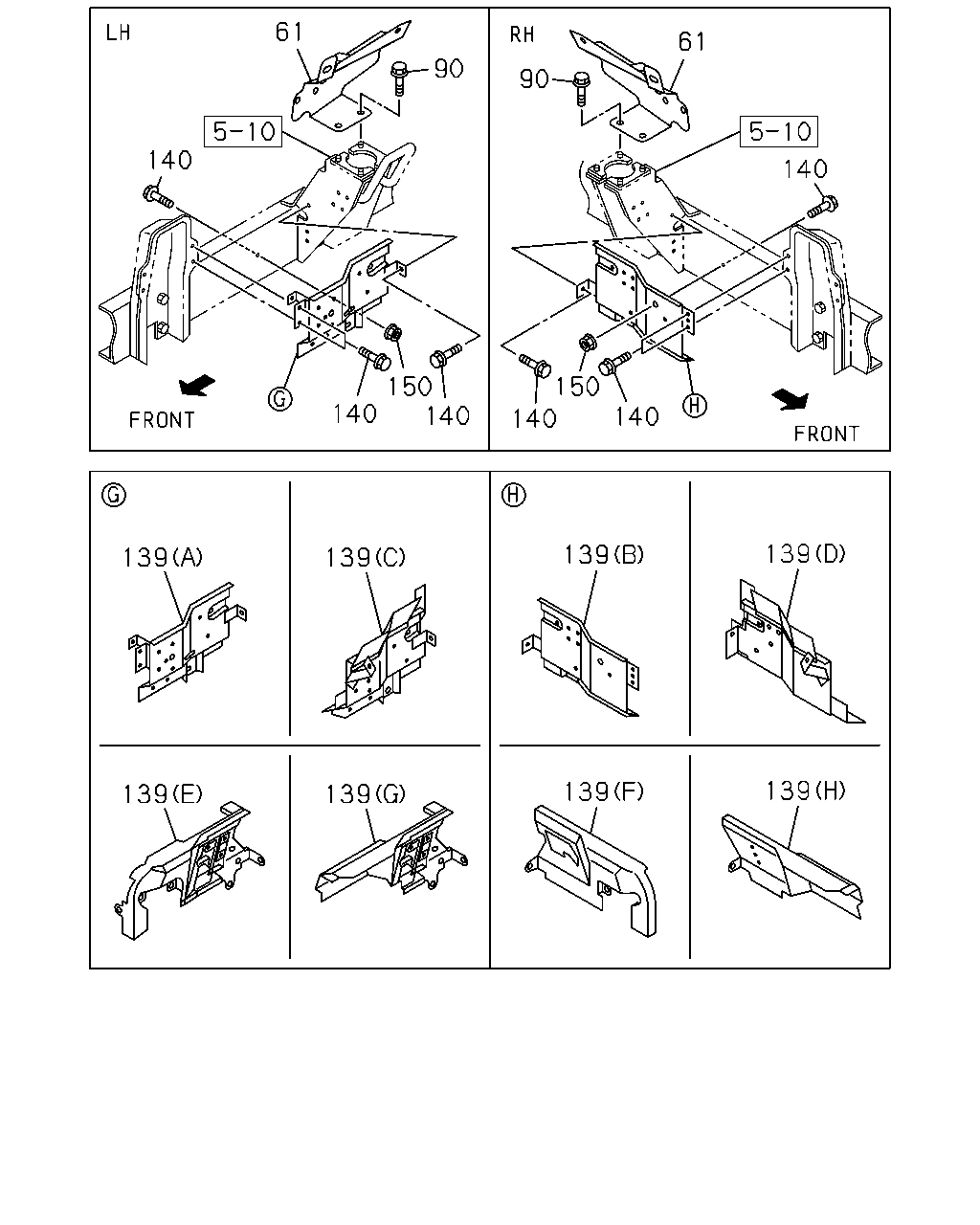

61 61 90 90 140 140 150 140 150 140 140 140 139 139 139 139 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
61	08.155 BRACKET; COVER 4JJ1 ENG(LFB)	8-98002-186-0	01	1	0607-	●
61	08.155 BRACKET; COVER 4JJ1 ENG(LFB)	8-97369-263-2	01	1	0607-	●
90	08.153 BOLT; COVER 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0607-	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97329-253-0	01	1	0302-0506	●
139	08.153 PANEL; SIDE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97329-253-0	01	1	0507-0606	●
139	08.153 PANEL; SIDE 4JJ1 ENG(LFB) (G)	8-97388-537-1	01	1	0607-	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97329-252-0	01	1	0302-0506	●
139	08.153 PANEL; SIDE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97329-252-0	01	1	0507-0606	●
139	08.153 PANEL; SIDE 4JJ1 ENG(LFB) (H)	8-97388-536-0	01	1	0607-	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX) (A)	8-97035-773-2	01	1	0302-0506		●	●
139	08.153 PANEL; SIDE 4JH1-TC ENG(RDM) (A)	8-97035-773-2	01	1	0507-0606		●	●
139	08.153 PANEL; SIDE 4JJ1 ENG(LFB) (E)	8-97388-535-1	01	1	0607-		●	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX) (B)	8-97035-770-2	01	1	0302-0506		●	●
139	08.153 PANEL; SIDE 4JH1-TC ENG(RDM) (B)	8-97035-770-2	01	1	0507-0606		●	●
139	08.153 PANEL; SIDE 4JJ1 ENG(LFB) (F)	8-97388-534-0	01	1	0607-		●	●
140	08.155 BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0302-0512	●
140	08.155 BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-0606	●
140	08.155 BOLT; SIDE PANEL 4JJ1 ENG(LFB) 01.219 M8X25 W/LK&PL WASHER	1-09030-074-0	05	1	0607-0611	●	●	●
140	08.155 BOLT; SIDE PANEL 4JJ1 ENG(LFB) M8X25 W/LK&PL WASHER	1-09030-093-0	05	1	0612-	●	●	●
140	08.155 BOLT; SIDE PANEL 02.559 M8X25 FLANGE	0-28680-825-0	07	1	0302-0512		●	●
140	08.155 BOLT; SIDE PANEL 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0601-0606		●	●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●

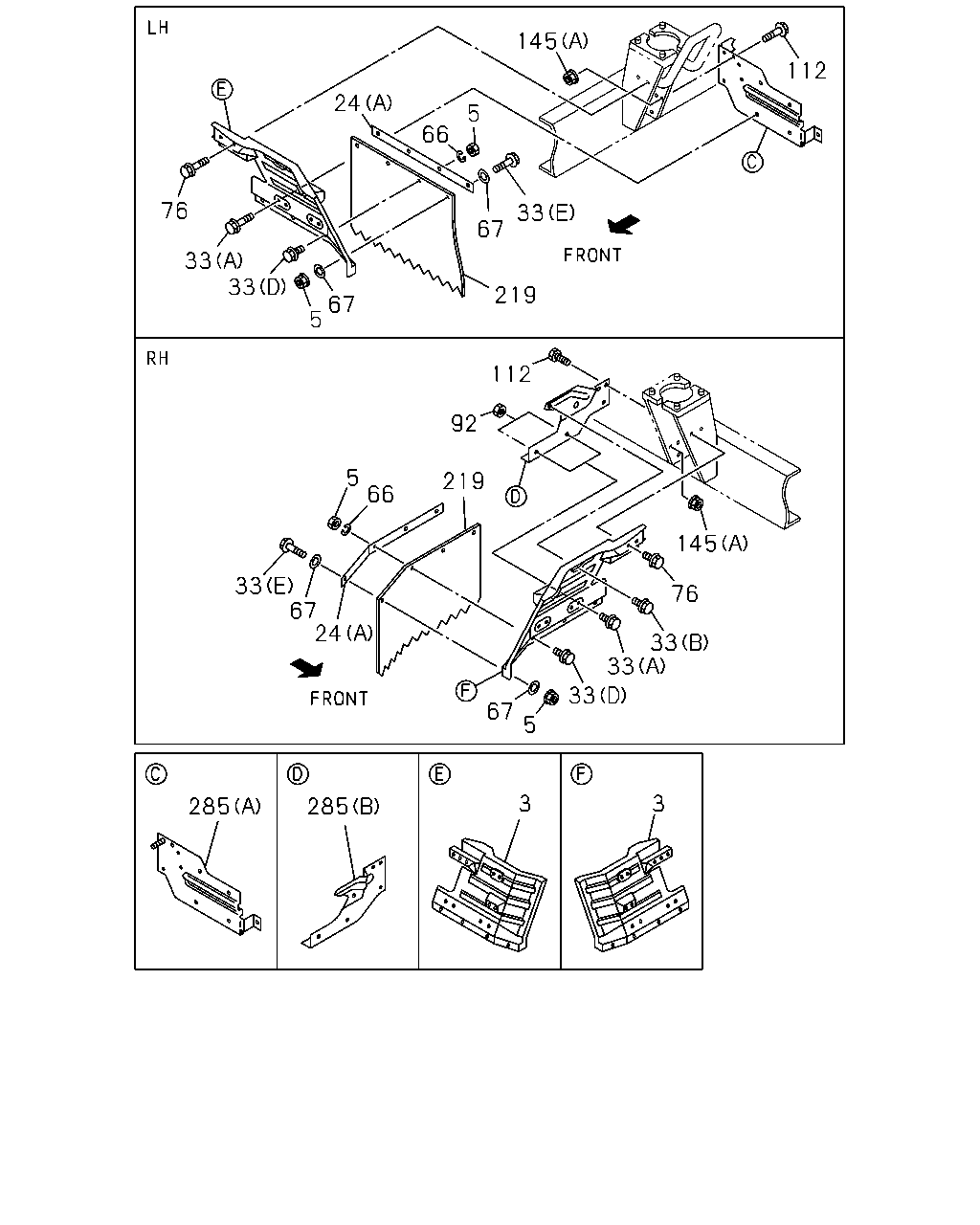

145 112 24 5 66 76 33 67 33 33 219 67 5 112 92 5 66 219 145 33 67 24 76 33 33 33 67 5 3 3 285 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	08.153 GUARD; MUD,RR	8-97048-729-1	01	1	0302-0312	●	●	●
3	08.153 GUARD; MUD,RR	8-97366-988-1	01	1	0401-	●	●	●
3	08.153 GUARD; MUD,RR	8-97048-728-3	01	1	0302-0606	●	●	●
3	08.153 GUARD; MUD,RR	8-98003-974-0	01	1	0607-	●	●	●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0302-0512	●	●	●
5	08.155 NUT; FLAP RUBBER M6	0-91111-506-0	08	1	0601-	●	●	●
24	08.155 PLATE; MUD COVER 4JJ1 ENG(LFB) (B)	8-97581-170-1	01	1	0607-	●
24	08.155 PLATE; MUD COVER (A)	8-97095-186-0	02	1	0302-	●	●	●
24	08.155 PLATE; MUD COVER 4JJ1 ENG(LFB) (C)	8-97996-187-2	01	1	0607-		●	●
33	08.155 BOLT; MUD COVER 04.785 (E) M6X16	0-20800-616-0	02	1	0302-	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	0302-0512	●	●	●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	06	1	0601-	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0302-0512	●	●	●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0302-0512	●	●	●
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0302-0805	●	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	06	1	0302-0603	●	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-506-0	06	1	0604-	●	●	●
67	08.155 WASHER; PL 00.206 ID=6.4	9-09160-506-0	04	1	0302-	●	●	●
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0302-0512	●	●	●
76	08.155 BOLT; MUD GUARD 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●	●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
92	08.155 NUT; MUD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0302-0512	●	●	●
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●	●
145	08.155 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	06	1	0302-0602	●	●	●
145	08.155 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
145	08.155 NUT; BRKT 4JH1 ENG(RJX) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●
145	08.155 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
145	08.155 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●
219	08.155 FLAP; MUD GUARD	8-97218-078-0	02	1	0302-	●	●	●
285	08.155 BRACKET; MUD COVER 4JH1 ENG(RJX) (A)	8-97225-272-1	01	1	0302-0506	●	●	●
285	08.155 BRACKET; MUD COVER 4JH1-TC ENG(RDM) (A)	8-97225-272-1	01	1	0507-0606	●	●	●
285	08.155 BRACKET; MUD COVER 4JJ1 ENG(LFB) (A)	8-97225-272-1	01	1	0607-	●	●	●
285	08.155 BRACKET; MUD COVER 4JH1 ENG(RJX) (B)	8-97089-653-2	01	1	0302-0506	●	●	●
285	08.155 BRACKET; MUD COVER 4JH1-TC ENG(RDM) (B)	8-97089-653-2	01	1	0507-0606	●	●	●
285	08.155 BRACKET; MUD COVER 4JJ1 ENG(LFB) (B)	8-97089-653-2	01	1	0607-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
