6-31 — FRONT DOOR GLASS AND REGULATOR (#22494) — 78 parça

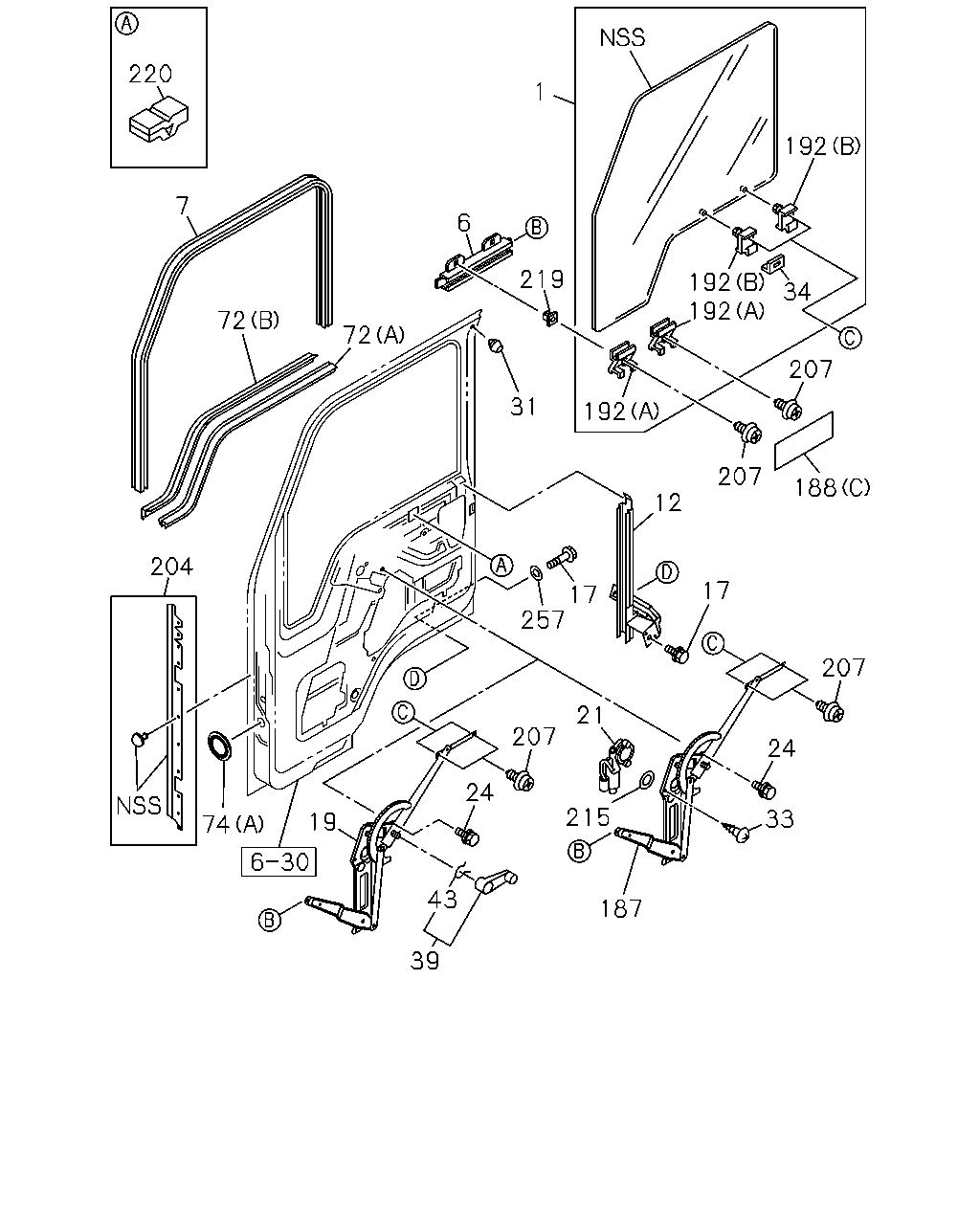

çizim 50737
220 7 72 72 6 1 219 31 192 192 192 34 192 207 207 188 12 17 207 24 33 187 215 21 207 24 43 39 19 74 257 17 204
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97867-418-1 01 1 0302- ● ● ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97867-417-1 01 1 0302- ● ● ●
6 10.685 CHANNEL; DOOR GLASS
W/ROLLER&PROTECTOR 		8-97898-425-1 02 1 0302- ● ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97852-143-4 01 1 0302- ● ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97852-142-4 01 1 0302- ● ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97852-112-5 01 1 0302-1212 ● ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97996-046-0 01 1 1301- ● ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 0302-1212 ● ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97867-650-0 01 1 1301- ● ● ●
17 16.183 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 0302-0305 ● ● ●
17 16.183 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-97582-826-0 04 1 0306-0612 ● ● ●
17 16.183 SCREW; RR CHANNEL
16.650 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 04 1 0701-1101 ● ● ●
17 16.183 SCREW; RR CHANNEL
16.585 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 04 1 1102-1212 ● ● ●
17 16.183 SCREW; RR CHANNEL
16.650 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 04 1 1301- ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-116-8 01 1 0302- ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-115-8 01 1 0302- ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-478-0 01 1 0302-0606 ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-480-0 01 1 0607- ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-477-0 01 1 0302-0606 ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-479-0 01 1 0607- ● ● ●
24 16.230 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0302-0606 ● ● ●
24 16.230 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0607-0612 ● ● ●
24 16.230 SCREW; WINDOW REG
M8X6.5 W/TORQUES 		8-98064-275-2 10 1 0701-0710 ● ● ●
24 16.230 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0711-0802 ● ● ●
24 16.230 SCREW; WINDOW REG
M6X9 LK+W/PL WASHER&TORQUES 		8-98108-677-0 10 1 0803- ● ● ●
31 16.225 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 0302- ● ● ●
33 16.230 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98097-389-0 06 1 0607- ● ● ●
34 16.270 STOPPER; WINDOW REG 8-97852-012-0 02 1 0302- ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97098-453-0 02 1 0302-0506 ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-306-0 02 1 0507-0709 ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-98090-302-0 02 1 0710- ● ● ●
43 16.270 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-591-0 02 1 0302- ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-118-6 01 1 0302- ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-293-6 01 1 0302- ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-117-6 01 1 0302- ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-292-6 01 1 0302- ● ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 1004- ● ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 09.775 (B) 		8-94279-736-0 02 1 1004- ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-114-2 01 1 0302- ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-113-2 01 1 0302- ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(C) 		8-97994-698-1 02 1 0302- ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
16.549 (A) 		8-97868-175-0 01 1 0302- ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(B) 		8-97890-834-2 01 1 0302- ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
16.549 (A) 		8-97868-174-0 01 1 0302- ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(B) 		8-97890-833-2 01 1 0302- ● ● ●
192 16.183 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 0302- ● ● ●
192 16.183 HOLDER; DOOR GLASS
(B) 		8-97852-077-1 04 1 0302- ● ● ●
204 16.183 RUBBER; SHIELD,FRT DOOR 8-97852-093-2 01 1 0302- ● ● ●
204 16.183 RUBBER; SHIELD,FRT DOOR 8-97852-092-2 01 1 0302- ● ● ●
207 16.183 SCREW; DOOR GLASS
16.445 REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 0302-0606 ● ● ●
207 16.183 SCREW; DOOR GLASS
16.445 REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 0607-0612 ● ● ●
207 16.183 SCREW; DOOR GLASS
FRONT & REAR M4X14.5 TAPPING 		8-98020-522-2 08 1 0701- ● ● ●
207 16.183 SCREW; DOOR GLASS
FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 0302-0606 ● ● ●
207 16.183 SCREW; DOOR GLASS
FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 0607-0612 ● ● ●
215 63.121 SPACER; WINDOW REG
POWER WINDOW FRT DOOR<A32> 16.230 		8-97388-942-0 02 1 0607- ● ● ●
219 16.175 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 0302- ● ● ●
220 16.332 SEAL; LINK ROD 8-97852-321-0 02 1 0302- ● ● ●
257 03.162 WASHER; G/RUN CHANNEL
ID=6.5 OD=30 		9-09851-911-0 02 1 1301- ● ● ●

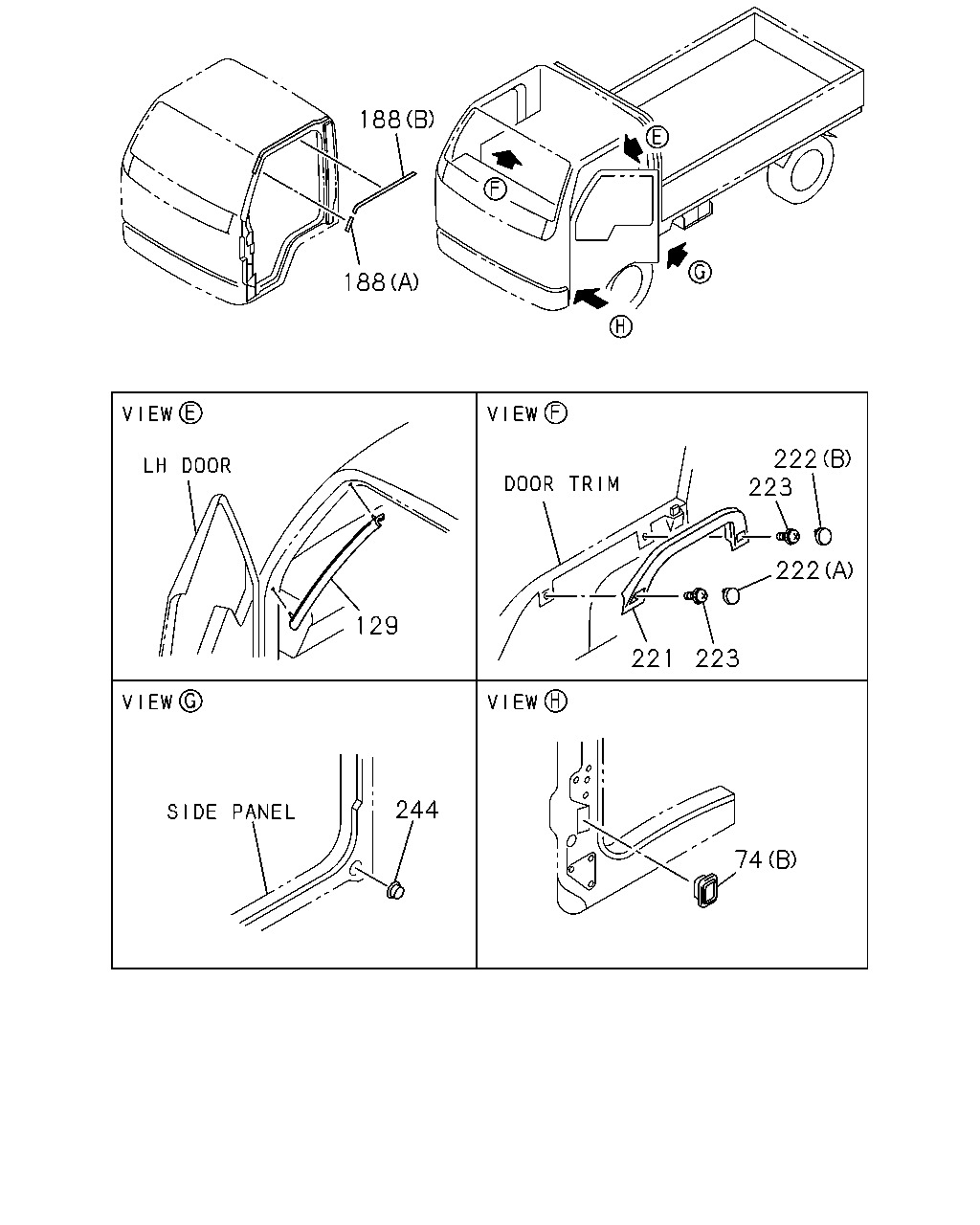

çizim 53009
188 188 129 244 222 223 222 223 221 74
BalonParca AdiParca NoAdetTipApplied Date A B C
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 1004- ● ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 09.775 (B) 		8-94279-736-0 02 1 1004- ● ● ●
129 16.183 SEAL; DOOR,SUB UPR 8-97852-147-3 01 1 0302- ● ● ●
129 16.183 SEAL; DOOR,SUB UPR 8-97852-146-3 01 1 0302- ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(C) 		8-97994-698-1 02 1 0302- ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
16.549 (A) 		8-97868-175-0 01 1 0302- ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(B) 		8-97890-834-2 01 1 0302- ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
16.549 (A) 		8-97868-174-0 01 1 0302- ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(B) 		8-97890-833-2 01 1 0302- ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97995-853-0 01 1 0302-0506 ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
GRAY 		8-97582-310-1 01 1 0507- ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97995-850-0 01 1 0302-0506 ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
GRAY 		8-97582-309-1 01 1 0507- ● ● ●
222 16.320 CAP; GUARD BAR
(A) FRONT DARK GRAY 		8-97995-856-0 02 1 0302-0506 ● ● ●
222 16.320 CAP; GUARD BAR
(A) FRONT GRAY 		8-97582-312-0 02 1 0507- ● ● ●
222 16.320 CAP; GUARD BAR
(B) REAR DARK GRAY 		8-97995-859-0 02 1 0302-0506 ● ● ●
222 16.320 CAP; GUARD BAR
(B) REAR GRAY 		8-97582-313-0 02 1 0507- ● ● ●
223 16.320 SCREW; GUARD BAR
16.650 M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0302-0612 ● ● ●
223 16.320 SCREW; GUARD BAR
M6X18 W/TORQUES 		8-98064-277-0 04 1 0701- ● ● ●
244 16.155 STOPPER; DOOR 8-97890-484-0 02 1 0302- ● ● ●
