Isuzu WW
▶
TRUCKS
▶
NKR
▶
50946 - NKR(EUROPE)-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶

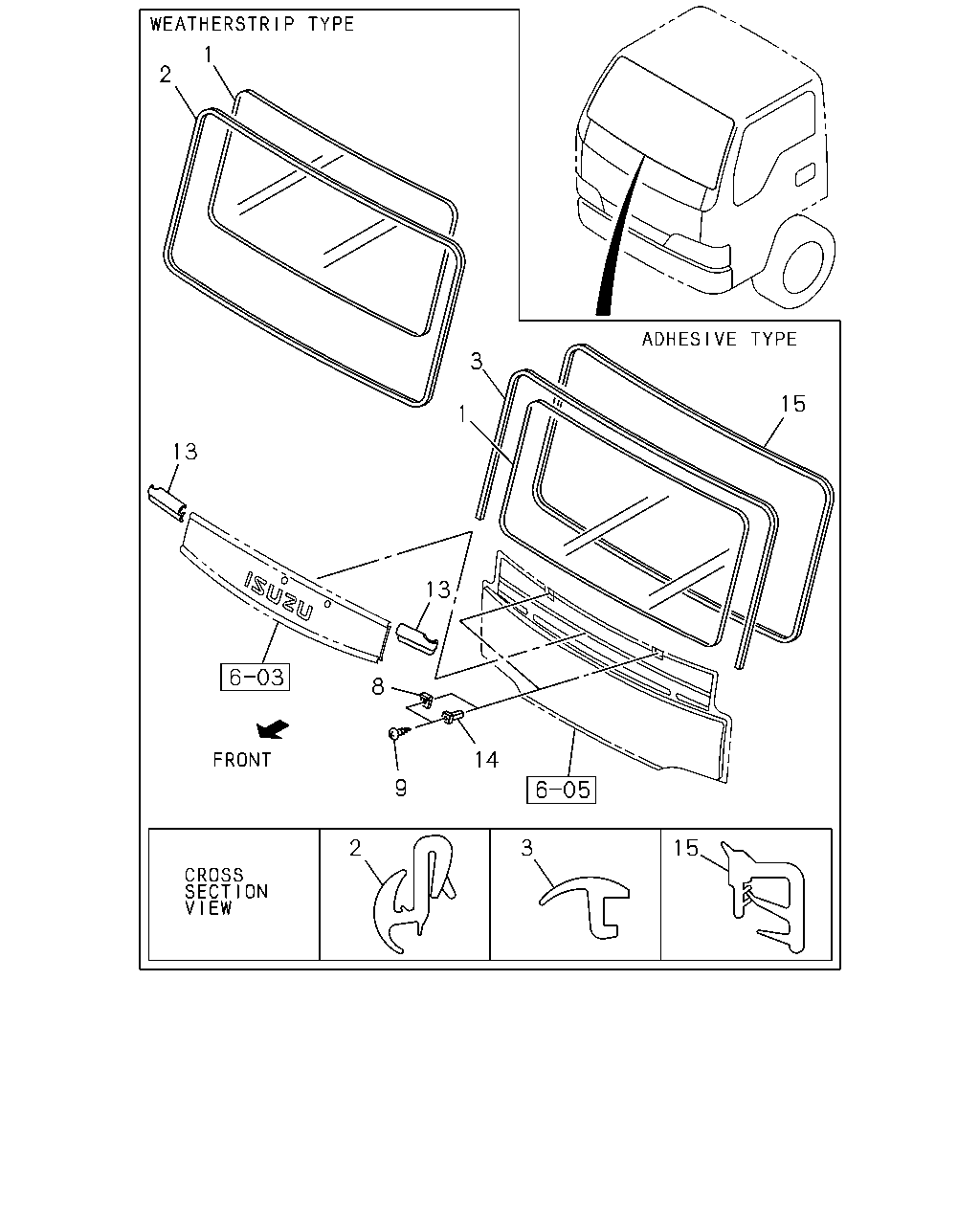

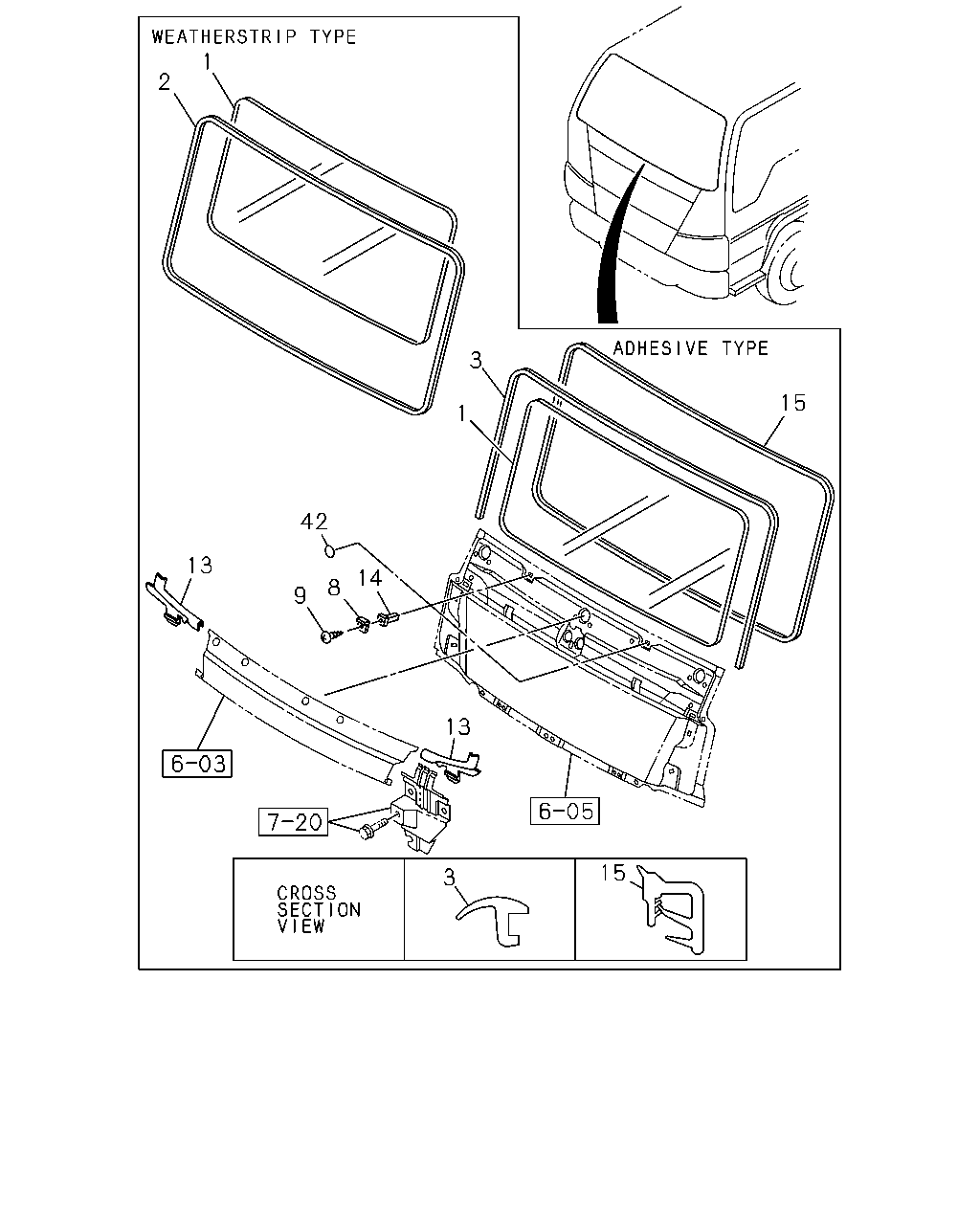

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#22491) — 37 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
◀
[607A] -'05/6 (18 parça)
[607A] '05/7- (19 parça)
▶
1
2
3
15
1
13
13
8
14
9
2
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
16.005 GLASS; WINDSHIELD
8-97997-944-1
01
1
0302-
●
●
●
2
16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97856-351-4
01
1
0302-
●
●
●
3
16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97890-214-2
01
1
0302-0506
●
●
●
3
16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-678-3
01
1
0507-
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97859-215-0
02
1
0302-0305
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
0306-1303
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
1304-
●
●
●
9
16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14
8-94279-325-0
02
1
0302-1303
●
●
●
9
16.041 SCREW; STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14
8-94279-325-0
02
1
1304-
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-787-4
01
1
0302-0506
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-618-3
01
1
0507-
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-786-3
01
1
0302-0506
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-617-4
01
1
0507-
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK
8-94279-714-0
04
1
0302-
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0306-1303
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1304-
●
●
●
15
16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY
8-97859-856-5
01
1
0302-0506
●
●
●
15
16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY
8-97582-226-7
01
1
0507-
●
●
●
1
2
3
15
1
42
13
14
8
9
13
15
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
16.005 GLASS; WINDSHIELD
8-97997-944-1
01
1
0302-
●
●
●
2
16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97856-351-4
01
1
0302-
●
●
●
3
16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97890-214-2
01
1
0302-0506
●
●
●
3
16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-678-3
01
1
0507-
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97859-215-0
02
1
0302-0305
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
0306-1303
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
1304-
●
●
●
9
16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14
8-94279-325-0
02
1
0302-1303
●
●
●
9
16.041 SCREW; STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14
8-94279-325-0
02
1
1304-
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-787-4
01
1
0302-0506
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-618-3
01
1
0507-
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-786-3
01
1
0302-0506
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-617-4
01
1
0507-
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK
8-94279-714-0
04
1
0302-
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0306-1303
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1304-
●
●
●
15
16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY
8-97859-856-5
01
1
0302-0506
●
●
●
15
16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY
8-97582-226-7
01
1
0507-
●
●
●
42
16.041 SEAL; HOLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>, KD PREPARATORY PACK VAR.4<7TV> 16.165 OD=20 T=0.05 BLACK
5-76777-036-0
02
1
1304-
●
●
●
