◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#22490) — 122 parça

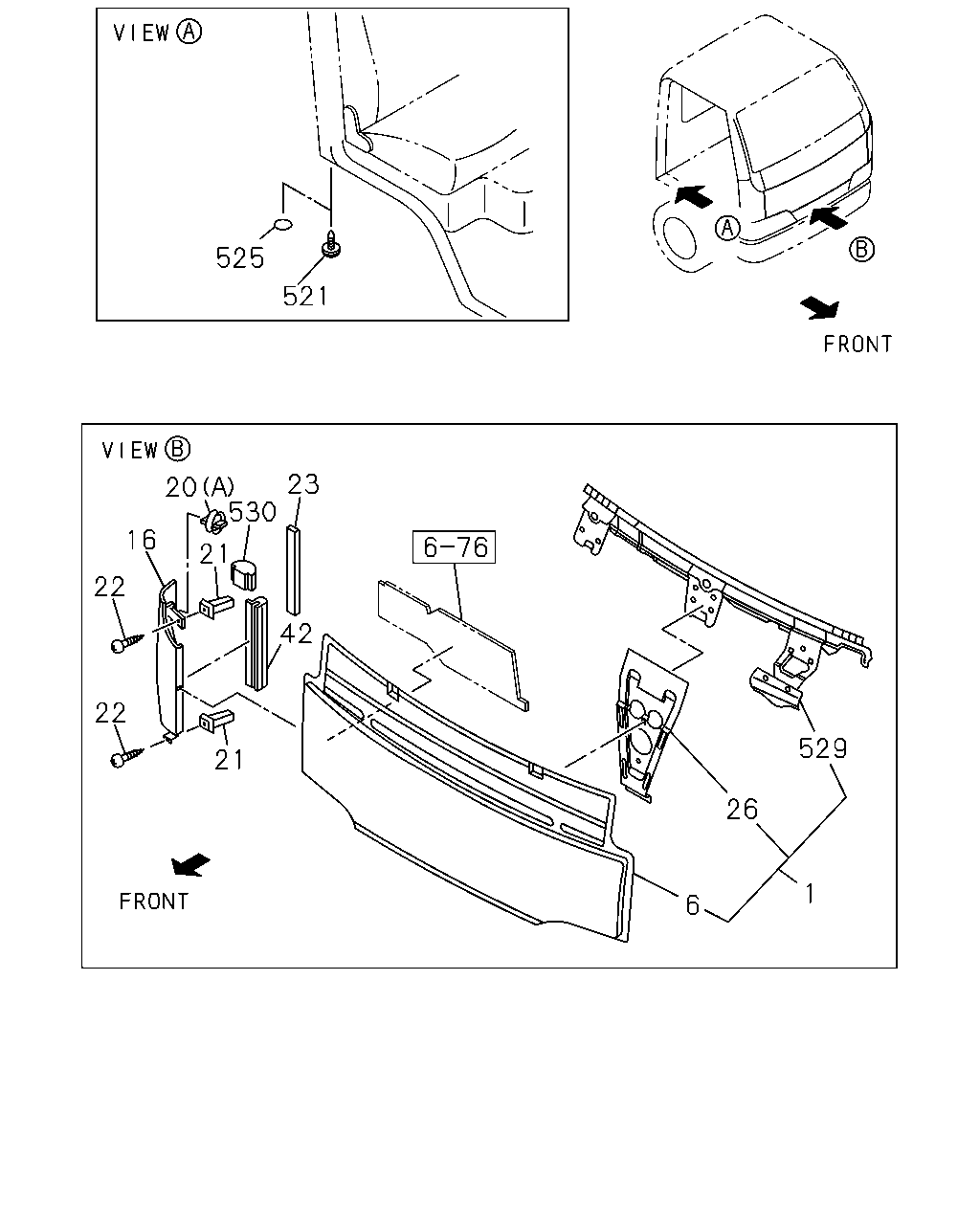

çizim 53045
525 521 23 530 20 16 21 22 42 22 529 21 26 1 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.550 PANEL ASM; FRT 8-97859-424-0 01 1 0302-0506 ● ● ●
1 16.550 PANEL ASM; FRT 8-97581-815-0 01 1 0507- ● ● ●
6 16.570 PANEL; FRONT 8-97859-423-3 01 1 0302-0506 ● ● ●
6 16.570 PANEL; FRONT 8-97581-637-3 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WHITE 		8-97582-169-3 01 1 0507-0606 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WHITE 		8-97582-471-5 01 1 0607- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WHITE 		8-97582-153-3 01 1 0507-0606 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WHITE 		8-97582-455-5 01 1 0607- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> BLUE 		8-97582-174-3 01 1 0507-0606 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> BLUE 		8-97582-475-5 01 1 0607- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> BLUE 		8-97582-158-3 01 1 0507-0606 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> BLUE 		8-97582-459-5 01 1 0607- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> SILVER 		8-97582-171-3 01 1 0507-0606 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> SILVER 		8-97582-467-5 01 1 0607- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> SILVER 		8-97582-155-3 01 1 0507-0606 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> SILVER 		8-97582-451-5 01 1 0607- ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0302-0506 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-430-6 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0302-0506 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-428-6 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-788-3 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-785-3 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-789-3 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-431-6 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-786-3 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-429-6 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-790-3 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-711-6 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-787-3 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-710-6 01 1 0507- ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
(A) 		8-94279-814-0 04 1 0302-0506 ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
(D) 		8-97581-632-1 04 1 0507- ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 0507- ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0507- ● ● ●
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0302- ● ● ●
22 16.588 SCREW; FRT PANEL SIDE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0302-0506 ● ● ●
23 16.588 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97857-444-0 02 1 0302-0410 ● ● ●
23 16.588 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97410-832-0 02 1 0411-0506 ● ● ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 0302- ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-043-0 01 1 0607- ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-044-0 01 1 0607- ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0607-0807 ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-613-3 01 1 0607-0807 ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0808-0809 ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-613-3 01 1 0808-0809 ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0810- ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-613-3 01 1 0810- ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0607-0807 ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-614-3 01 1 0607-0807 ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0808-0809 ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-614-3 01 1 0808-0809 ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0810- ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-614-3 01 1 0810- ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 0302-0506 ● ● ●
521 08.153 PLUG; HOLE,FENDER
MANUAL TILT CAB<RWZ> 04.931 OD=15 L=14.5 		1-76378-157-0 03 1 0302-0304 ● ● ●
521 08.153 PLUG; HOLE,FENDER
EXC. MANUAL TILT CAB<RWZ> 04.931 OD=15 L=14.5 		1-76378-157-0 06 1 0302-0304 ● ● ●
525 08.131 SEAL; FENDER
MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 03 1 0305- ● ● ●
525 08.131 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 06 1 0305-0606 ● ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-044-3 01 1 0302- ● ● ●
530 01.303 STOPPER; FRT PANEL,SIDE 8-97856-589-0 02 1 0302-0506 ● ● ●

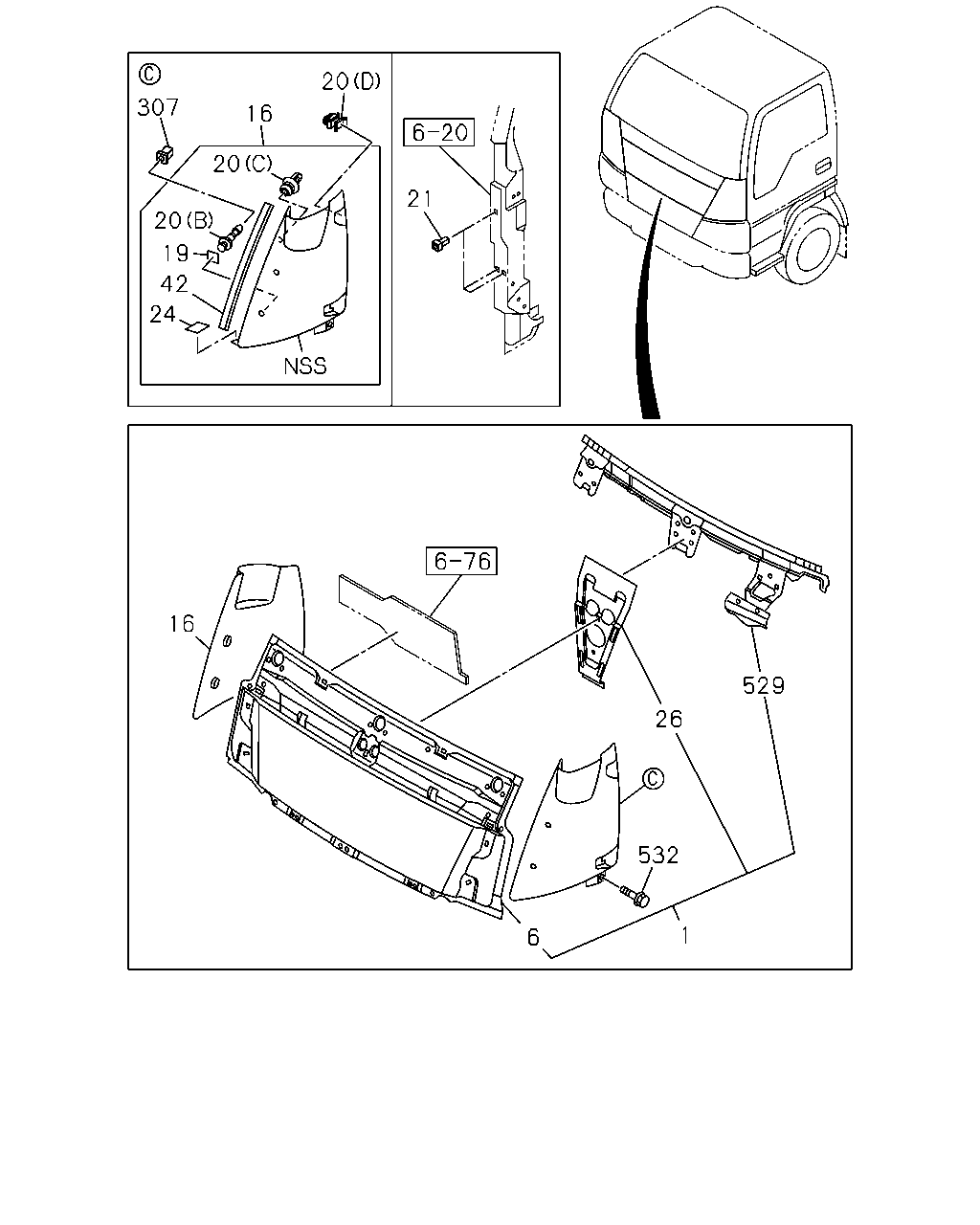

çizim 54464
20 307 16 20 21 20 19 42 24 16 529 26 532 1 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.550 PANEL ASM; FRT 8-97859-424-0 01 1 0302-0506 ● ● ●
1 16.550 PANEL ASM; FRT 8-97581-815-0 01 1 0507- ● ● ●
6 16.570 PANEL; FRONT 8-97859-423-3 01 1 0302-0506 ● ● ●
6 16.570 PANEL; FRONT 8-97581-637-3 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WHITE 		8-97582-169-3 01 1 0507-0606 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WHITE 		8-97582-471-5 01 1 0607- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WHITE 		8-97582-153-3 01 1 0507-0606 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WHITE 		8-97582-455-5 01 1 0607- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> BLUE 		8-97582-174-3 01 1 0507-0606 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> BLUE 		8-97582-475-5 01 1 0607- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> BLUE 		8-97582-158-3 01 1 0507-0606 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> BLUE 		8-97582-459-5 01 1 0607- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> SILVER 		8-97582-171-3 01 1 0507-0606 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> SILVER 		8-97582-467-5 01 1 0607- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> SILVER 		8-97582-155-3 01 1 0507-0606 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> SILVER 		8-97582-451-5 01 1 0607- ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0302-0506 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-430-6 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0302-0506 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-428-6 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-788-3 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-785-3 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-789-3 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-431-6 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-786-3 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-429-6 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-790-3 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-711-6 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-787-3 01 1 0507- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-710-6 01 1 0507- ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
08.131 		8-97581-676-0 04 1 0507-1008 ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
(A) 		8-94279-814-0 04 1 0302-0506 ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
(D) 		8-97581-632-1 04 1 0507- ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 0507- ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0507- ● ● ●
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0302- ● ● ●
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0507-0807 ● ● ●
24 08.131 SEAL; FRT PANEL LWR
IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97583-672-0 02 1 0808-0809 ●
24 08.131 SEAL; FRT PANEL LWR
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97583-672-0 02 1 0808-0809 ●
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0808-0809 ● ●
24 08.131 SEAL; FRT PANEL LWR
KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97583-672-0 02 1 0810- ●
24 08.131 SEAL; FRT PANEL LWR
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97583-672-0 02 1 0810- ●
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0810- ● ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 0302- ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-043-0 01 1 0607- ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-044-0 01 1 0607- ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0607-0807 ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-613-3 01 1 0607-0807 ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0808-0809 ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-613-3 01 1 0808-0809 ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0810- ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-613-3 01 1 0810- ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0607-0807 ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-614-3 01 1 0607-0807 ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0808-0809 ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-614-3 01 1 0808-0809 ●
42 01.303 FINISHER; FRT PANEL,SIDE
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0810- ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-614-3 01 1 0810- ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 0302-0506 ● ● ●
307 16.125 GROMMET; FRT PANEL 8-97583-397-0 04 1 0507- ● ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-044-3 01 1 0302- ● ● ●
532 08.143 BOLT; FRT PANEL
02.334 M6X16 W/PL WASHER 		8-97803-781-0 02 1 0507- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
