6-90 — REAR BUMPER (#2249) — 23 parça

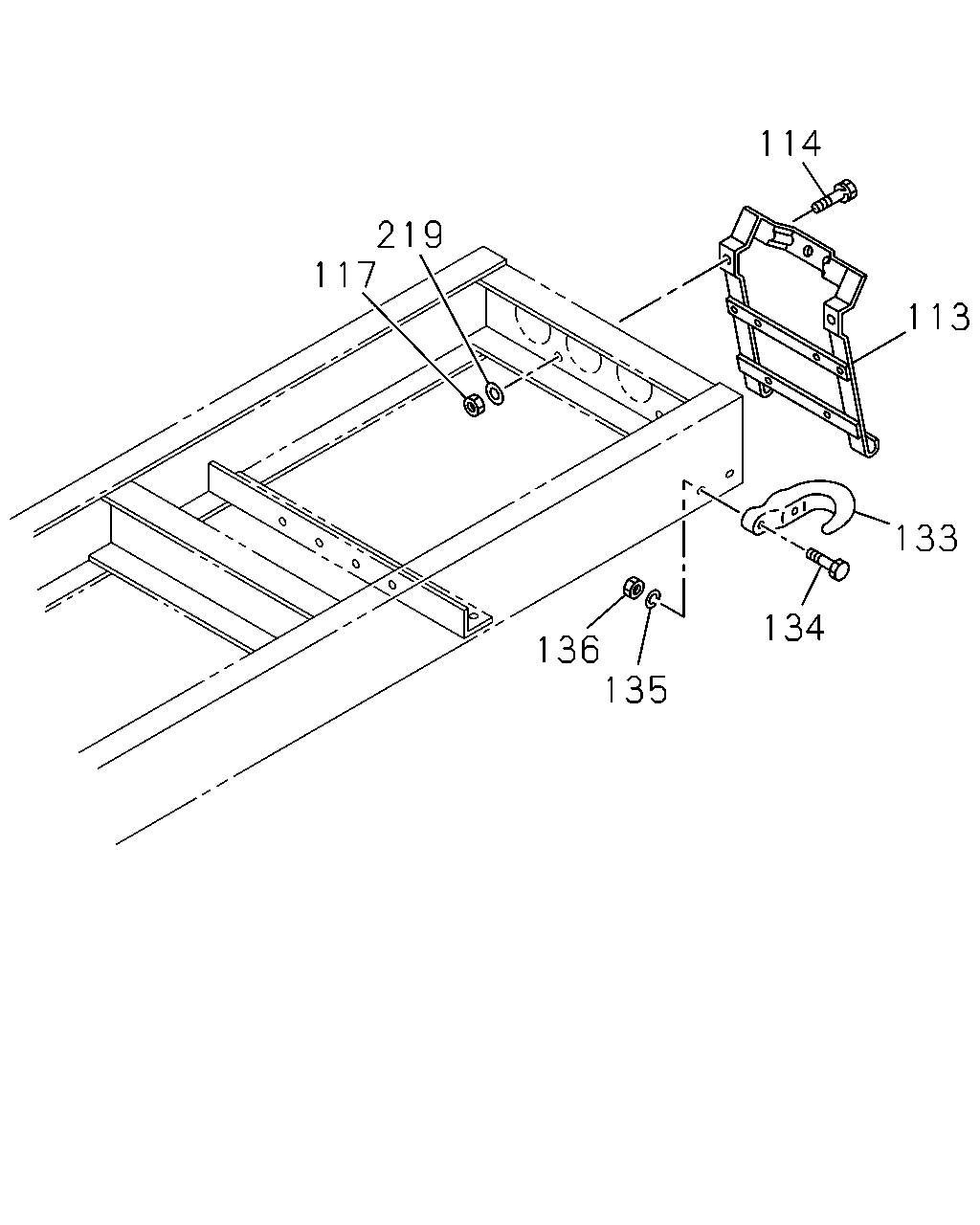

çizim 96446
114 219 117 113 133 134 136 135
BalonParca AdiParca NoAdetTipApplied Date A B
113 BRACKET; LICENSE PLATE 1-53485-017-2 01 1 9101-9404 ● ●
113 BRACKET; LICENSE PLATE 1-53485-008-2 01 1 9405- ● ●
114 BOLT; BRKT,LICENSE PLATE
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ●
114 BOLT; BRKT,LICENSE PLATE
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ● ●
117 NUT; BRKT
M8 		9-09110-408-0 02 1 9101- ● ●
133 HOOK
EXC. USER DAEWOO MOTORS<D4S> 		1-57181-027-1 01 1 9101-0203 ● ●
133 HOOK 1-57181-027-1 01 1 0204-0301 ● ●
133 HOOK
TOW HOOK<V76> 		1-57181-027-1 01 1 0302- ● ●
134 BOLT; HOOK
EXC. USER DAEWOO MOTORS<D4S> M16X60 		0-10811-660-0 02 1 9101-9101 ● ●
134 BOLT; HOOK
EXC. USER DAEWOO MOTORS<D4S> M16X60 		0-10811-660-0 01 1 9102-0203 ● ●
134 BOLT; HOOK
M16X60 		0-10811-660-0 01 1 0204-0301 ● ●
134 BOLT; HOOK
TOW HOOK<V76> M16X60 		0-10811-660-0 01 1 0302- ● ●
134 BOLT; HOOK
EXC. USER DAEWOO MOTORS<D4S> M16X50 		0-20801-650-0 01 1 9102-0203 ● ●
134 BOLT; HOOK
M16X50 		0-20801-650-0 01 1 0204-0301 ● ●
134 BOLT; HOOK
TOW HOOK<V76> M16X50 		0-20801-650-0 01 1 0302- ● ●
135 WASHER; LK,HOOK
EXC. USER DAEWOO MOTORS<D4S> ID=16.2 		9-09150-516-0 02 1 9101-0203 ● ●
135 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0204-0301 ● ●
135 WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2 		9-09150-516-0 02 1 0302- ● ●
136 NUT; HOOK
EXC. USER DAEWOO MOTORS<D4S> M16 		9-99110-416-0 02 1 9101-0203 ● ●
136 NUT; HOOK
M16 		9-99110-416-0 02 1 0204-0206 ● ●
136 NUT; HOOK
M16 		9-99110-516-0 02 1 0207-0301 ● ●
136 NUT; HOOK
TOW HOOK<V76> M16 		9-99110-516-0 02 1 0302- ● ●
219 WASHER; PL,BRKT
ID=8.4 		9-09160-508-0 02 1 9101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
