Sayfa 4-10 - Isuzu EPC

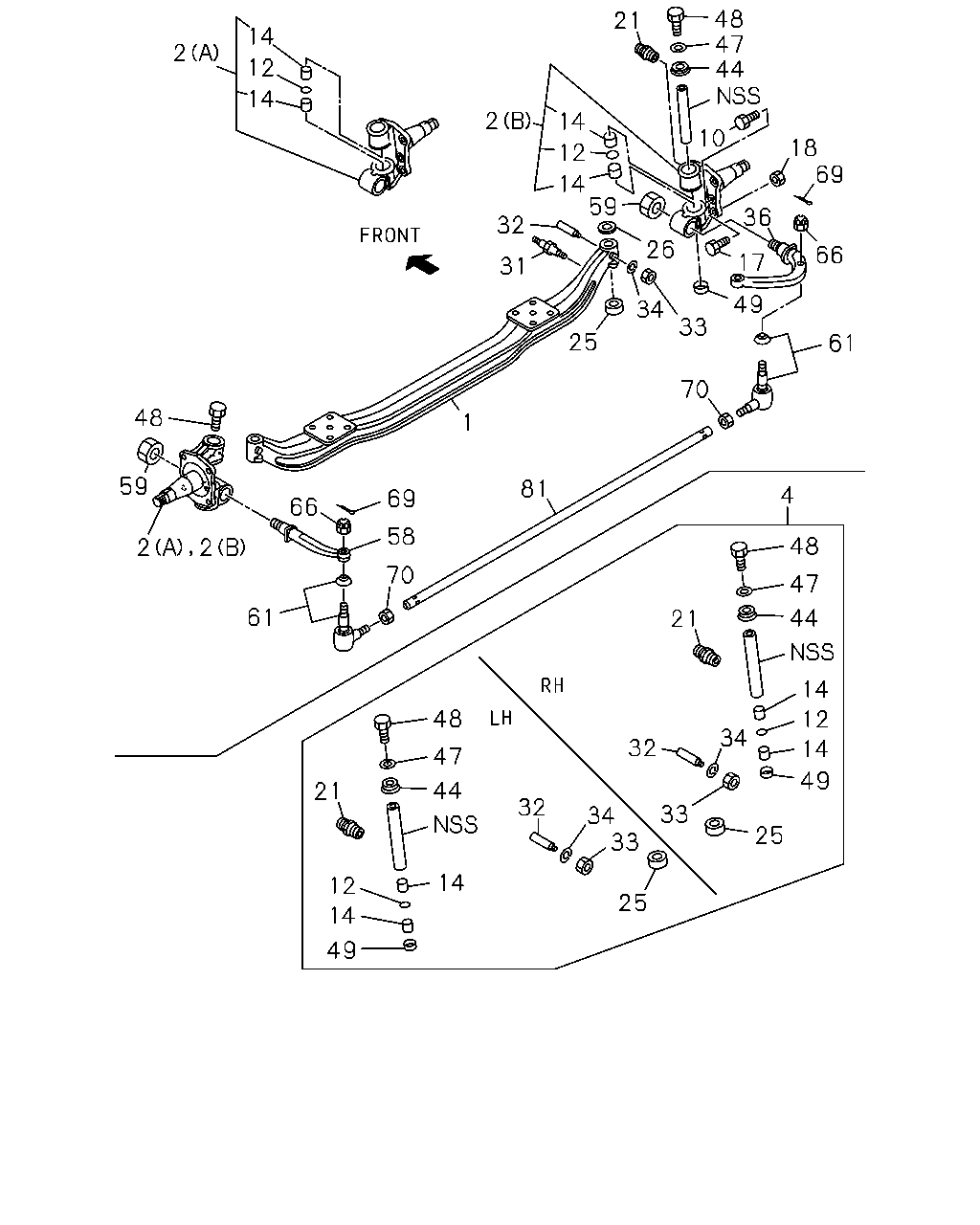

4-10 — FRONT AXLE (#22486) — 156 parça

48 47 44 21 14 2 12 14 2 14 10 18 69 12 14 59 36 32 26 66 17 31 49 34 33 25 61 70 48 1 59 81 4 69 66 58 48 2 2 70 47 61 44 21 14 48 12 34 32 14 47 49 44 21 32 33 34 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	06.008 AXLE; FRT (AUH),(AUJ),(AUS),(AVK),(AYS),(00C), (01C),(02C),(03C),(04C),(05C),(55C), (83V),(9BP),(9ZM),(9ZP),(9ZQ),(95V), (97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>	8-97145-406-0	01	1	9812-9903	●	●	●	●
1	06.008 AXLE; FRT G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>	8-97145-406-0	01	1	9904-0105	●	●	●	●
1	06.008 AXLE; FRT G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TO N(RPY) EXC. DISC BRAKE FRT<J52>	8-97137-588-0	01	1	9812-0105	●	●	●	●	●	●
1	06.008 AXLE; FRT DISC BRAKE FRT<J52>	8-97137-588-0	01	1	9812-0105	●	●	●	●	●	●
1	06.008 AXLE; FRT	8-97137-588-2	01	1	0106-	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (AUH),(AUJ),(AUS),(AVK),(AYS),(00C), (01C),(02C),(03C),(04C),(05C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V),(9BP),(95V),(97V) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V .W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> (B)	8-97141-781-0	01	1	9812-9903	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (BQU),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) EXC. DISC BRAKE FRT<J52> (B)	8-97141-781-0	01	1	9812-9903	●	●			●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TO N(RPY) EXC. DISC BRAKE FRT<J52> (B)	8-97141-781-0	01	1	9904-9905	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TO N(RPY) EXC. DISC BRAKE FRT<J52>,AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-781-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (AUH),(AUJ),(AUS),(AVK),(AYS),(00C), (01C),(02C),(03C),(04C),(05C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V),(9BP),(95V),(97V) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V .W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> (B)	8-97141-783-0	01	1	9812-9903	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (BQU),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) EXC. DISC BRAKE FRT<J52> (B)	8-97141-783-0	01	1	9812-9903	●	●			●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TO N(RPY) EXC. DISC BRAKE FRT<J52> (B)	8-97141-783-0	01	1	9904-9905	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TO N(RPY) EXC. DISC BRAKE FRT<J52>,AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-783-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52> (B)	8-97141-785-0	01	1	9812-9903	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (AUH),(AUJ),(AUS),(AVK),(AYS),(00C), (01C),(02C),(03C),(04C),(05C),(55C), (83V),(9BP),(9ZM),(9ZP),(9ZQ),(95V), (97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> (B)	8-97141-785-0	01	1	9812-9903	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52> (B)	8-97141-785-0	01	1	9904-9905	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> (B)	8-97141-785-0	01	1	9904-9905	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52> EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-785-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-785-0	01	1	9906-9909	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52> (B)	8-97141-784-0	01	1	9812-9903	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (AUH),(AUJ),(AUS),(AVK),(AYS),(00C), (01C),(02C),(03C),(04C),(05C),(55C), (83V),(9BP),(9ZM),(9ZP),(9ZQ),(95V), (97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> (B)	8-97141-784-0	01	1	9812-9903	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52> (B)	8-97141-784-0	01	1	9904-9905	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> (B)	8-97141-784-0	01	1	9904-9905	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52> EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-784-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-784-0	01	1	9906-9909	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52> AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-684-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52> (A)	8-97230-684-0	01	1	9906-9909	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52> (A)	8-97230-684-0	01	1	9910-0008	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> (A)	8-97230-684-0	01	1	9910-0008	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52> (A)	8-97261-550-0	01	1	0009-0105	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> (A)	8-97261-550-0	01	1	0009-0105	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-550-1	01	1	0106-	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52> AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-683-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52> (A)	8-97230-683-0	01	1	9906-9909	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52> (A)	8-97230-683-0	01	1	9910-0008	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> (A)	8-97230-683-0	01	1	9910-0008	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52> (A)	8-97261-549-0	01	1	0009-0105	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> (A)	8-97261-549-0	01	1	0009-0105	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-549-1	01	1	0106-	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TO N(RPY) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52> (A)	8-97230-682-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TO N(RPY) EXC. DISC BRAKE FRT<J52> (A)	8-97230-682-0	01	1	9910-0008	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TO N(RPY) EXC. DISC BRAKE FRT<J52> (A)	8-97261-546-0	01	1	0009-0105	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TO N(RPY) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52> (A)	8-97230-681-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TO N(RPY) EXC. DISC BRAKE FRT<J52> (A)	8-97230-681-0	01	1	9910-0008	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TO N(RPY) EXC. DISC BRAKE FRT<J52> (A)	8-97261-545-0	01	1	0009-0105	●	●	●	●	●	●
4	06.203 KING PIN KIT	5-87831-608-1	01	1	9812-	●	●	●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	9812-	●	●	●	●	●	●	●
12	06.021 GASKET; KNUCKLE 06.225	9-09561-230-0	02	1	9812-	●	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN DAIDO	8-94107-672-2	04	1	9812-	●	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	9812-	●	●	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE (AUH),(AUJ),(AUS),(AVK),(AYS),(BQU), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(06H),(07C),(07H),(08C),(08H), (09C),(09H),(10C),(10H),(11C),(11H), (12H),(13H),(14H),(15H),(16H),(17H), (18H),(19H),(50C),(51C),(52C),(53C), (54C),(55C),(83V),(9BP),(9HY),(94H), (95H),(95V),(96H),(97H),(97V),(98H), (99H) EXC. DISC BRAKE FRT<J52> M12X24 EYE-BOLT	5-09000-208-1	03	1	9812-9903	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE DISC BRAKE FRT<J52> M12X24 EYE-BOLT	5-09000-208-1	03	1	9812-9903	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TO N(RPY) EXC. DISC BRAKE FRT<J52> M12X24 EYE-BOLT	5-09000-208-1	03	1	9904-0105	●	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE DISC BRAKE FRT<J52> M12X24 EYE-BOLT	5-09000-208-1	03	1	9904-0105	●	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE (AUH),(AUJ),(AUS),(AVK),(AYS),(BRT), (00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> M12X24 EYE-BOLT	5-09000-208-1	03	1	9904-0105	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	0106-	●	●	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE (9ZM),(9ZP),(9ZQ) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> M12X27.5	8-94433-409-1	03	1	9812-0105	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	9812-	●	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	04	1	9812-	●	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN	8-97141-943-0	01	1	9812-	●	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN 06.021	8-94248-883-2	01	1	9812-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.50	8-94162-574-0	AR	1	9812-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.55	8-94162-575-0	AR	1	9812-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.60	8-94162-576-0	AR	1	9812-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.65	8-94162-577-0	AR	1	9812-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 T=1.95	8-94168-490-0	01	1	9812-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.70	8-94174-352-0	AR	1	9812-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.80	8-94174-354-0	AR	1	9812-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.90	8-94174-356-0	AR	1	9812-	●	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR	8-97145-460-0	02	1	9812-	●	●	●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	9812-	●	●	●	●	●	●	●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	9812-	●	●	●	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	9812-	●	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE (BQU),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97202-775-0	01	1	9812-9903	●
36	06.103 ARM; KNUCKLE (BQU),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97226-688-0	01	1	9904-9907	●
36	06.103 ARM; KNUCKLE (BQU),(06H),(07H),(08H),(50C),(51C), (9HY),(9ZM),(9ZP),(9ZQ),(94H),(95H), (96H),(97H),(98H),(99H) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52>	8-97226-688-0	01	1	9908-9909	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE (BQU),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ>,AXLE ISUZU PRODUCTION<8BF>	8-97226-688-0	01	1	9908-9909	●
36	06.103 ARM; KNUCKLE (BQU),(06H),(07H),(08H),(50C),(51C), (9HY),(9ZM),(9ZP),(9ZQ),(94H),(95H), (96H),(97H),(98H),(99H)	8-97226-688-0	01	1	9910-9910	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE (BQU),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H)	8-97226-688-0	01	1	9910-0105	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97226-688-0	01	1	0106-	●
36	06.103 ARM; KNUCKLE (AUH),(AUJ),(AUS),(AVK),(AYS),(00C), (01C),(02C),(03C),(04C),(05C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V),(9BP),(95V),(97V) DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ>	8-97202-776-0	01	1	9812-9903	●	●			●
36	06.103 ARM; KNUCKLE DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ>	8-97202-776-0	01	1	9904-9907	●	●			●	●
36	06.103 ARM; KNUCKLE (AUH),(AUJ),(AUS),(AVK),(AYS),(BRT), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(09H),(10C), (10H),(11C),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (53C),(54C),(55C),(83V),(9BP),(95V), (97V) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52>	8-97202-776-0	01	1	9908-9909	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. AXLE ISUZU PRODUCTION<8BF>	8-97202-776-0	01	1	9908-9909	●	●			●	●
36	06.103 ARM; KNUCKLE (AUH),(AUJ),(AUS),(AVK),(AYS),(BRT), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(09H),(10C), (10H),(11C),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (53C),(54C),(55C),(83V),(9BP),(95V), (97V)	8-97202-776-0	01	1	9910-9910	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE (AUH),(AUJ),(AUS),(AVK),(AYS),(BRT), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(09H),(10C), (10H),(11C),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (53C),(54C),(55C),(83V),(9BP),(9ZM), (9ZP),(9ZQ),(95V),(97V)	8-97202-776-0	01	1	9910-0105	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ>	8-97202-776-0	01	1	0106-	●	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE (AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ>	8-97137-456-0	01	1	9812-9901	●	●	●	●
36	06.103 ARM; KNUCKLE EXC. DISC BRAKE FRT<J52>	8-97137-456-0	01	1	9812-9901	●	●	●	●
36	06.103 ARM; KNUCKLE EXC. DISC BRAKE FRT<J52>	8-97137-456-0	01	1	9902-9903	●	●	●	●	●
36	06.103 ARM; KNUCKLE (AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ>	8-97137-456-0	01	1	9902-9903	●	●	●	●
36	06.103 ARM; KNUCKLE EXC. DISC BRAKE FRT<J52>	8-97137-456-0	01	1	9904-9907	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ>	8-97137-456-0	01	1	9904-9907	●	●	●	●
36	06.103 ARM; KNUCKLE EXC. DISC BRAKE FRT<J52>,AXLE ISUZU PRODUCTION<8BF>	8-97137-456-0	01	1	9908-9909	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE (AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. AXLE ISUZU PRODUCTION<8BF>	8-97137-456-0	01	1	9908-9909	●	●	●	●
44	06.225 COVER; KING PIN OD=36	8-94248-675-1	02	1	9812-	●	●	●	●	●	●	●
47	06.225 WASHER; PL,COVER,KING PIN 06.896 ID=10.5	9-09164-510-0	02	1	9812-	●	●	●	●	●	●	●
48	06.225 BOLT; COVER 04.642 M10X16	0-20801-016-0	02	1	9812-	●	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE	8-94248-566-0	02	1	9812-0008	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE	8-97261-587-0	02	1	0009-	●	●	●	●	●	●	●
58	06.103 ARM; TIE ROD	8-97138-304-0	01	1	9812-	●	●	●	●	●	●	●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	9812-	●	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	9812-9903	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97222-510-0	01	1	9904-0204	●	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	0205-	●	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	9812-9903	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97222-509-0	01	1	9904-0204	●	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	0205-	●	●	●	●	●	●	●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	9812-	●	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END 01.271 OD=3.7 L=20	9-08114-020-0	02	1	9812-	●	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	9812-	●	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END M20	9-99111-420-0	01	1	9812-	●	●	●	●	●	●	●
81	06.230 ROD; TIE	8-97061-869-0	01	1	9812-	●	●	●	●	●	●	●

239 241 104 82 233 85 238 126 318 126 85 238 101 91 242 106 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G

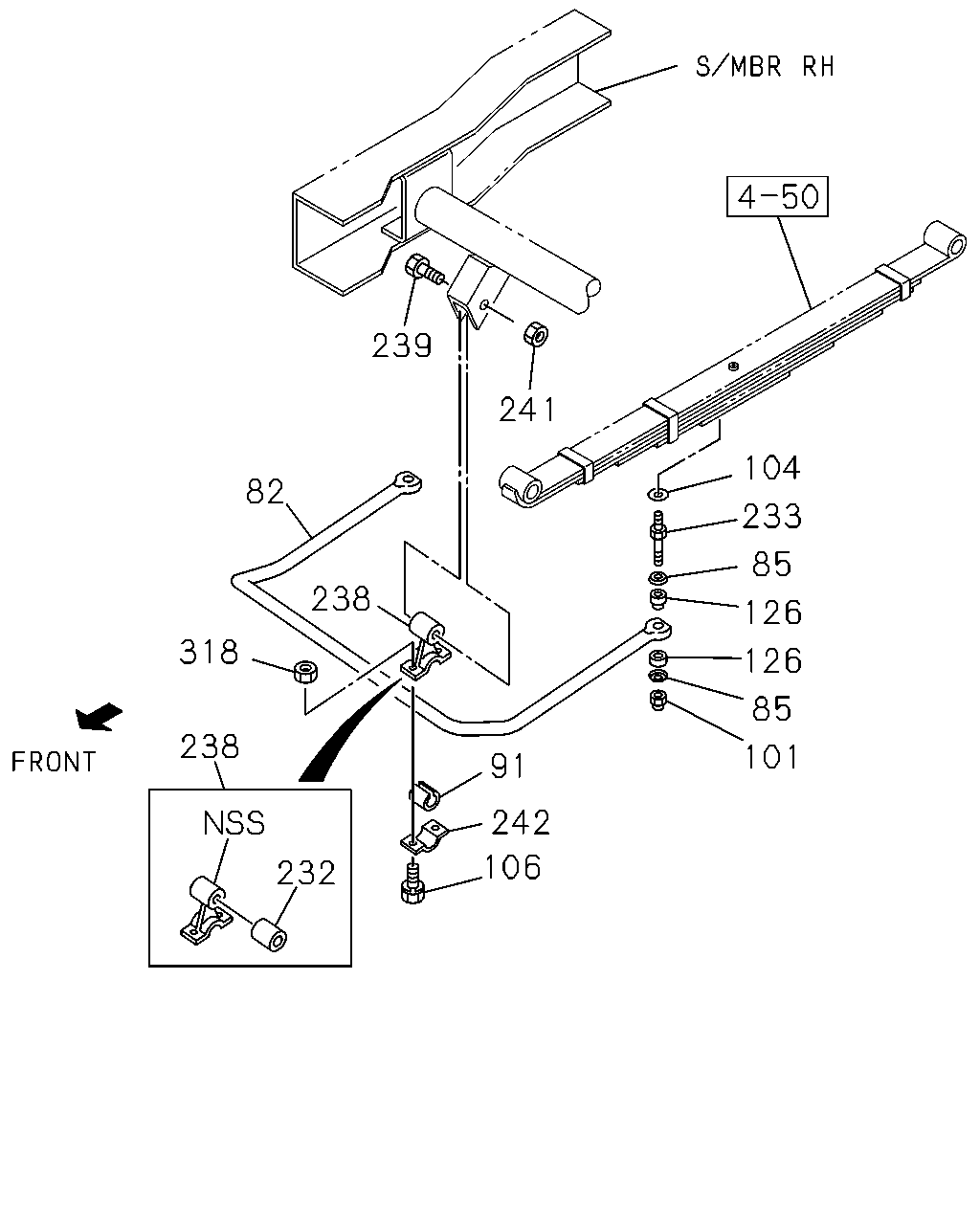

82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94342-205-0	01	1	9812-0105	●
82	07.241 BAR; STAB,FRT SUSP EXC. FRAME STRAIGHT TYPE<7KJ>	8-94342-205-0	01	1	0106-	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-97138-348-0	01	1	9812-9901	●	●	●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-97138-348-0	01	1	9902-9903	●	●	●	●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-97138-348-0	01	1	9904-0105	●	●	●	●	●	●
82	07.241 BAR; STAB,FRT SUSP FRAME STRAIGHT TYPE<7KJ>	8-97138-348-0	01	1	0106-	●
82	07.241 BAR; STAB,FRT SUSP	8-97138-348-0	01	1	0106-		●	●	●	●	●	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59>	8-94342-084-0	04	1	9812-0105	●	●	●	●	●	●
85	07.242 WASHER; STAB TO FRAME	8-94342-084-0	04	1	0106-	●	●	●	●	●	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-187-0	02	1	9812-0105	●	●	●	●	●	●
91	07.243 BUSHING; RUBBER,STAB BAR	8-94342-187-0	02	1	0106-	●	●	●	●	●	●	●
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> 08.917 M12 LOCK NUT	9-09131-512-0	02	1	9812-0105	●	●	●	●	●	●
101	07.242 NUT; STAB BAR 08.917 M12 LOCK NUT	9-09131-512-0	02	1	0106-	●	●	●	●	●	●	●
104	07.242 WASHER; LK,BRKT FRONT STABILIZER SHAFT<F59> 00.796 ID=14.2	9-09150-514-0	02	1	9812-0105	●	●	●	●	●	●
104	07.242 WASHER; LK,BRKT 00.796 ID=14.2	9-09150-514-0	02	1	0106-	●	●	●	●	●	●	●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> 03.405 M10X25 FLANGE	0-28681-025-0	04	1	9812-0105	●	●	●	●	●	●
106	06.216 BOLT; CAP FIX 03.405 M10X25 FLANGE	0-28681-025-0	04	1	0106-	●	●	●	●	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> L=18	8-97089-556-0	02	1	9812-0105	●
126	07.243 RUBBER; MTG,STAB BAR EXC. FRAME STRAIGHT TYPE<7KJ> L=18	8-97089-556-0	02	1	0106-	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> L=29	8-97089-557-0	02	1	9812-0105	●
126	07.243 RUBBER; MTG,STAB BAR EXC. FRAME STRAIGHT TYPE<7KJ> L=29	8-97089-557-0	02	1	0106-	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-94342-083-0	04	1	9812-9901	●	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-94342-083-0	04	1	9902-9903	●	●	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-94342-083-0	04	1	9904-0105	●	●	●	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRAME STRAIGHT TYPE<7KJ>	8-94342-083-0	04	1	0106-	●
126	07.243 RUBBER; MTG,STAB BAR	8-94342-083-0	04	1	0106-		●	●	●	●	●	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94331-581-0	02	1	9812-9910	●	●	●	●	●	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-97239-911-0	02	1	9911-0105	●	●	●	●	●	●
232	07.243 BUSHING; LINK ROD	8-97239-911-0	02	1	0106-	●	●	●	●	●	●	●
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59> 04.686	8-94342-082-0	02	1	9812-0105	●	●	●	●	●	●
233	07.242 STUD; STABILIZER 04.686	8-94342-082-0	02	1	0106-	●	●	●	●	●	●	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-94441-472-3	02	1	9812-9910	●	●	●	●	●	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-97239-907-0	02	1	9911-0105	●	●	●	●	●	●
238	07.240 ROD LINK ASM; STABILIZER,FRT	8-97239-907-0	02	1	0106-	●	●	●	●	●	●	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70 FLANGE	0-28881-470-0	02	1	9812-0010	●	●	●	●	●	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70	0-10806-470-0	02	1	0011-0105	●	●	●	●	●	●
239	07.242 BOLT; LINK ROD M14X70	0-10806-470-0	02	1	0106-	●	●	●	●	●	●	●
241	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.613 M14 FLANGE	0-91150-114-0	02	1	9812-0105	●	●	●	●	●	●
241	07.242 NUT; LINK ROD 03.613 M14 FLANGE	0-91150-114-0	02	1	0106-	●	●	●	●	●	●	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-2	02	1	9812-0105	●	●	●	●	●	●
242	07.242 CAP; LINK ROD	8-94178-430-2	02	1	0106-	●	●	●	●	●	●	●
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> 08.917 M10 FLANGE	0-91150-210-0	04	1	9812-0105	●	●	●	●	●	●
318	07.242 NUT; CAP FIX 08.917 M10 FLANGE	0-91150-210-0	04	1	0106-	●	●	●	●	●	●	●
