6-70 — FLOOR PANEL (#22484) — 161 parça
çizim 10367
377 378 380 398 381 380 378
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 9811- ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 9811- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 9811- ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 9811- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-482-9 01 1 9811-9910 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-315-2 01 1 9911- ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 9811- ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 9811- ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-359-1 01 1 9811- ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-704-0 01 1 9811- ● ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 9811- ● ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9811- ● ● ● ● ● ●

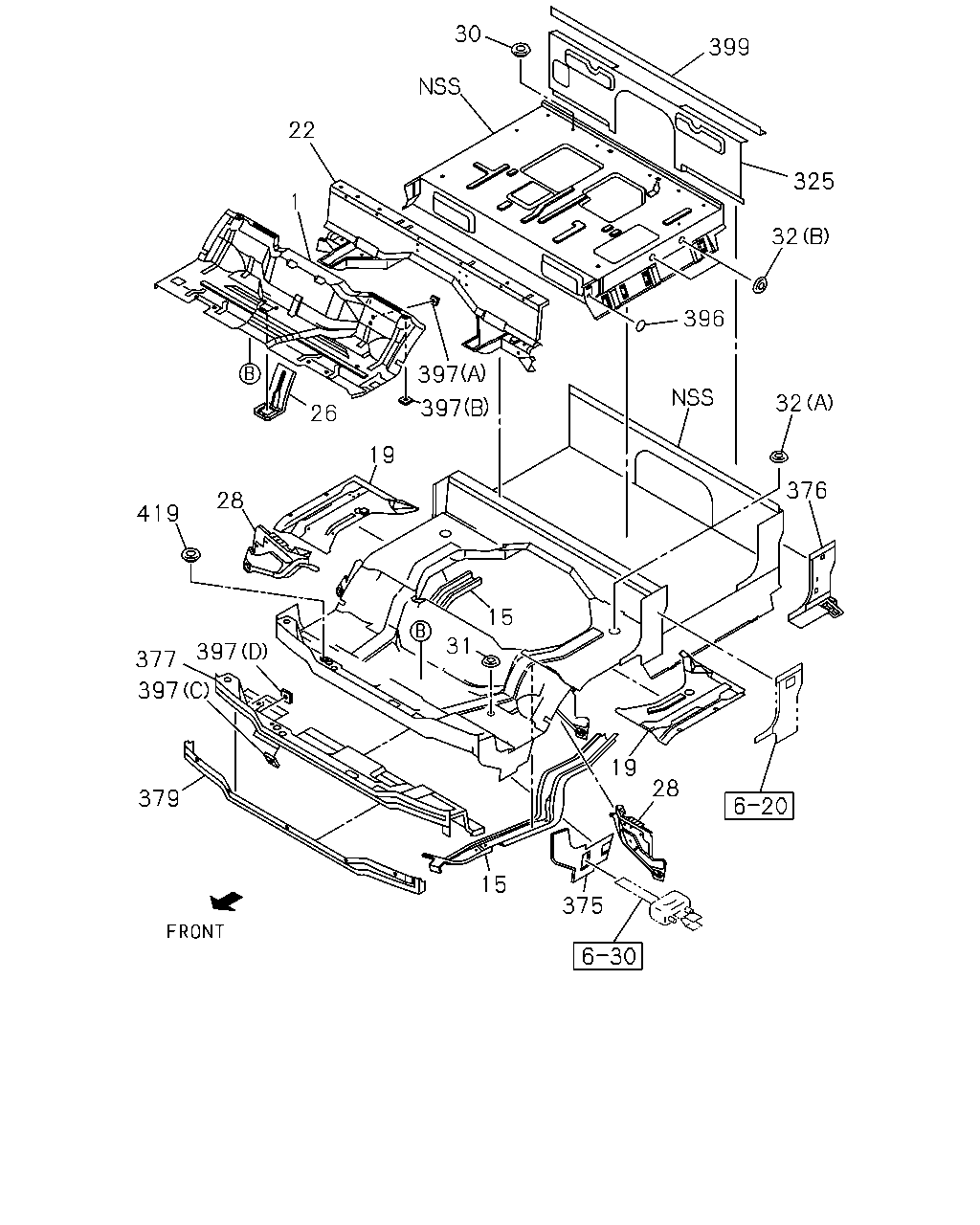

çizim 47669
30 399 22 325 1 32 396 397 32 397 26 19 376 28 419 15 31 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 9811- ● ● ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-6 01 1 9811- ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-402-6 01 1 9811- ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-6 01 1 9811- ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-511-5 01 1 9811- ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9811- ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9811- ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> 		8-97850-456-3 01 1 0202- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 9811- ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 9811-0201 ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 0202- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-335-4 01 1 0202- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 0202- ● ●
22 16.545 FRAME; FLOOR REAR
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> 		8-97850-464-3 01 1 0202-0202 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> 		8-97997-861-0 01 1 0203- ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 9811-0201 ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-408-8 01 1 0202- ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 0202- ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-6 01 1 9811- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-502-6 01 1 9811- ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 9811- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9811- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9811- ● ● ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 9811- ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9811- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9811- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9811- ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HF1 ENG(RLS) 		8-97850-242-8 01 1 0203-0206 ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-97890-252-4 01 1 9811-0202 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97890-252-4 01 1 0203-0203 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97997-518-0 01 1 0204-0206 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97997-518-0 01 1 0207- ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97997-518-0 01 1 0207- ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9811- ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9811- ● ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9811-9811 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 9812- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9811- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9811-0202 ●
376 16.545 CLOSING; PILLAR,LWR
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97850-187-3 01 1 0203- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9811-0202 ●
376 16.545 CLOSING; PILLAR,LWR
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97850-186-3 01 1 0203- ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 9811- ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 9811- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 9811- ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 9811- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-482-9 01 1 9811-9910 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-315-2 01 1 9911- ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9811- ● ● ● ● ● ●
396 16.547 GROMMET; LOCATION HOLE 1-09983-049-0 02 1 9811- ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9811- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (D) M10 		9-09114-030-0 03 1 9811- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) M10 		9-09114-030-0 03 1 9811- ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 9811- ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9811-0201 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (A) M6 		9-09114-046-0 04 1 9811-0201 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 9811-0201 ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 9811-0201 ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0202- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) M6 		9-09114-046-0 04 1 0202- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S) (A) M6 		9-09114-046-0 04 1 0202- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0202- ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0202- ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9811- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (C) M8 		9-09114-048-0 04 1 9811- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (C) M8 		9-09114-048-0 04 1 9811- ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 9811- ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9811-0201 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 9811-0201 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 9811-0201 ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9811-0201 ● ●
397 16.545 NUT; PIERCE
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 05 1 0202- ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0202- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.588 (B) M8 		9-09114-048-0 03 1 0202- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 0202- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0202- ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0202- ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97850-224-1 01 1 9811- ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9811- ● ● ● ● ● ●

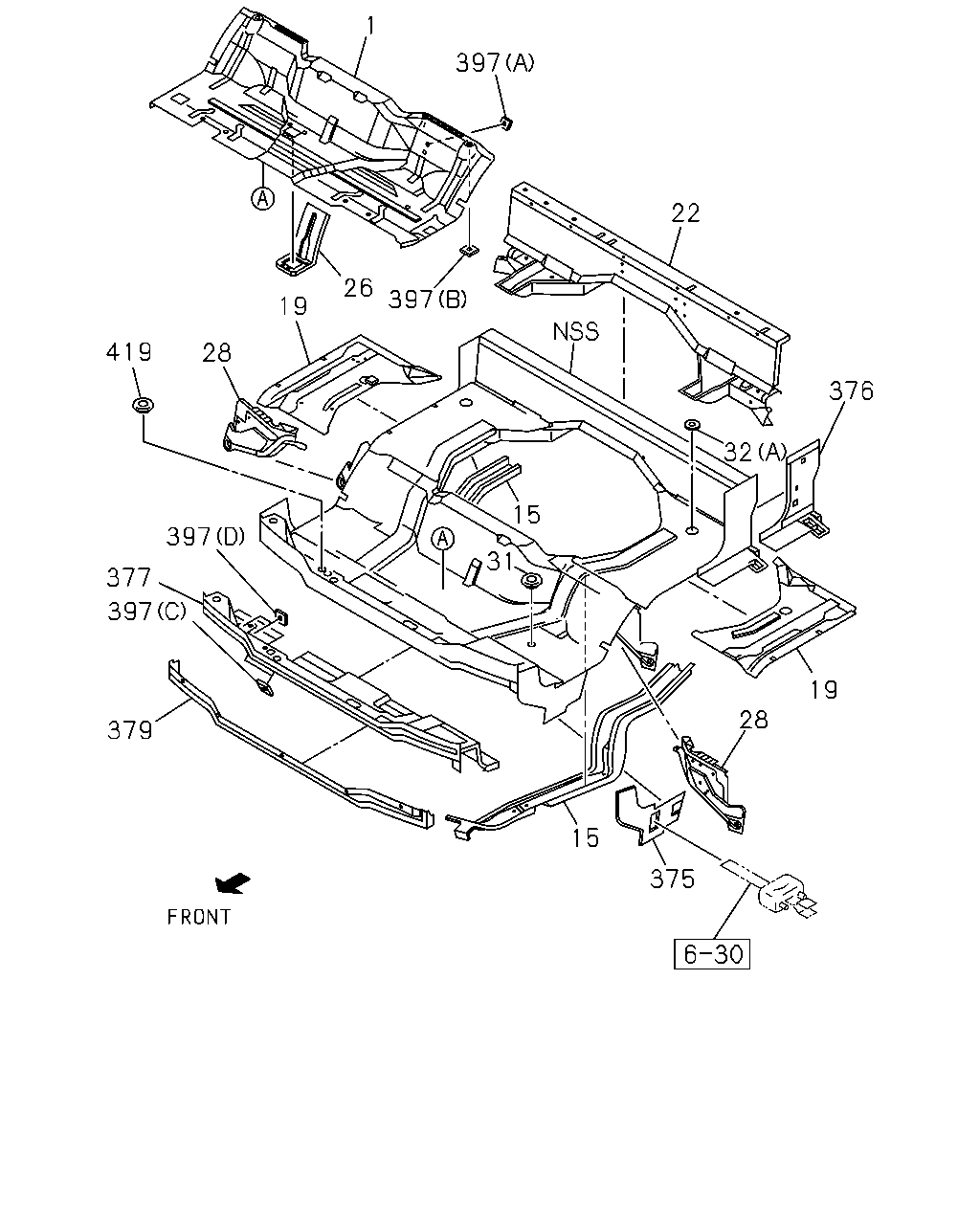

çizim 48193
1 397 22 26 397 19 419 28 376 32 15 397 31 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 9811- ● ● ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-6 01 1 9811- ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-402-6 01 1 9811- ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-6 01 1 9811- ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-511-5 01 1 9811- ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9811- ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9811- ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> 		8-97850-456-3 01 1 0202- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 9811- ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 9811-0201 ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 0202- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-335-4 01 1 0202- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 0202- ● ●
22 16.545 FRAME; FLOOR REAR
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> 		8-97850-464-3 01 1 0202-0202 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> 		8-97997-861-0 01 1 0203- ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 9811-0201 ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-408-8 01 1 0202- ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 0202- ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-6 01 1 9811- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-502-6 01 1 9811- ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 9811- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9811- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9811- ● ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9811- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9811- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9811- ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9811- ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9811- ● ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9811-9811 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 9812- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9811- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9811-0202 ●
376 16.545 CLOSING; PILLAR,LWR
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97850-187-3 01 1 0203- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9811-0202 ●
376 16.545 CLOSING; PILLAR,LWR
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97850-186-3 01 1 0203- ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 9811- ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 9811- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 9811- ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 9811- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-482-9 01 1 9811-9910 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-315-2 01 1 9911- ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9811- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9811- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (D) M10 		9-09114-030-0 03 1 9811- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) M10 		9-09114-030-0 03 1 9811- ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 9811- ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9811-0201 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (A) M6 		9-09114-046-0 04 1 9811-0201 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 9811-0201 ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 9811-0201 ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0202- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) M6 		9-09114-046-0 04 1 0202- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S) (A) M6 		9-09114-046-0 04 1 0202- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0202- ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0202- ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9811- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (C) M8 		9-09114-048-0 04 1 9811- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (C) M8 		9-09114-048-0 04 1 9811- ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 9811- ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9811-0201 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 9811-0201 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 9811-0201 ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9811-0201 ● ●
397 16.545 NUT; PIERCE
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 05 1 0202- ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0202- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.588 (B) M8 		9-09114-048-0 03 1 0202- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 0202- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0202- ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0202- ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9811- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
