6-68 — ROOF VENTILATOR (#22483) — 45 parça

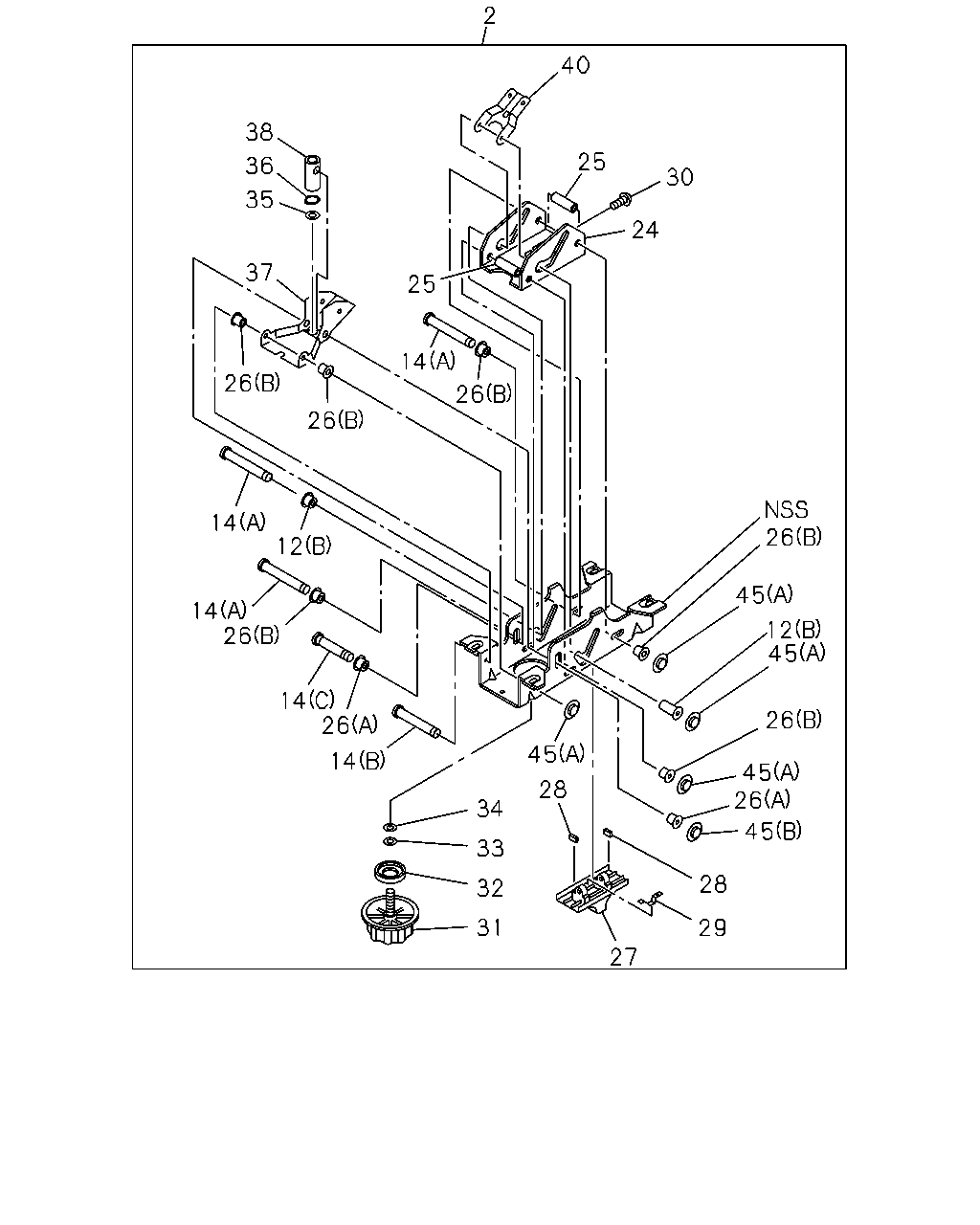

2 40 38 25 36 30 35 24 37 25 14 26 26 26 26 14 12 45 14 26 12 45 14 26 26 45 14 45 26 28 34 45 33 28 32 31 29 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.585 FRAME; ROOF VENTILATOR ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-695-2	01	1	9811-	●	●	●	●	●	●
12	16.585 BUSHING; FRAME,ROOF VENTILATOR ROOF VENTILATOR<C55> (A) OD=9.9	8-94279-701-3	04	1	9811-	●	●	●	●	●	●
12	16.585 BUSHING; FRAME,ROOF VENTILATOR ROOF VENTILATOR<C55> (B) OD=8.0	8-94279-908-1	02	1	9811-	●	●	●	●	●	●
14	16.585 PIN; FRAME ROOF VENTILATOR<C55> (D)	8-94279-023-2	01	1	9811-	●	●	●	●	●	●
14	16.585 PIN; FRAME ROOF VENTILATOR<C55> (A)	8-94279-034-0	03	1	9811-	●	●	●	●	●	●
14	16.585 PIN; FRAME ROOF VENTILATOR<C55> (C)	8-94279-086-0	01	1	9811-	●	●	●	●	●	●
14	16.585 PIN; FRAME ROOF VENTILATOR<C55> (B)	8-97890-589-0	01	1	9811-	●	●	●	●	●	●
24	16.585 GUIDE; SUB LINK ROOF VENTILATOR<C55>	8-94272-119-3	01	1	9811-	●	●	●	●	●	●
25	16.585 TUBE; INSULATOR ROOF VENTILATOR<C55>	8-94272-332-1	02	1	9811-	●	●	●	●	●	●
26	16.585 ROLLER; GUIDE ROOF VENTILATOR<C55> (B) OD=8	8-94279-022-2	06	1	9811-	●	●	●	●	●	●
26	16.585 ROLLER; GUIDE ROOF VENTILATOR<C55> (A) OD=9.9	8-94279-701-3	02	1	9811-	●	●	●	●	●	●
27	16.585 SWITCH; SELECT,VENTILATOR ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-296-1	01	1	9811-	●	●	●	●	●	●
28	16.585 CUSHION; RUBBER,SWITCH ROOF VENTILATOR<C55>	8-94272-333-0	02	1	9811-	●	●	●	●	●	●
29	16.585 SPRING; SELECT SWITCH ROOF VENTILATOR<C55>	8-94279-028-1	02	1	9811-	●	●	●	●	●	●
30	16.585 SCREW; FRAME ROOF VENTILATOR<C55> 16.586	8-94279-309-0	02	1	9811-	●	●	●	●	●	●
31	16.585 KNOB ASM; ROOF VENTILATOR ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-297-2	01	1	9811-	●	●	●	●	●	●
32	16.585 WASHER; KNOB ROOF VENTILATOR<C55> ID=21.2 OD=36.0	8-94279-632-0	01	1	9811-	●	●	●	●	●	●
33	16.585 WASHER; TUBE,KNOB ROOF VENTILATOR<C55> ID=15.2 OD=23.0	8-94279-605-0	01	1	9811-	●	●	●	●	●	●
34	16.585 WASHER; WAVE,KNOB ROOF VENTILATOR<C55> ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	01	1	9811-	●	●	●	●	●	●
35	16.585 WASHER; PL,KNOB ROOF VENTILATOR<C55> 02.575 ID=15	9-09160-514-0	01	1	9811-	●	●	●	●	●	●
36	16.585 RING; SNAP,PIN ROOF VENTILATOR<C55> 04.681 ID=12	9-09185-412-0	01	1	9811-	●	●	●	●	●	●
37	16.585 LINK; MAIN,ROOF VENTILATOR ROOF VENTILATOR<C55>	8-97868-057-0	01	1	9811-	●	●	●	●	●	●
38	16.585 BOSS; ROOF VENTILATOR ROOF VENTILATOR<C55>	8-94279-074-0	01	1	9811-	●	●	●	●	●	●
40	16.585 LINK; SUB,ROOF VENTILATOR ROOF VENTILATOR<C55>	8-94272-115-3	01	1	9811-	●	●	●	●	●	●
45	16.585 NUT; ROOF VENTILATOR ROOF VENTILATOR<C55> (A) ID=5.9 PUSH NUT	8-97015-036-0	04	1	9811-	●	●	●	●	●	●
45	16.585 NUT; ROOF VENTILATOR ROOF VENTILATOR<C55> 09.011 (B) ID=7.9 PUSH NUT	8-97022-565-0	01	1	9811-	●	●	●	●	●	●

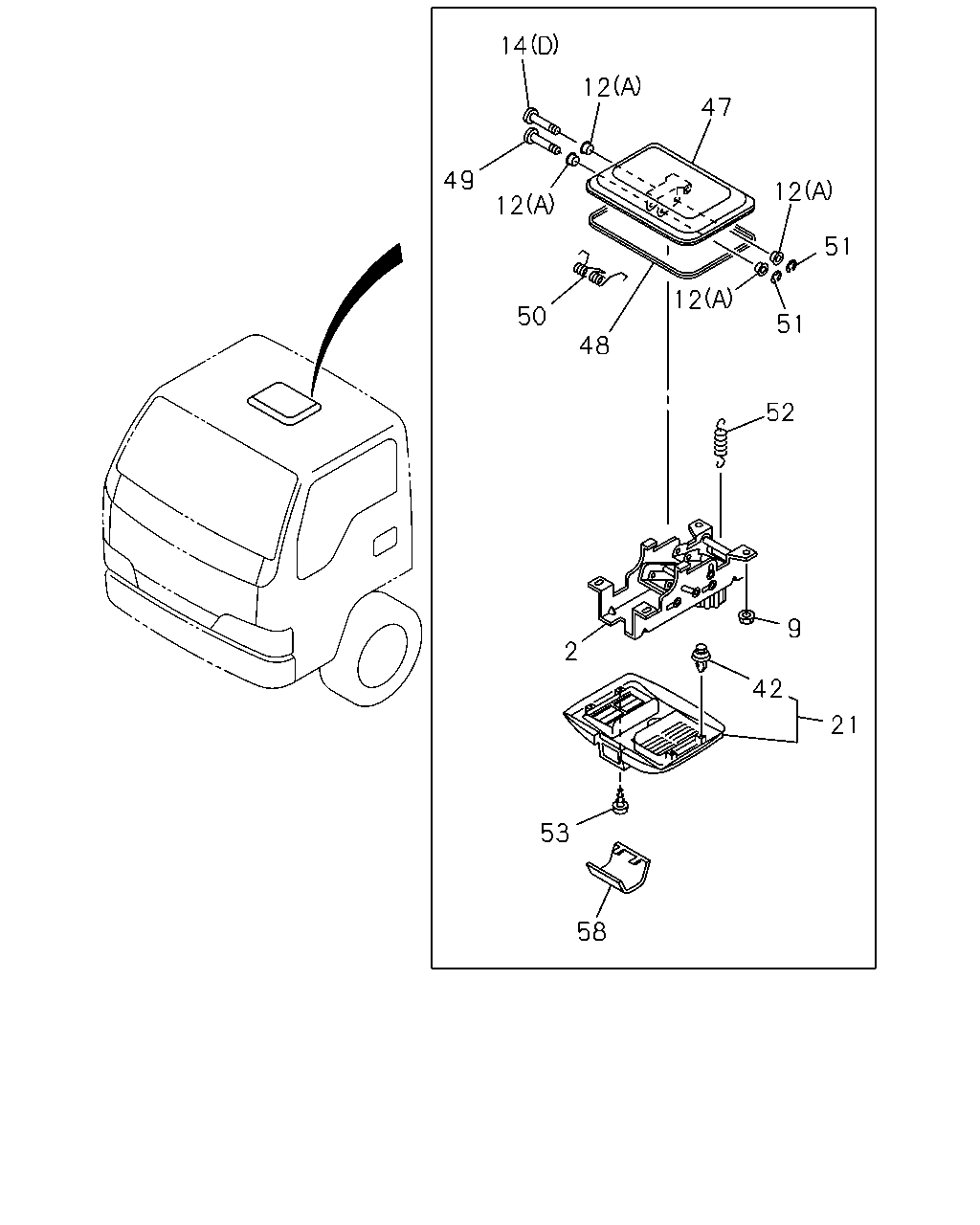

14 12 47 49 12 12 51 12 50 51 48 52 9 2 42 21 53 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.585 FRAME; ROOF VENTILATOR ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-695-2	01	1	9811-	●	●	●	●	●	●
9	16.585 NUT; HOOD ROOF VENTILATOR<C55> 07.633 M8 FLANGE	0-91150-108-0	04	1	9811-	●	●	●	●	●	●
12	16.585 BUSHING; FRAME,ROOF VENTILATOR ROOF VENTILATOR<C55> (A) OD=9.9	8-94279-701-3	04	1	9811-	●	●	●	●	●	●
12	16.585 BUSHING; FRAME,ROOF VENTILATOR ROOF VENTILATOR<C55> (B) OD=8.0	8-94279-908-1	02	1	9811-	●	●	●	●	●	●
14	16.585 PIN; FRAME ROOF VENTILATOR<C55> (D)	8-94279-023-2	01	1	9811-	●	●	●	●	●	●
14	16.585 PIN; FRAME ROOF VENTILATOR<C55> (A)	8-94279-034-0	03	1	9811-	●	●	●	●	●	●
14	16.585 PIN; FRAME ROOF VENTILATOR<C55> (C)	8-94279-086-0	01	1	9811-	●	●	●	●	●	●
14	16.585 PIN; FRAME ROOF VENTILATOR<C55> (B)	8-97890-589-0	01	1	9811-	●	●	●	●	●	●
21	16.585 GRILLE ASM; ROOF VENT ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-181-1	01	1	9811-	●	●	●	●	●	●
21	16.585 GRILLE ASM; ROOF VENT ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-783-0	01	1	9811-	●	●	●	●	●	●
42	16.585 CLIP; GRILLE,ROOF VENT ROOF VENTILATOR<C55>	1-09987-119-1	04	1	9811-	●	●	●	●	●	●
47	16.585 LID; ROOF VENTILATOR ROOF VENTILATOR<C55>	8-94272-109-5	01	1	9811-	●	●	●	●	●	●
48	16.585 SEAL; ROOF VENTILATOR ROOF VENTILATOR<C55>	8-94272-329-2	01	1	9811-	●	●	●	●	●	●
49	16.585 PIN; LINK TO LID ROOF VENTILATOR<C55>	8-94279-026-2	01	1	9811-	●	●	●	●	●	●
50	16.585 SPRING; SUB LINK ROOF VENTILATOR<C55>	8-94279-027-0	01	1	9811-	●	●	●	●	●	●
51	16.585 RING; SNAP,ROOF VENT ROOF VENTILATOR<C55> 04.040 ID=6	9-09185-406-0	02	1	9811-	●	●	●	●	●	●
52	16.585 SPRING; LID,ROOF VENTILATOR ROOF VENTILATOR<C55>	8-94279-024-1	02	1	9811-	●	●	●	●	●	●
53	16.585 SCREW; GRILLE,ROOF VENTILATOR ROOF VENTILATOR<C55> 16.588 M6X16 W/LK&PL WASHER	1-09981-426-0	01	1	9811-	●	●	●	●	●	●
58	16.585 COVER; GRILLE,ROOF VENT ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-183-1	01	1	9811-	●	●	●	●	●	●
