Isuzu WW
▶
BUSES
▶
MT
▶
10650 - MT111,112
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶

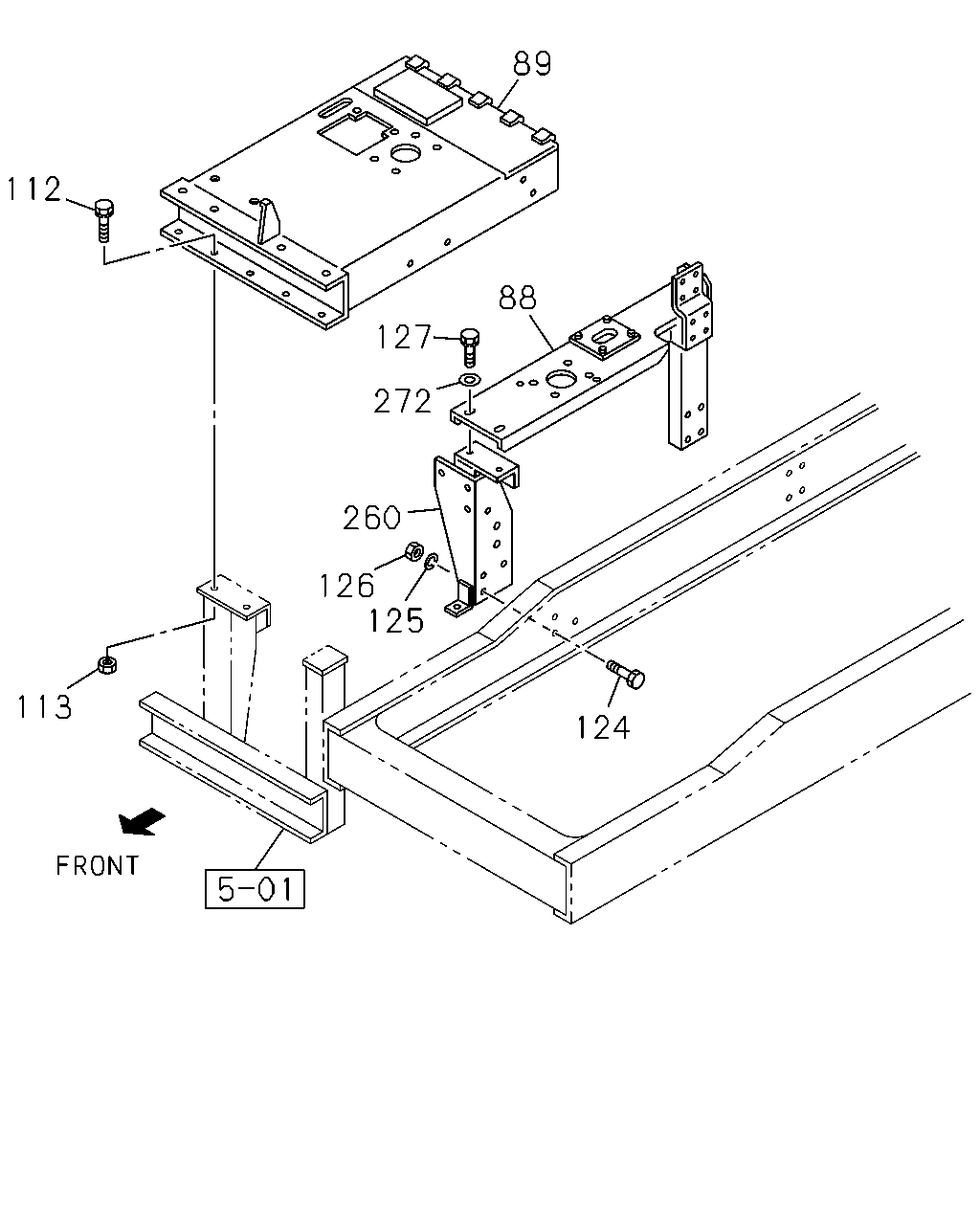

6-70 — FLOOR PANEL
(#2248) — 22 parça
Tümü
A - MTR5FB
B - MTR6FB
89
112
88
127
272
260
126
125
113
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
88
BOARD ASM; FLOOR
1-62101-134-5
01
1
9101-
●
88
BOARD ASM; FLOOR
1-62101-136-4
01
1
9101-
●
89
BOARD ASM; PEDAL
BUS USER THAILAND BMTA<D5B>
1-65600-416-4
01
1
9101-0203
●
89
BOARD ASM; PEDAL
THAILAND EQUIPMENT(PM9)
1-65600-416-4
01
1
9101-0203
●
89
BOARD ASM; PEDAL
EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9)
1-65600-351-8
01
1
9101-0203
●
89
BOARD ASM; PEDAL
1-65600-351-8
01
1
9101-0203
●
89
BOARD ASM; PEDAL
1-65600-351-8
01
1
0204-
●
●
112
BOLT; PEDAL BOARD
M12X30 W/LK WASHER
0-50041-230-0
01
1
9101-
●
●
113
NUT; PEDAL BOARD
M12
9-99110-512-0
01
1
9101-
●
●
124
BOLT; STAY TO FRAME
M12X32
9-92061-232-0
01
1
9101-
●
124
BOLT; STAY TO FRAME
M12X32
9-92061-232-0
03
1
9101-
●
●
124
BOLT; STAY TO FRAME
M12X35
9-92061-235-0
04
1
9101-
●
●
125
WASHER; LK,STAY
ID=12.2
9-09150-612-0
03
1
9101-
●
●
125
WASHER; LK,STAY
ID=12.2
9-09150-612-0
04
1
9101-
●
●
126
NUT; STAY TO FRAME
M12
9-99110-512-0
06
1
9101-0203
●
●
126
NUT; STAY TO FRAME
M12
9-99110-512-0
03
1
0204-
●
●
127
BOLT; STAY,FLOOR BOARD
M12X30 W/LK WASHER
0-50041-230-0
02
1
9101-
●
127
BOLT; STAY,FLOOR BOARD
M10X35 W/LK WASHER
0-50041-035-0
04
1
9101-
●
●
127
BOLT; STAY,FLOOR BOARD
M12X30 W/LK WASHER
0-50041-230-0
04
1
9101-
●
260
STAY; PEDAL BOARD REINF
1-65900-004-2
01
1
9101-
●
260
STAY; PEDAL BOARD REINF
1-65900-005-2
01
1
9101-
●
272
WASHER; PL,STAY,FLOOR BOARD
ID=12.5 OD=26
9-09164-612-0
02
1
9101-
●
●
