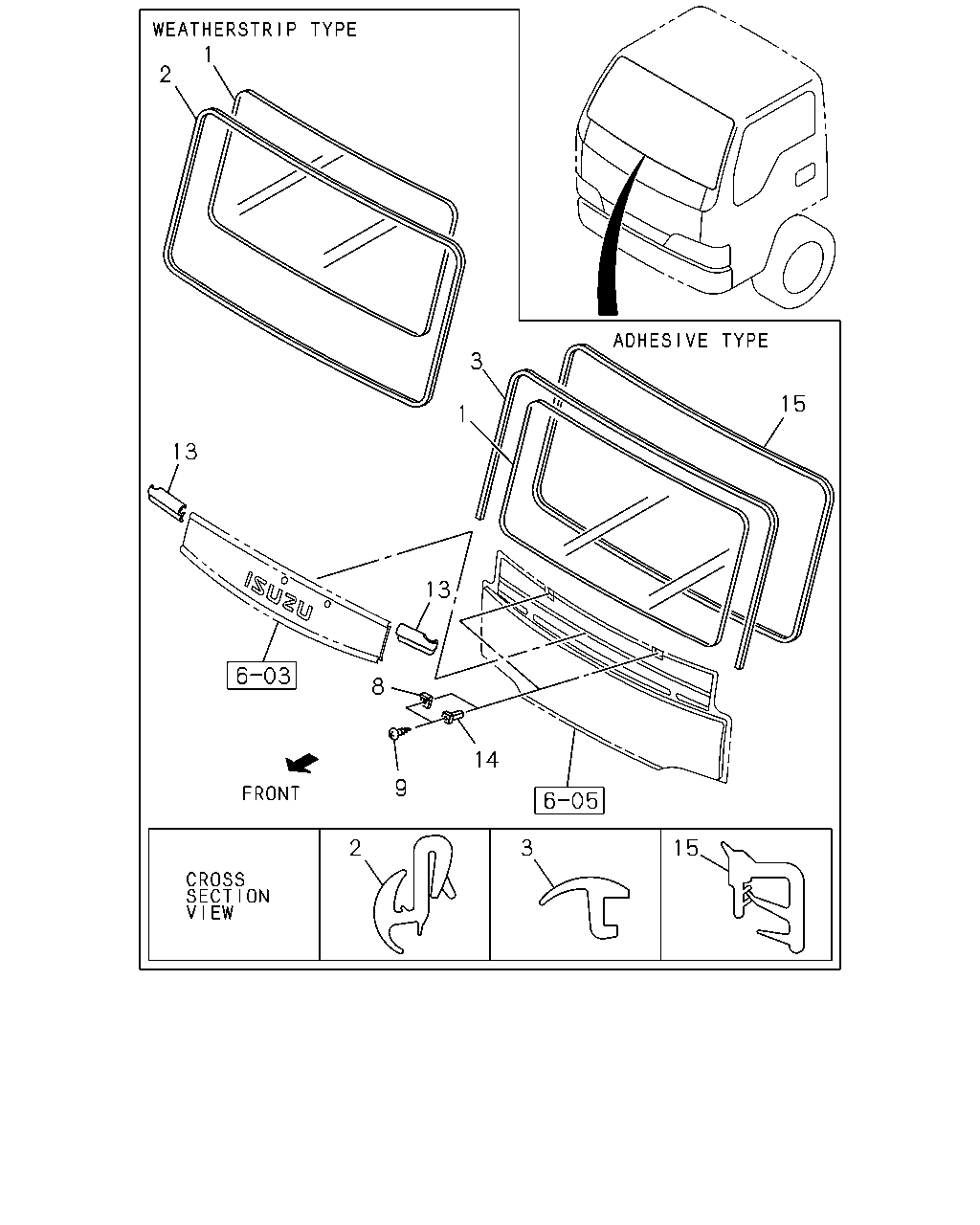

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#22469) — 12 parça

1 2 3 15 1 13 13 8 14 9 2 3 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.005 GLASS; WINDSHIELD SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S), ISRAEL EQUIPMENT(7LX) T=6.3	8-97869-127-0	01	1	9811-	●	●	●	●	●	●
1	16.005 GLASS; WINDSHIELD EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) T=6.3	8-97869-126-0	01	1	9811-	●	●	●	●	●	●
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-350-3	01	1	9811-	●	●	●	●	●	●
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-215-1	01	1	9811-	●	●	●	●	●	●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97859-215-0	02	1	9811-	●	●	●	●	●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-0	02	1	9811-						●
9	16.041 SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	9811-	●	●	●	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	9811-	●	●	●	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	9811-	●	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK	8-94279-714-0	04	1	9811-	●	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9811-						●
15	16.041 FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97857-048-4	01	1	9811-	●	●	●	●	●	●
