◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#2246) — 37 parça

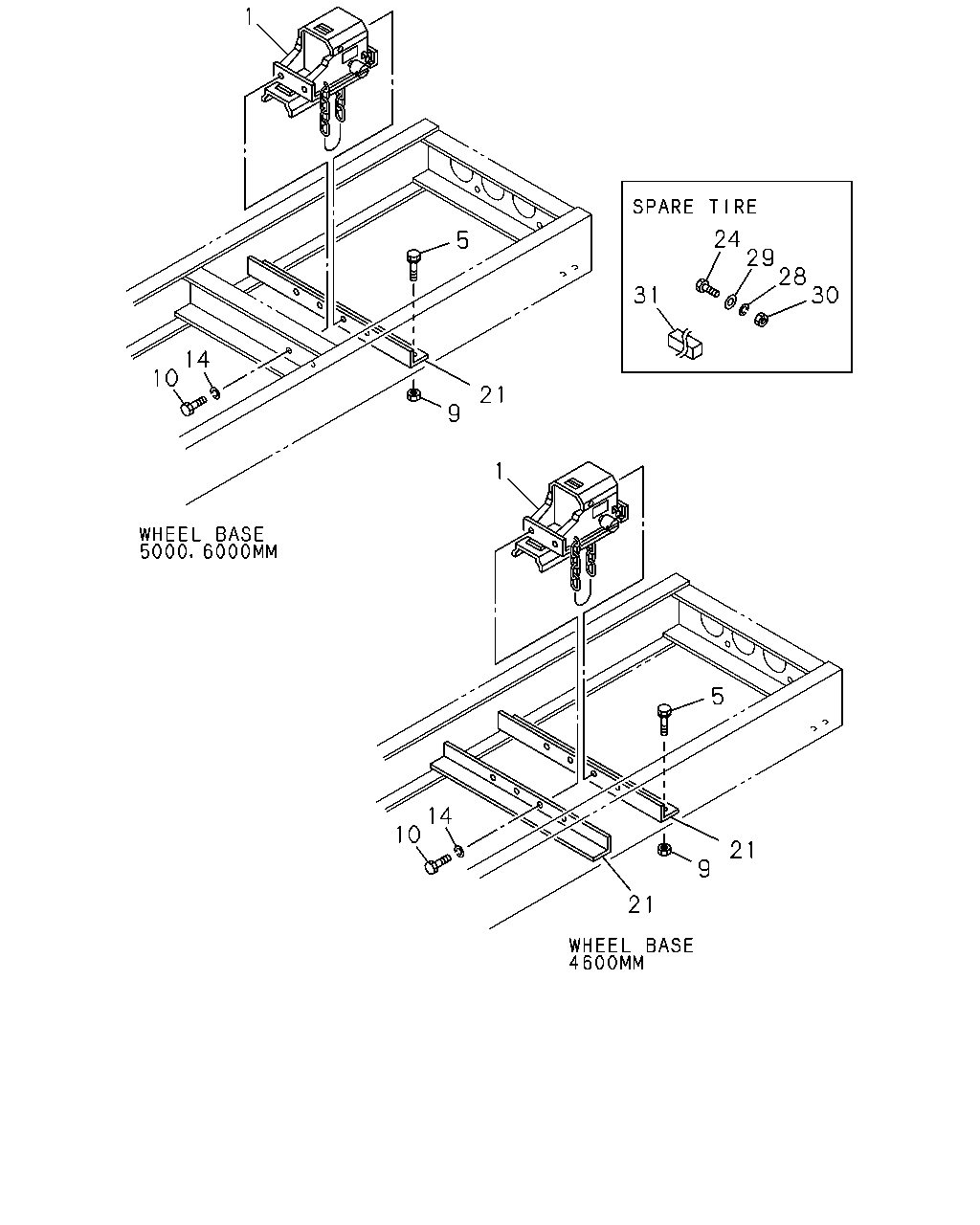

çizim 95157
1 24 29 28 30 5 31 14 10 21 9 1 5 14 10 21 9 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53630-147-2 01 1 9101- ● ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 4600MM(46W) SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9101-9205 ● ●
5 BOLT; BRKT TO FRAME
USER DAEWOO MOTORS<D4S> SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9101-9205 ● ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 4600MM(46W) SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9206-0203 ● ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 5000MM(50W) USER DAEWOO MOTORS<D4S> SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9206-0203 ● ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 4600MM(46W) SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 W/LK WASHER 		0-50041-025-0 08 1 0204- ● ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 5000MM(50W) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. USER DAEWOO MOTORS<D4S> M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9205 ● ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. USER DAEWOO MOTORS<D4S> M10X25 W/LK WASHER 		0-50041-025-0 04 1 9206-0203 ● ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 W/LK WASHER 		0-50041-025-0 04 1 0204- ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 4600MM(46W) SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-410-0 08 1 9101-9205 ● ●
9 NUT; BRKT TO FRAME
USER DAEWOO MOTORS<D4S> SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-410-0 08 1 9101-9205 ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 4600MM(46W) SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-410-0 08 1 9206-9307 ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5000MM(50W) USER DAEWOO MOTORS<D4S> SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-410-0 08 1 9206-9307 ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 4600MM(46W) SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9308-0203 ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5000MM(50W) USER DAEWOO MOTORS<D4S> SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9308-0203 ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 4600MM(46W) SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 0204- ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5000MM(50W) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. USER DAEWOO MOTORS<D4S> M10 		9-09110-410-0 04 1 9101-9205 ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. USER DAEWOO MOTORS<D4S> M10 		9-09110-410-0 04 1 9206-9307 ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. USER DAEWOO MOTORS<D4S> M10 		9-09110-510-0 04 1 9308-0203 ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 04 1 0204- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M16X30 		0-20801-630-0 04 1 9101- ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> ID=16.2 		9-09150-516-0 04 1 9101- ● ●
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4600MM(46W) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-237-0 02 1 9101-9205 ● ●
21 BRACKET; SPARE TIRE HANGER
USER DAEWOO MOTORS<D4S> SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-237-0 02 1 9101-9205 ● ●
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4600MM(46W) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-237-0 02 1 9206-0203 ● ●
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 5000MM(50W) USER DAEWOO MOTORS<D4S> SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-237-0 02 1 9206-0203 ● ●
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4600MM(46W) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-237-0 02 1 0204- ● ●
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 5000MM(50W) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. USER DAEWOO MOTORS<D4S> 		1-53631-237-0 01 1 9101-9205 ● ●
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) SPARE WHEEL CARRIER FRAME REAR<P10> EXC. USER DAEWOO MOTORS<D4S> 		1-53631-237-0 01 1 9206-0203 ● ●
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-237-0 01 1 0204- ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14X80 		9-92041-480-0 02 1 9101-9204 ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14X80 		0-20801-480-0 02 1 9205-0203 ● ●
28 WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3> ID=14.2 		9-09150-614-0 02 1 9101-0203 ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> ID=15 OD=52 		9-09164-414-0 02 1 9101-9608 ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> ID=15 OD=52 		9-09164-814-0 02 1 9609-0203 ● ●
30 NUT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14 		9-99110-414-0 02 1 9101-0203 ● ●
31 SPACER; HANGER BRKT
SPARE TIRE FIXING<RE3> SPARE TIRE & DISC WHEEL RR<R46> 		1-53637-007-0 02 1 9101-0203 ● ●
