Isuzu WW
▶
TRUCKS
▶
FSR
▶
11227 - FSR(CNG)AUSTRALIA
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#22457) — 33 parça
◀
[378A] NO.2 (10 parça)
[378A] NO.3 (11 parça)
[378A] NO.1 (12 parça)
▶

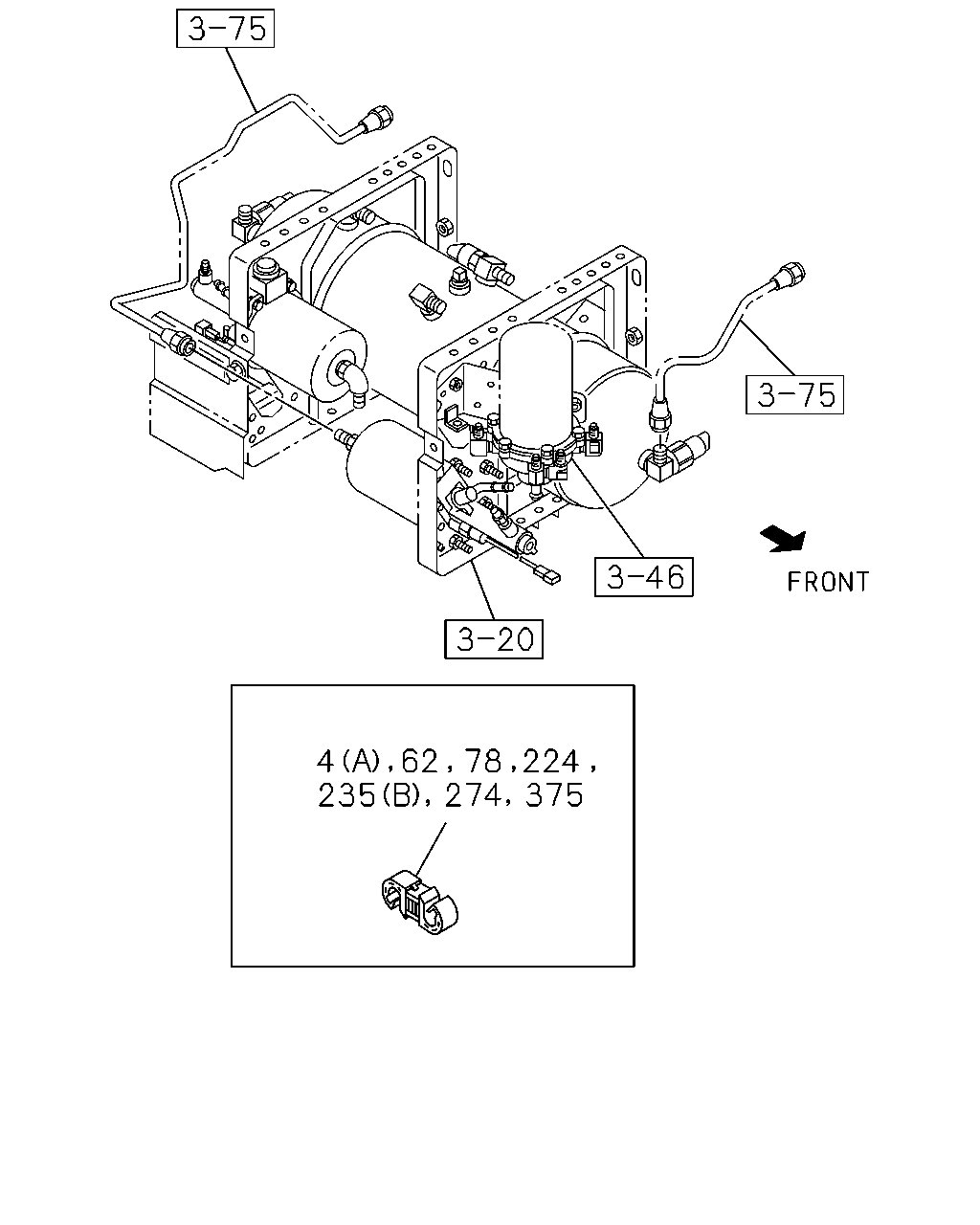

4
62
78
224
235
274
375
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
0907-
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
0907-
62
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
0907-
78
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
01
1
0907-
224
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
0907-
224
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
03
1
0907-
235
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
01
1
0907-0908
235
CLIP; AIR PIPE
(A) ID=11 H=20 L=20
8-98033-780-0
05
1
0907-
274
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
01
1
0907-
375
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
0907-

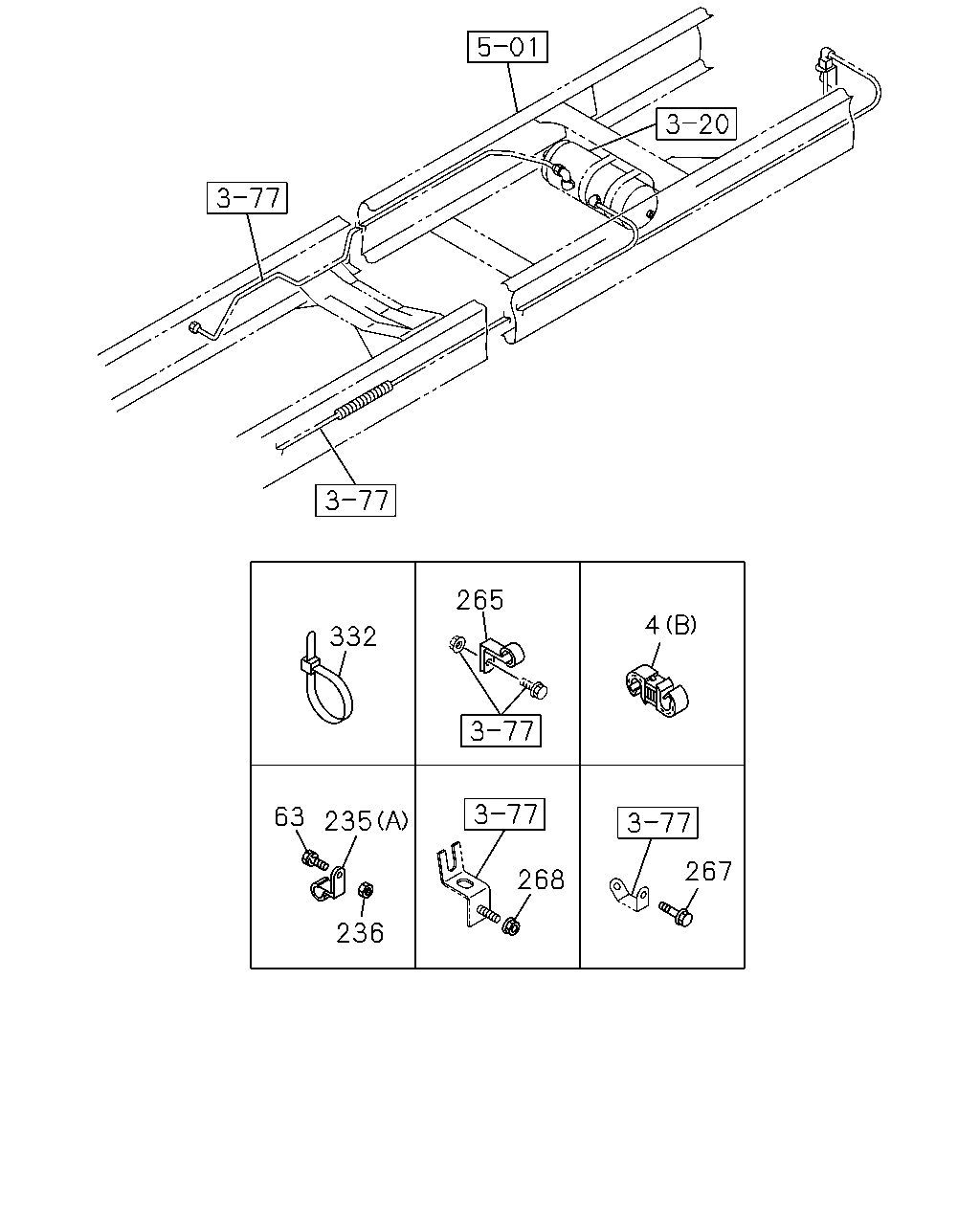

265
4
332
63
235
267
268
236
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
0907-
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
0907-
63
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
05
1
0907-
235
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
01
1
0907-0908
235
CLIP; AIR PIPE
(A) ID=11 H=20 L=20
8-98033-780-0
05
1
0907-
236
NUT; CLIP
M8 FLANGE
0-91180-108-0
05
1
0907-
265
CLIP; NYLON TUBE
ID=21 H=25.5 L=26
8-94176-806-0
01
1
0907-
267
BOLT; CLIP BRKT
M10X30 FLANGE
0-28651-030-0
01
1
0907-
268
NUT; CLIP BRKT
M10 FLANGE
0-91180-210-0
01
1
0907-1001
268
NUT; CLIP BRKT
M10 FLANGE
0-91180-210-0
02
1
1002-
332
CLIP; BAND
L=250
1-09707-126-0
05
1
0907-

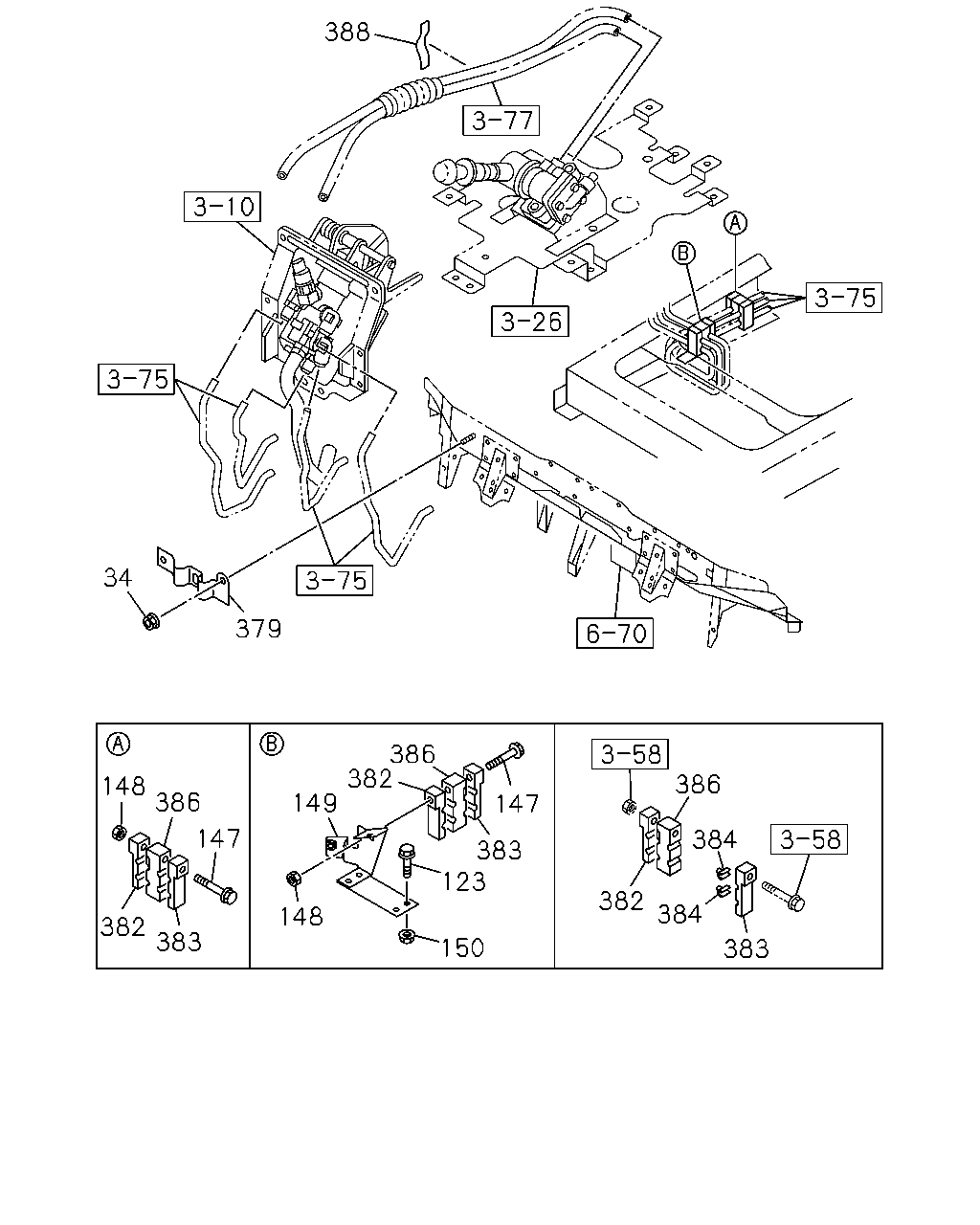

388
34
379
386
382
149
386
148
386
147
147
384
383
123
382
384
148
382
383
150
383
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
0907-
123
BOLT; PIPE CLIP
M8X25 FLANGE
0-28650-825-0
02
1
0907-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
04
1
0907-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
04
1
0907-
149
BRACKET; PIPE CLIP
8-98052-170-1
01
1
0907-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
0907-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
0907-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
06
1
0907-
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
06
1
0907-
384
COLLAR
ID=6
1-47459-010-0
06
1
0907-
386
CLIP; CENTER
ID=10
1-09709-242-0
06
1
0907-
388
SEAL
100X40
1-72498-022-1
03
1
0907-
