3-75 — BRAKE PIPING; AIR,FRONT (#22455) — 34 parça

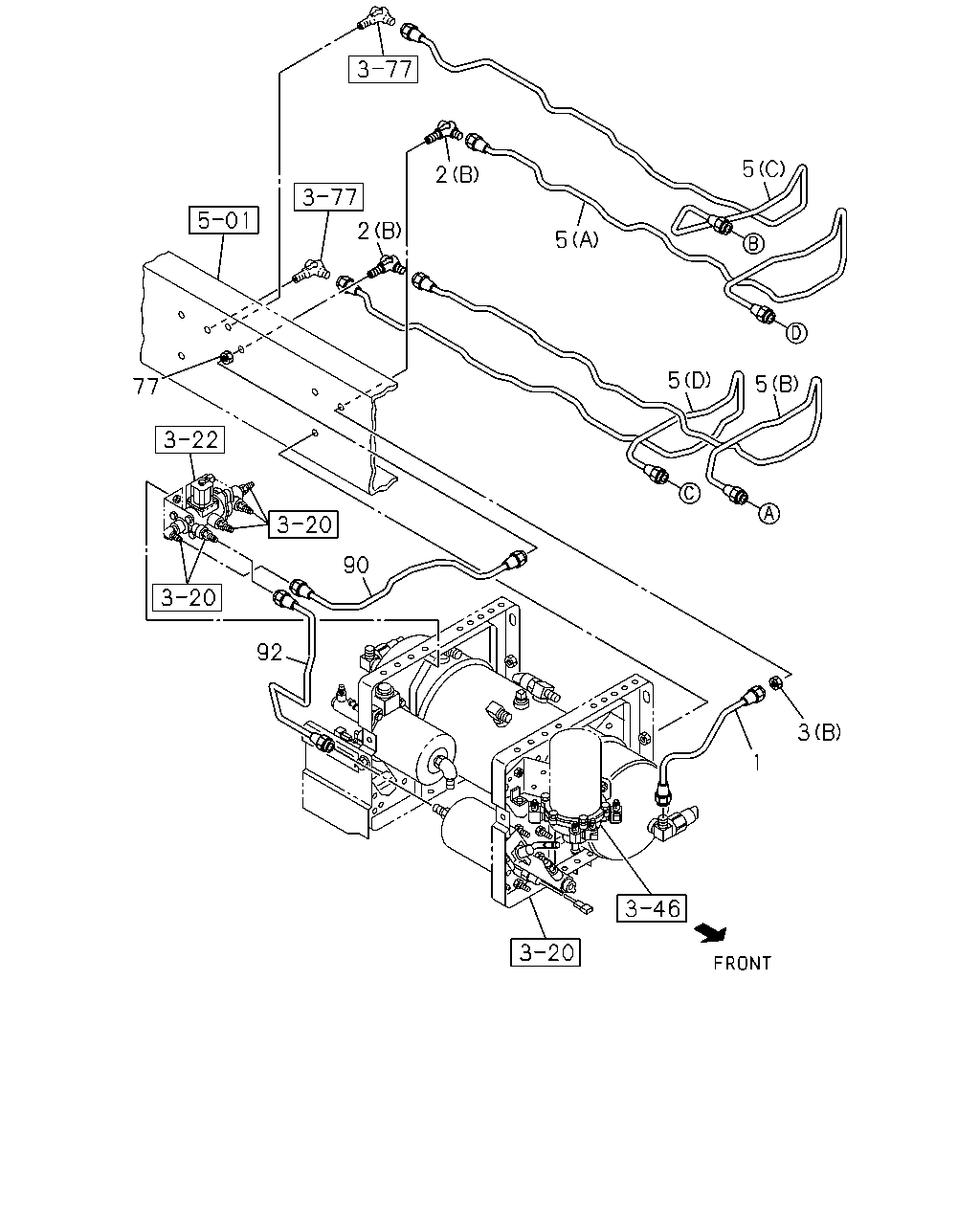

çizim 63240
5 2 2 5 5 5 77 90 92 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0907-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0907-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0907-
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0907-
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0907-
5 PIPE; AIR,UNION TO UNION
(A) L=1982 SERVICED BY L=2100 		1-47428-882-0 01 1 0907-
5 PIPE; AIR,UNION TO UNION
(B) L=2357 SERVICED BY L=2500 		1-47428-883-0 01 1 0907-
5 PIPE; AIR,UNION TO UNION
(C) L=2227 SERVICED BY L=2500 		1-47428-883-0 01 1 0907-
5 PIPE; AIR,UNION TO UNION
(D) L=2456 SERVICED BY L=2500 		1-47428-883-0 01 1 0907-1209
5 PIPE; AIR,UNION TO UNION
(D) L=2452 SERVICED BY L=2500 		1-47428-883-0 01 1 1210-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0907-
90 PIPE; AIR,UNION TO HSA VLV
L=493 		8-98077-878-0 01 1 0907-
92 PIPE; AIR,HSA VLV TO AIR MASTER
L=513 SERVICED BY L=550 		1-47428-867-0 01 1 0907-

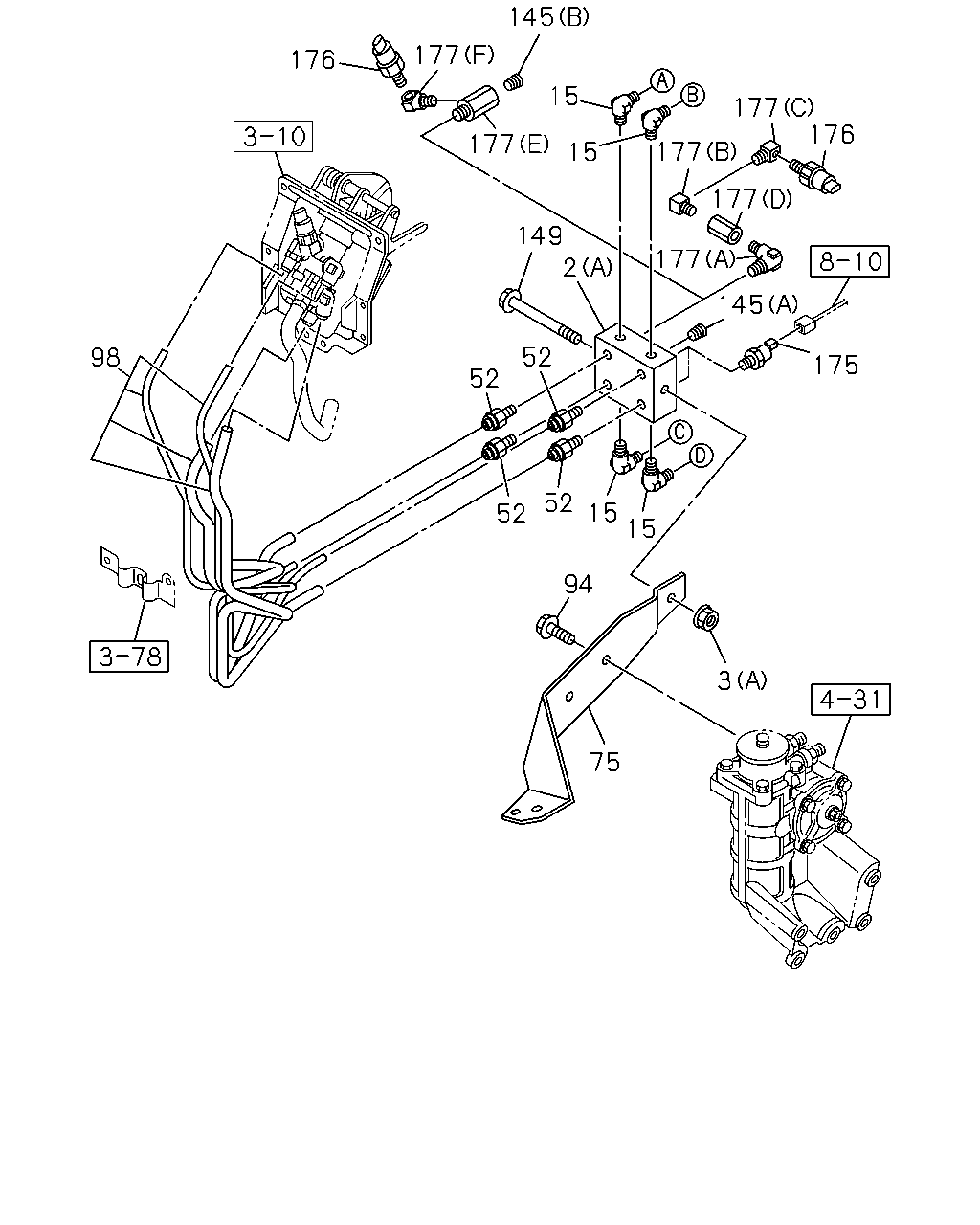

çizim 63242
145 177 176 15 177 176 177 177 15 177 149 2 177 145 52 98 175 52 52 15 52 15 94 3 75
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0907-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0907-
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0907-
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0907-
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0907-
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0907-
75 BRACKET; UNION 8-98066-785-0 01 1 0907-
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0907-0911
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 0912-
98 TUBE; NYLON 8-98079-179-0 01 1 0907-
145 PLUG
(B) PT1/2 		9-09204-521-0 01 1 1008-
145 PLUG
(A) PT1/4 		9-99204-513-0 01 1 0907-
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0907-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0907-
176 SWITCH; AIR PRESS
STAMP 0.7 		8-97622-710-0 01 1 0907-
177 CONNECTOR
(A) 		1-09650-433-0 01 1 0907-1007
177 CONNECTOR
(E) 		8-98134-010-0 01 1 1008-
177 CONNECTOR
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0907-1007
177 CONNECTOR
(F) PT1/4 2WAY 		1-09660-693-0 01 1 1008-
177 CONNECTOR
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0907-1007
177 CONNECTOR
(D) 		1-09660-881-0 01 1 0907-1007
