Isuzu WW
▶
TRUCKS
▶
FSR
▶
11227 - FSR(CNG)AUSTRALIA
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#22453) — 15 parça
◀

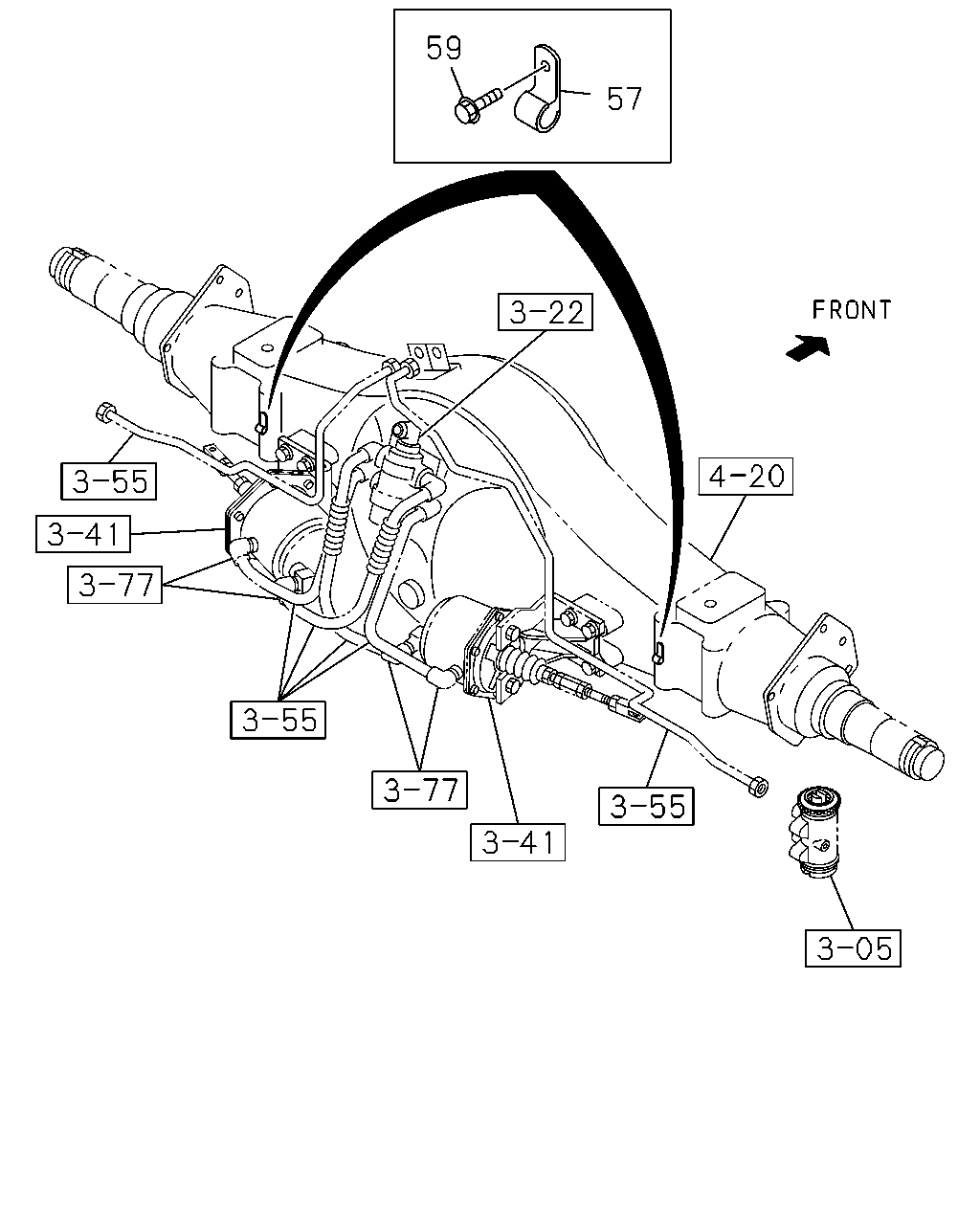

[358A] REAR AXLE SIDE (2 parça)

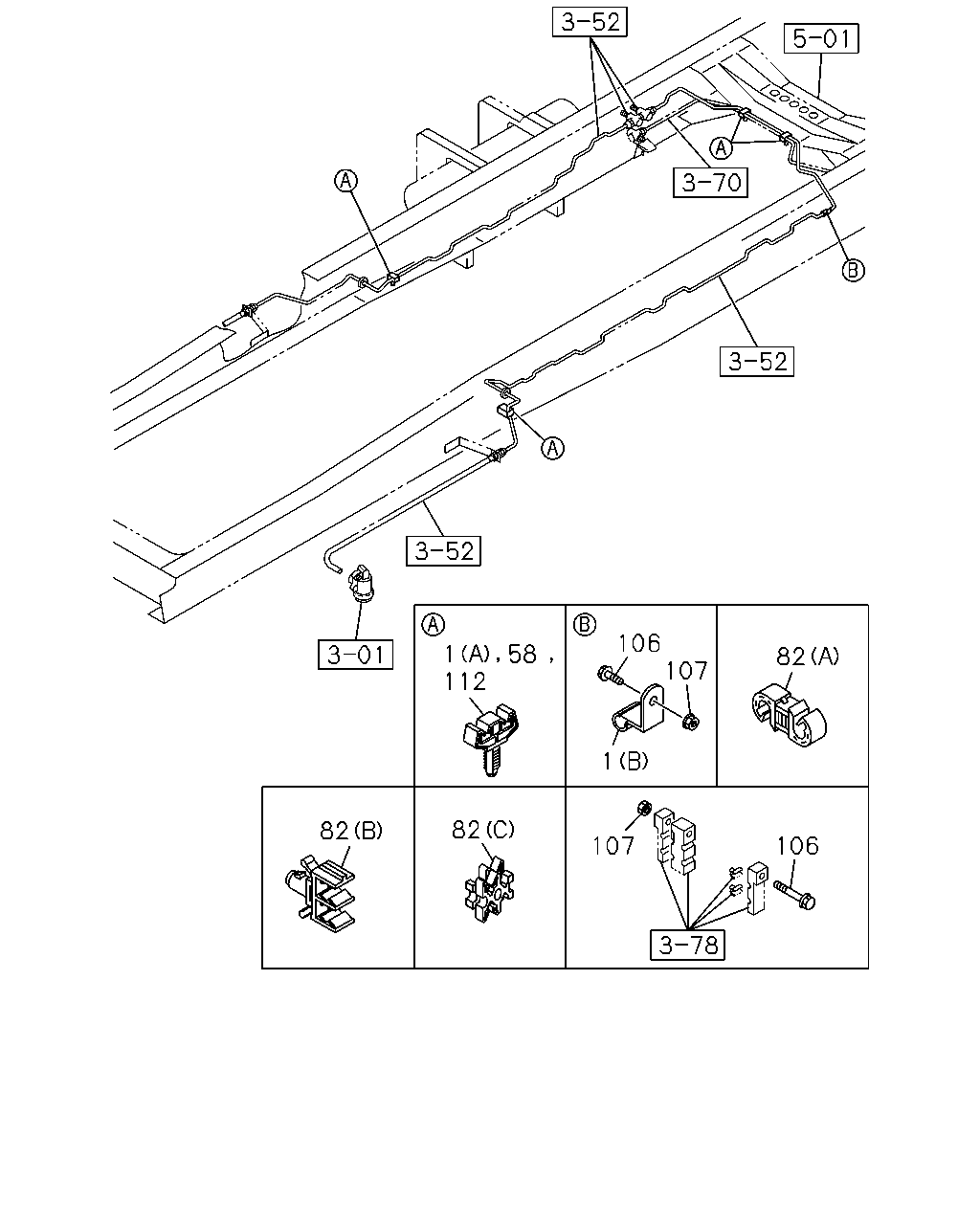

[358A] FRAME SIDE (13 parça)
▶
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
02
1
0907-
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
02
1
0907-
106
107
112
82
1
82
82
107
106
1
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
01
1
0907-
1
CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20
8-98040-714-0
04
1
0907-
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
03
1
0907-
58
CLIP; OIL PIPE
8-98012-254-1
05
1
0907-
82
CLIP; OIL PIPE
(A) ID=4.76 & 10.0
1-09709-305-0
01
1
0907-
82
CLIP; OIL PIPE
(C) ID=4.7X4
1-09701-304-0
03
1
0907-
82
CLIP; OIL PIPE
(A) ID=4.76 & 6.35
1-09709-304-0
03
1
0907-
82
CLIP; OIL PIPE
(B) ID=4.8X2
8-94316-410-0
01
1
0907-
106
BOLT; CLIP,OIL PIPE
M8X70 FLANGE
0-28050-870-0
02
1
0907-
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
04
1
0907-
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
02
1
0907-
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
04
1
0907-
112
CLIP; OIL PIPE
8-98012-254-1
06
1
0907-
